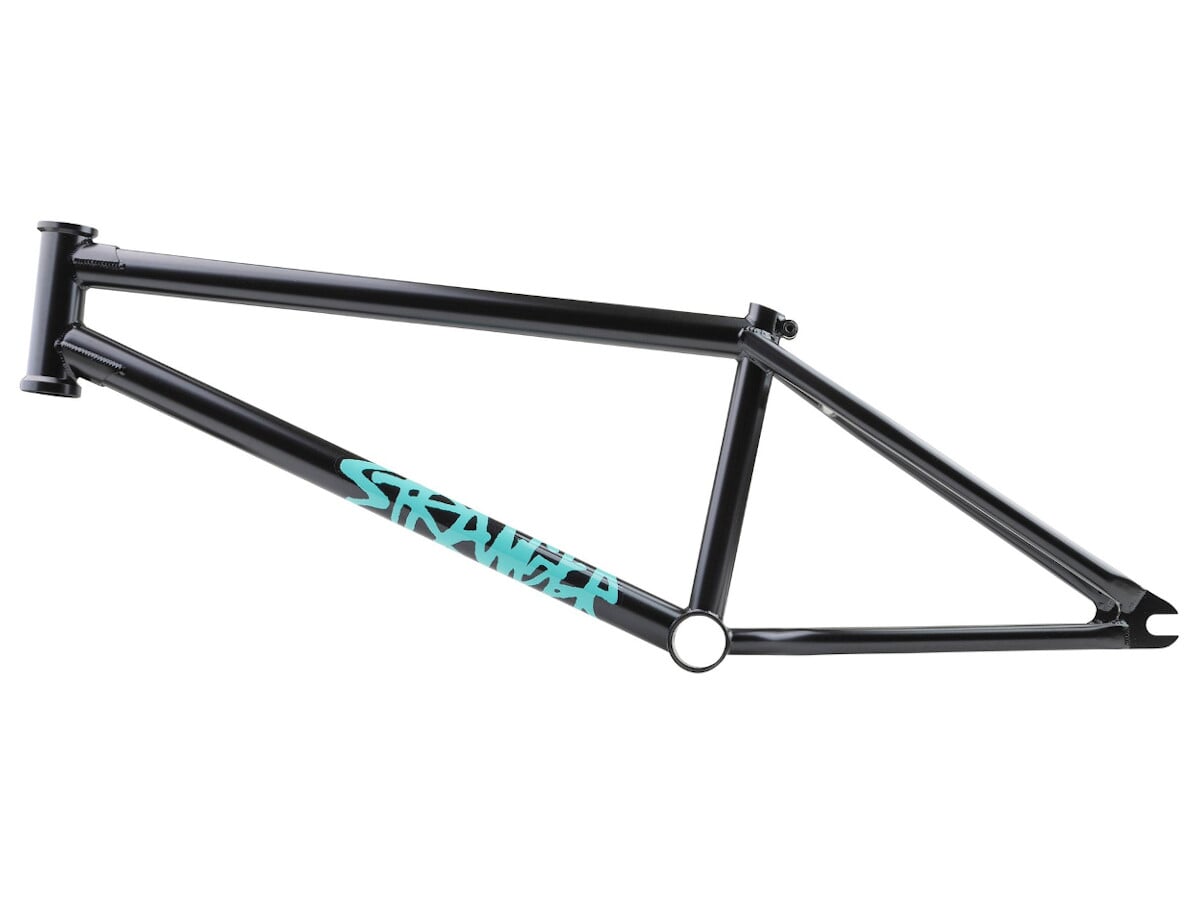

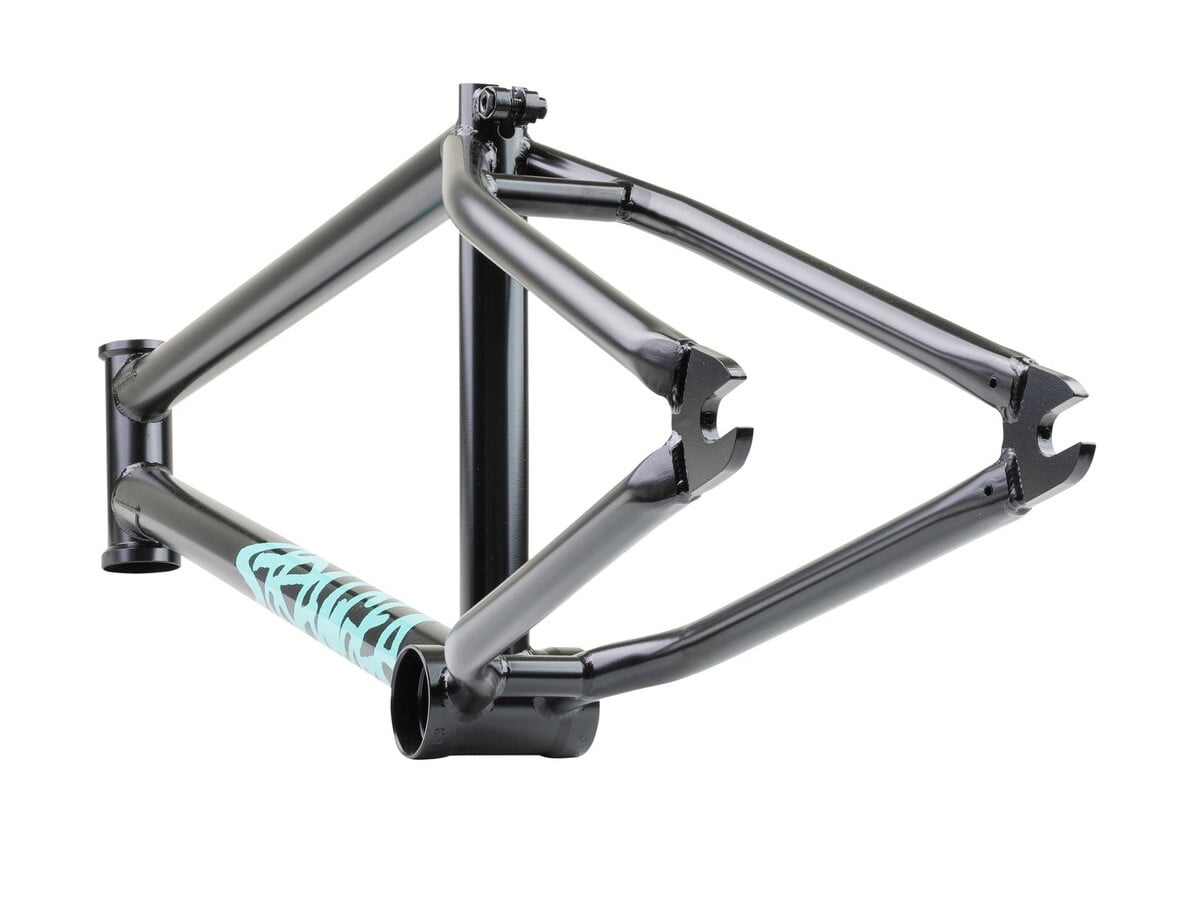

Stranger "Piston V2" BMX Frame - Brakeless
-
Weight : 2.38kg / 5.25lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24640

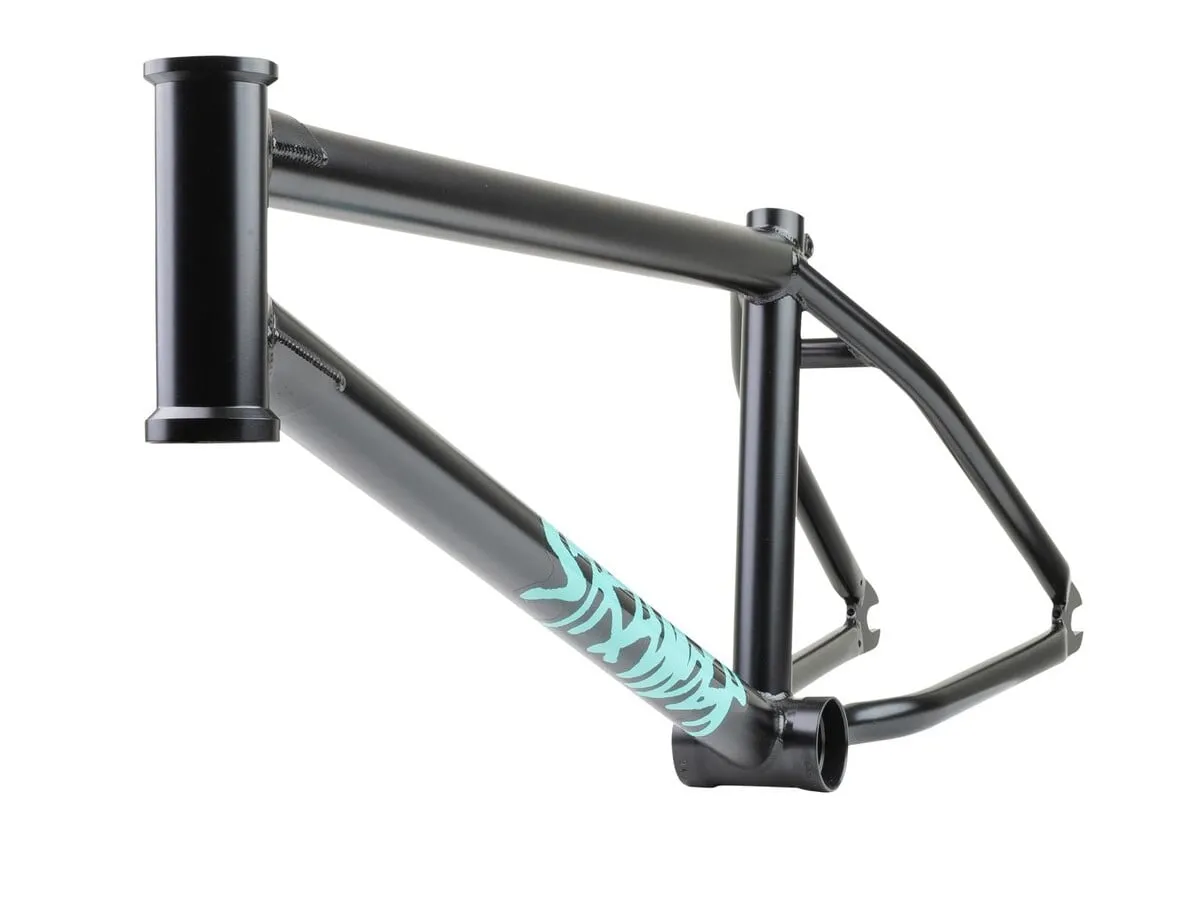

The Stranger "Piston V2" BMX Frame - Brakeless is the signature frame of Connor Keating, which comes with a 127mm long head tube. Thus, a shortening of the steerertube or a spacer tower is no longer necessary. The Stranger "Piston V2" BMX Frame - Brakeless is a brakeless frame, which comes with a rear end length of 12.6"(slammed) and thus comes very close to nowadays riding style.
Facts: Stranger "Piston V2" BMX Frame - Brakeless
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 20.75"
Chainstay Length (CS): 12.6" (32cm) - 13.1" (33.27cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

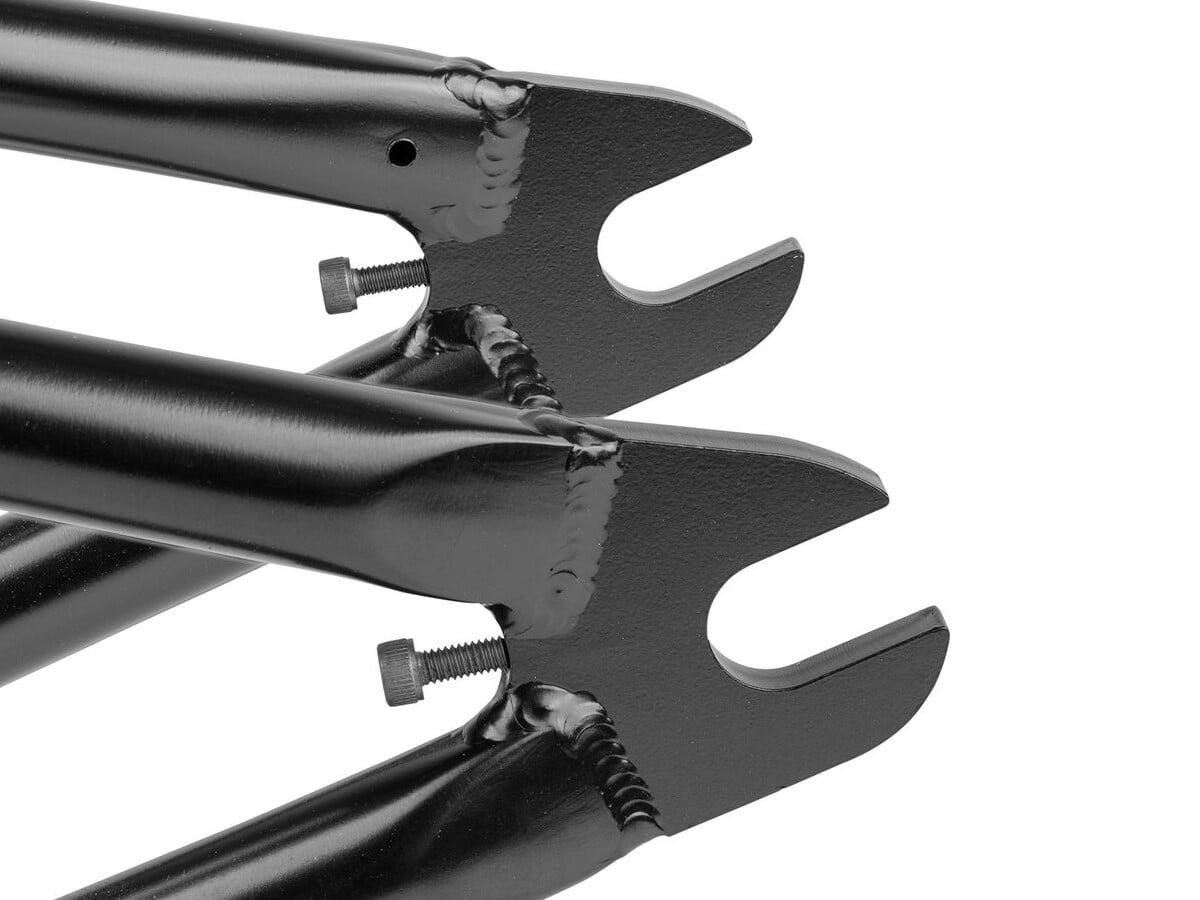

- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Connor Keating Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2022
