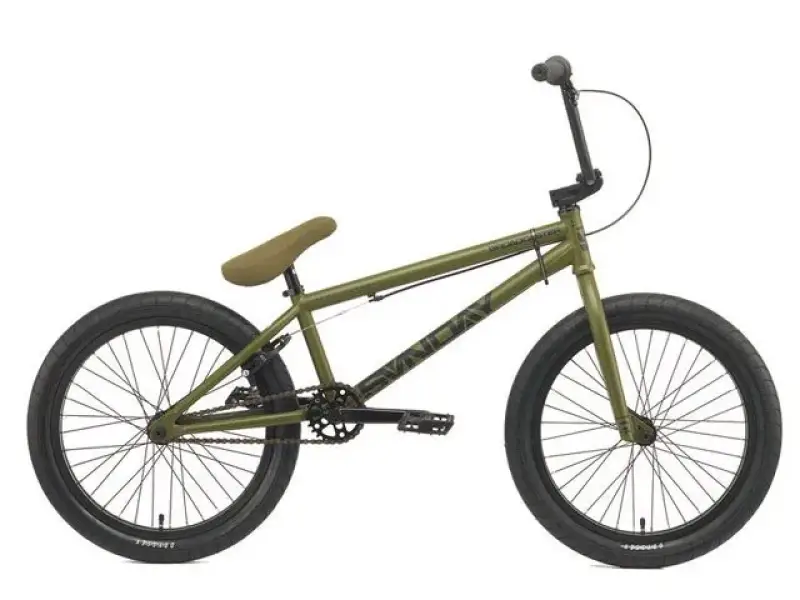

Sunday Bikes "Broadcaster" 2014 BMX Bike
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 11.53kg / 25.42lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Product ID (PID): 5549
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Sunday Bikes "Broadcaster" 2014 BMX Bike could be one of the best looking bikes of the year. This bike is designed for any technical type of rider. For this year, they changed the head tube angle to 75˚ while keeping the backend extra short for easier spins and tailwhips. It’s expert level Sunday & Odyssey parts package rounds out the Sunday Bikes "Broadcaster" 2014 BMX Bike.
Facts: Sunday Bikes "Broadcaster" 2014 BMX Bike
- BMX Frame: Sunday "Broadcaster" Frame, 100% 4130 CrMo, hollow dropouts
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13"
- Head Tube (HA): 75°
- Seat Tube (SA): 71°
- BB Height: 11.5"
- Standover: 8.25" - BMX Fork: Sunday "EX Plus" Fork, 4130 CrMo, 1-piece steerer
- BMX Bar: Sunday "Triumph XL Replica" Bar, 4130 CrMo
- Height: 8.5"
- Width: 28"
- Backsweep: 12°
- Upsweep: 1° - Grips: Odyssey "Dugan" Grips
- Stem: Sunday "Freeze" Stem, Topload, 52mm
- Headset: Sunday, integrated
- Brake Lever: Odyssey "Monolever" Brake Lever, Medium
- Brake: Odyssey "Springfield" Brake
- Bottom Bracket: MidBB, sealed bearing, 19mm
- Pedals: Odyssey "Twisted PC" Pedals, Plastic
- Chain: KMC "Z-510HX" Chain

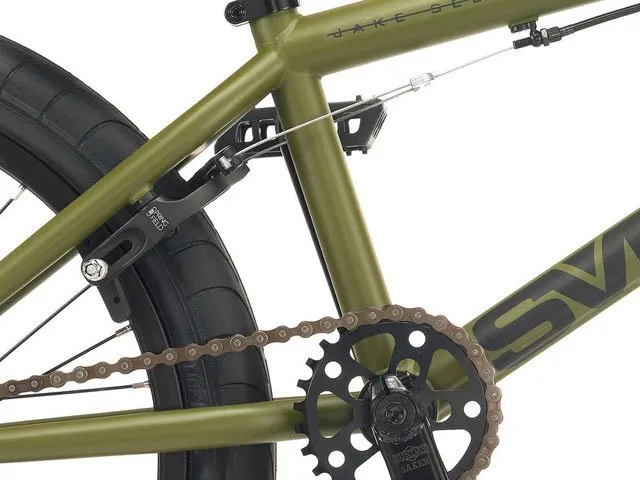

- Sprocket: Odyssey "C-512" Sprocket, Chase Hawk Signature, 7075-T6 alloy, CNC'd, 27T
- Crank: Sunday "Saker" Crank, 175mm

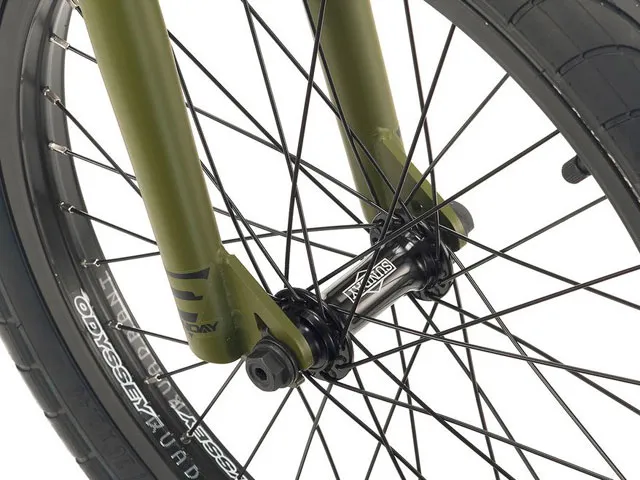

- Hub (front): Sunday "Storm" Hub, sealed bearing, 3/8" female axle, 36H

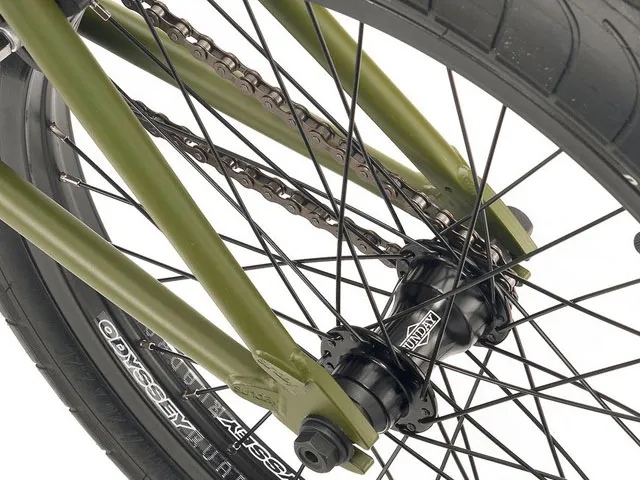

- Hub (rear): Sunday "Storm" Hub, sealed bearing, 3/8" female axle, 36H
- Driver: 9T - Rim (front): Odyssey "Quadrant" Rim, 36H
- Rim (rear): Odyssey "Quadrant" Rim, 36H
- Seat: Odyssey "Monogram" Seat
- Seat Post: Odyssey "Tripod" Seatpost
- Seat Clamp: Sunday
- Tire (front): Odyssey "Hawk" Tire
- Width: 20" x 2.4" - Tire (rear): Odyssey "Hawk" Tire
- Width: 20" x 2.4" - Pegs: -
