Tange Threaded Headset (EC) - 1 Inch
- Weight : 0.08kg / 0.18lbs
- Packaging Unit: 1 Set
- Product ID (PID): 44154
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

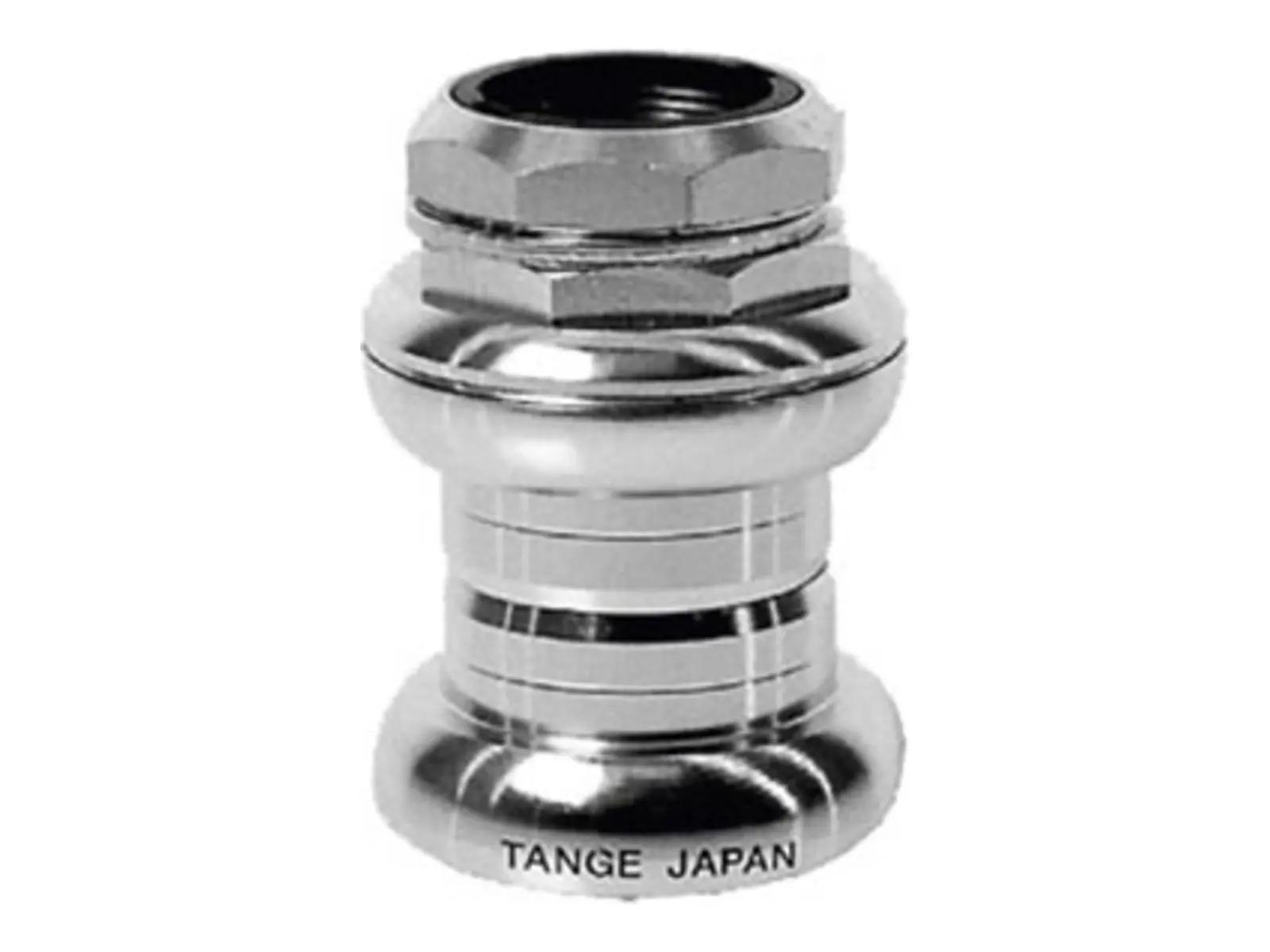

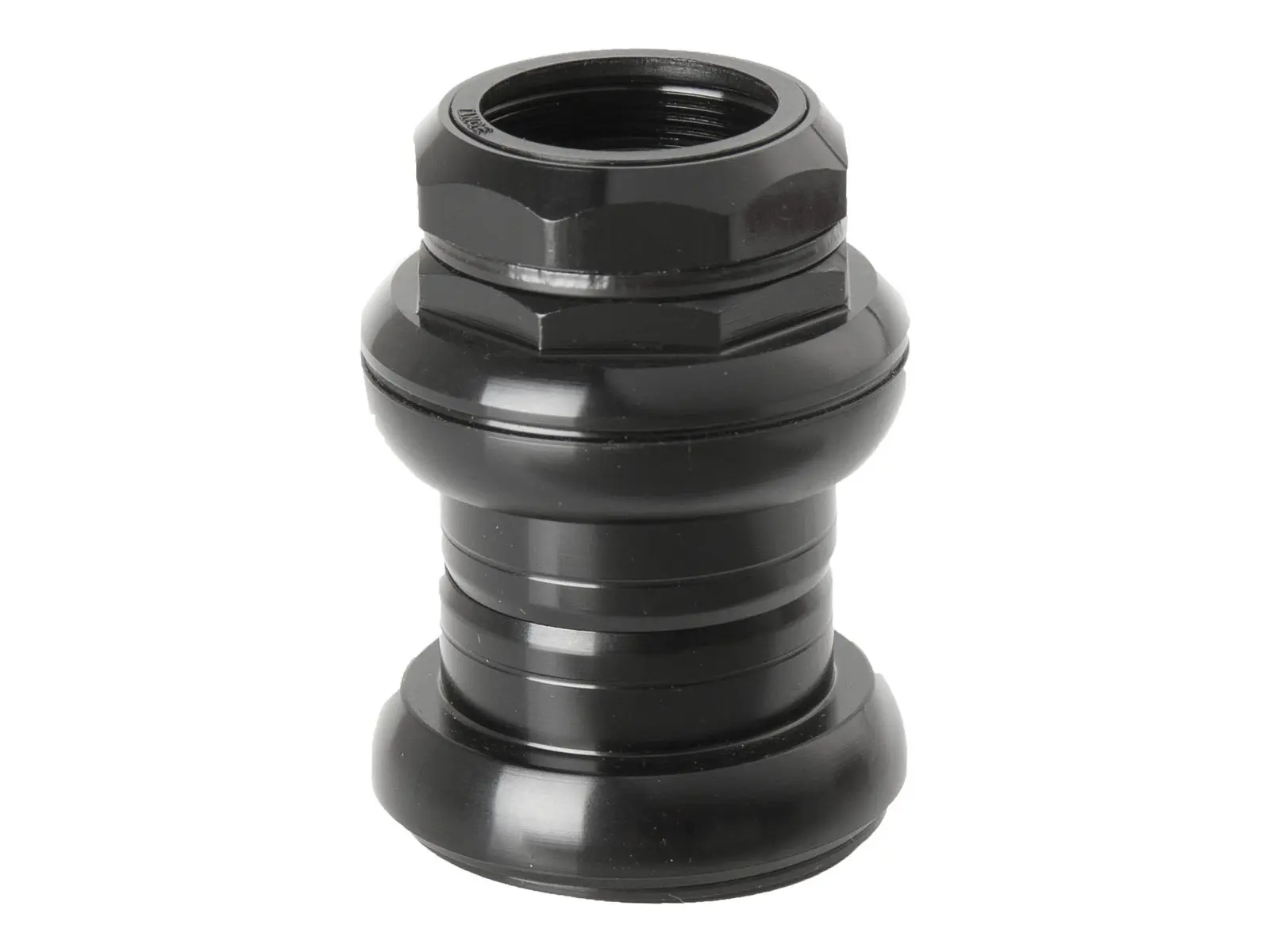

The Tange Threaded Headset (EC) - 1 Inch is a threaded headset with external cups for frames with a 1 inch head tube and forks with a 1 inch threaded steerer, as found on old school BMX bikes. It sits EC30/25.4 with a 24 TPI thread on top and EC30/26 at the bottom. The cups are pressed into the head tube, and the lock nut tightens the assembly. It is made of aluminium, runs on two cartridge bearings and weighs 84 g. Available in black and silver.
Facts: Tange Threaded Headset (EC) - 1 Inch
- Material: Aluminum

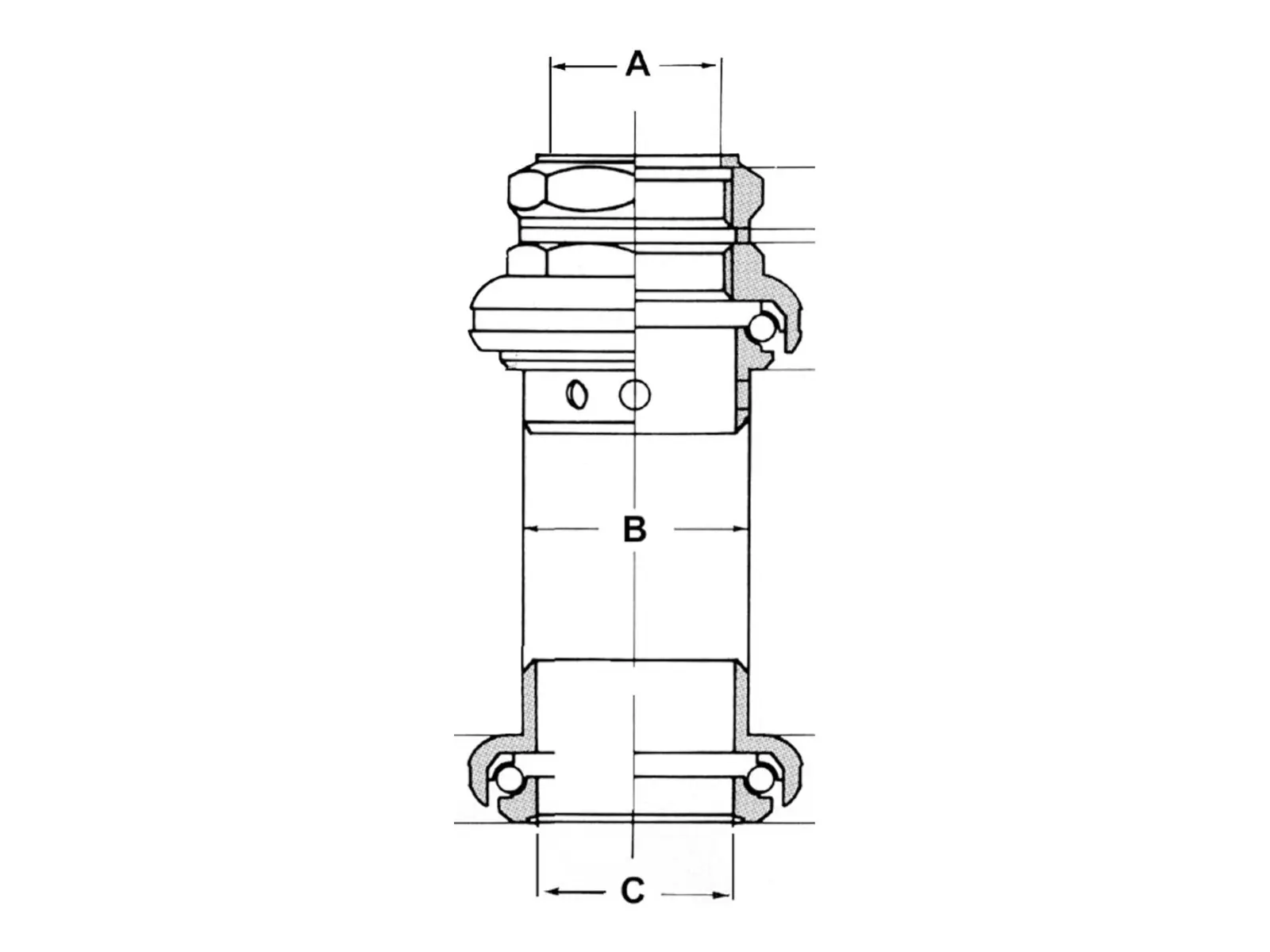

- Size: 1" (25.4mm), threaded (24 TPI), upper EC30/25.4, lower EC30/26, external bearing cups
- Bearing: 2 x cartridge bearings

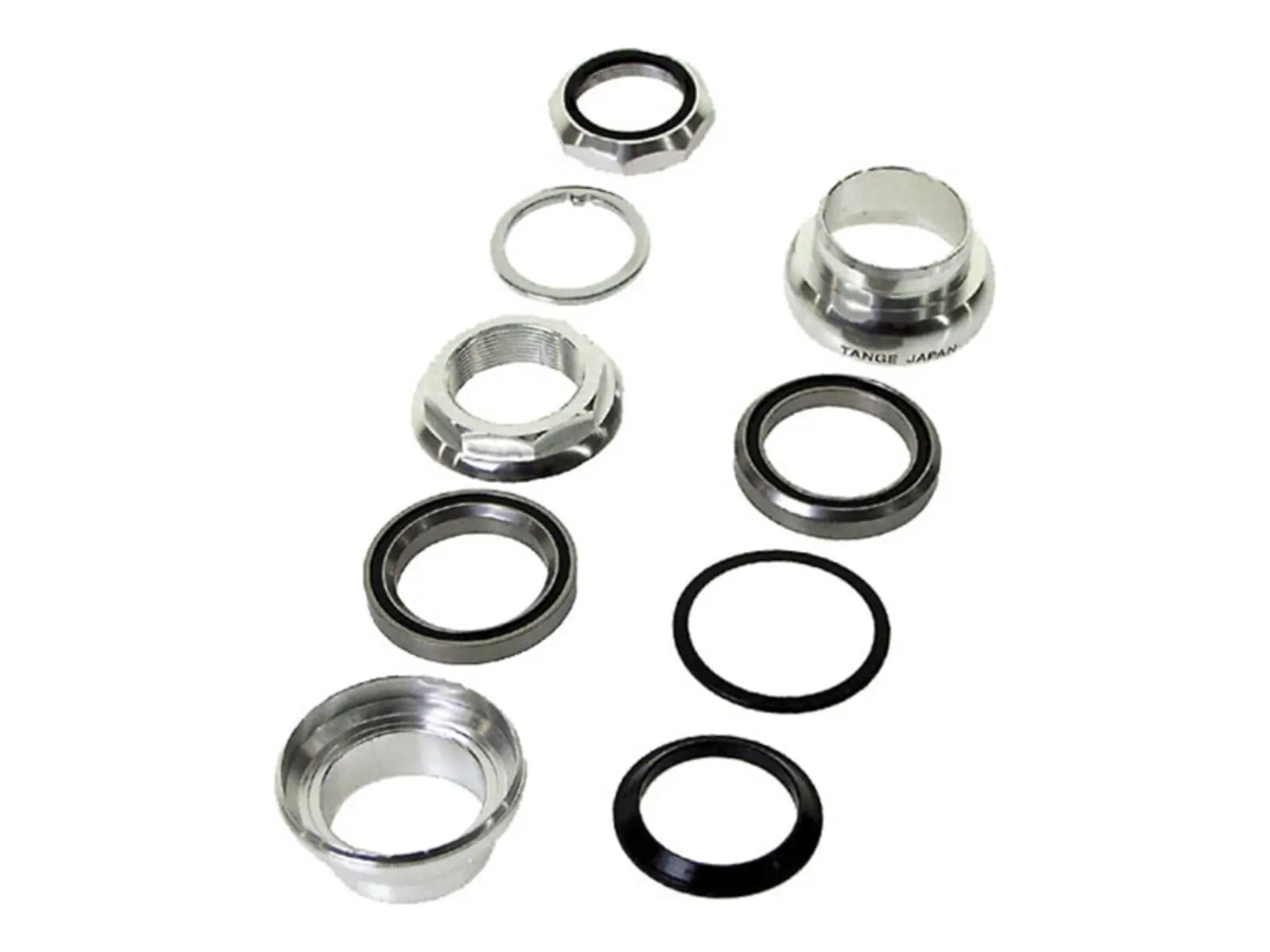

- Scope of Delivery:
- 2 bearing cups
- 2 cartridge bearings
- 1 threaded race
- 1 keyed washer
- 1 lock nut
- 1 crown race - Extras: top cover 25.4 mm inner, bearing shell 30.2 mm outer, crown race seat on the fork 26.4 mm, lock nut 22.4 mm inner, weight 84 g
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
