Volume Bikes "Infantry" 2016 BMX Bike - Copper
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 11.61kg / 25.6lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 9229
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
This

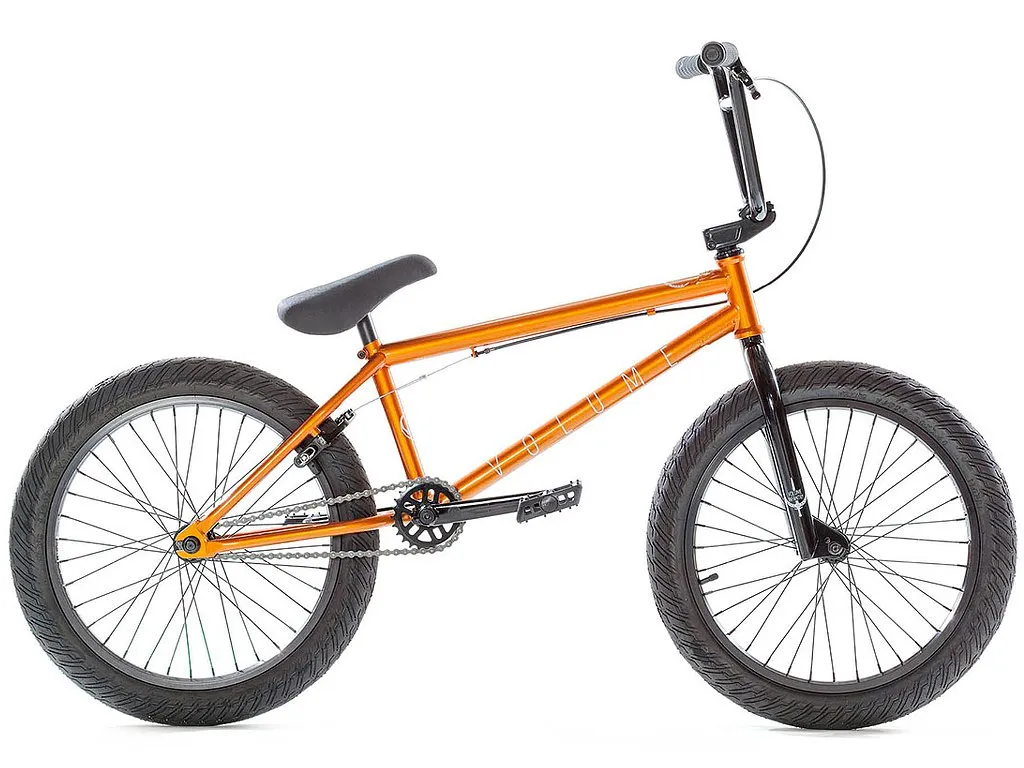

Volume Bikes "Infantry" 2016 BMX Bike - Copper
is a high quality upper mid class BMX complete bike. Frame, fork and handlebar are made of high quality 100% 4130 CrMo and offers you with a 9" inch high frame with a top tube length of 20.75" inches and a 13.25" short rear together with a fork with 32mm offset and a 9" inch high handlebar the basis for a top modern and agile BMX allround complete bike. Of course the frame includes an integrated headset (Sealed Bearing), an integrated seat clamp, a Mid BB (Sealed Bearing), removable U-Brake sockets and cable holders which is to today's standard of modern and high quality BMX frames and which makes installation, adjustment, as well as maintenance much easier. A 3-pc. crank made of 100% 4130 CrMo, a completely sealed front hub as cassette hub with stable 14mm CrMo hollow axle and double walled rims offers you a stable and durable drive unit. Furthermore this
Volume Bikes "Infantry" 2016 BMX Bike - Copper
provides you with quality and top current after market parts as a complete
Odyssey "Springfield" braking equipment,
a modern
Volume Tripod seat combo,
a set of 2.4" inch wide
Volume "Vader" tires,
Odyssey "Twisted" plastic pedals
and a high
Volume "Staple V2" toploader stem
which makes this one a modern and high quality equipped upper midd class allround BMX bike for a good price-performance ratio.
Facts: Volume Bikes "Infantry" 2016 BMX Bike - Copper
- BMX Frame:
- 100% 4130 CrMo, downtube and toptube with gusset, integrated head set, integrated seat clamp, welded U-brake sockets and cable mounts, Mid BB
- Top Tube (TT): 20.75"
- Chain Stay (CS): 13.25"
- Head Tube (HA): 75°
- Seattube (SA): 71°
- BB-High (BB): 11.7"
- Standover (SO): 9" - BMX Fork: Volume, 100% 4130 CrMo, 1-pc. steerer, aluminium topbolt, 32mm offset
- BMX Bar:
- Volume, 100% 4130 CrMo, 2-pc.
- Height: 9"
- Width: 29"
- Backsweep: 12"
- Upsweep: 1° - Grips: Volume, flangeless, PVC barends
- Stem: Volume "Staple V2", toploader, forged 6061 aluminium, 53mm Offset
- Headset: Genesis, integrated headset, sealed bearing
- Gyro: -
- Brake Lever: Odyssey "Springfield", aluminium, hinged, 2-finger
- Brake Cable: Odyssey "Quik-Slic"
- Brake: Odyssey "Springfield", U-brake, aluminium, with bridge cable

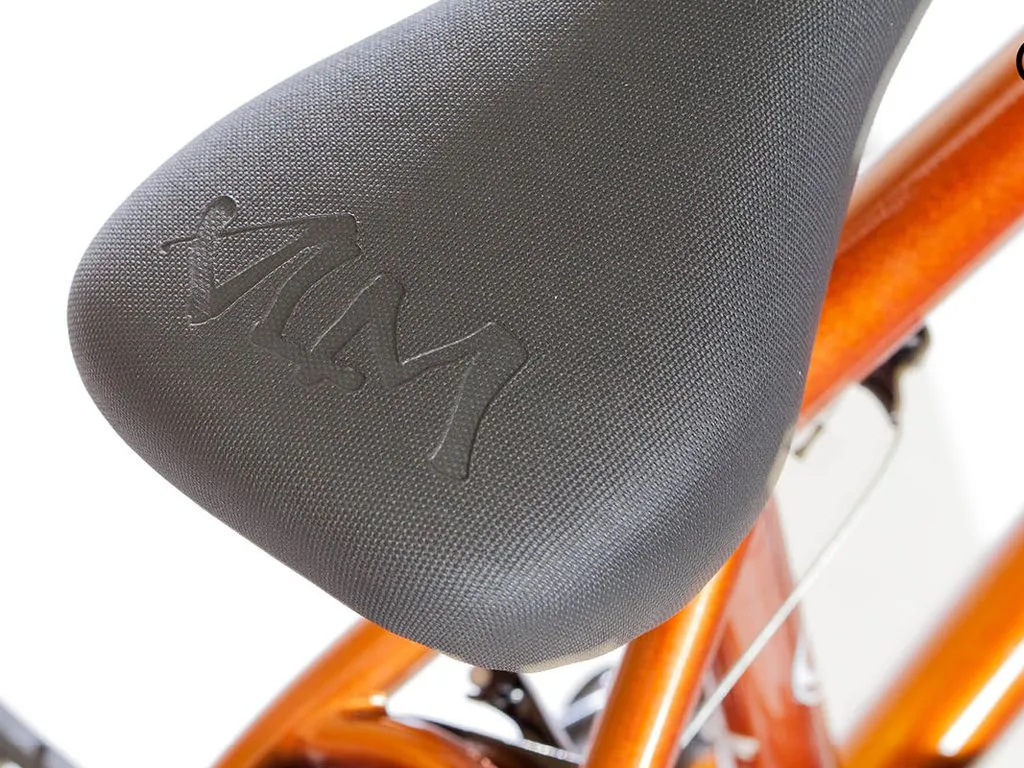

- Seat: Volume, Tripod, fat padded
- Seat Post: Volume, Tripod, aluminium
- Seat Clamp: Integrated
- Pedals: Odyssey "Twisted" PC
- Chain: KMC "H510"
- Sprocket: 6061 aluminum, 25T
- Crank: Genesis "Octagon", 4130 CrMo, 3-pc., 8 spline, 175mm
- Bottom Bracket: Mid BB, sealed bearing
- Hub (front): Genesis "Turbine", aluminium, low flange, sealed bearing, 10mm (3/8") male CrMo axle, 36H

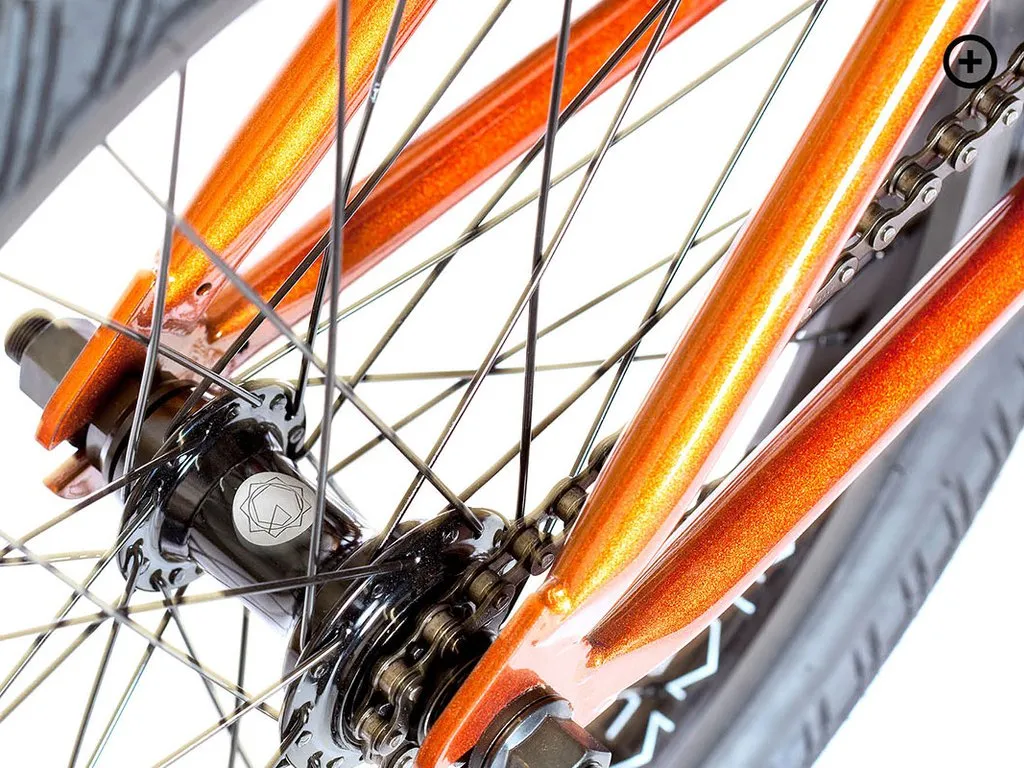

- Hub (rear): Genesis "Turbine" Cassette hub, sealed bearing, 14mm CrMo male hollow axle, 36H, 9T, sealed bearing
- Rim (front): Genesis "Turbine", aluminium, double wall, 36H
- Rim (rear): Genesis "Turbine", aluminium, double wall, 36H
- Tire (front): Volume "Vader", 20" x 2.4"
- Tire (rear): Volume "Vader", 20" x 2.4"
- Pegs: -
