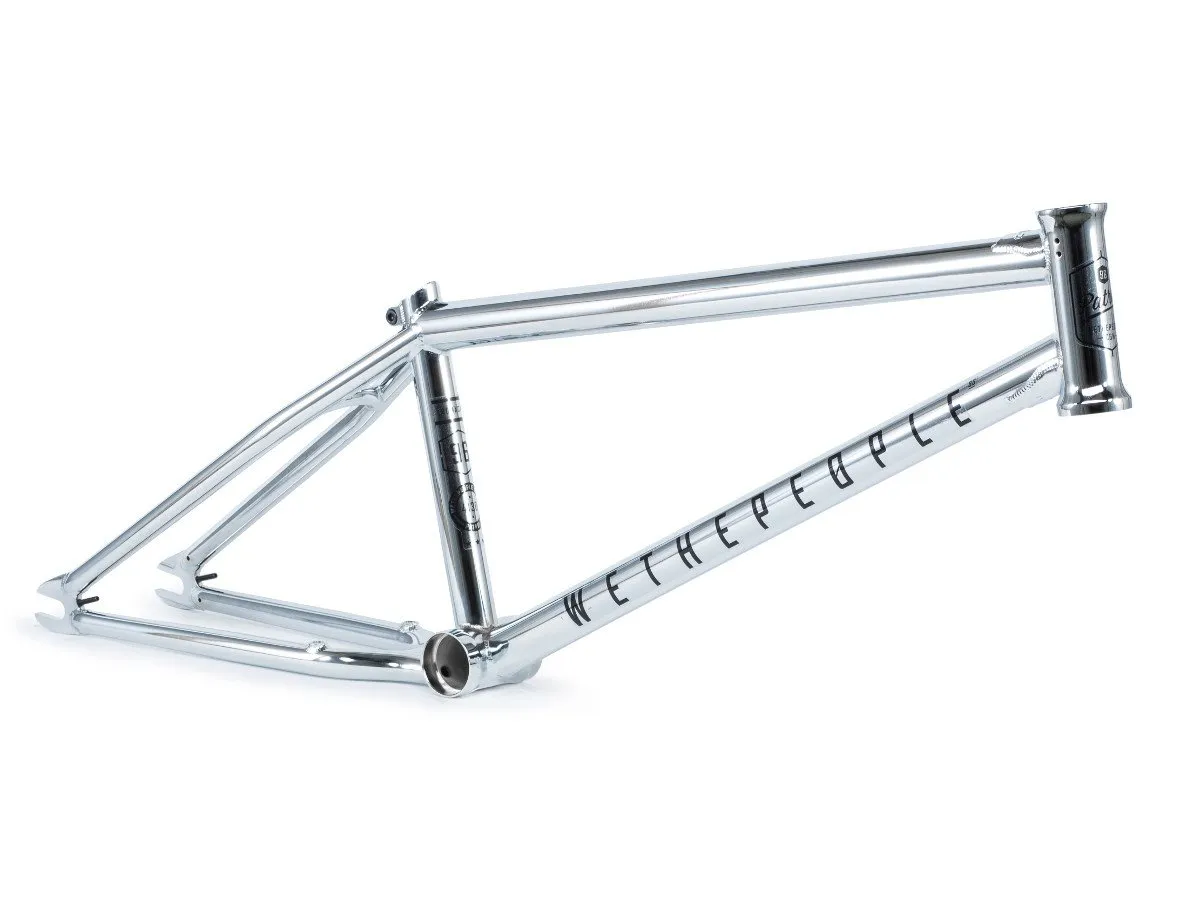

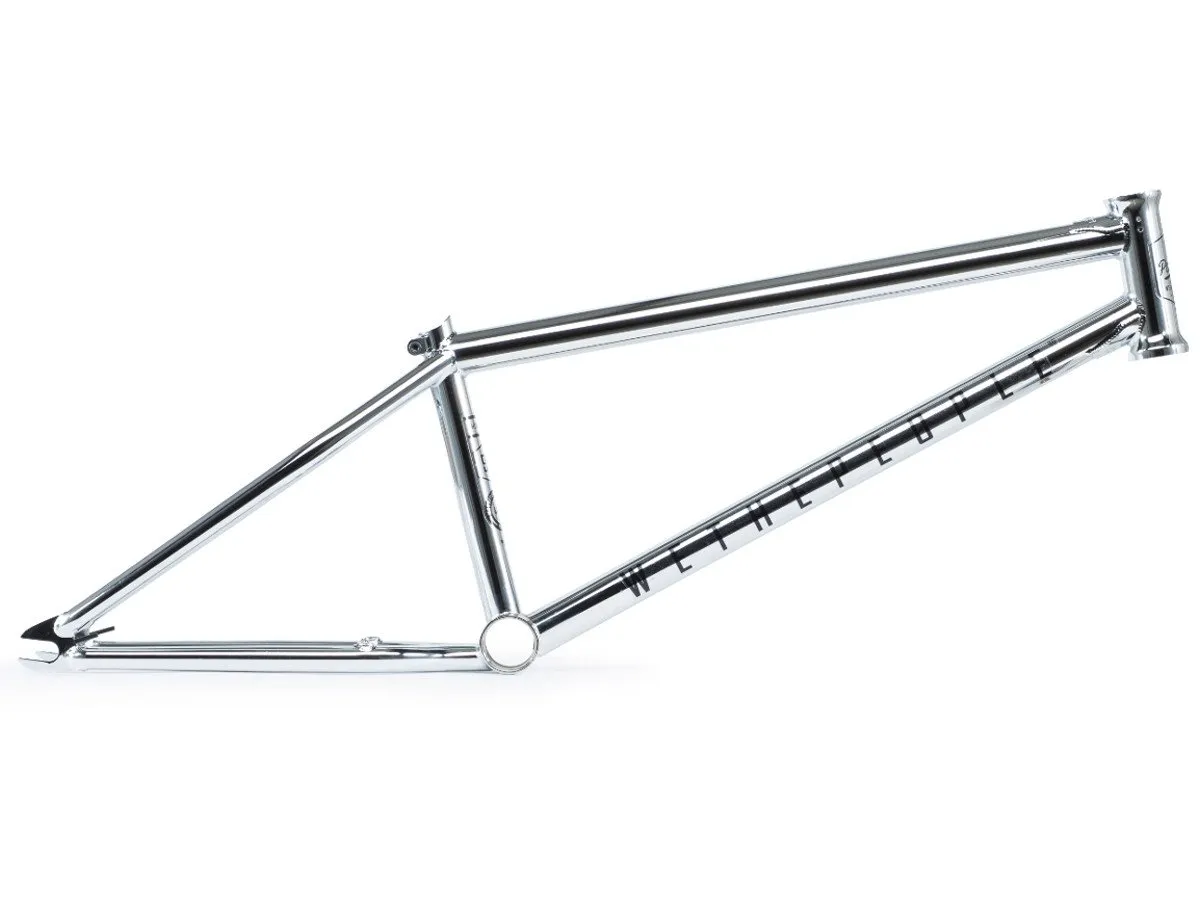

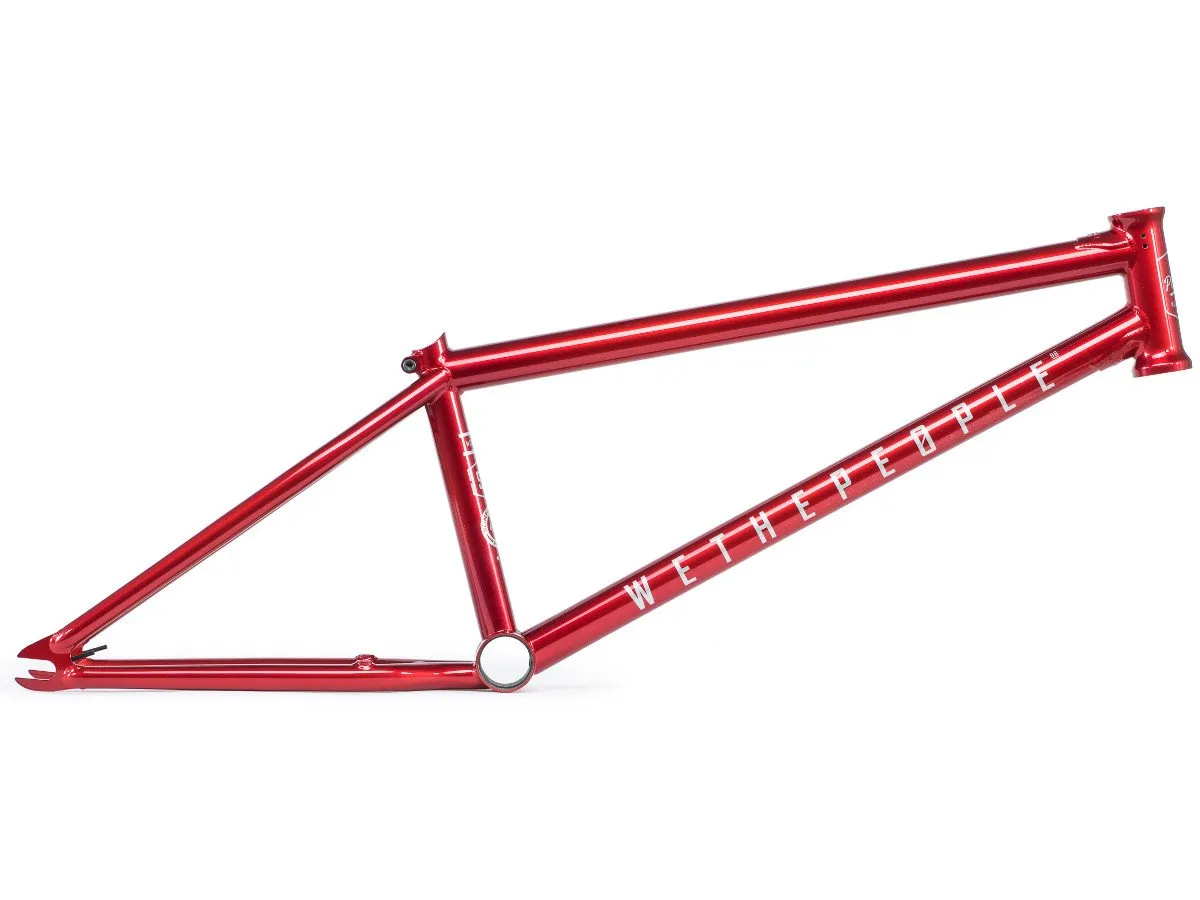

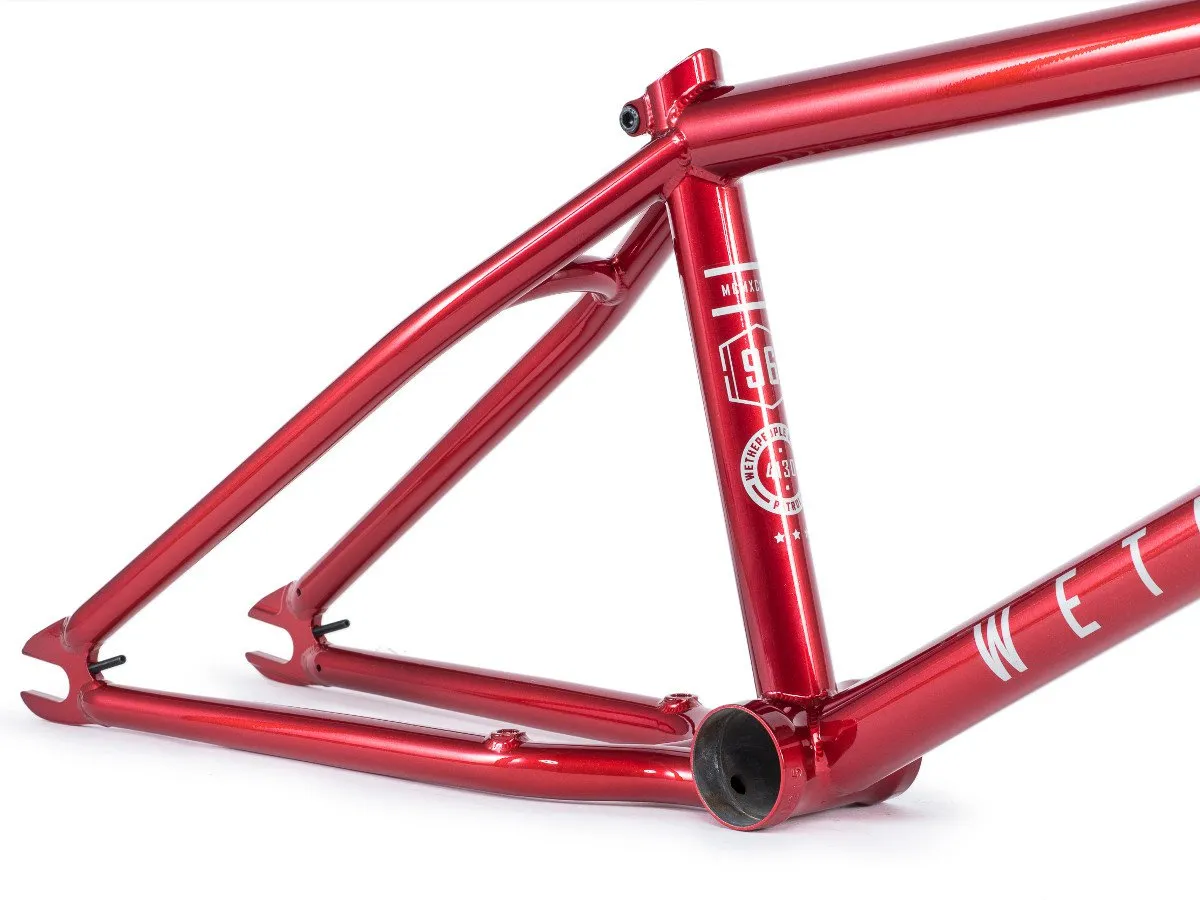

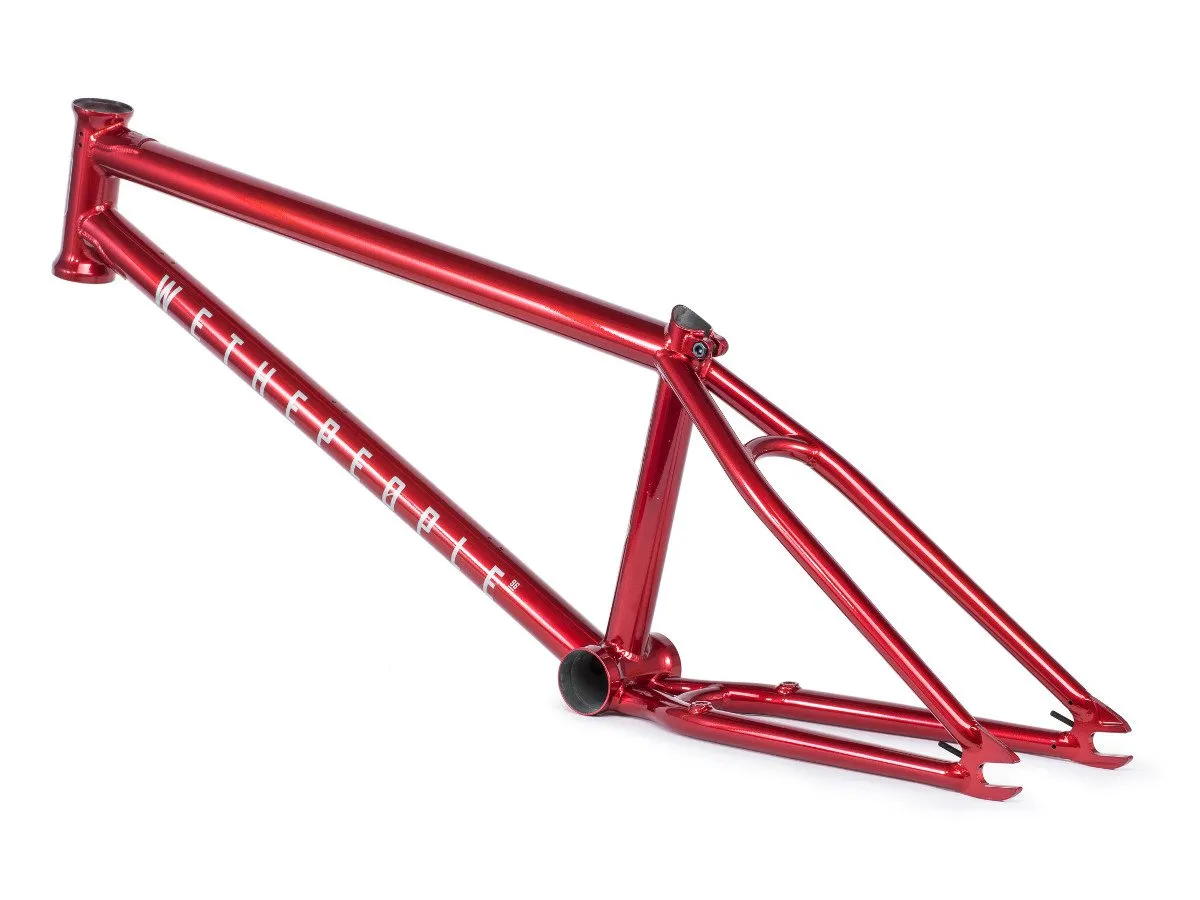

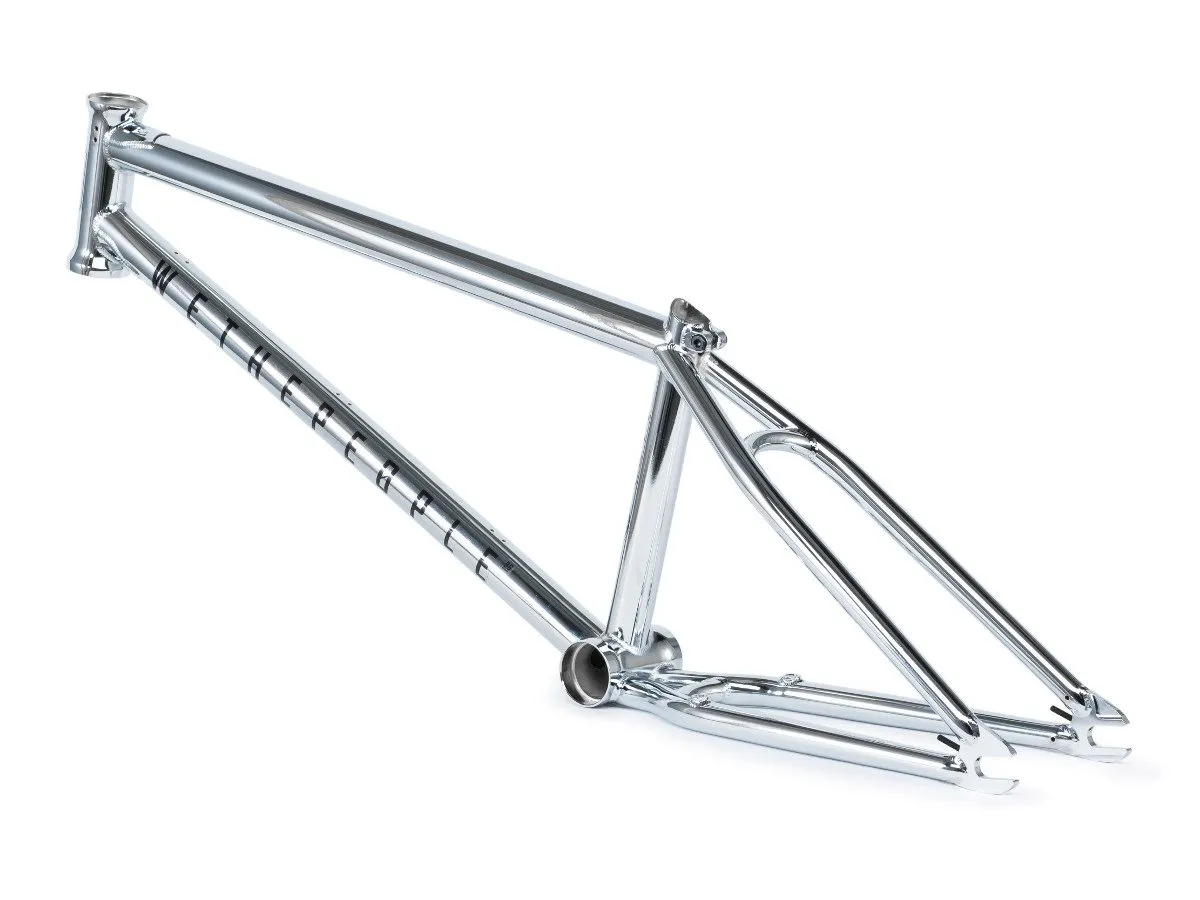

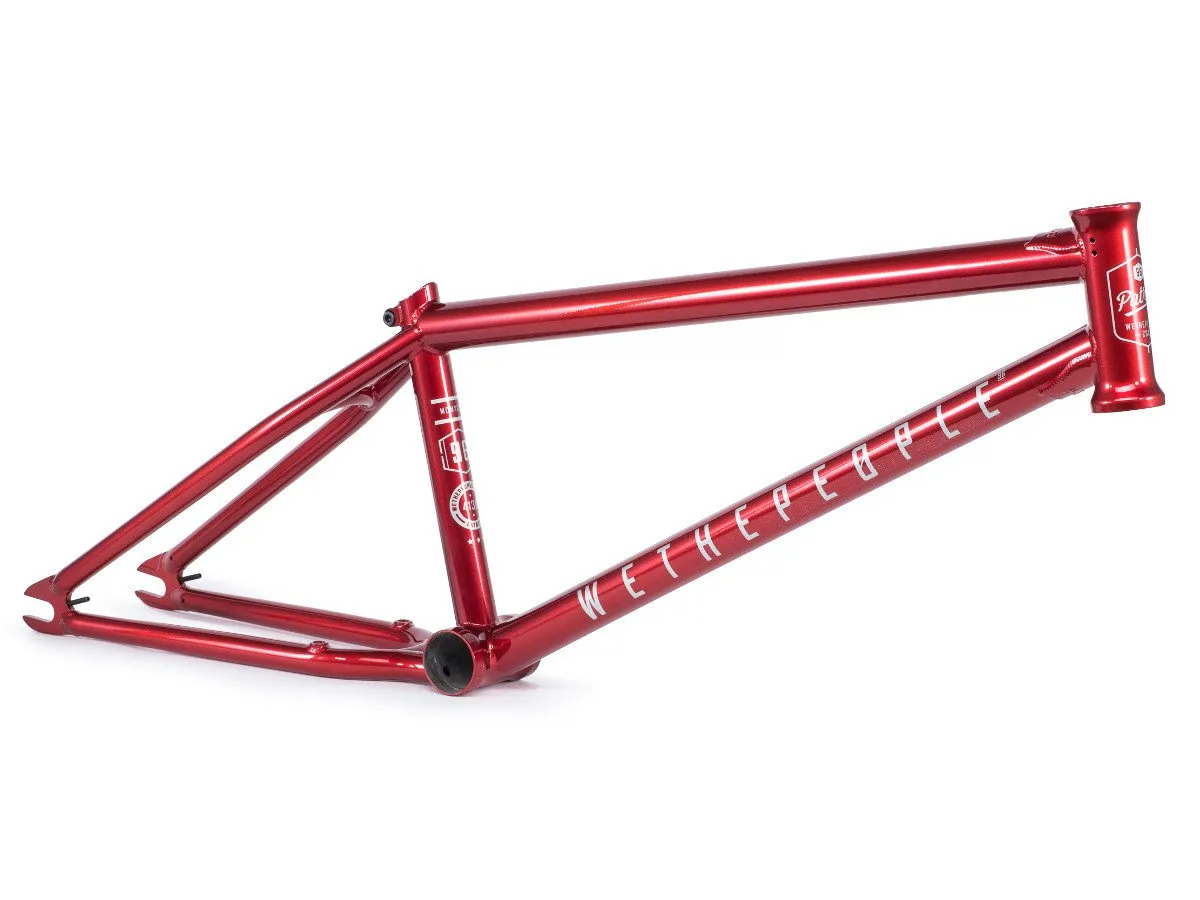

wethepeople "Patrol" 2018 BMX Frame

389.95 EUR

[incl. 19% VAT excl. shipping]
Brake Mounts
Color
Toptube
Qty.

The "Patrol" Range is a whole sub-brand of wethepeople which is heavily influenced from the trails and concrete park riding. The full line features a frame, fork and handlebar as well as stem, sprocket and barends. The wethepeople "Patrol" 2018 BMX Frame is designed to be run with a larger 28-9 gearing and with chainstay located brakemounts. The wethepeople "Patrol" 2018 BMX Frame pairs up a classic and satble geometry which is optimzed for trails and concret bowl riding.

Facts: wethepeople "Patrol" 2018 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
  • Geometry:
    Top Tube (TT): 20.8", 21.15" or 21.5" (selectable as an option)
    Chain Stay (CS): 14" (13.75" slammed)
    Head Tube Angle (HA): 74.25°
    Seat Tube Angle (SA): 71°
    BB Height: 11.5"
    Standover Height (SO): 8.9"

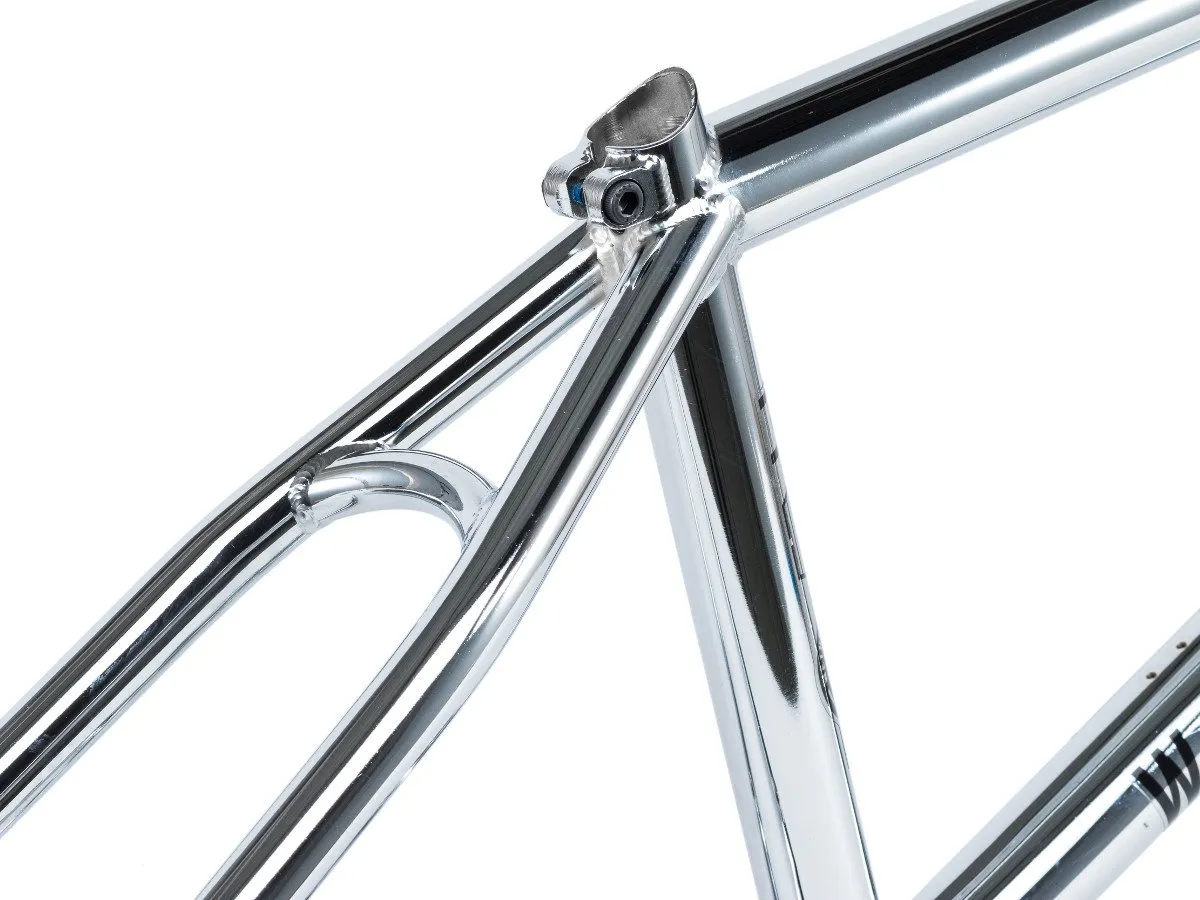

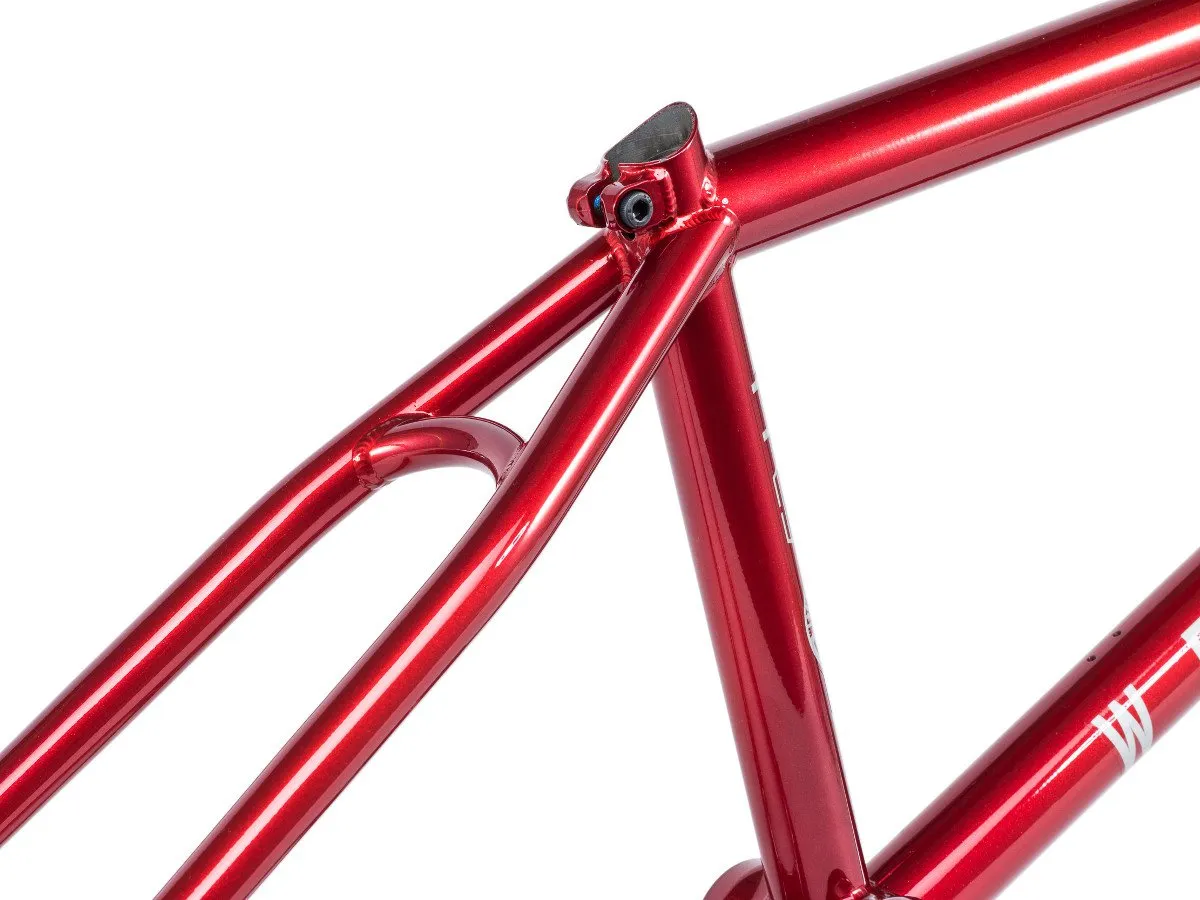

  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm

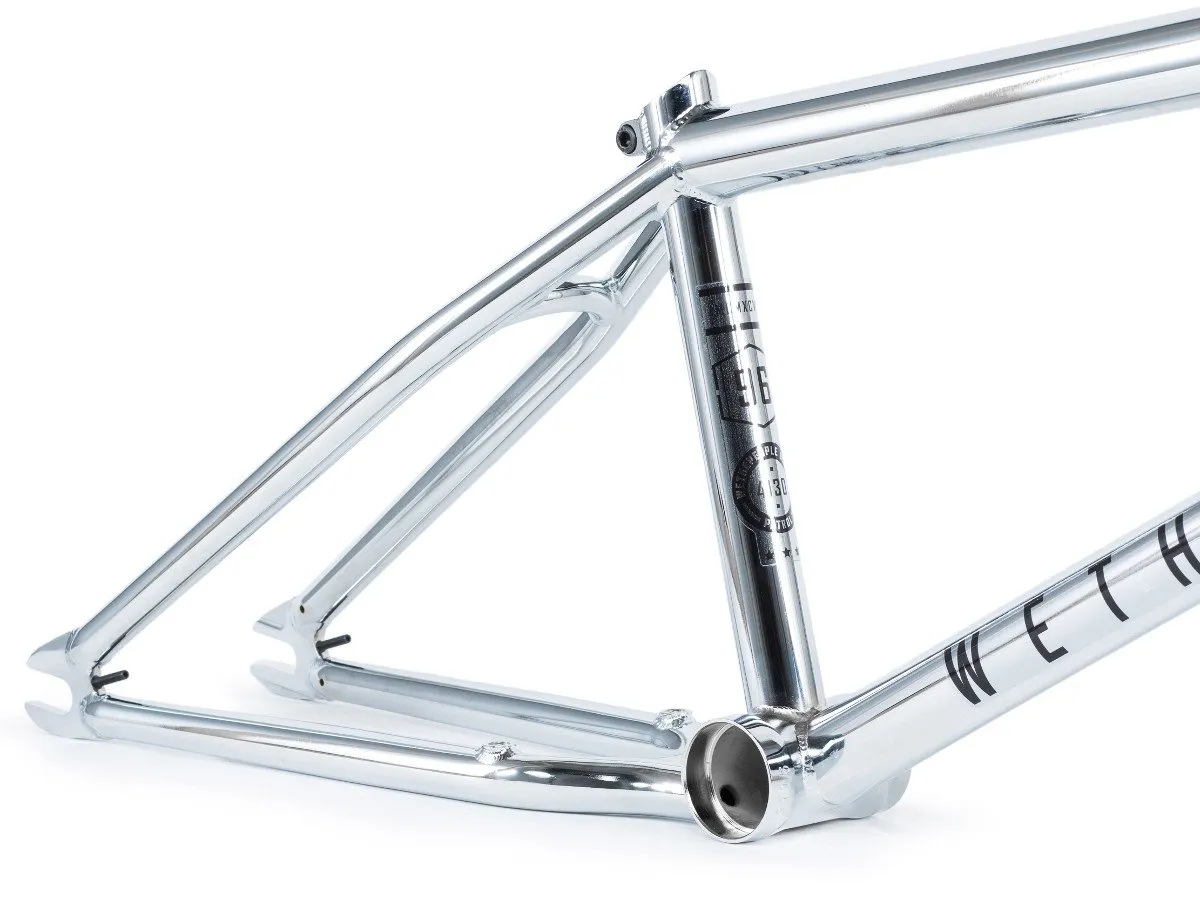

  • Bottom Bracket: Mid BB, heat treated, CNC machined

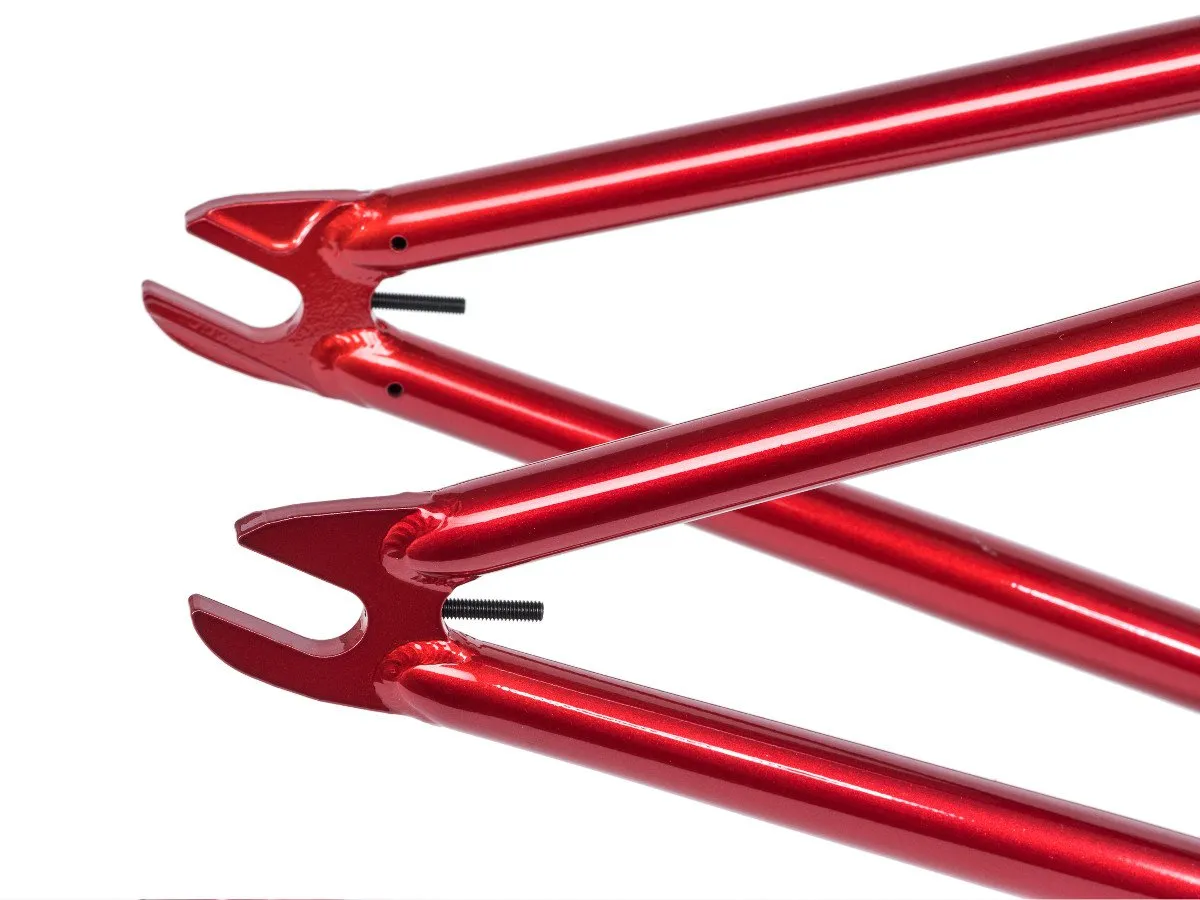

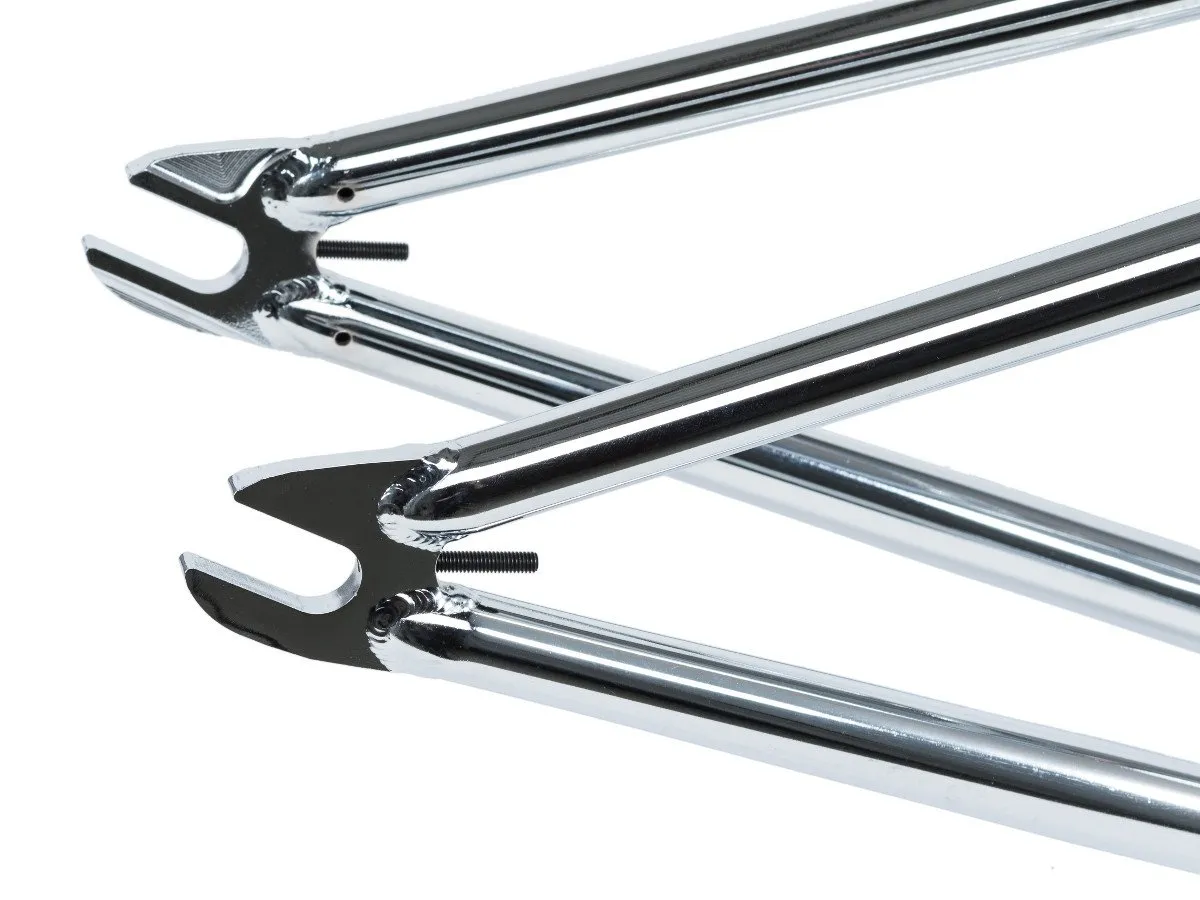

  • Dropouts: 6mm thick, 14mm slots, minimal size, not suitable for pegs, heat-treated
  • Chain Tensioners: integrated
  • Brakemounts: removable, M8, not included with delivery

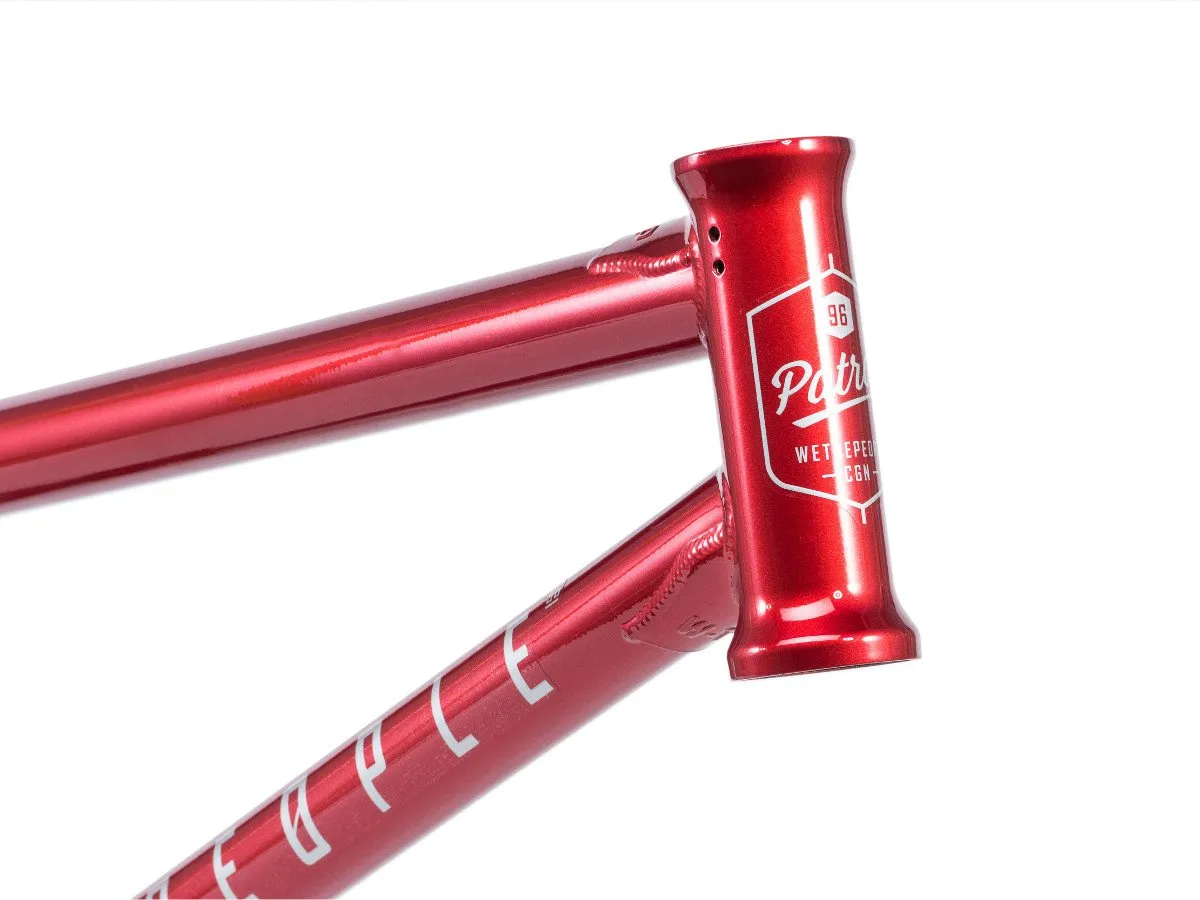

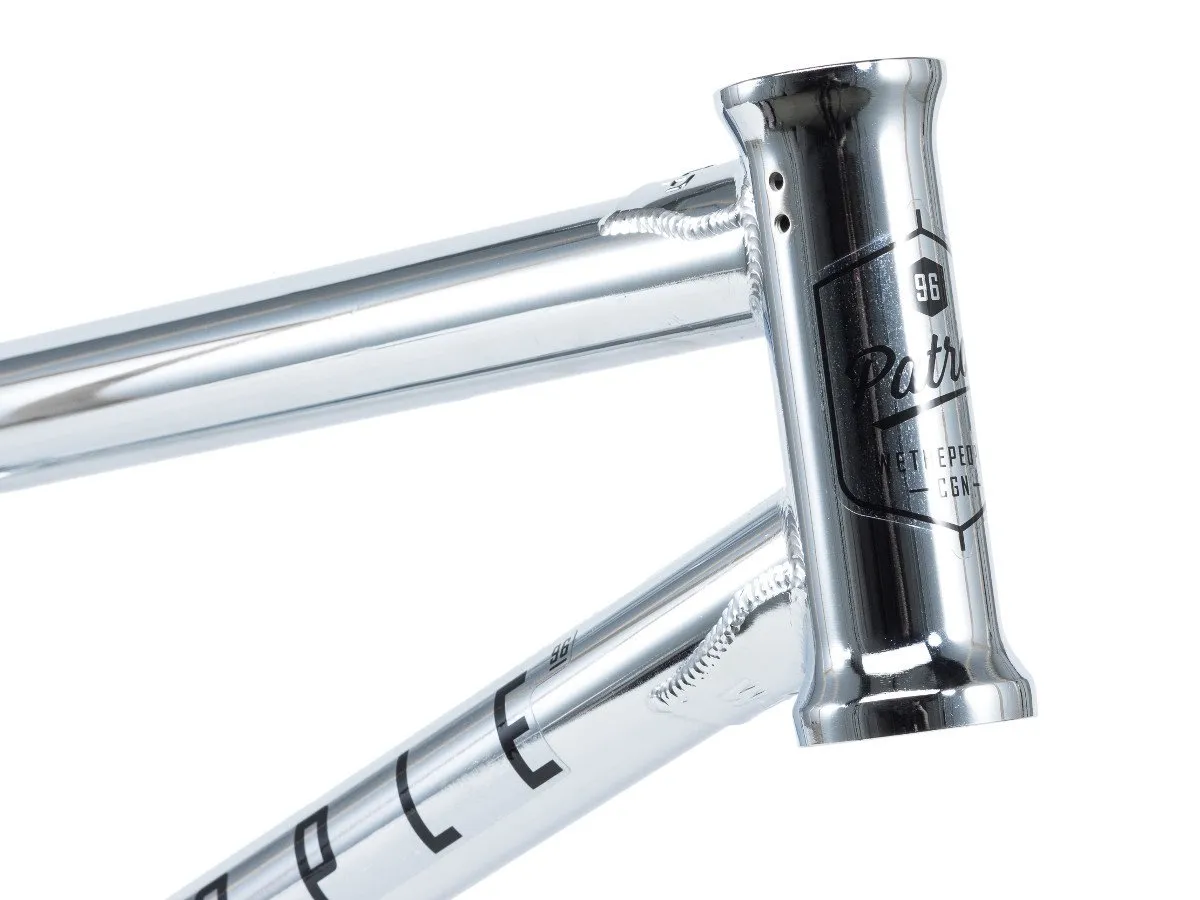

  • Extras: extended 125mm headtube, wide rear end for fat 2.4" tires
  • Model Year: 2018


  • Weight (in kg): 2.20
  • Weight (in lbs): 4.85
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 13389
