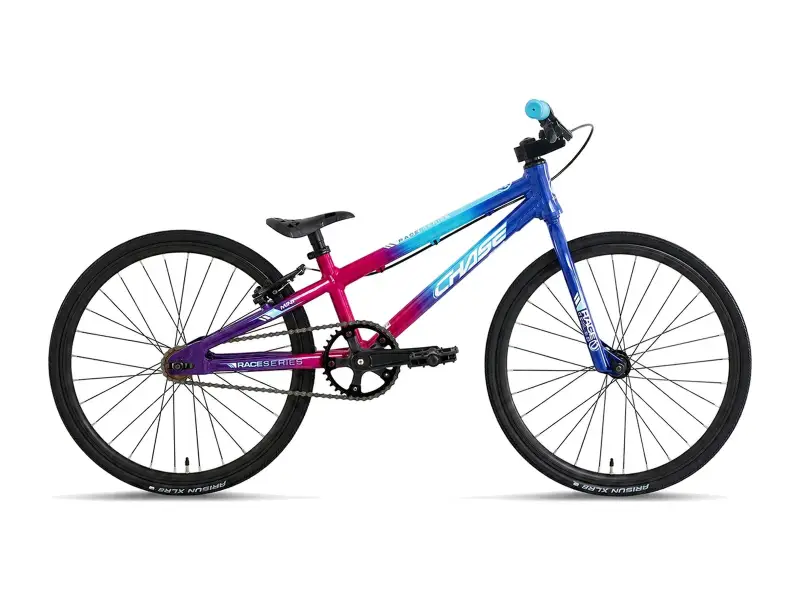

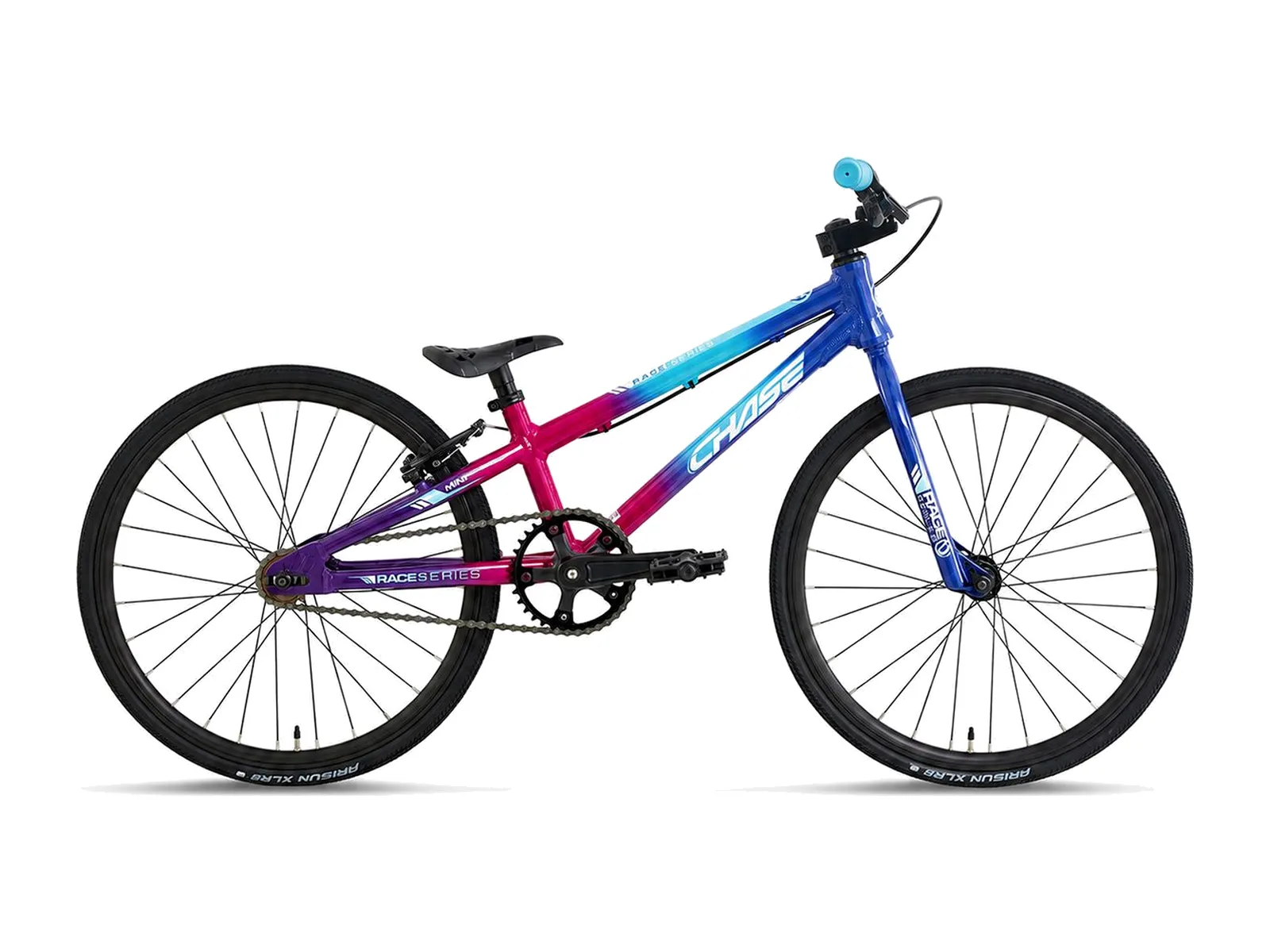

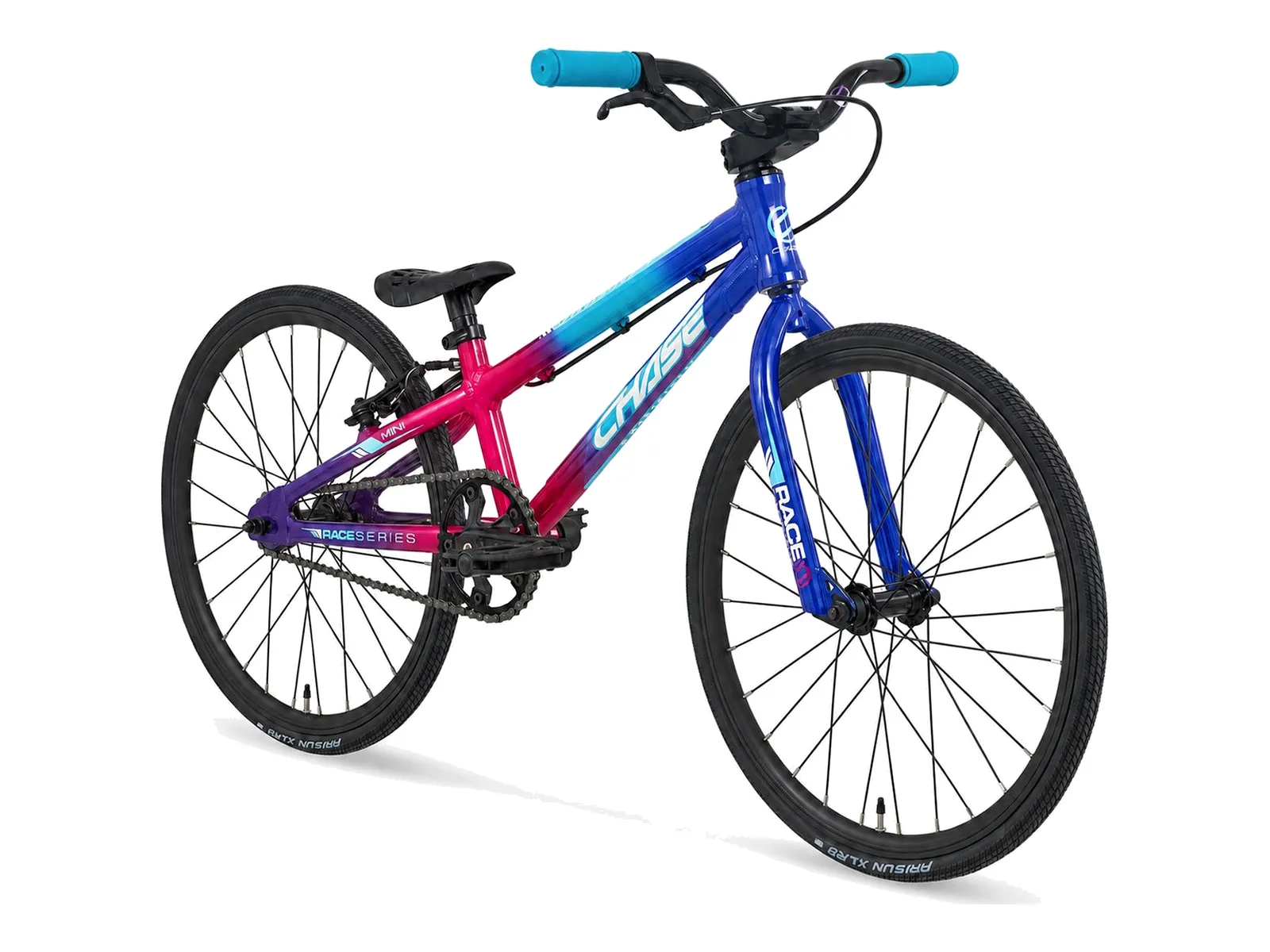

Chase "Race Series Mini" 2027 BMX Race Bike - Gradient Galaxy
- Weight : 7.1kg / 15.65lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45784
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/chase-race-series-mini-2027-bmx-race-bike-gradient-galaxy-p-45784
Printed: 10/30/2026
Printed: 10/30/2026
The Chase "Race Series Mini" 2027 BMX Race Bike - Gradient Galaxy is the Chase entry level race bike for young riders who are starting out in BMX racing. The frame is 6061-T6 aluminium with an integrated head tube, bar and fork are chromoly. It comes with sealed hubs, double wall rims and parts from KMC and ARISUN.
The Mini size rolls on 20 inch wheels and according to Chase fits riders from 1.10 - 1.25m. A rear V-brake does the stopping. Without pedals the bike weighs 7.10 kg according to Chase.
Facts: Chase "Race Series Mini" 2027 BMX Race Bike - Gradient Galaxy
- Wheelsize: 20"
- Race-Size: Mini
- Model Year: 2027
- BMX Frame: Chase "Race Series Mini", 6061-T6 aluminium, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 17.25"
- Chain Stay (CS): 12.25"
- Head Angle (HA): 72°
- Seat Angle (SA): 70°
- Head Tube (HT): 4.33"
- BB Height (BBH): 10.6" - BMX Fork: CrMo, 1" steerer
- BMX Bar:
- CrMo
- Height: 2.25"
- Width: 20"
- Backsweep: 8°
- Upsweep: 2°
- Clamp: 22.2mm - Grips: single ply, soft, 92mm, flangeless
- Stem: toploader, 6061-T6 aluminium, 45mm, 1" steerer, 22.2mm clamp
- Headset: integrated (IS42 | IS42), reducer to 1", sealed bearing
- Brake Lever (right): mini reach, 2-finger
- Brake (rear): V-brake, 95mm
- Seat: Mini combo, nylon seat with aluminium post
- Seat Post: seat/seat post combo, aluminium
- Seat Clamp: aluminium, 28.6mm, single bolt
- Pedals: platform, nylon, 9/16"
- Chain: KMC "Z6", 1/2" x 3/32"
- Sprocket: steel, 5-bolt (110mm BCD), 36T, 3mm
- Cog: freewheel, 16T, 1/2" x 3/32"
- Crank: 3-piece, aluminium, 135mm, CrMo chainring bolts
- Bottom Bracket: Euro, square taper, 113mm, sealed bearing
- Hub (front): 28H, double contact seal bearings, 3/8" axle with nuts
- Hub (rear): freewheel hub, 28H, double contact seal bearings, 3/8" axle with nuts
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): aluminium, double wall, 28H, 20" x 1-1/8"
- Rim (rear): aluminium, double wall, 28H, 20" x 1-1/8"
- Tire (front): ARISUN "XLR8", 20" x 1-1/8", wire bead
- Tire (rear): ARISUN "XLR8", 20" x 1-1/8", wire bead
- Tubes: 20" x 1-1/8", Presta valve
- Rider Height: 1.10 - 1.25m
- Usage: BMX Race
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
