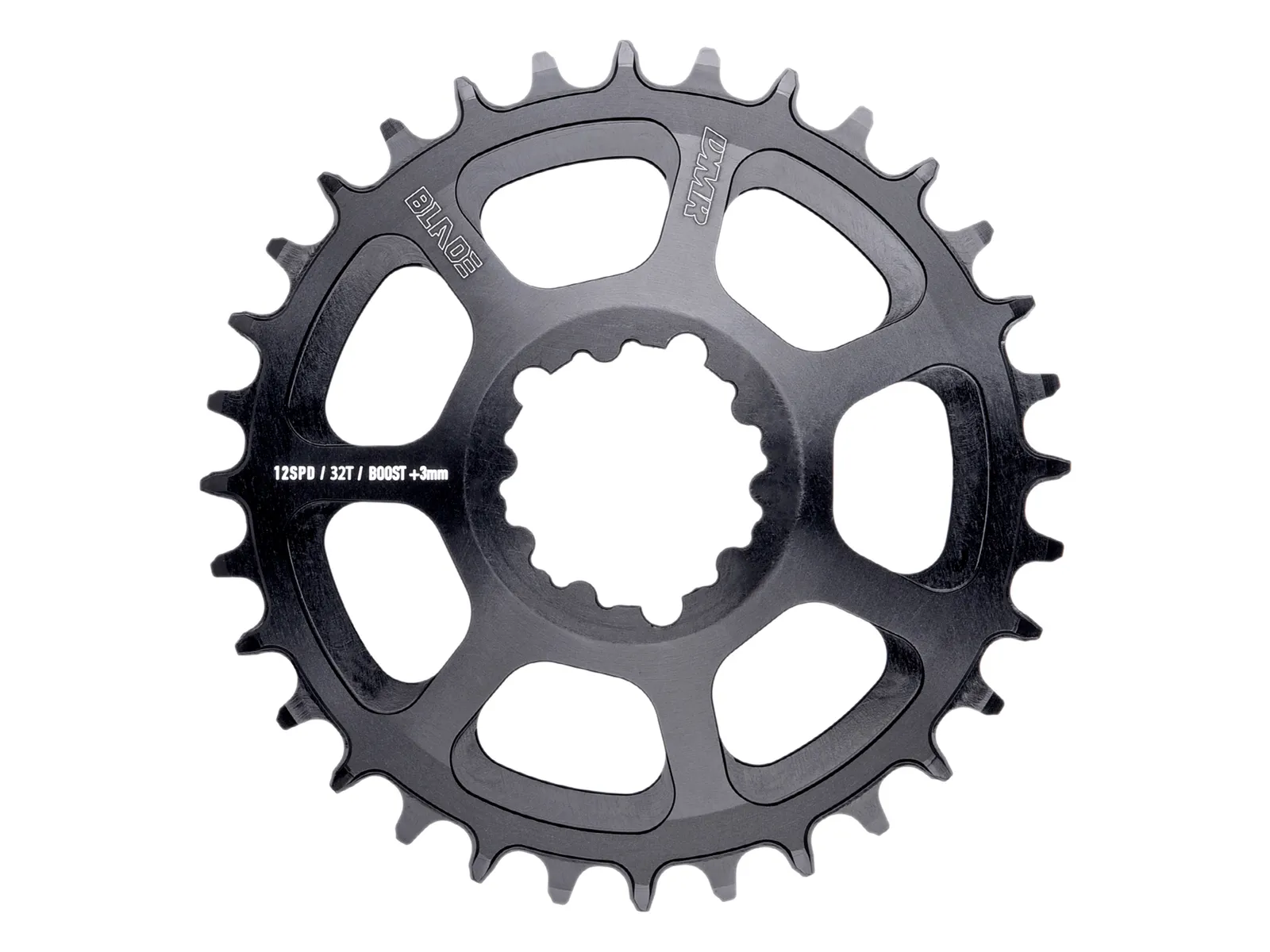

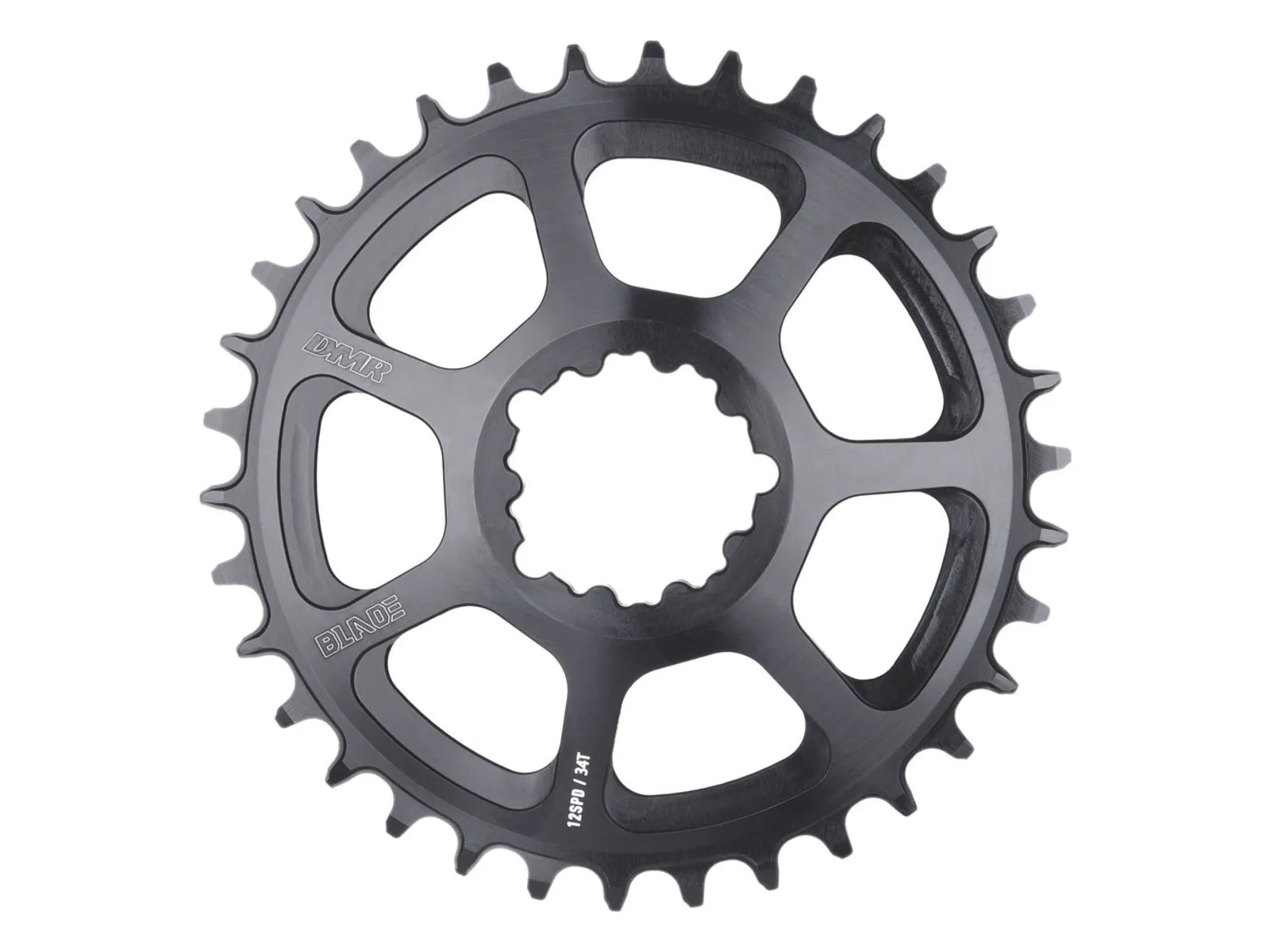

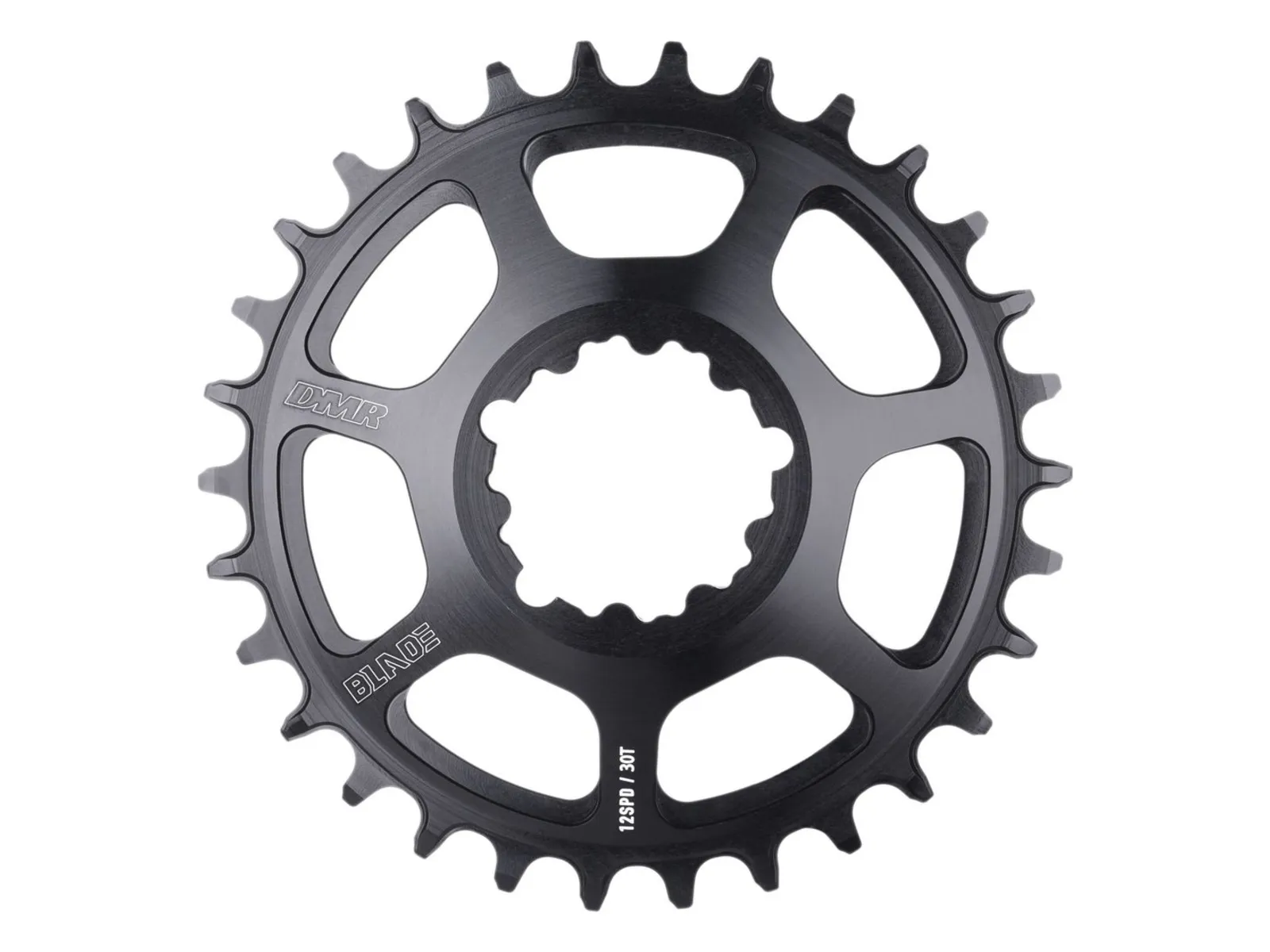

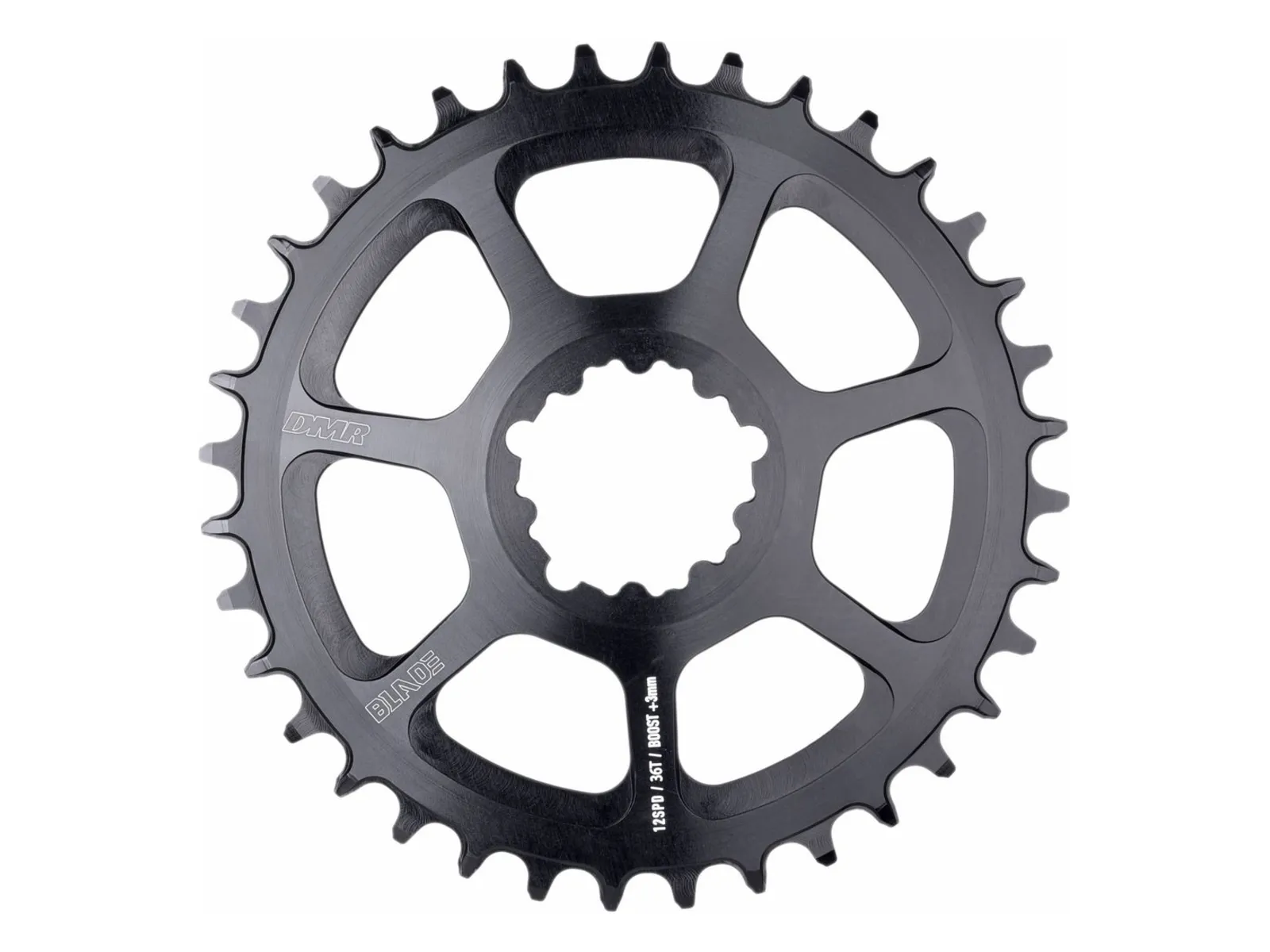

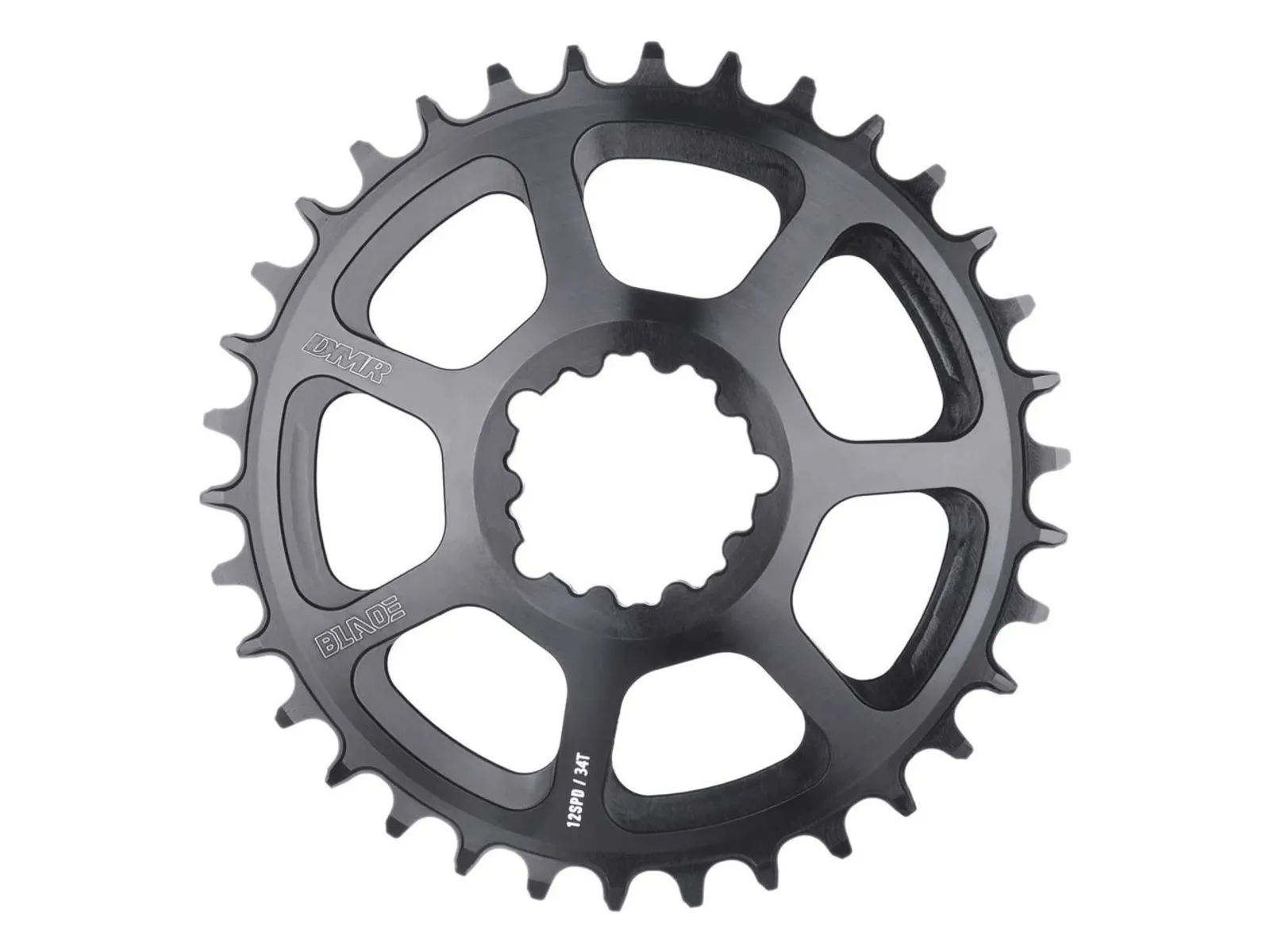

DMR "Blade Ring 12 Speed" MTB Chainring - Direct Mount
-
Weight : 0.07kg / 0.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 35210
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The DMR "Blade Ring 12 Speed" MTB Chainring - Direct Mount is the 12 speed capable version of the Blade Ring: the same one piece direct mount ring in 4mm thick 7075-T6 aluminium, but with a tooth profile that also runs cleanly with 12 speed chains. The narrow wide profile holds the chain together with a clutch mech, no chain device needed. It fits SRAM cranks with the 3-bolt direct mount interface and the DMR Axe. The standard version has a 6mm offset, the Boost version 3mm.
Facts: DMR "Blade Ring 12 Speed" MTB Chainring - Direct Mount
- Style: Boost (3mm offset) or Standard (6mm offset)
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T, 30T, 32T or 36T
- Thickness: 4mm
- Chain Compatibility: 10, 11 and 12 speed
- Content: 1 chainring
- Extras:
- narrow wide tooth profile, holds the chain without a chain device
- SRAM 3-bolt direct mount (DMR Axe, SRAM XX1, X01, X0, X9, X7, S2210, S1400, Truvativ AKA GXP and other cranks with this interface)
- 6mm offset on standard, 3mm on Boost
- saves around 100g over a spider setup
- weight per tooth count: 26T 46g, 30T 63g, 32T 67g, 34T 74g, 36T 85g
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
