DMR "Vault Mag" MTB Pedals
- Weight : 0.4kg / 0.88lbs
- Packaging Unit: Pair
- Product ID (PID): 35189
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/dmr-vault-mag-mtb-pedals-p-35189
Printed: 10/24/2026
Printed: 10/24/2026

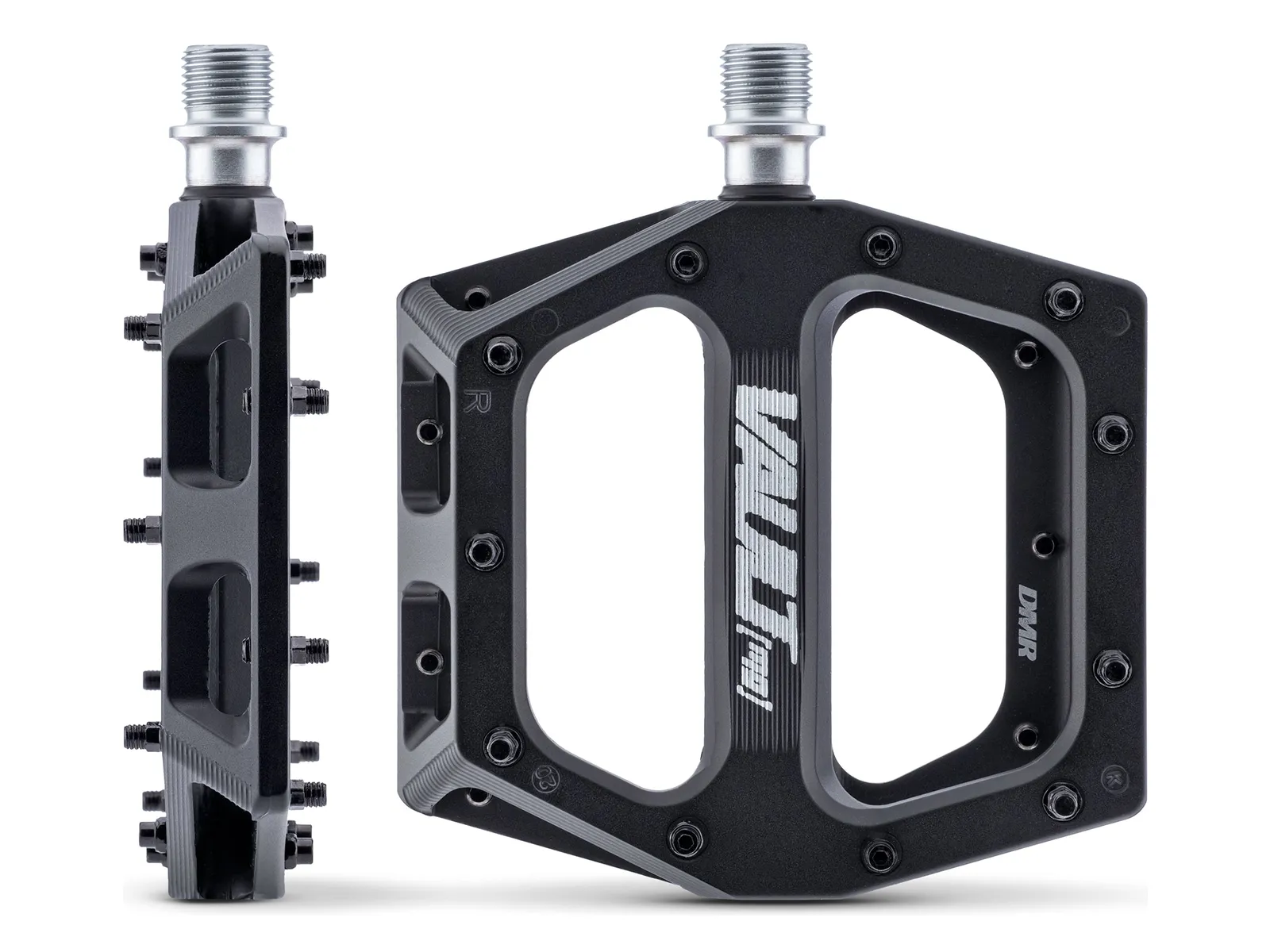

The DMR "Vault Mag" MTB Pedals is the Vault with a pressure die cast magnesium body. That saves weight over the aluminium Vault without changing the shape: a 105 x 105mm platform, 17mm stack, concave. The CroMo axle runs on a DU bush and a cartridge bearing and the steel pins are replaceable. DMR quotes 404g per pair. The finish is ED painted and black only.
Facts: DMR "Vault Mag" MTB Pedals
- Material:
- Pedal Body: pressure die cast magnesium
- Axle: 4140 CroMo steel - Bearing: high load DU bush and cartridge bearing
- Extras:
- concave foot bed, 17mm stack
- pressure die cast magnesium body, ED painted
- replaceable steel pins
- fully serviceable with the DMR service kit - Width: 105mm
- Length: 105mm
- Height: 17mm
- Scope of Delivery: 1 pair of pedals
