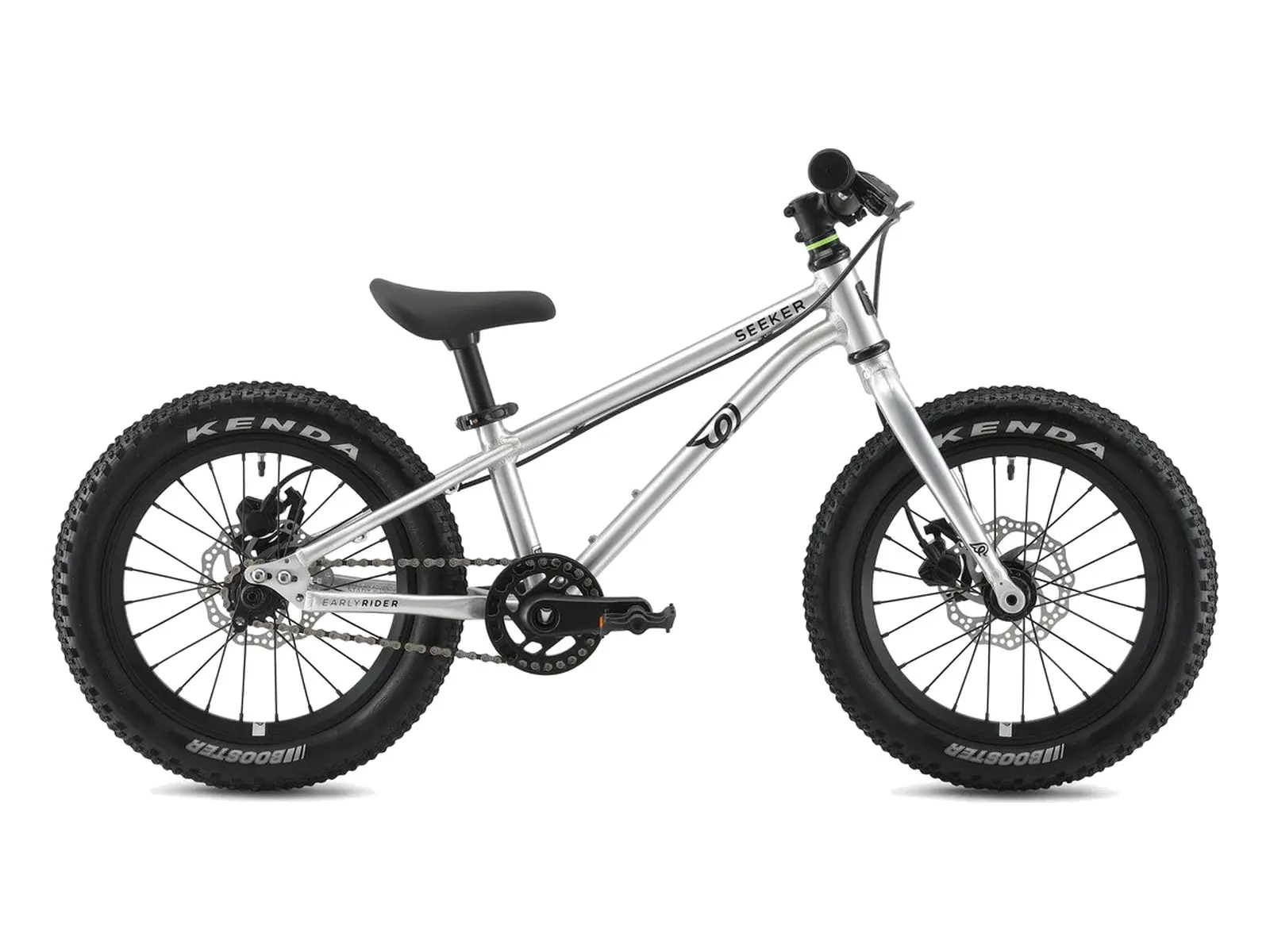

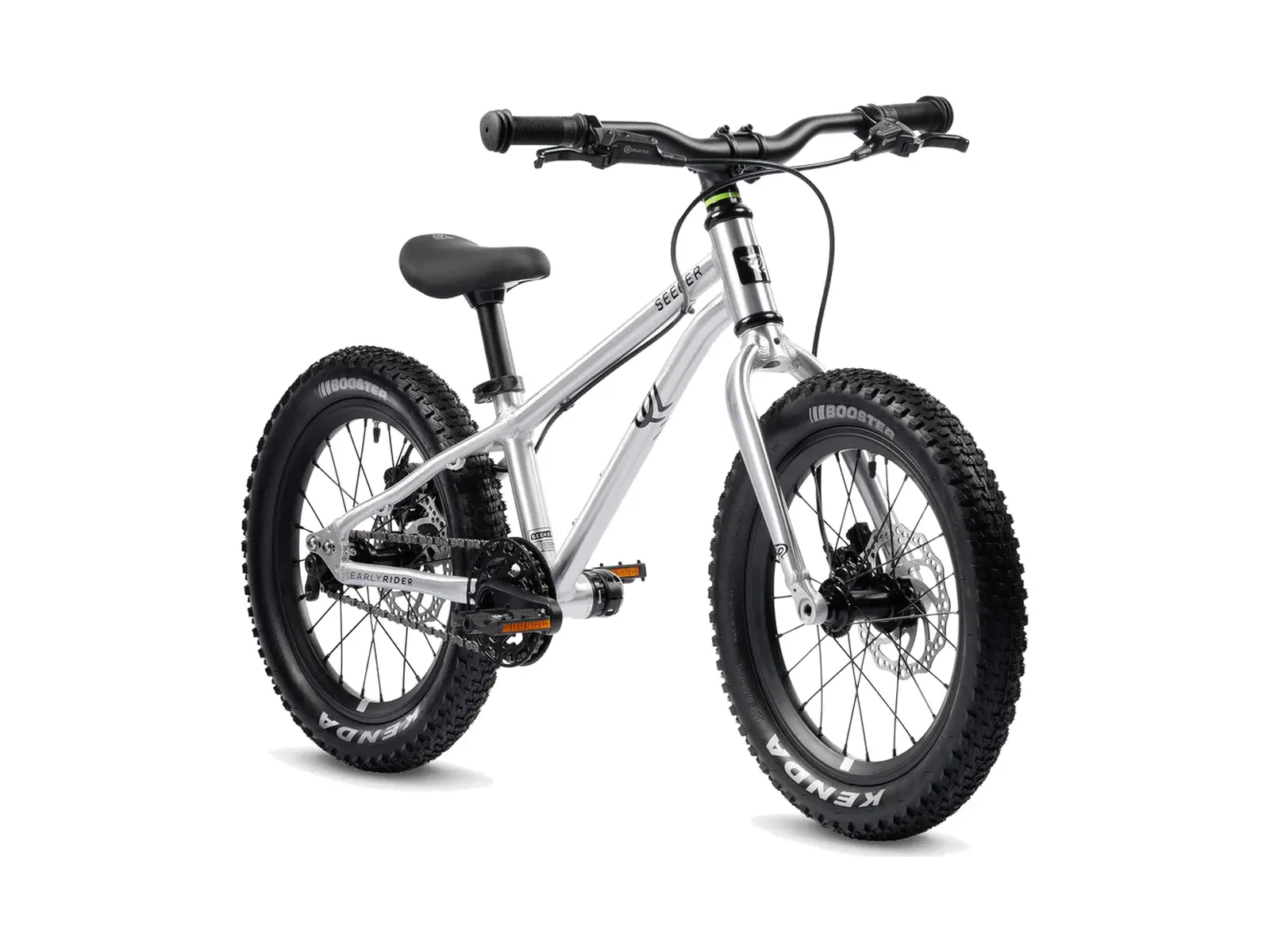

Early Rider "Seeker 16" MTB Kids Bike - 16 Inch - Brushed Aluminium
-
Weight : 6.3kg / 13.89lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 37425
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Early Rider "Seeker 16" MTB Kids Bike - 16 Inch - Brushed Aluminium is a 16 inch kids MTB with a hand brushed AL6061 aluminium frame, 6.3 kg without pedals. Hydraulic Crux disc brakes with 140 mm rotors and short reach levers give kids aged 4 to 6 control on trails and gravel, and the 2.2" Kenda Booster tyres add the grip. The single speed drivetrain with 26/15 gearing and 90 mm cranks does without gears, the sliding dropouts tension the chain. Hubs, bottom bracket and pedals run on cartridge bearings, and the quick release seat clamp sets saddle height without tools.
Facts: Early Rider "Seeker 16" MTB Kids Bike - 16 Inch - Brushed Aluminium
- Wheel Size: 16"
- Frame: Early Rider "Seeker 16", AL6061 aluminium, hand brushed, disc mount, forged sliding dropouts
- Frame Geometry:
- Effective Top Tube (TT): 15.7"
- Reach: 284.9 mm
- Stack: 351.5 mm
- Head Angle (HA): 67°
- Seat Angle (SA): 72°
- Chainstay (CS): 262 mm
- Seat Tube Length: 210 mm
- Head Tube Length: 90 mm
- Standover Height: 410 mm
- Wheelbase (WB): 750 mm - Fork: Early Rider, AL6061 aluminium, hand brushed, disc mount, forged dropouts, 1 1/8" steerer, 272 mm length
- Handlebar: Early Rider riser, AL6061 aluminium, double butted, 500 mm wide, 22 mm rise, 19 mm grip area
- Grips: Early Rider "Soft Touch Mushroom", 19 mm, 100 mm
- Stem: Early Rider, forged AL6061 aluminium, 35 mm
- Headset: 1 1/8" Ahead, cartridge bearings
- Brake Lever: Crux hydraulic, short reach
- Brake: Crux hydraulic disc brakes front and rear, 140 mm rotors
- Seat: Early Rider "Wing Combo", black
- Seat Post: AL6061 aluminium, 25.4 mm x 195 mm
- Seat Clamp: Early Rider quick release, 28.6 mm
- Pedals: Early Rider "P1" platform pedals, resin, studded, cartridge bearings
- Chain: KMC "X9"
- Chainring: CNC'd AL6061, 26T
- Sprocket: CNC'd AL7075, 15T, single speed
- Crank: Crux, CNC'd AL6061, 90 mm
- Bottom Bracket: Crux external cup, sealed cartridge bearings
- Hub (front): CNC'd AL6061, cartridge bearings, AL6061 axle
- Hub (rear): CNC'd AL6061, four bearing cassette freehub, AL6061 axle
- Rim (front): AL6061 aluminium, double wall, 16 inch, 24H
- Rim (rear): AL6061 aluminium, double wall, 16 inch, 24H
- Tire (front): Kenda "Booster", 16" x 2.2", 30 TPI, wire bead
- Tire (rear): Kenda "Booster", 16" x 2.2", 30 TPI, wire bead
- Recommended Age: 4 to 6 years, inside leg from 44.5 cm
- Delivery: The bike ships pre-assembled in a box with both wheels fitted. To finish, attach the handlebar and the pedals. Tools not included.
- Intended Use: Kids MTB for forest tracks and trails, single speed with hydraulic disc brakes.
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
