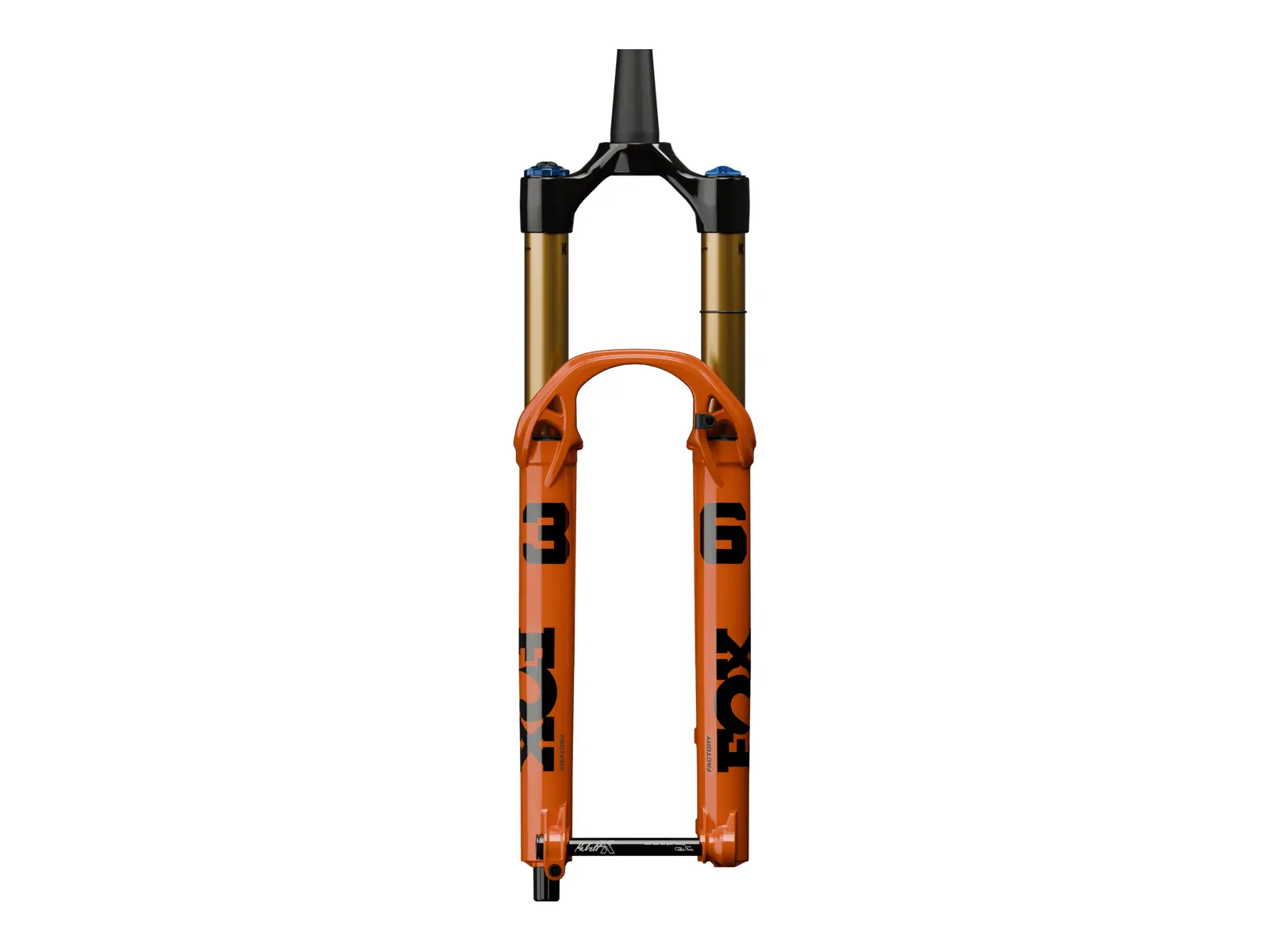

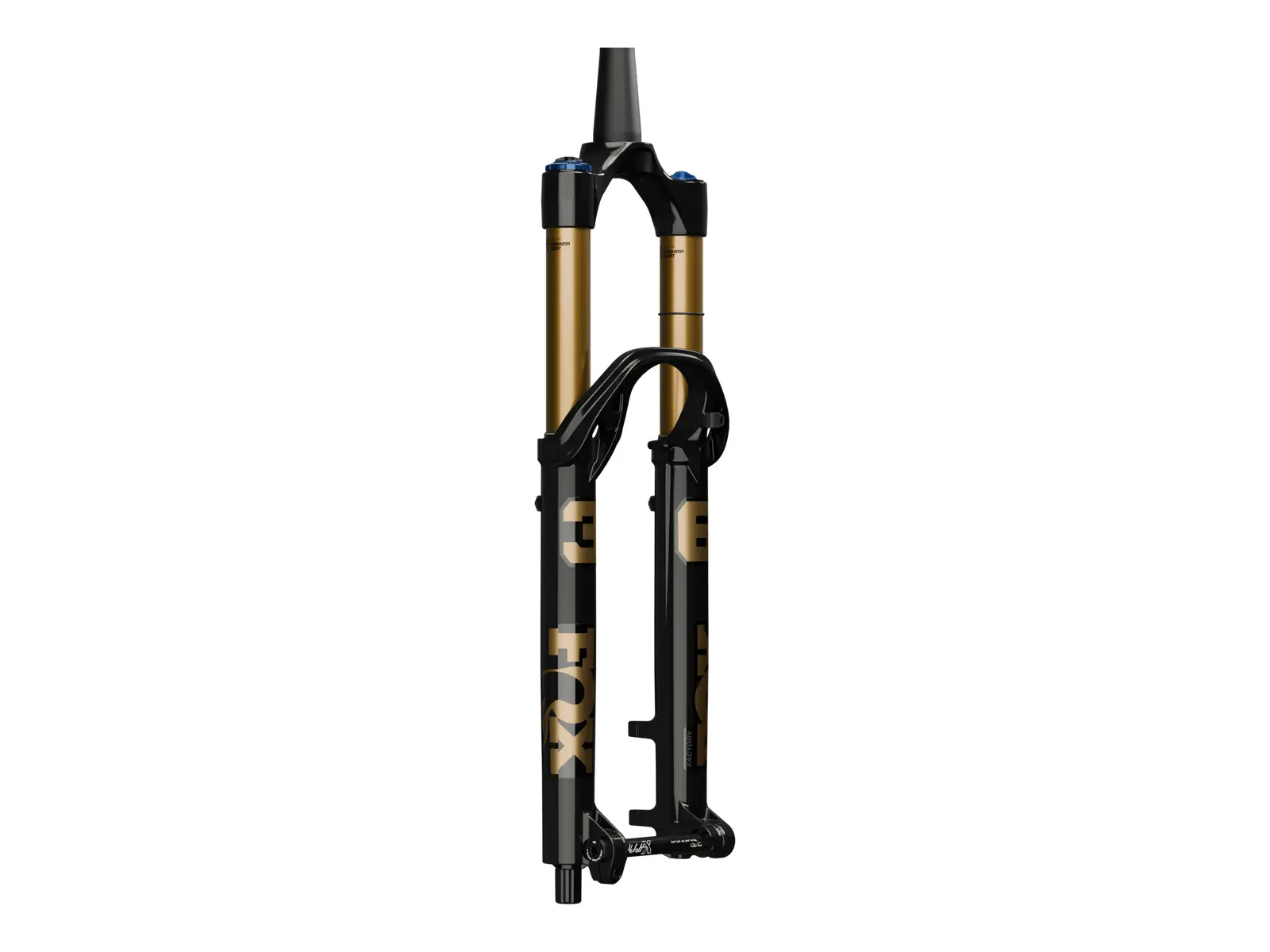

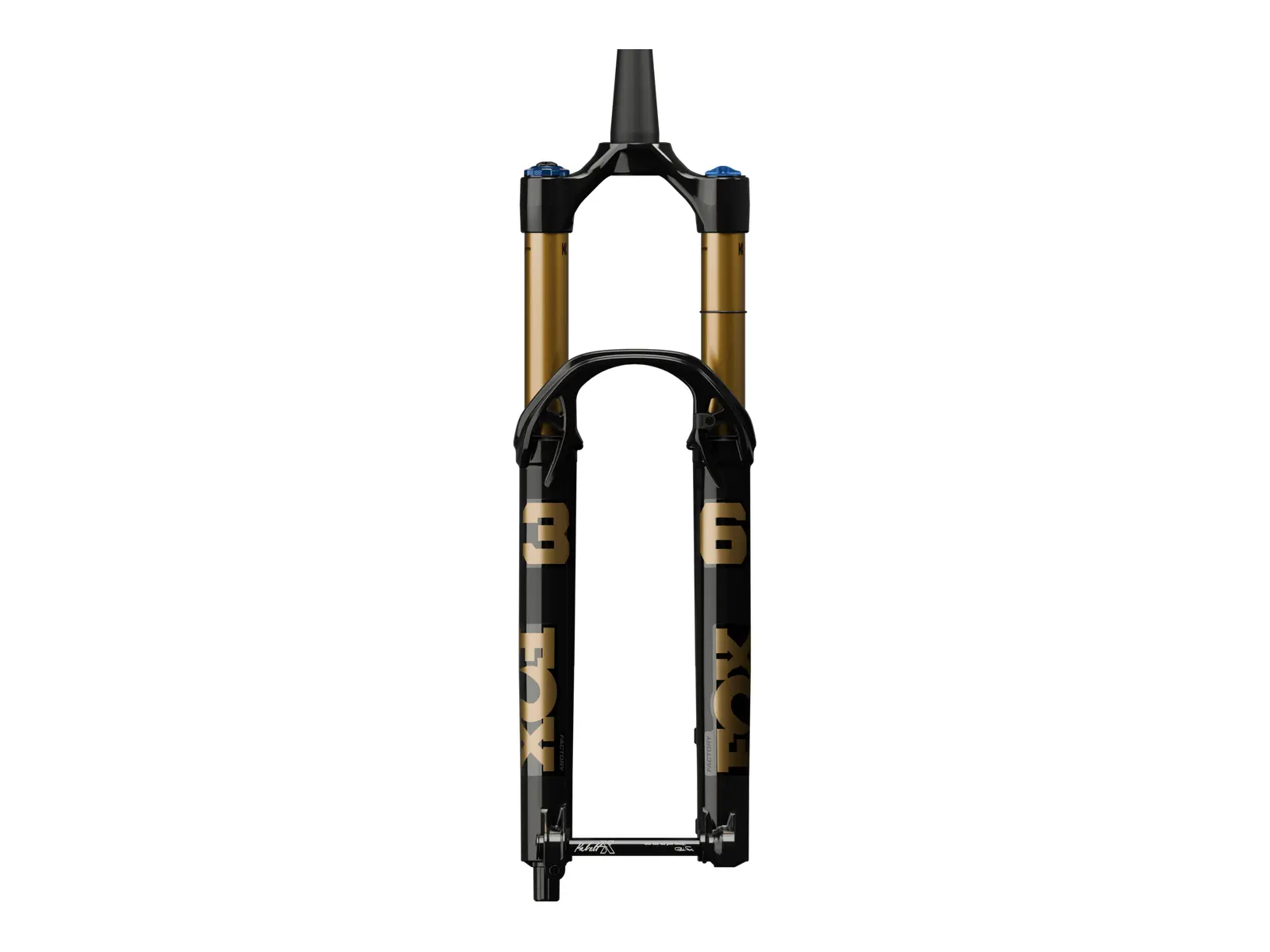

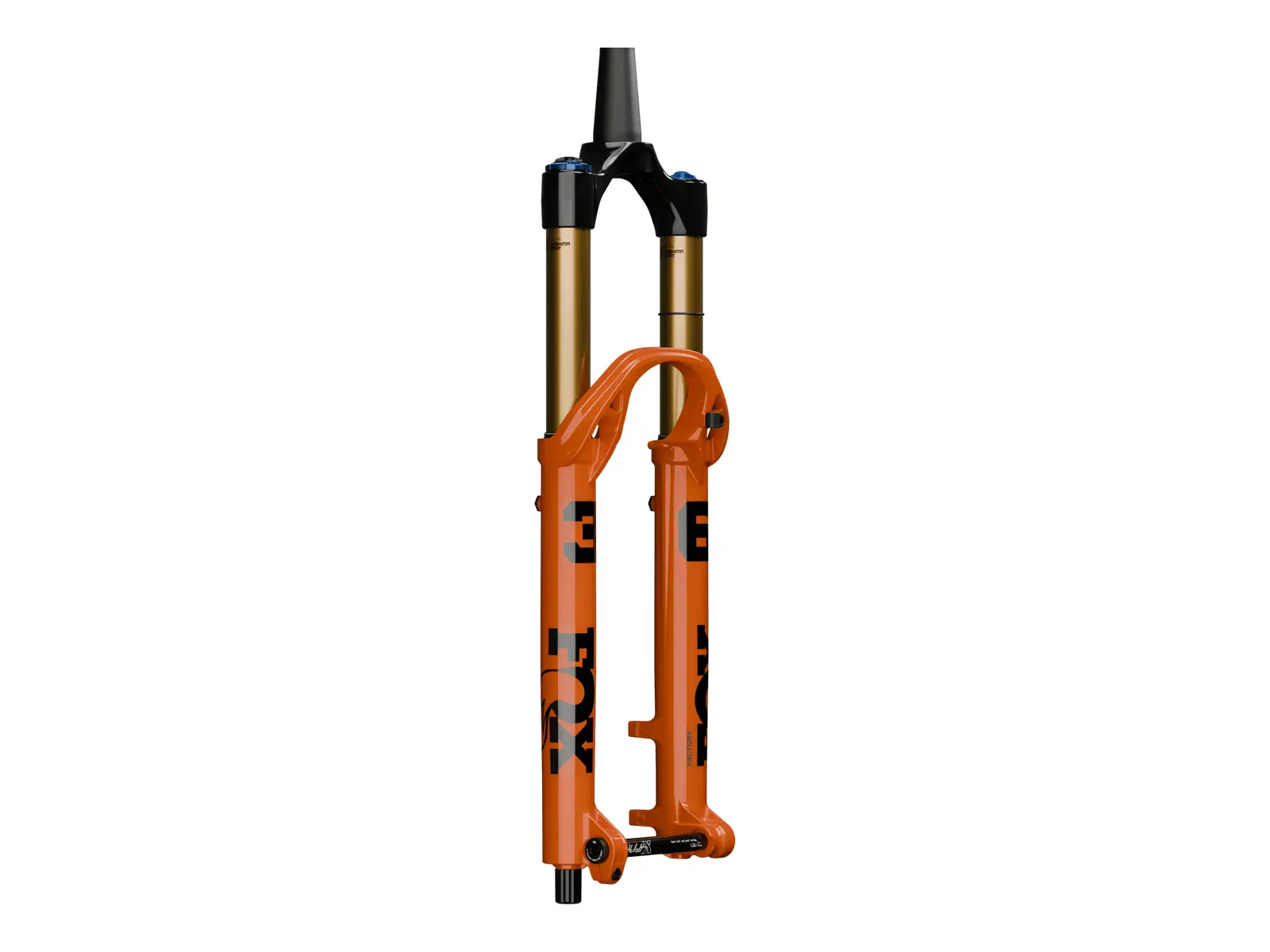

FOX "36 Factory Grip X2" MTB Fork - 29 Inch
-
Weight : 2.04kg / 4.5lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36448
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The FOX "36 Factory Grip X2" MTB Fork - 29 Inch is the all-mountain fork from FOX with the gravity damper GRIP X2: high- and low-speed compression, high- and low-speed rebound, 23 valves and with that the most tunable damper FOX makes. The 36 mm chassis with its generatively designed arch is 20 percent more torsionally stiff than the previous 36, the GlideCore air spring reduces friction, bleeder valves equalize the pressure in the lowers. The FOX "36 Factory Grip X2" MTB Fork - 29 Inch comes with 150 or 160 mm of travel on 29 inch wheels, with Kashima coated stanchions.
Facts: FOX "36 Factory Grip X2" MTB Fork - 29 Inch
- Wheel Size: 29"
- Travel: 150mm or 160mm
- Axle-to-Crown Height (A-C):
- 150 mm travel: 566.0 mm
- 160 mm travel: 576.0 mm - Offset (Rake): 44mm
- Damping: GRIP X2 damper, high-speed compression (8 clicks), low-speed compression (18 clicks), high-speed rebound (8 clicks)
- Spring System: FLOAT EVOL GlideCore air spring
- Rebound: Externally adjustable, high-speed (8 clicks) and low-speed (16 clicks)
- Steerer Tube Diameter: 1-1/8" - 1.5" (28.6mm - 38.1mm)
- Steerer Tube Length: 244mm
- Crown: 58HT (for head tubes with 58 mm outer diameter)
- Axle Type: 15 x 110 mm Boost, Kabolt-X thru axle
- Stanchions: 36 mm, Kashima Coat
- Lower Legs: Post Mount 200 mm direct mount, bleeder valves and air channels in the lowers, generatively designed arch
- Max. Rotor Size: 230 mm (with adapter)
- Recommended Use: Trail, all-mountain, enduro
- Model Year: 2027
- Contains: 1 fork incl. thru axle, star nut, brake hose clip, 3 volume spacers
- Extras: Mount for FOX 36/38 mud guard (4-point direct mount, optional), max. tyre width 29 x 2.6, max. system weight 140 kg, category 4 to EN 17406, class 1 e-bike approved
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
