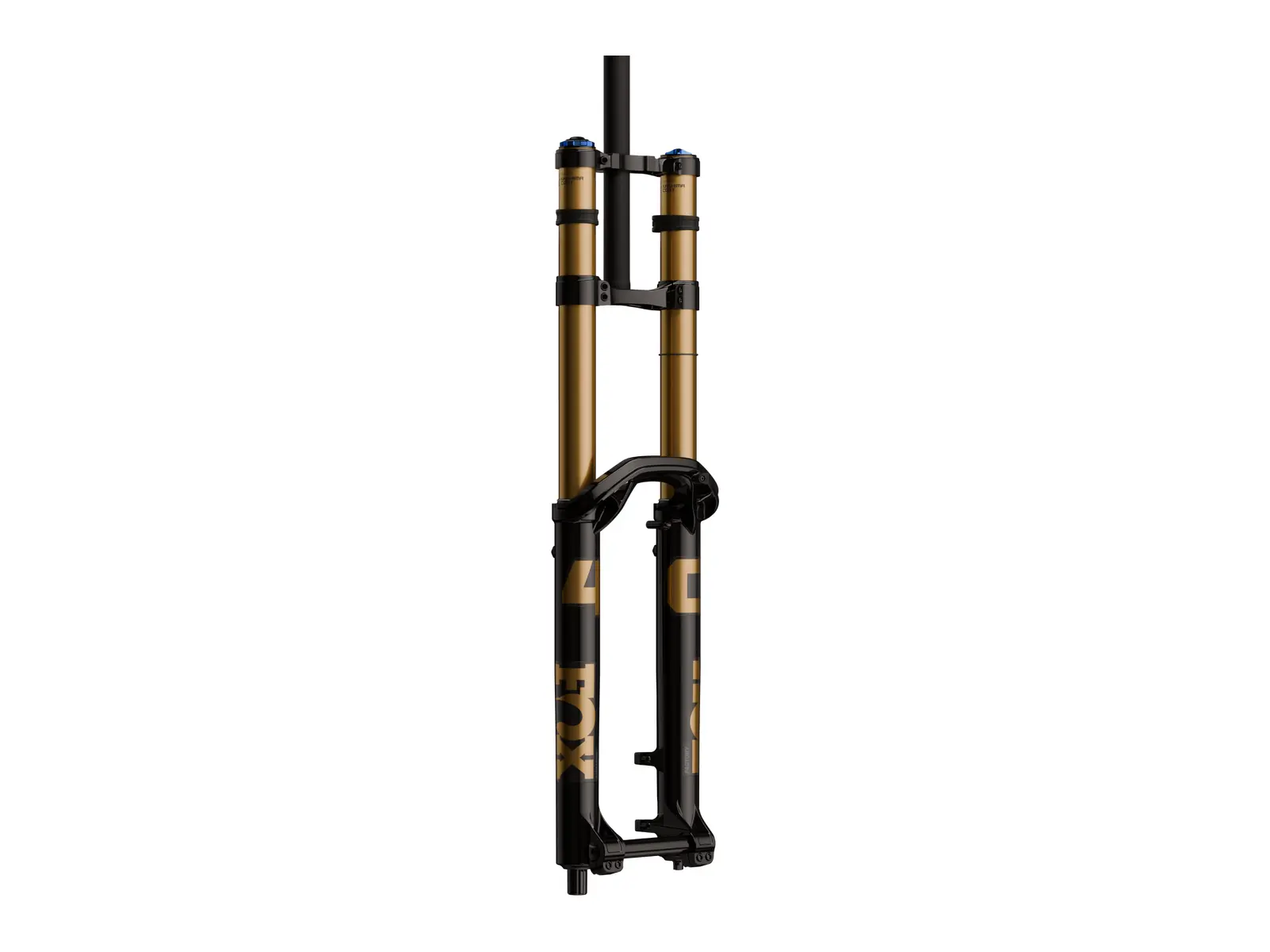

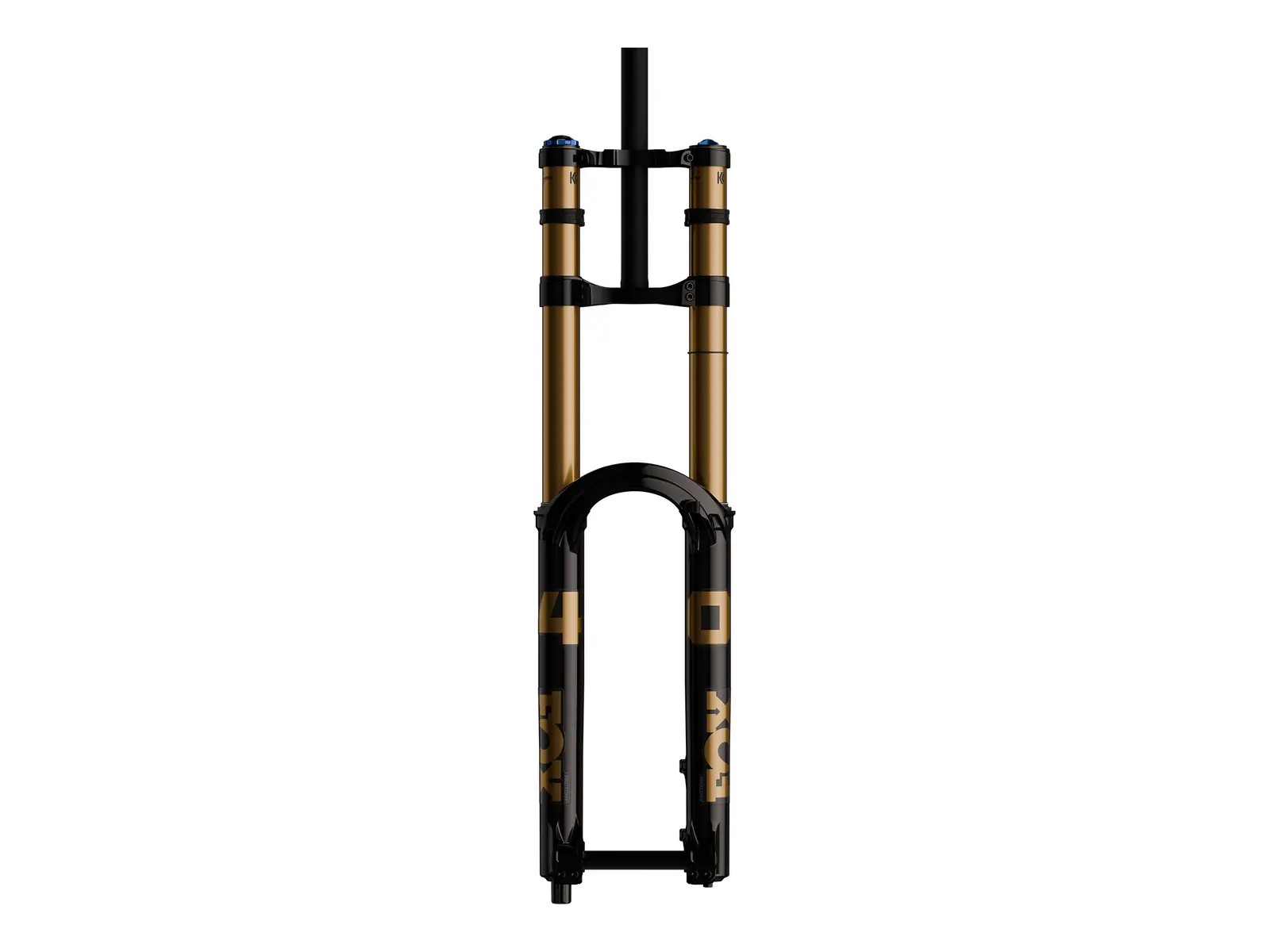

FOX "40 Factory Grip X2" MTB Fork - 27.5 Inch
-
Weight : 2.75kg / 6.06lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36453
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The FOX "40 Factory Grip X2" MTB Fork - 27.5 Inch is the dual crown downhill fork from FOX that the World Cup riders race: 40 mm stanchions with Kashima Coat, 203 mm of travel, the GlideCore air spring for less friction and the revised GRIP X2 damper with separate high- and low-speed compression and rebound. The generatively designed arch keeps the steering precision, the relocated bypass channels in the lowers make the fork more sensitive at high speed. The FOX "40 Factory Grip X2" MTB Fork - 27.5 Inch is the 27.5 inch version with 48 mm offset and a flat upper crown, built for downhill racing and bike park days.
Facts: FOX "40 Factory Grip X2" MTB Fork - 27.5 Inch
- Wheel Size: 27.5"
- Travel: 203mm
- Axle-to-Crown Height (A-C): 585.6 mm
- Offset (Rake): 48mm
- Damping: GRIP X2 damper, high-speed compression (8 clicks), low-speed compression (18 clicks), high-speed rebound (8 clicks)
- Spring System: FLOAT EVOL GlideCore air spring
- Rebound: Externally adjustable, high-speed (8 clicks) and low-speed (16 clicks)
- Steerer Tube Diameter: 1-1/8" (28.6mm)
- Steerer Tube Length: 272mm
- Crown: Dual crown, flat upper crown, direct mount stem pattern, crown to upper tube position adjustable 127 to 137.5 mm
- Axle Type: 20 x 110 mm Boost, thru axle (floating axle)
- Stanchions: 40 mm, Kashima Coat
- Lower Legs: DH Post Mount 200 mm direct mount, bleeder valves and bypass channels, generatively designed arch
- Max. Rotor Size: 230 mm (with adapter)
- Recommended Use: Downhill, bike park
- Model Year: 2027
- Contains: 1 fork incl. thru axle, star nut, brake hose clip, 3 volume spacers
- Extras: Mount for FOX 40 mud guard (4-point direct mount, optional), max. tyre width 27.5 x 2.5, DH disc brake only
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
