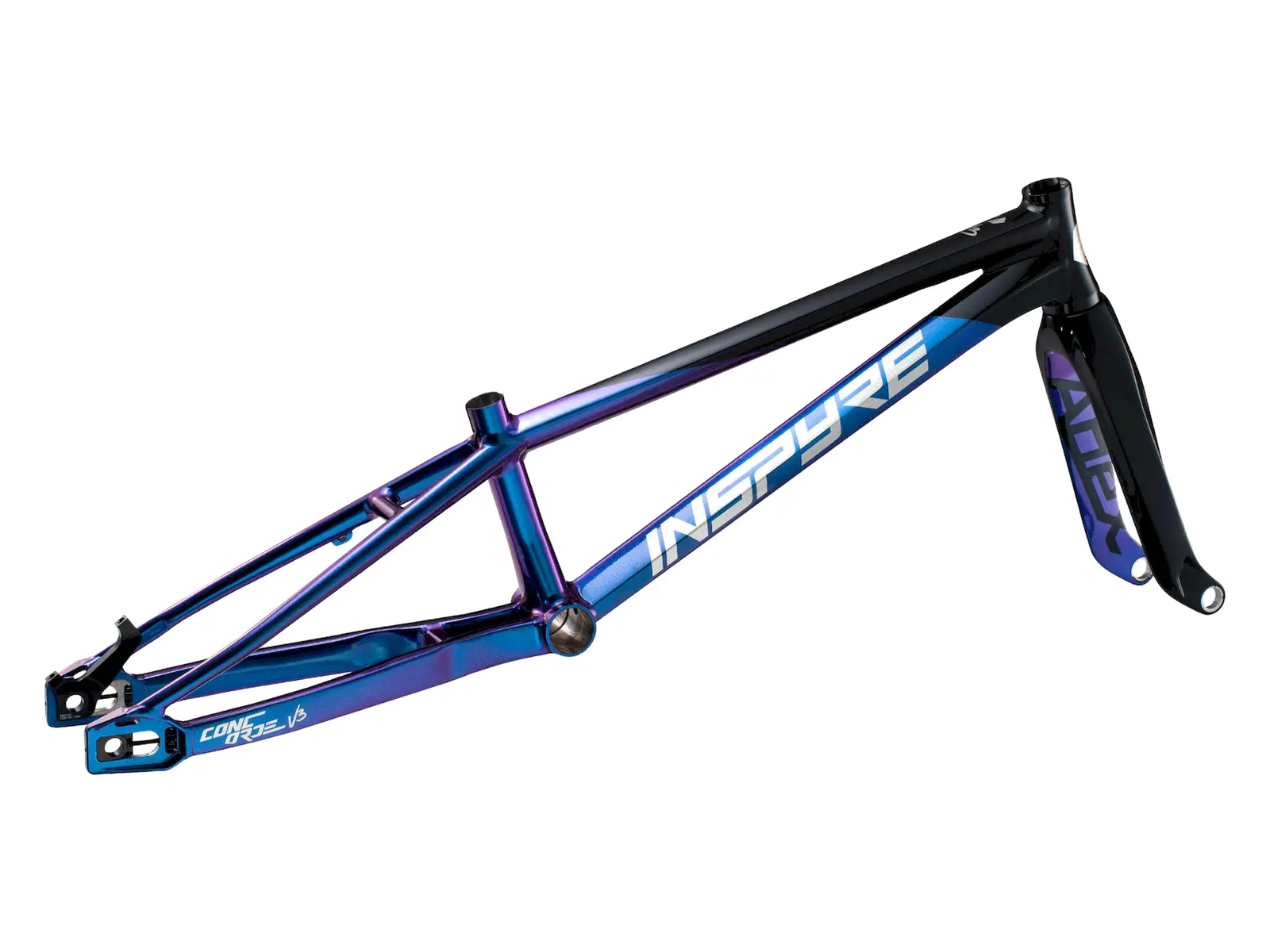

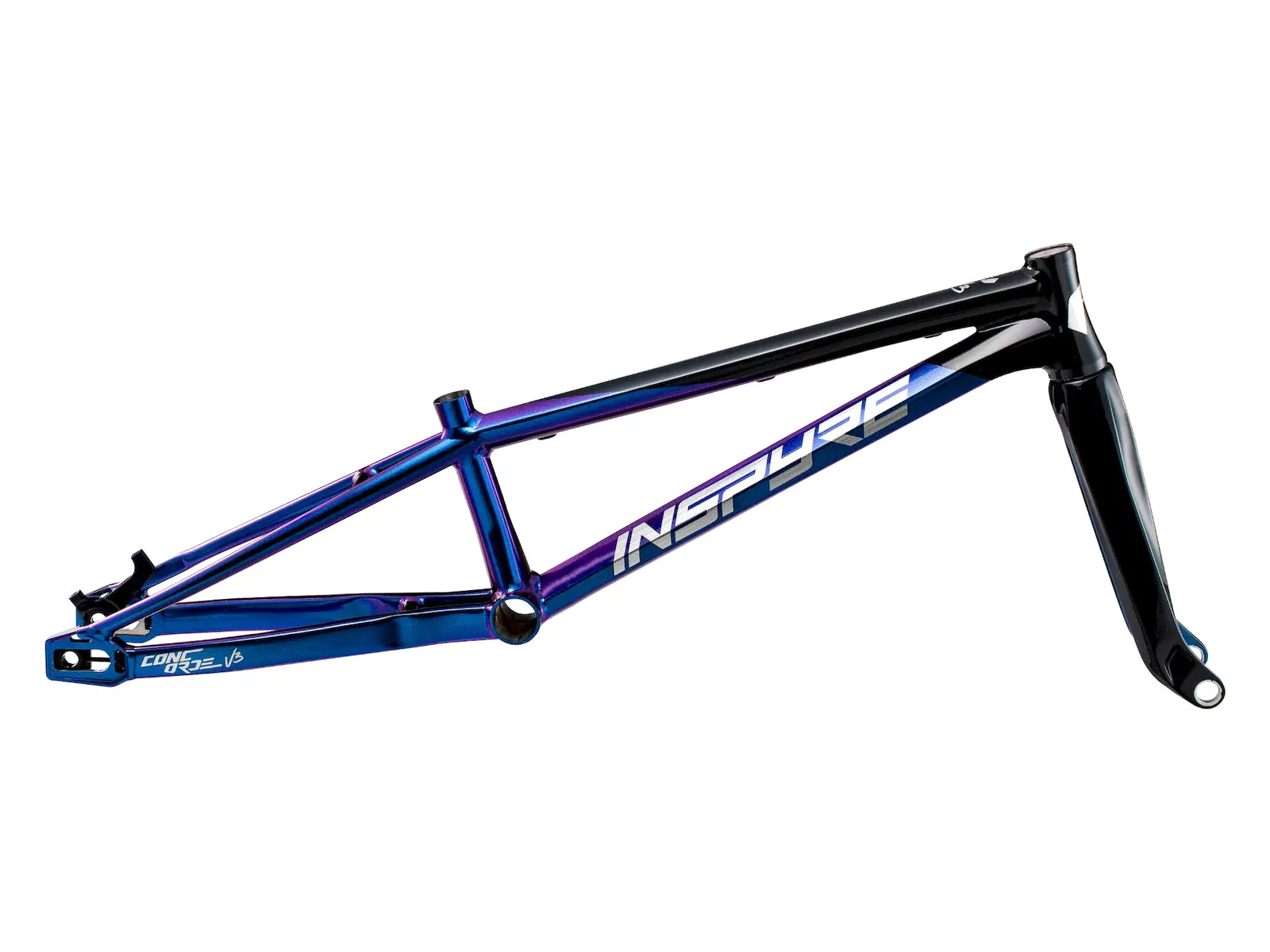

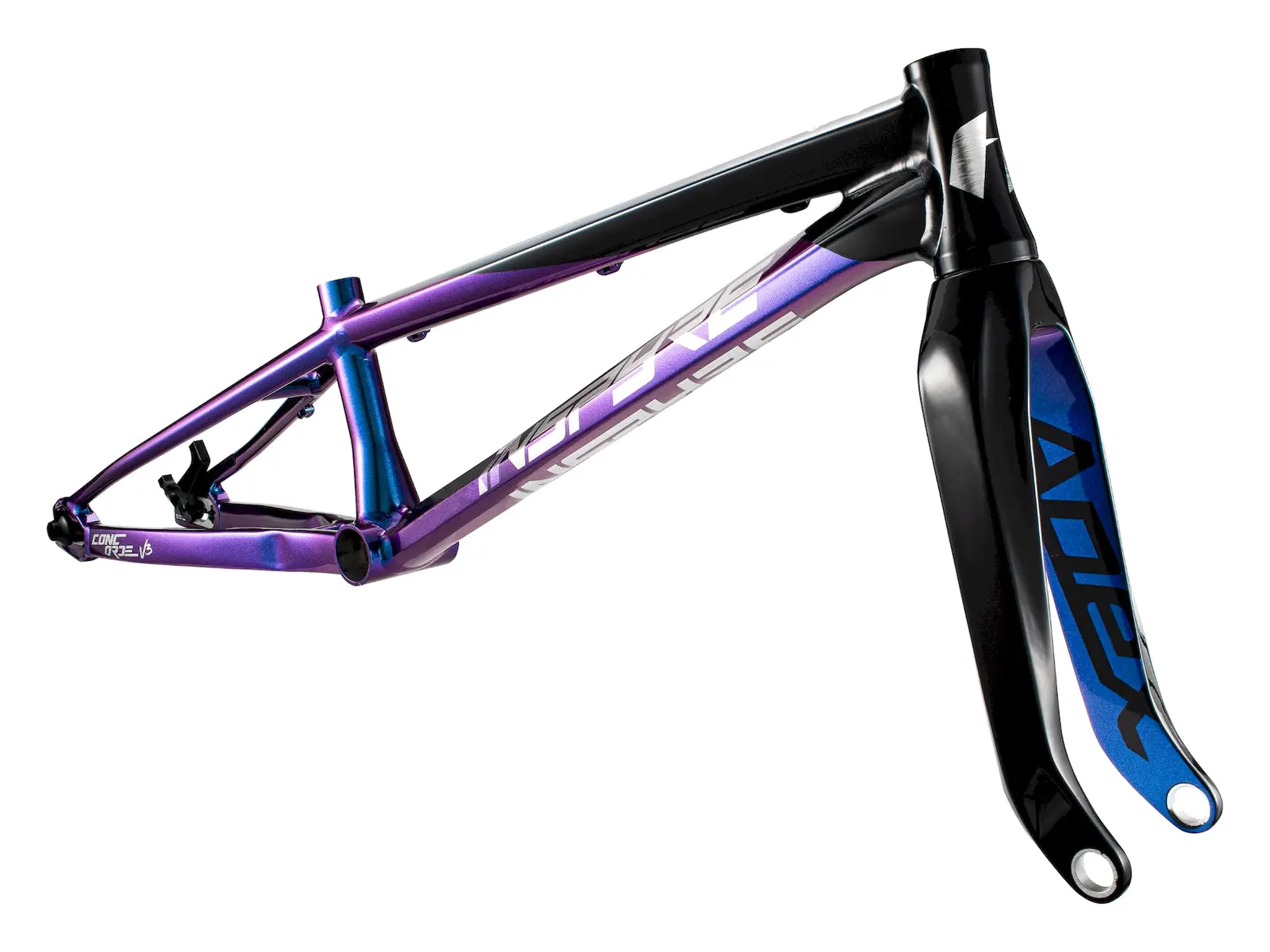

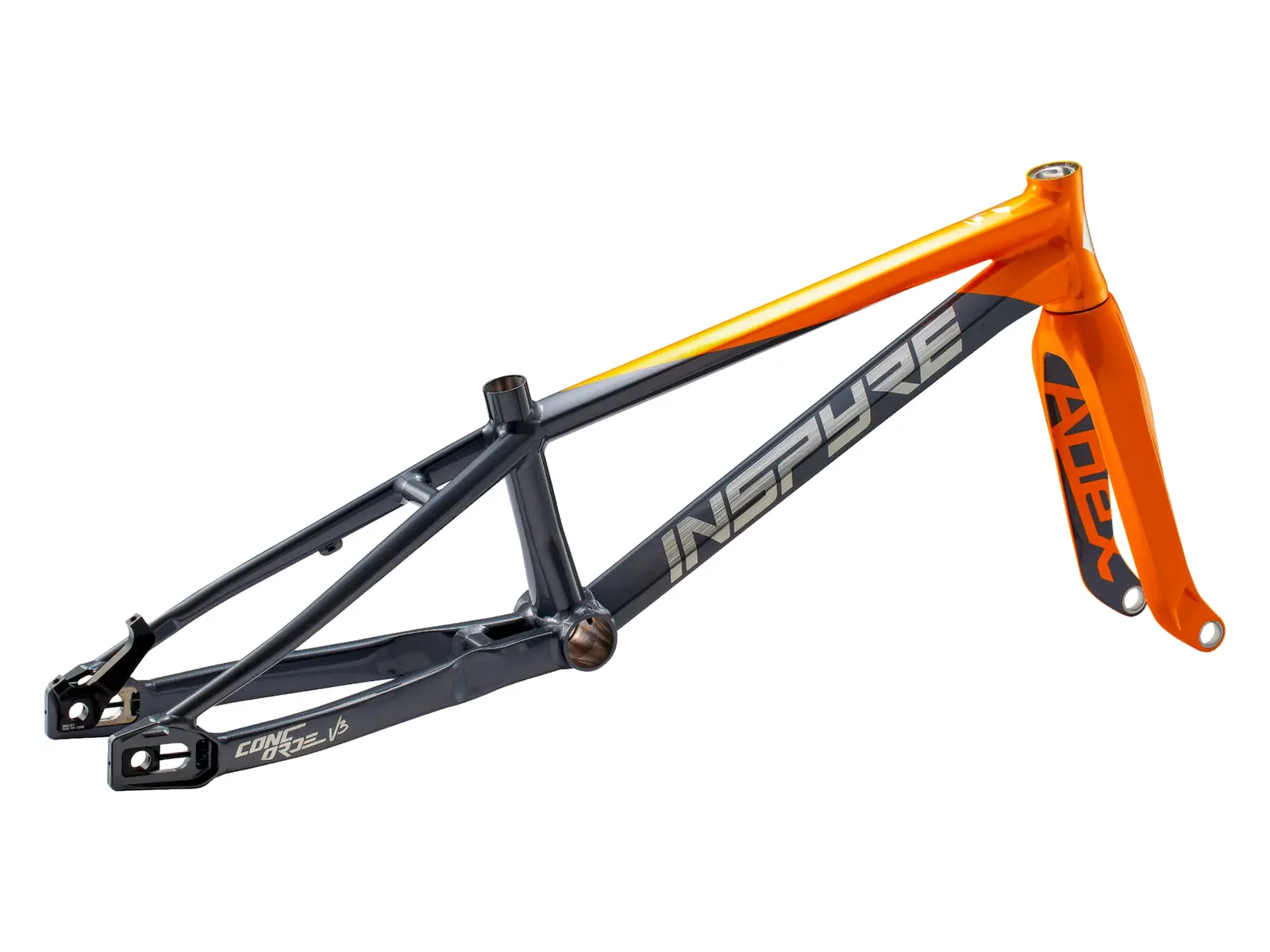

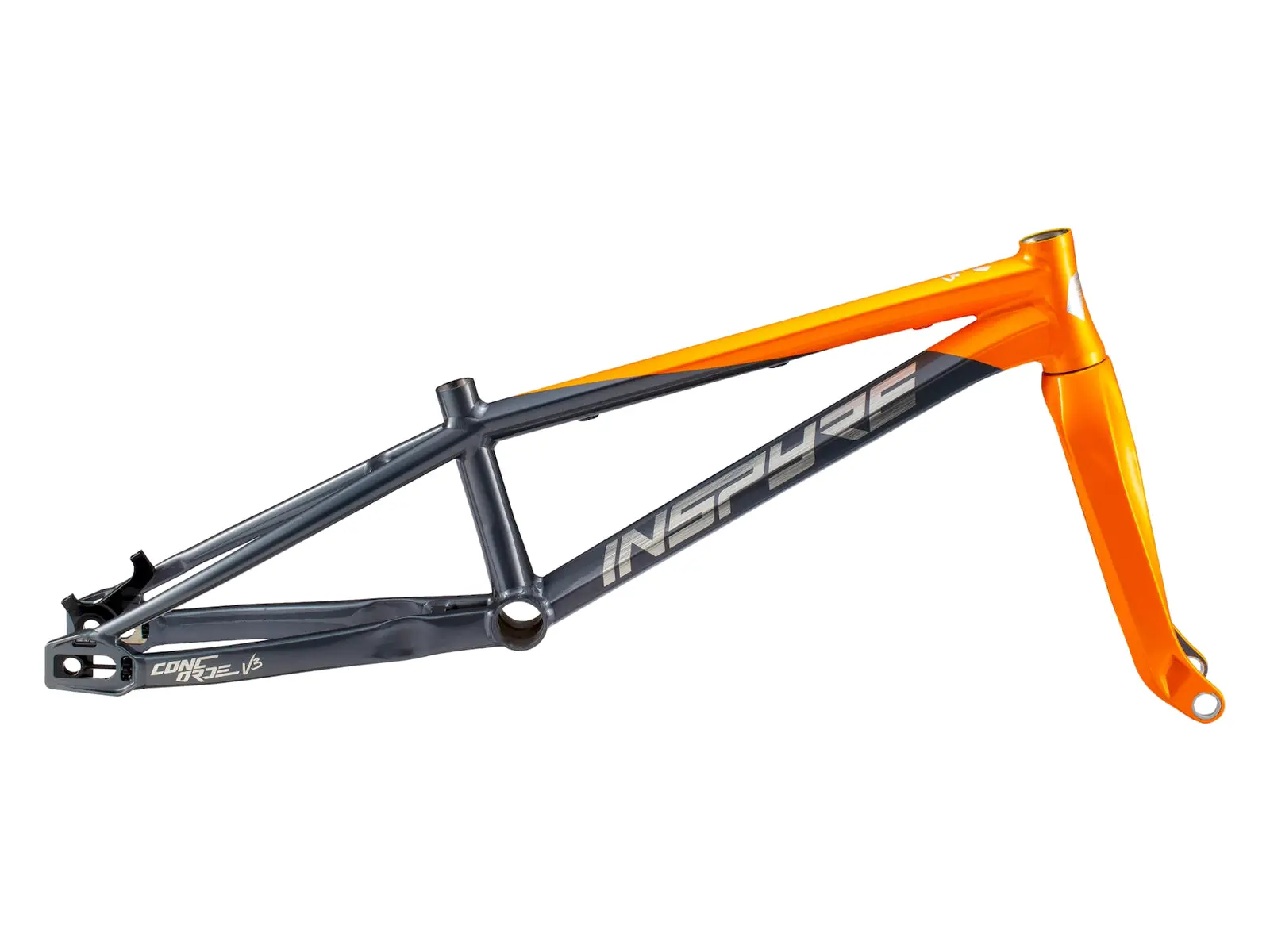

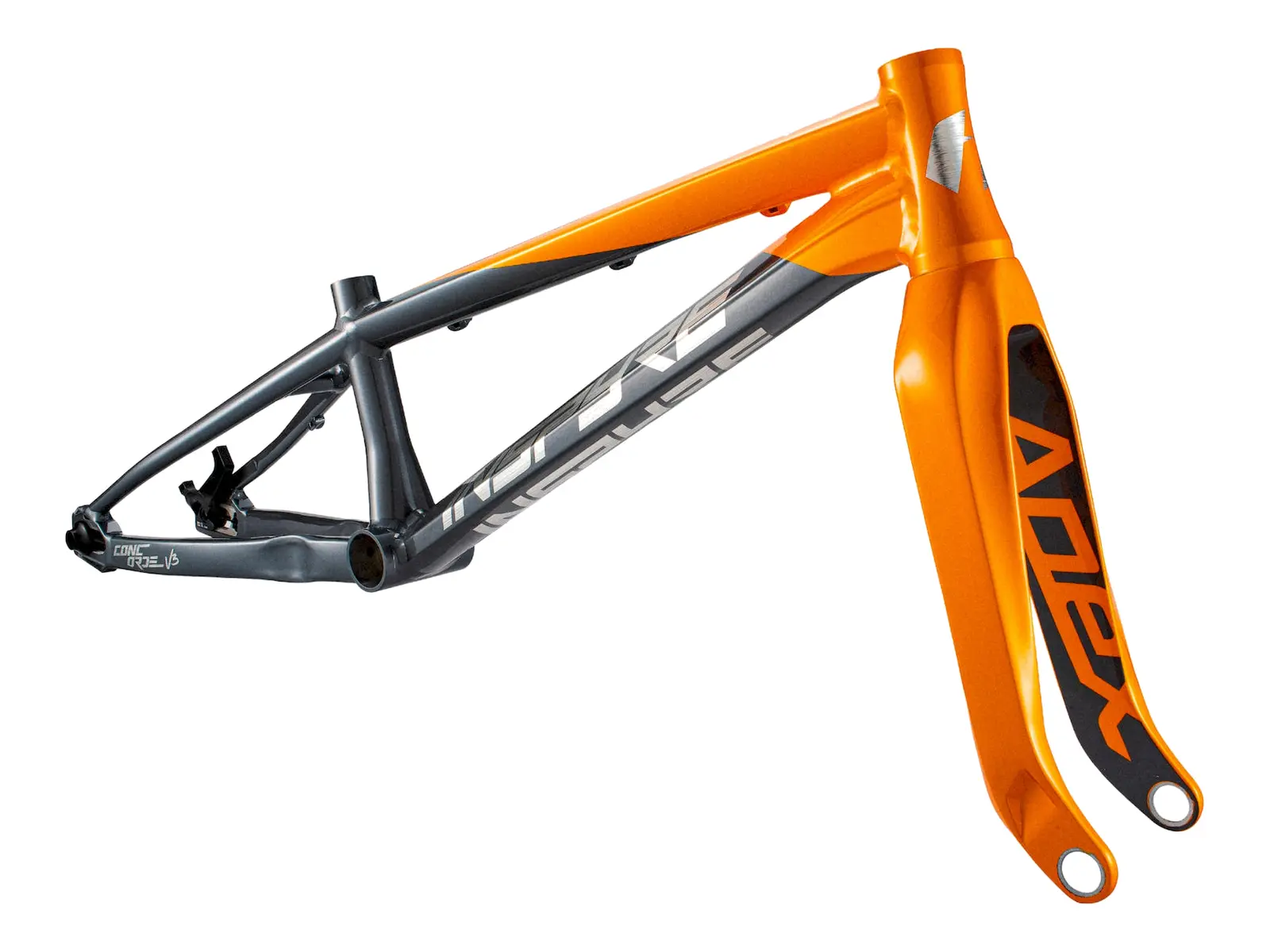

Inspyre Bicycles "Concorde V3 Pro XXXXL" BMX Race Frame + Fork Set
- Weight : 2.34kg / 5.16lbs
- Packaging Unit: 1 Set
- Product ID (PID): 44153
- Product safety
Weight
Source: BMX Glossary
The Inspyre Bicycles "Concorde V3" BMX Race Frame is the result of over two years of intensive development in collaboration with elite BMX athletes. This high-performance frame sets new standards in the aluminum BMX race category, lighter, stiffer, and more precise than ever before. Featuring new hydroformed tubes (with the exception of the top tube), the frame offers a perfect balance between low weight, high stiffness, and aerodynamic efficiency. Thanks to the widened and reinforced bottom bracket area, power transfer is direct and the response to pedal strokes is lightning-fast.
After months of intensive research, countless lab tests, and the toughest trials on World Cup tracks around the globe, the Pride "Apex" Fork has been personally validated by world-class rider Jeremy Rencurel and now offers every rider a professional-grade performance. Its unique, aerodynamic design was specially developed to deliver superior stiffness for an incomparably direct response, with every curve engineered for minimal drag and maximum speed. Inside, an intelligent construction specifically utilizes different types of carbon fibers depending on the load zone to optimally manage lateral forces, torsion, and hard impacts. This is complemented by a high-strength steerer tube, which ensures extreme stability and durability even under the harshest racing conditions.
Facts: Inspyre Bicycles "Concorde V3 Pro XXXXL" BMX Race Frame + Fork Set
- Inspyre Bicycles "Concorde V3 Pro XXXXL" BMX Race Frame
Wheel Size: 20"
Material: 100% 6061-T6 Aluminum, hydroformed multi-butted tubes

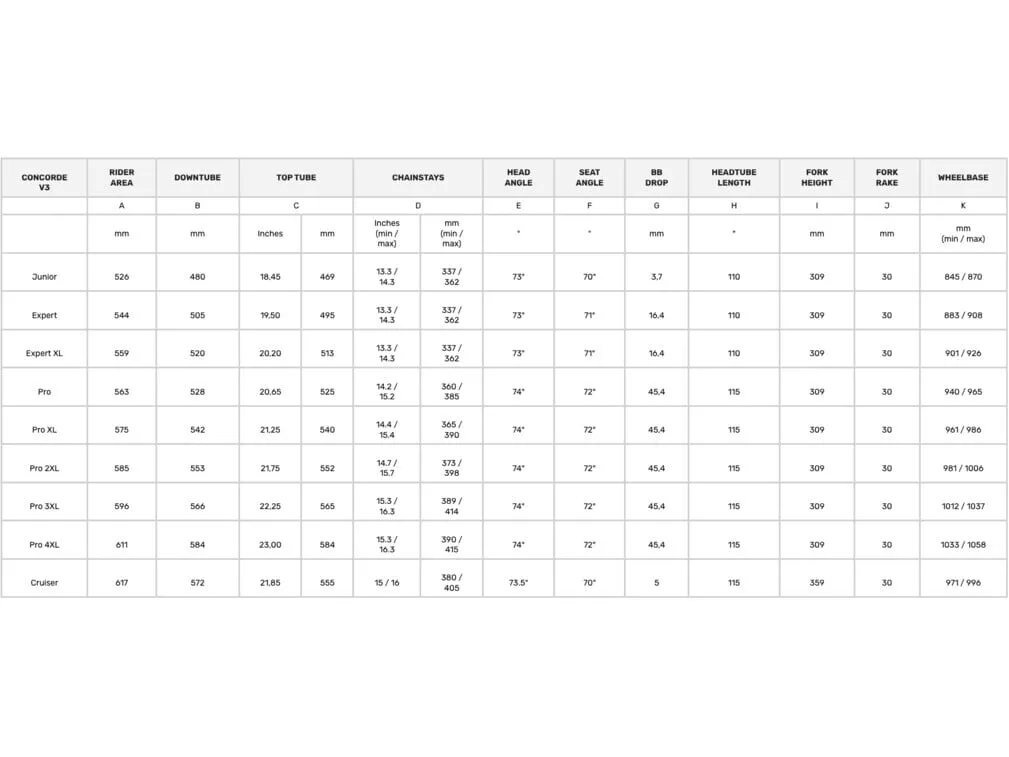

Geometry:
- Top Tube (TT): 23.0"
- Chainstay (CS): 15.3"-16.3"
- Head Tube Angle (HA): 74°
- Seat Tube Angle (ST): 72°
Headsets Size: Tapered 1-1/8" - 1.5"
Dropouts: 15mm (incl. chain tensioners for 10mm)
Seat Clamp: 34.9mm
Seat Post Diameter: 31.6mm
Bottom Bracket: Pressfit BB86
Chainring Size (Max): 50T
Chain Tensioners: Included
Tire Size (Max): 20x1.85"
Brake Type: Disc, 120mm, post mount
Brakemounts: Compatible with hydraulic "post mount" brakes
Brakemounts included with delivery: Yes, post mount integrated in the dropout
Features: hydroformed tubes, flat welds, decals under clear coat, SWELL V2 dropouts with 25mm adjustment range, frame weight 1646g
- Pride Racing "Apex" BMX Race Fork
Material: Torayca® HM Carbon (Fork legs), 7075-T6 Aluminum (Steerer tube)
Steerer Diameter: Tapered 1-1/8" - 1.5"
Steerer Length: 170mm
Dropouts: Standard 20mm thru-axle (6061-T6 Aluminum)
Offset: 30mm
Wheel Size: 20 x 1.75" (ETRTO 406) & 20 x 1-3/8" (ETRTO 451)
Fork Height: 307mm
Weight: 695g (without top cap)
Includes: Compression bolt
Important: Always use a torque wrench to assemble the fork. We recommend regular checks of the tightening torque.
