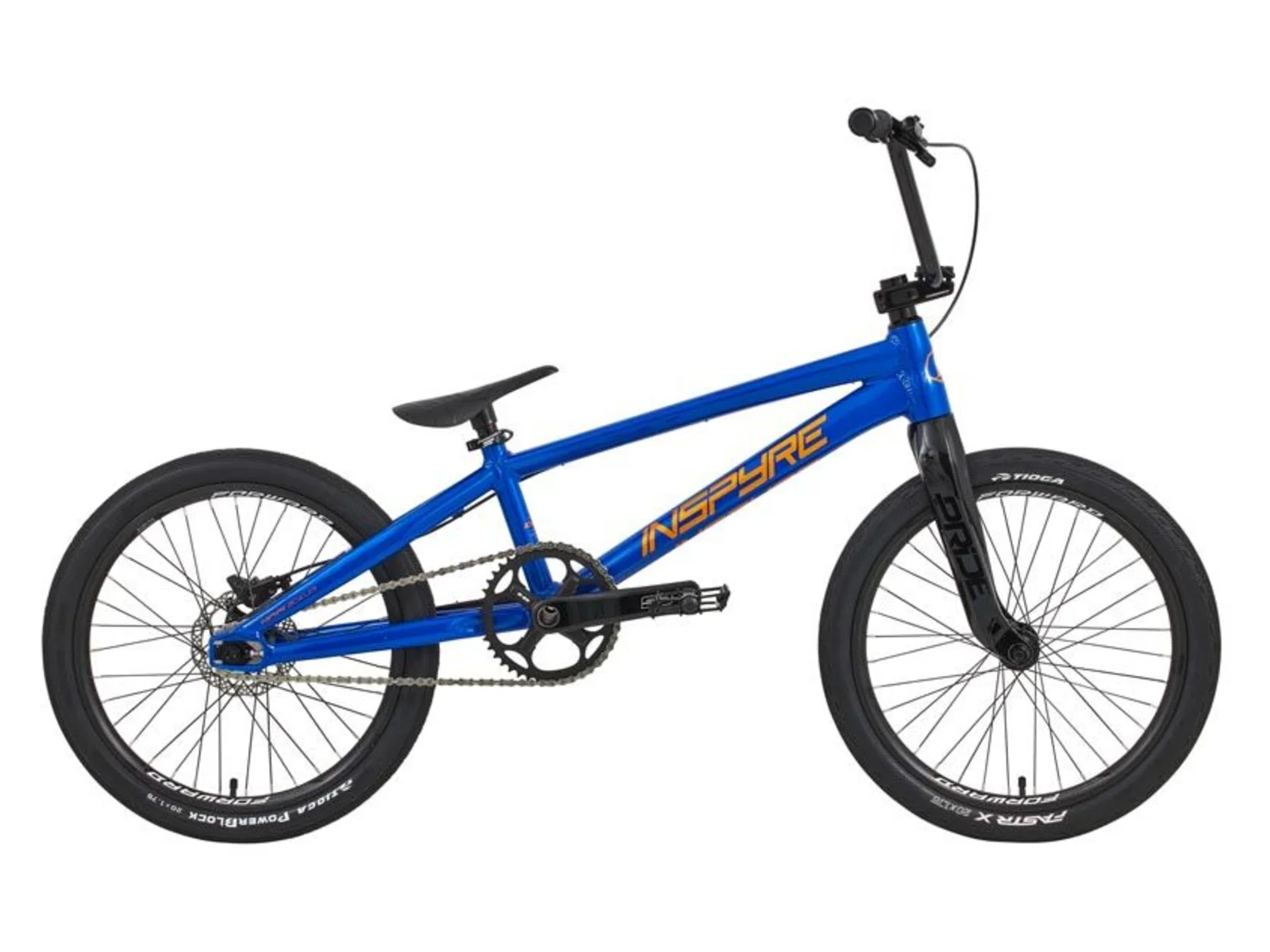

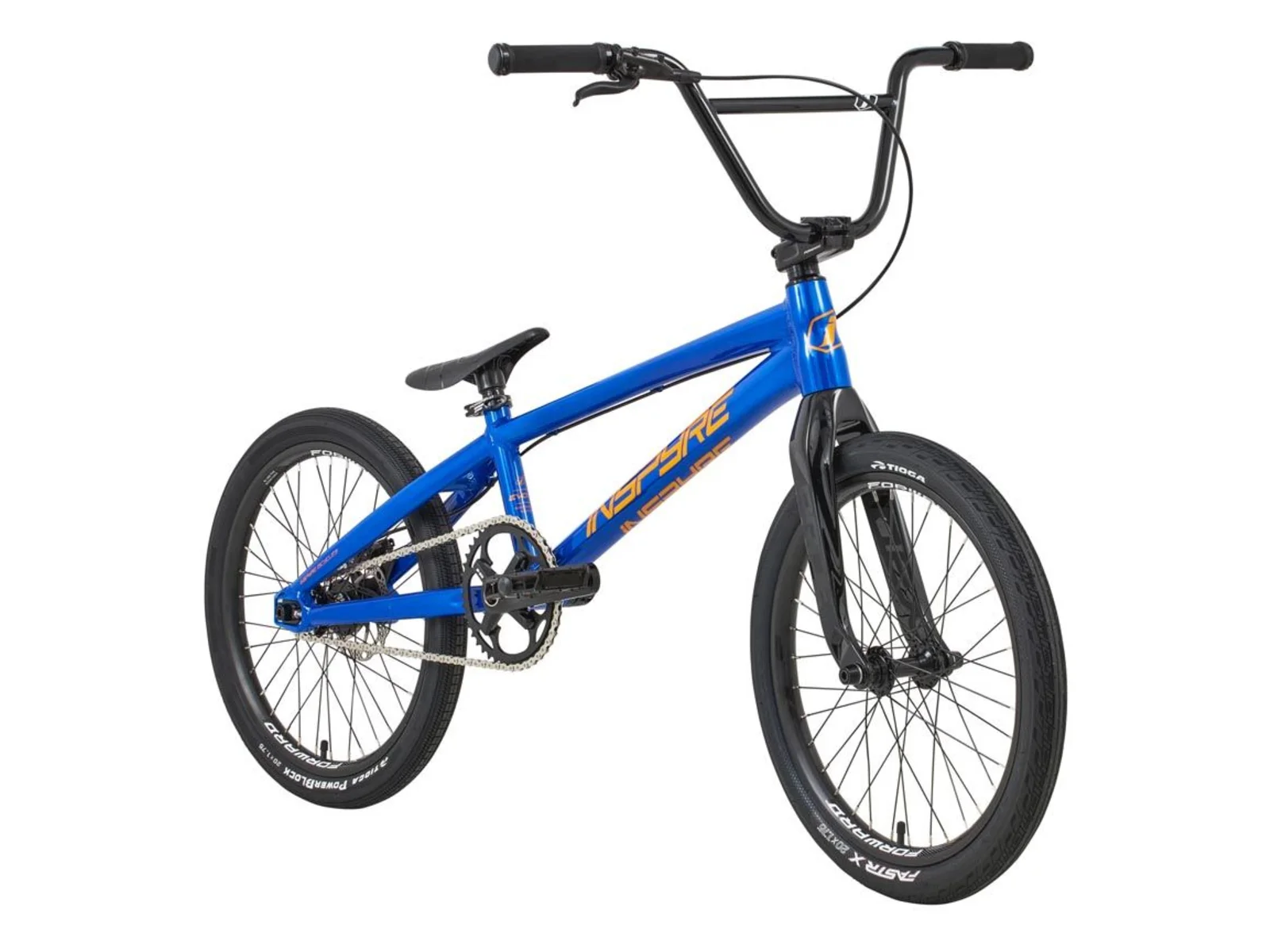

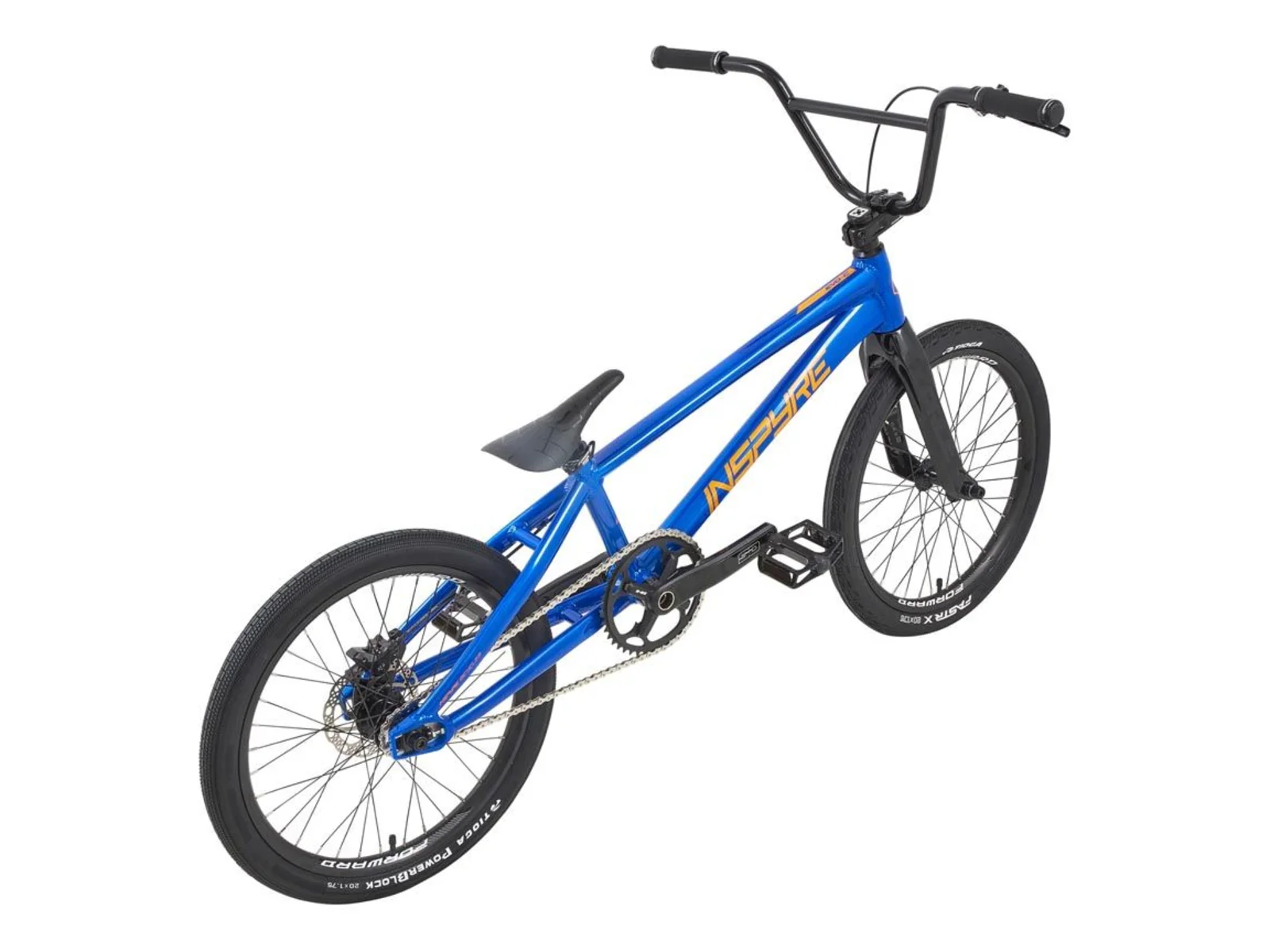

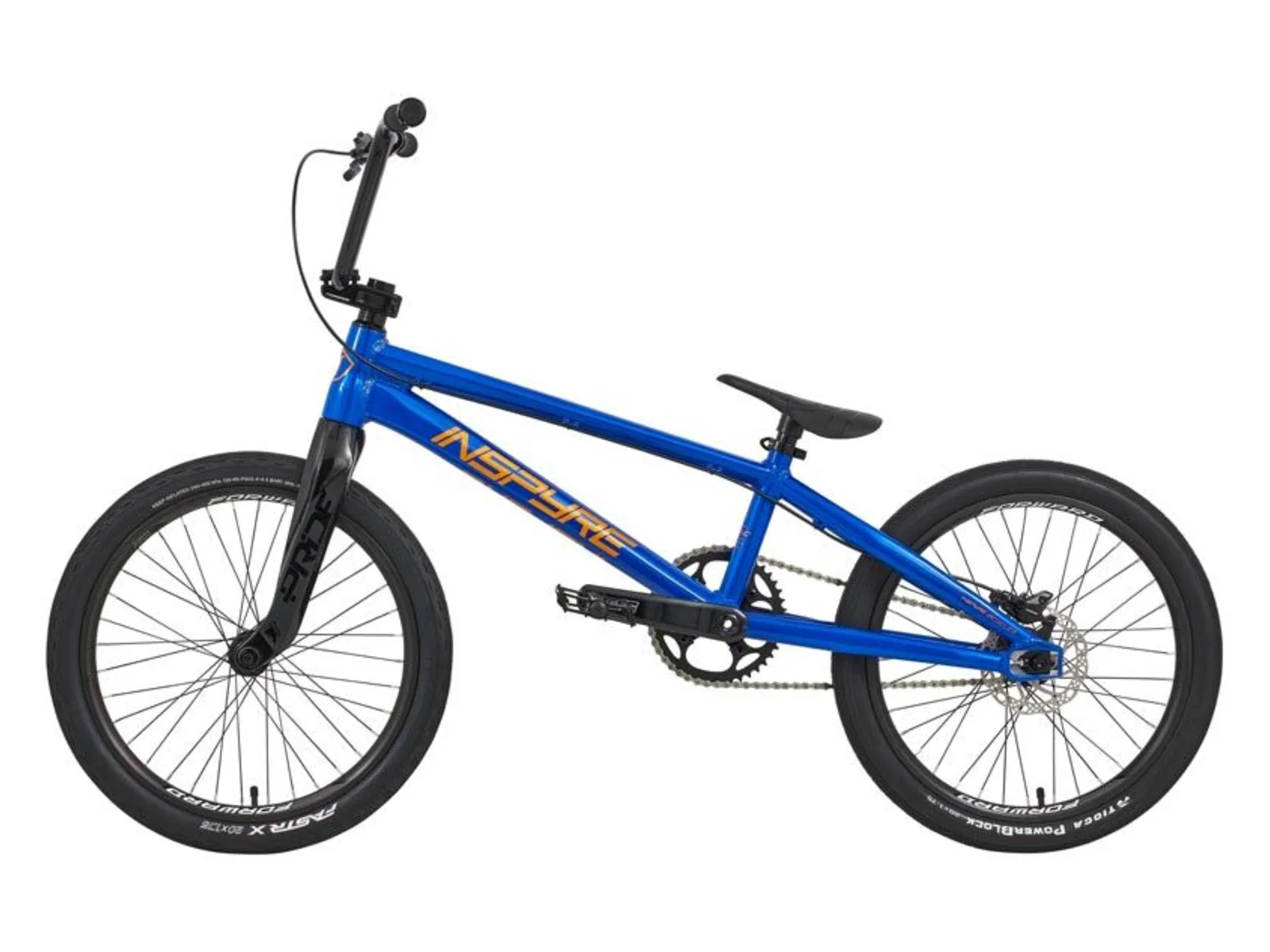

Inspyre Bicycles "Evo-C Disk Pro XL" BMX Race Bike - Blue
-
Weight : 9.34kg / 20.59lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 30309
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
With the new Inspyre Bicycles "Evo-C Disk Pro XL" BMX Race Bike - Blue, you secure a true high-end setup designed for maximum performance thanks to the Pride Racing Matrix carbon fork and hydroformed aluminum frame. The lightning-fast power transfer from the Forward Joyride V2 hubs with 150 engagement points guarantees you the decisive advantage at the start, while the Inspyre Bicycles "Evo-C Disk Pro XL" BMX Race Bike - Blue brings you to the podium in style with its elegant Champagne finish.
Facts: Inspyre Bicycles "Evo-C Disk Pro XL" BMX Race Bike - Blue
- Wheelsize: 20"
- Race-Size: Pro XL
- Wheel Size: 20"
- Race Size: Pro XL
- BMX Frame: Inspyre Evo-C Disk Pro XL, 21.25", Premium 6061-T6 Aluminum, Hydroformed tubes, Triple butted, Swell forged 3D dropouts
- Frame Geometry:
- Top Tube (TT): 21.25"
- Chainstay (CS): 14.8"
- Head Tube (HA): 74°
- Seat Tube (SA): 72°
- Bottom Bracket Height (BB): 11.5" - BMX Fork: Pride Racing Matrix, Torayca T700 Carbon, Tapered 1-1/8" / 1.5" steerer tube, 10 mm
- BMX Handlebar:
- Inspyre Evo, 100% Chromoly, 22.2mm, 2-piece
- Height: 8"
- Width: 28.5"
- Backsweep: 7°
- Upsweep: 1.5°
- Bar Clamping: 22.2mm - Grips: Forward Lock-On, 130mm, Kraton
- Stem: Forward, Top Load, 6061-T6 Aluminum, 50mm
- Headset: Pride Racing, Integrated (Tapered), Sealed bearings, IS42 | IS52
- Brake Lever (Right): Shimano BL-MT401, Right lever, Black
- Brake (Rear): Shimano BR-MT410, Rear brake, Post Mount, Resin pads (Disc Brake 140mm)
- Saddle: Combo Saddle, Nylon seat post, Saddle dimensions: 214 x 113 mm
- Seat Post: Seat post dimensions: 162 x 27.2 mm
- Seat Clamp: Forward AM, 31.8mm
- Pedals: Aluminum, 9/16"
- Chain: KMC® Z-1, 1/2" x 3/32"
- Sprocket: 4-bolt Aluminum, 43T
- Crank: SD B85, 2-piece, 4-bolt (104 BCD), 175mm
- Bottom Bracket: FORWARD® External BSA, Sealed bearings
- Hub (Front): Forward Joyride V2, Aluminum, 36H, 10mm, 100% Sealed bearings, Female bolts
- Hub (Rear): Forward Joyride V2 Disc, Aluminum Cassette, 36H, 10mm, 100% Sealed bearings, 150 engagement points, 6-pawl system, Female bolts, 16T Cog, Chromoly
- Rim (Front): Forward Joyride, Aluminum, 36H, Double wall
- Rim (Rear): Forward Joyride, Aluminum, 36H, Double wall
- Tire (Front): Tioga Fastr X, 20" x 1.75"
- Tire (Rear): Tioga Powerblock, 20" x 1.75"
- Delivery: The BMX bike is delivered pre-assembled in a box. Only the handlebars, front wheel, pedals, and seat need to be attached for final assembly. Tools not included.
- Area of Use: BMX Race, developed for BMX race tracks or pumptracks
