Radio Bikes "Griffin Pro 26" MTB Frame
-
Weight : 2.04kg / 4.5lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 26610
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

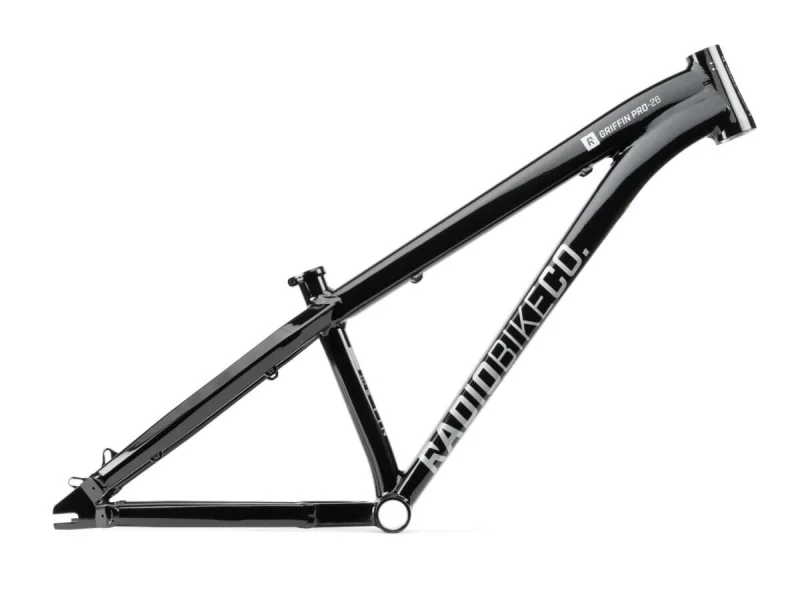

Radio Bikes "Griffin Pro 26" MTB Frame
is a high-end class frame designed for dirt jumps. Through the use of premium 6061-T6 aluminum and a process developed by Radio Bikes called "Hydroforming," it achieves an overall stiffer and more durable construction compared to a conventional dirt jump frame. Additionally, the
Radio Bikes "Griffin Pro 26" MTB Frame
features holes in the head tube to allow for mounting a rotor
Facts: Radio Bikes "Griffin Pro 26" MTB Frame
- Wheel size: 26"
- Material: 6061-T6 aluminum, "Raio Comp Hydroformed", forged triple clamp (rear triangle), individually butted tubes, tapered head tube, integrated tapered headset (1-1/8" to 1.5")
- Geometry:
- Toptube (TT): 22.5" or 22.8"
- Chainstay (CS): 15"
- Headtube Angle (HA): 70°
- Seattube angle: 70°
- Dropouts: 10mm, forged, 8mm thick - Seat clamp: With
- Seat post diameter: 27.2mm
- Bottom Bracket: Euro threaded, BSA 68mm, CNC
- Chain tensioners: integriert
- Brake style: IS disc brake mount
