Radio Bikes "Quartz Pro XL" 2025 BMX Race Bike - Matt Black
This product is currently sold out. The date of new availability is unknown.
Current successor: Radio Bikes "Quartz Pro XL" 2026 BMX Race Bike - Dark Blue Grey Metallic Show similar products
Current successor: Radio Bikes "Quartz Pro XL" 2026 BMX Race Bike - Dark Blue Grey Metallic Show similar products
-
Weight : 9.4kg / 20.72lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29859
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
PRO in every sense of the word, the

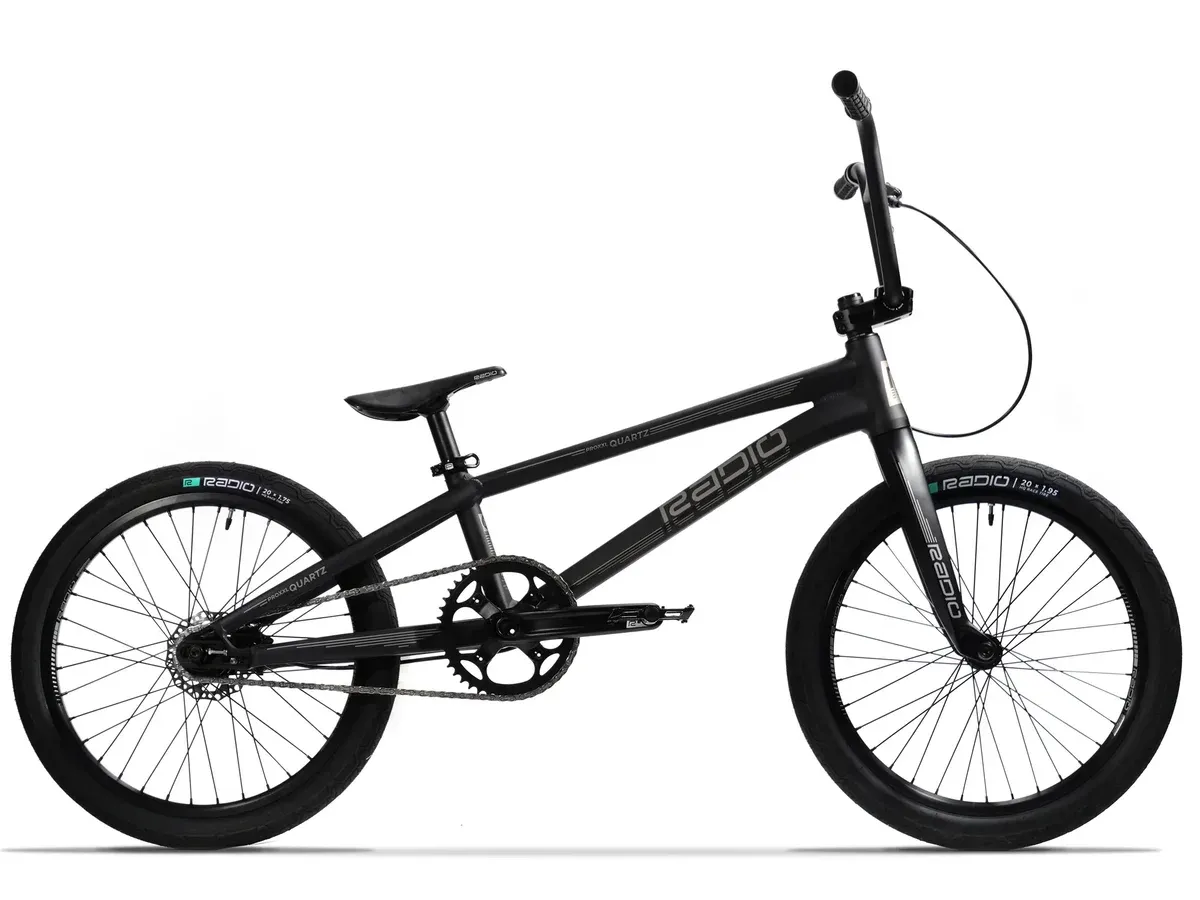

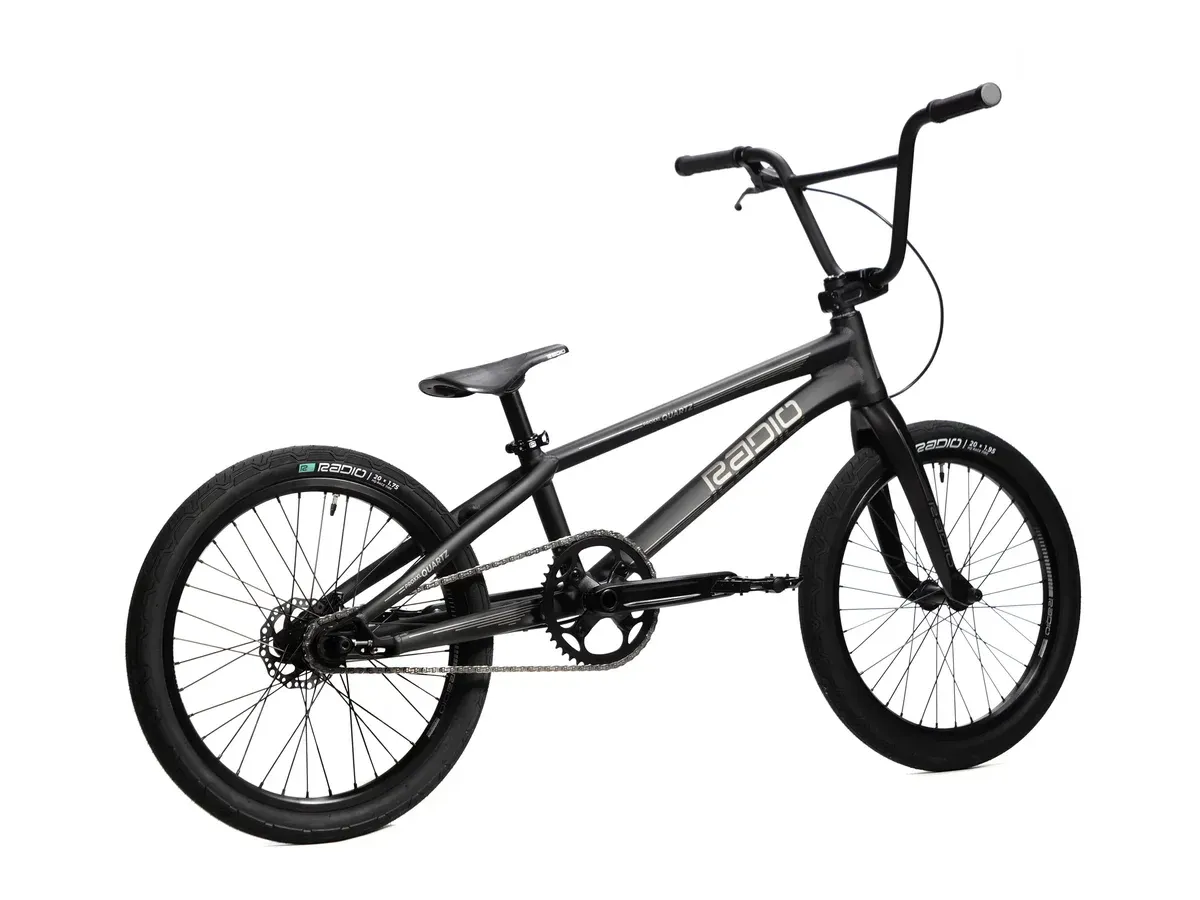

Radio Bikes "Quartz Pro XL" 2025 BMX Race Bike - Matt Black
is a day one champion. The PRO parts package includes a cold forged 53mm stem, female bolts hubs and a cold-forged alloy crank to our custom 6061-T6 alloy frame. Finished off with a sprinkling of Promax, Alex Rims, and Tioga Tires parts package, this is one mean machine built for speed.
The
Radio Bikes "Quartz Pro XL" 2025 BMX Race Bike - Matt Black
has 20 inch wheels and a top tube length of 21.25" and is recommended for riders with a height from about 1.75m.
Facts: Radio Bikes "Quartz Pro XL" 2025 BMX Race Bike - Matt Black
- Wheel Size: 20"
- BMX Frame: lightweight hydroformed 6061 T6 alloy, tapered headtube, forged dropouts, with int. chain tensioners
- Frame-Geometry:
- Top Tube (TT): 21.25"
- Chain Stay (CS): 14.85"
- Head Tube (HA): 74°
- Seattube (SA): 71°
- BB-Height (BB): 11.6" - BMX Fork: Radio, Solar, carbon fork, 1-1/8" – 1.5" tapered steerer tube, 32mm offset
- BMX Bar:
- Radio, Neon Pro, hydroformed multiple butted & heat-treated CrMo, 2-piece
- Height: 7.5"
- Width: 28"
- Backsweep: 6.5°
- Upsweep: 2.5° - Grips: Radio "Xenon" Clamp-On, 139mm long

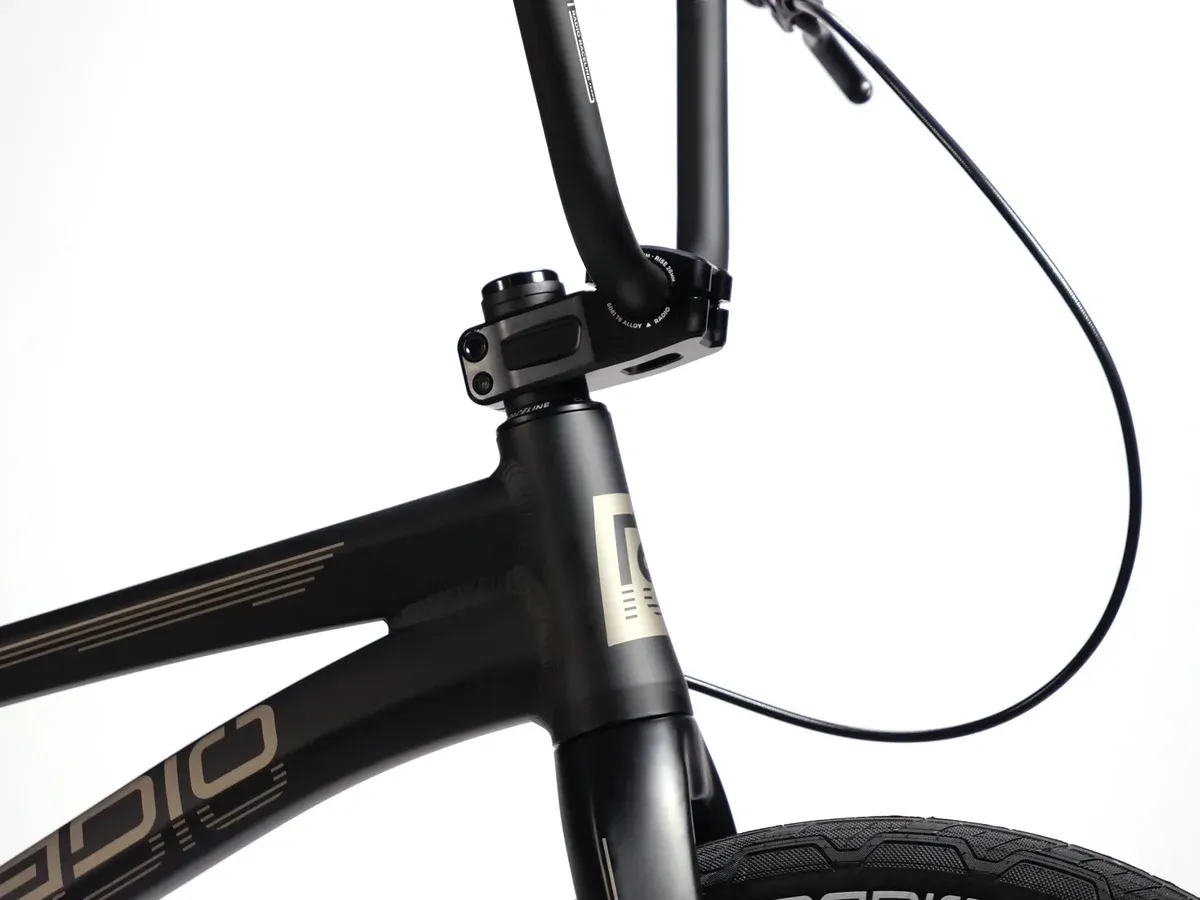

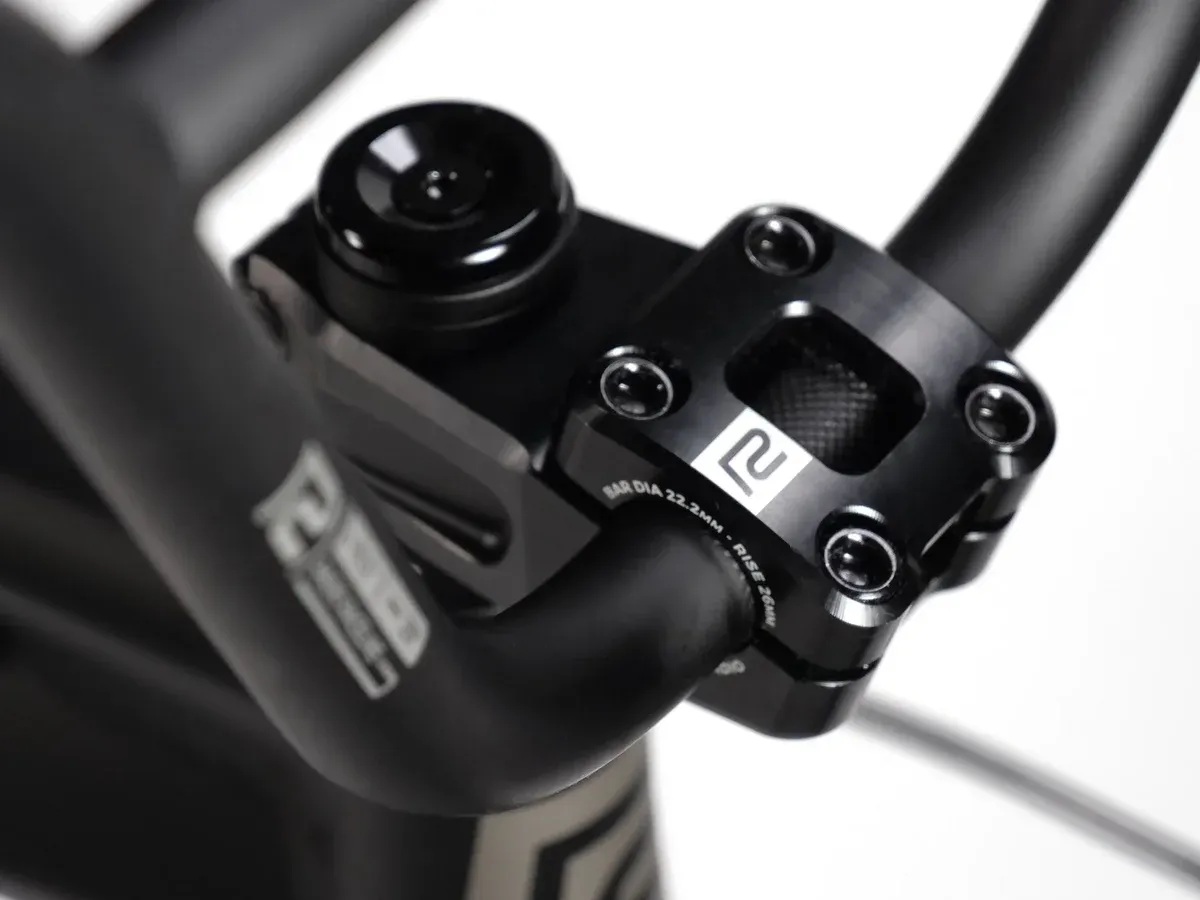

- Stem: Radio "Neon Pro", topload, 53mm Reach
- Headset: Radio Pro, Int. Headset, sealed, threadless, 1-1/8" – 1.5"
- Gyro: -

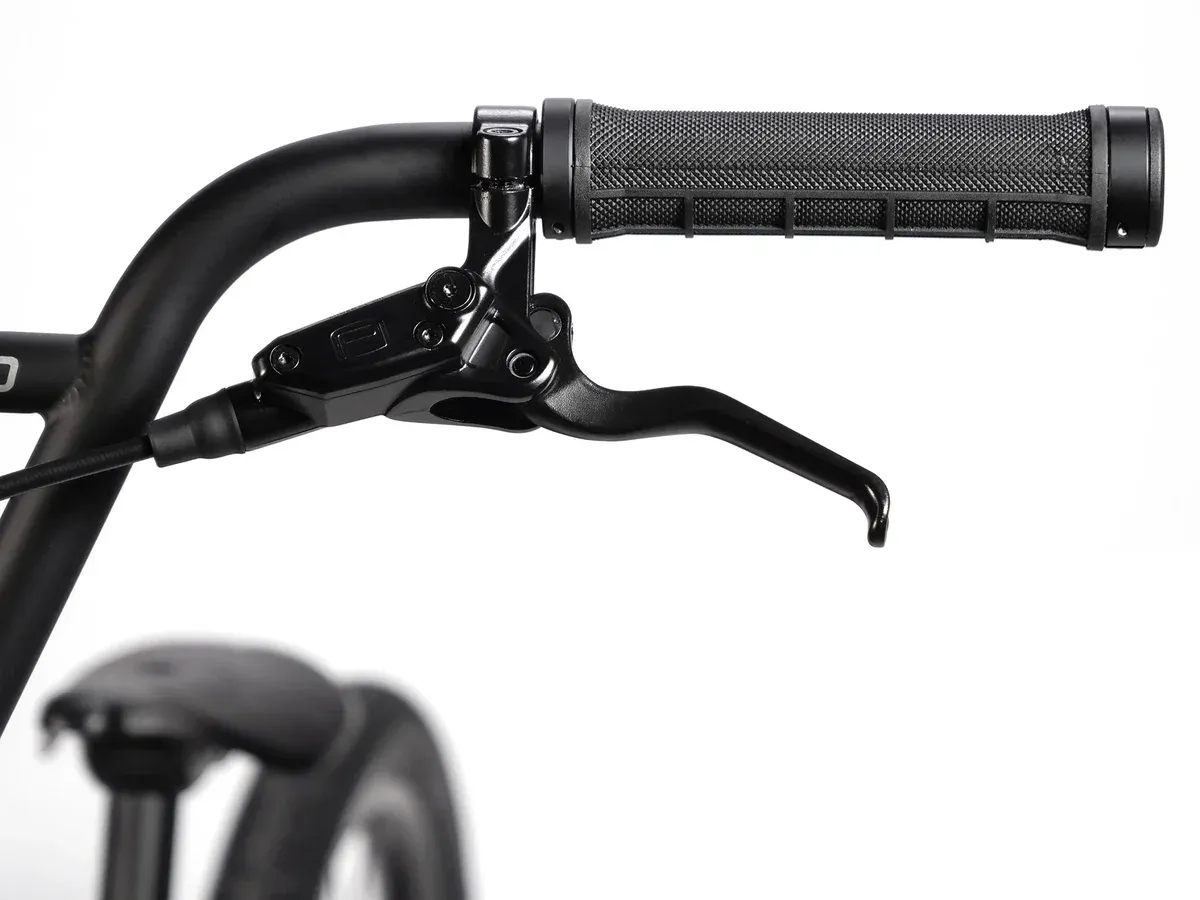

- Brake Lever: Promax, F1, Raceline, hydraulic disc brake 2 finger lever
- Brake (rear): Radio, Raceline, hydraulic disc brake, 120mm rotor

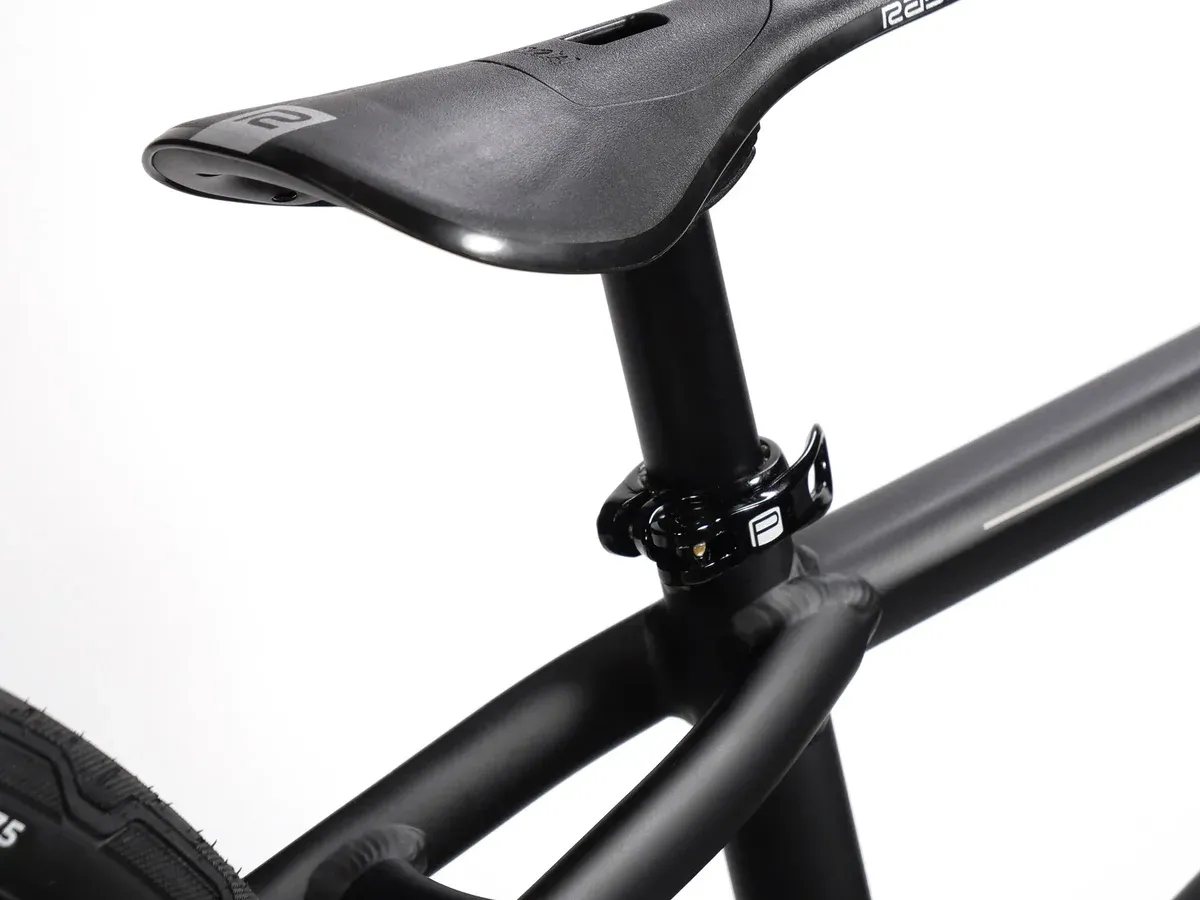

- Seat: Radio, Xenon, pivotal, no padding
- Seatpost: Pivotal, Aluminum, 27.2mm
- Seat Clamp: Radio "Xenon", Aluminum, quick release
- Pedals: Radio "Xenon Slim", Aluminum
- Chain: KMC "Z1eHX", 1/2" x 3/32"
- Sprocket: Radio "Xenon Pro", Aluminum, 43T
- Crank: Radio "Xenon Pro" cold forged alloy 2-piece crank, 180mm long, 9/16"
- Bottom Bracket: BSA24 external bearing cups, 24mm, Sealed Bearing

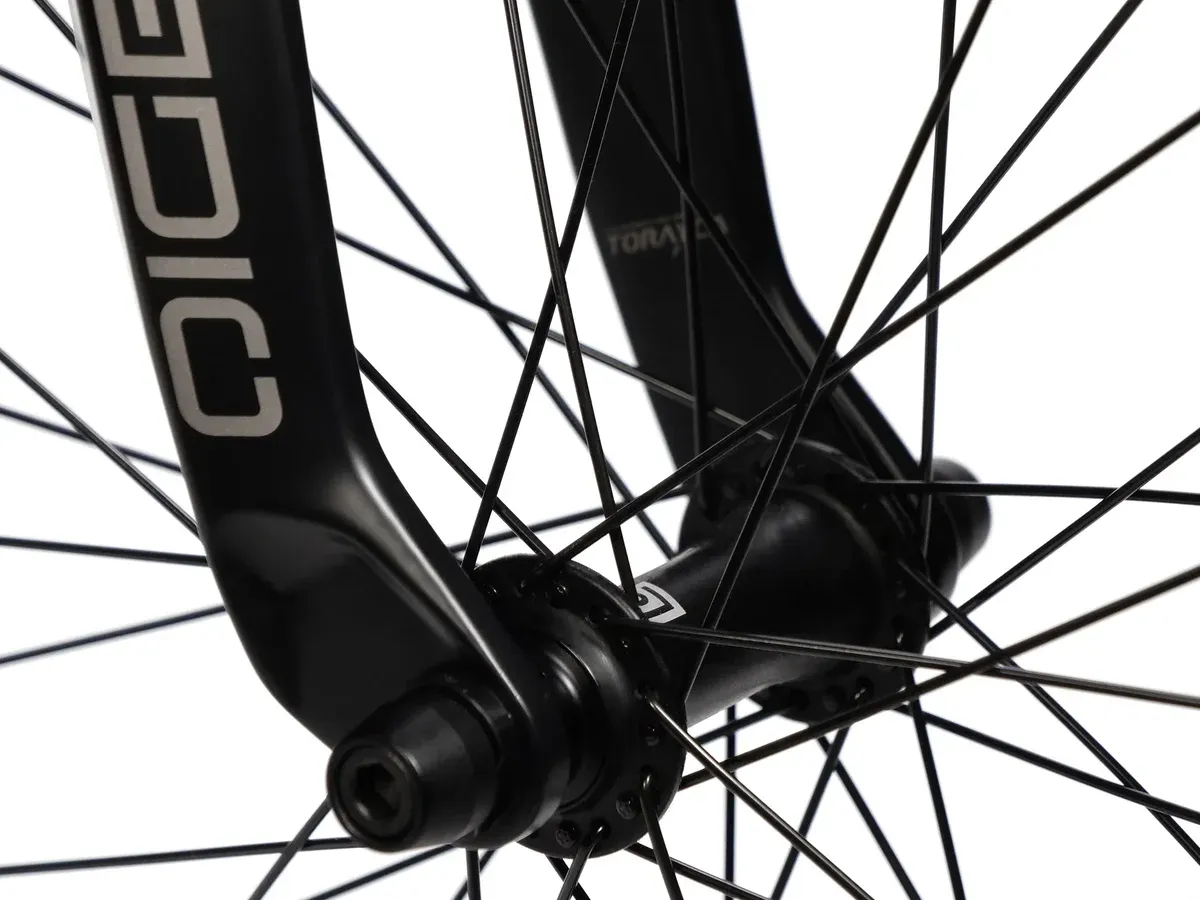

- Hub (front): Radio, Turbine, alloy cnc, fully sealed, 36H, 3/8″ female CrMo axle
- Hub (rear): Radio, Turbine, alloy cnc, fully sealed, 36H, disc brake cassette, 3/8" female CrMo axle, 16T cog. sealed driver
- Rim (front): Radio "Argon Pro", Aluminum, straight double wall, pinned, tubeless ready, 36H
- Rim (rear): Radio "Argon Pro", Aluminum, straight double wall, pinned, tubeless ready, 36H
- Tire (front): Radio "Oxygen" BMX Race tire, 20" x 1.95"
- Tire (rear): Radio "Oxygen" BMX Race tire, 20" x 1.75"
- Pegs: -
- Delivery: The BMX bike comes pre-assembled in a box. For final assembly, only the handlebar, front wheel, pedals, and saddle need to be installed. Tools are not included.
- Usage: BMX Race – designed for BMX race tracks and pump tracks.
