Reverse Components "Travel and Sag Indicator 2.0" Travel Gauge
-
Weight : 0.04kg / 0.09lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 33149
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

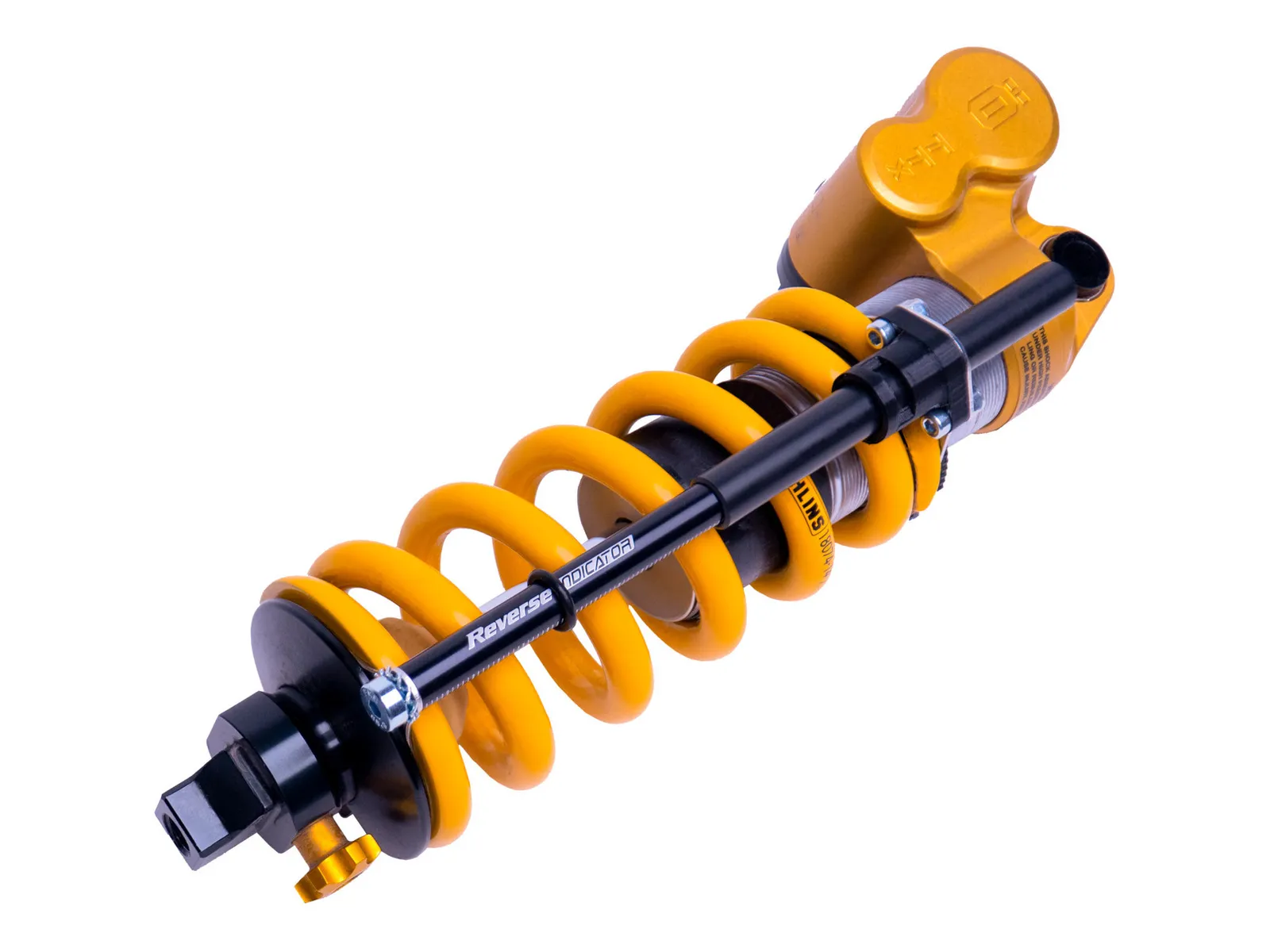

The Reverse Components "Travel and Sag Indicator 2.0" Travel Gauge shows you on a coil shock how much travel a descent really used. That figure is exactly what is missing when spring rate, sag and preload are set by feel. The indicator mounts to the side on the two spring plates, a reservoir does not get in the way. The bracket sits closer to the spring than on the first version, so it also fits shocks buried deep in the frame.
Facts: Reverse Components "Travel and Sag Indicator 2.0" Travel Gauge

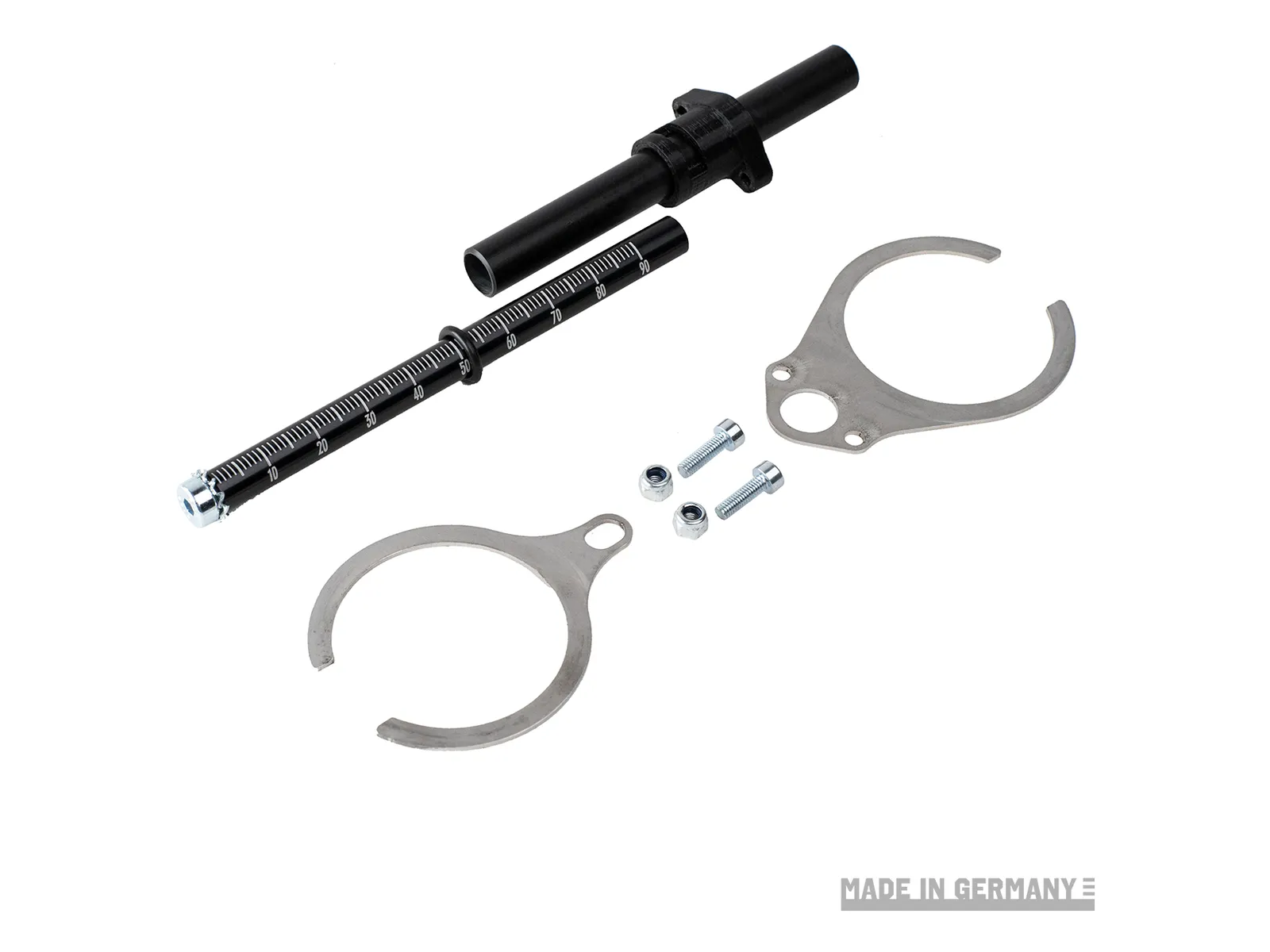

- Contains:
- 1 upper spring plate bracket
- 1 lower spring plate bracket
- 1 indicator holder
- 1 telescopic sleeve
- 1 telescopic scale
- 2 M3 bolts with self locking nuts
- 1 M5 bolt with fan washer
- 1 O-ring - Material: Aluminium, plastic
- Compatibility: coil shocks with and without a reservoir, spring length up to 180 mm
- Extras:
- side mounted, the scale is read after the descent
- weight 40 g
- shock and spring are not included
- made in Germany
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
