SD Components "BSA V2 CNC" BMX Race Bottom Bracket - 24mm
-
Weight : 0.1kg / 0.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 31014

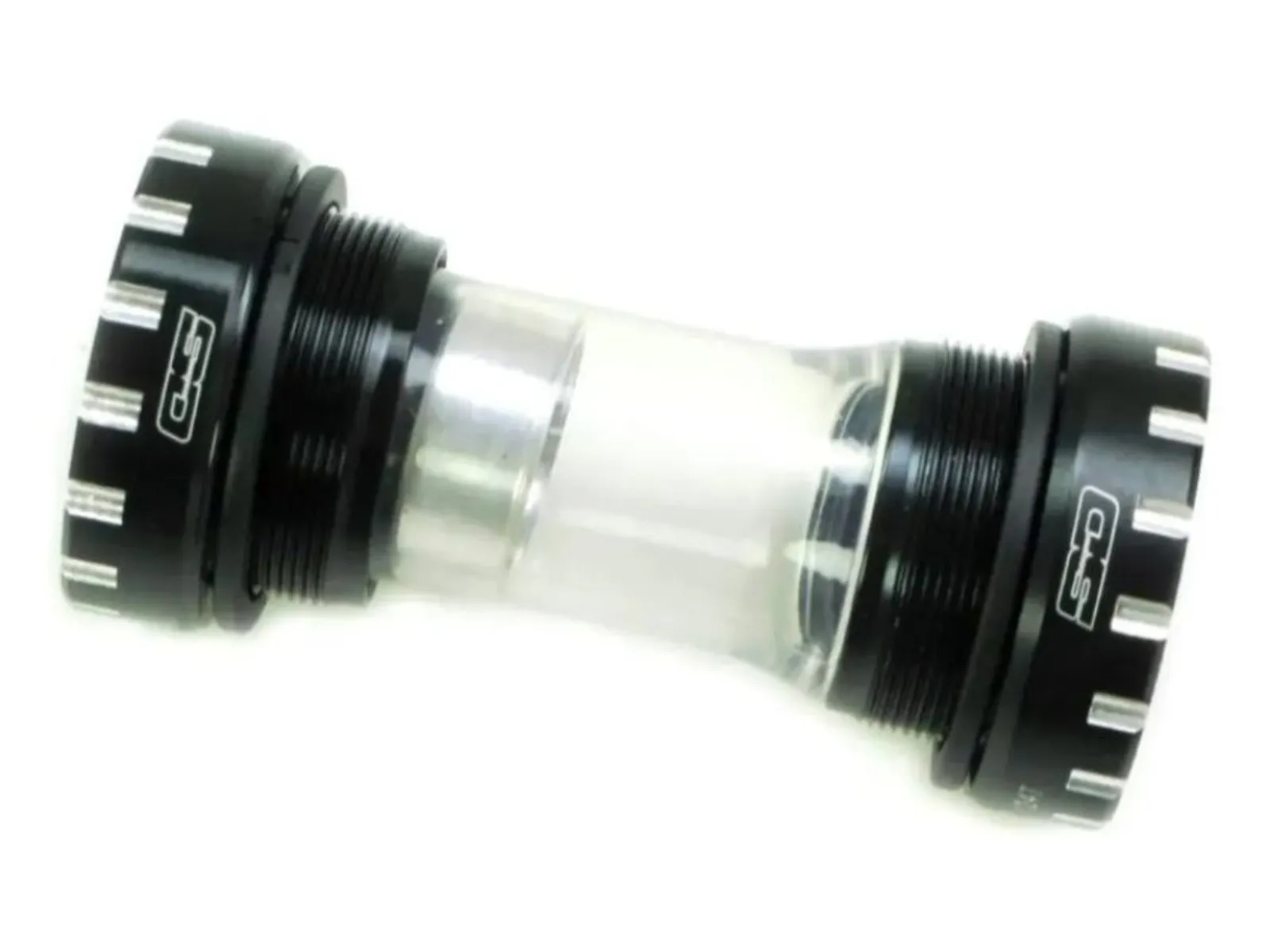

The SD Components "BSA V2 CNC" BMX Race Bottom Bracket - 24mm is a high-quality bottom bracket for Euro/BSA standard frames, allowing you to run cranks with a 24mm or 24–22mm spindle diameter – thanks to the included reducer, you stay flexible in your setup. Precision sealed bearings (6805 x2) ensure smooth and efficient pedaling performance, while the aluminum shell keeps the weight down to just 96g. With the SD Components "BSA V2 CNC" BMX Race Bottom Bracket - 24mm, you get a reliable and versatile bottom bracket that fits seamlessly into your BMX race build.
Facts: SD Components "BSA V2 CNC" BMX Race Bottom Bracket - 24mm
- Outer Diameter: 41.1 mm (Mid BB) | 37.1 mm (Spanish BB) | 51.5mm (US BB) | 34.8mm (Euro BB)
- Axle Diameter: 24mm / 24-22mm (with reducer)
- Bearings: 2 x Sealed Bearing (6805 x2)
- Spacers: Aluminium | Steel, 2 x large cover cones (flat: for chainring side / high: for non-chainring side), 6 x small spacers
- Sleeve: Aluminium | Steel, Mid: 50mm, 44mm, 43mm and 5mm | Spanish: 54mm and 48mm
- Extras: Compatible with Euro/BSA standard frames, incl. reducer for 24-22mm cranks
