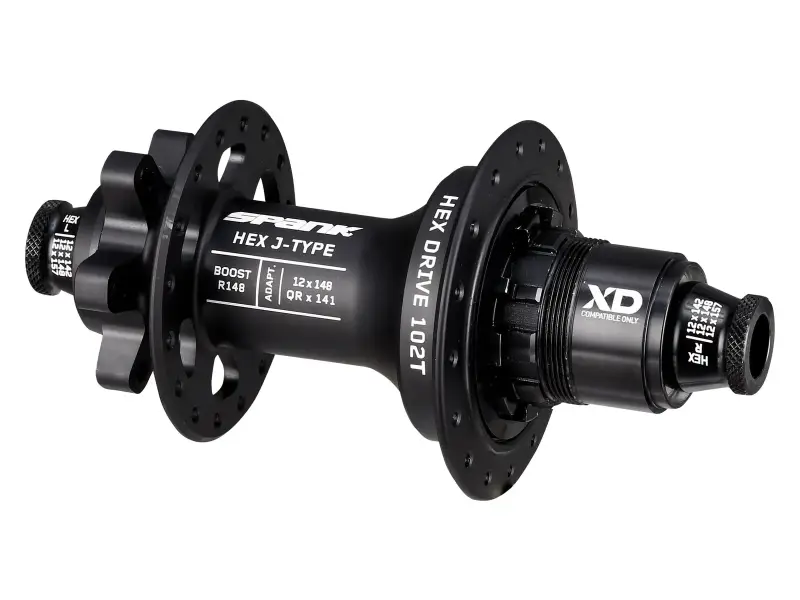

Spank "HEX J-Type" MTB Rear Hub
-
Weight : 0.38kg / 0.84lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 33197
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Spank "HEX J-Type" MTB Rear Hub is the J-bend rear hub from Spank's HEX Drive range. Six independent pawls engage the ratchet in three stages for 102 points of engagement, a 3.5 degree engagement angle: you push and the drive is there. Above you pick the width and the freehub body in one step, plus the colour. The shell is machined from aluminium, runs on sealed cartridge bearings and takes J-bend spokes. The E-Plus version has a steel freehub body and reinforced bearings for the higher torque of an e-bike. Axle adapters are not included, they are available separately.
Facts: Spank "HEX J-Type" MTB Rear Hub
- Material: Aluminum
- Holes: 32H
- Version: 12 x 142 mm / 6-bolt / SRAM XD, 12 x 148 mm Boost / 6-bolt / Shimano HG, 12 x 148 mm Boost / 6-bolt / Shimano Micro Spline, 12 x 148 mm Boost / 6-bolt / SRAM XD, 12 x 148 mm Boost E-Plus / 6-bolt / Shimano Micro Spline or 12 x 150/157 mm / 6-bolt / Shimano Micro Spline
- Disc Mount: 6-bolt
- Points of Engagement: 102 P.O.E, 3.5 degree engagement angle
- Bearings: sealed (SB)
- Scope of Delivery: 1 piece
- Extras:
- 6 independent pawls in 3 stages
- flanges for J-bend spokes
- freehub body and end caps available separately
- no axle adapter included, adapter for QR x 141 available separately
- weight 308 to 380 g depending on version
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
