Tangent "Tapered Integrated" BMX Race Headset - Tapered 1 1/8 - 1.5 Inch
- Weight : 0.08kg / 0.18lbs
- Packaging Unit: 1 Set
- Product ID (PID): 46020
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/tangent-tapered-integrated-bmx-race-headset-tapered-1-18-15-inch-p-46020
Printed: 10/29/2026
Printed: 10/29/2026

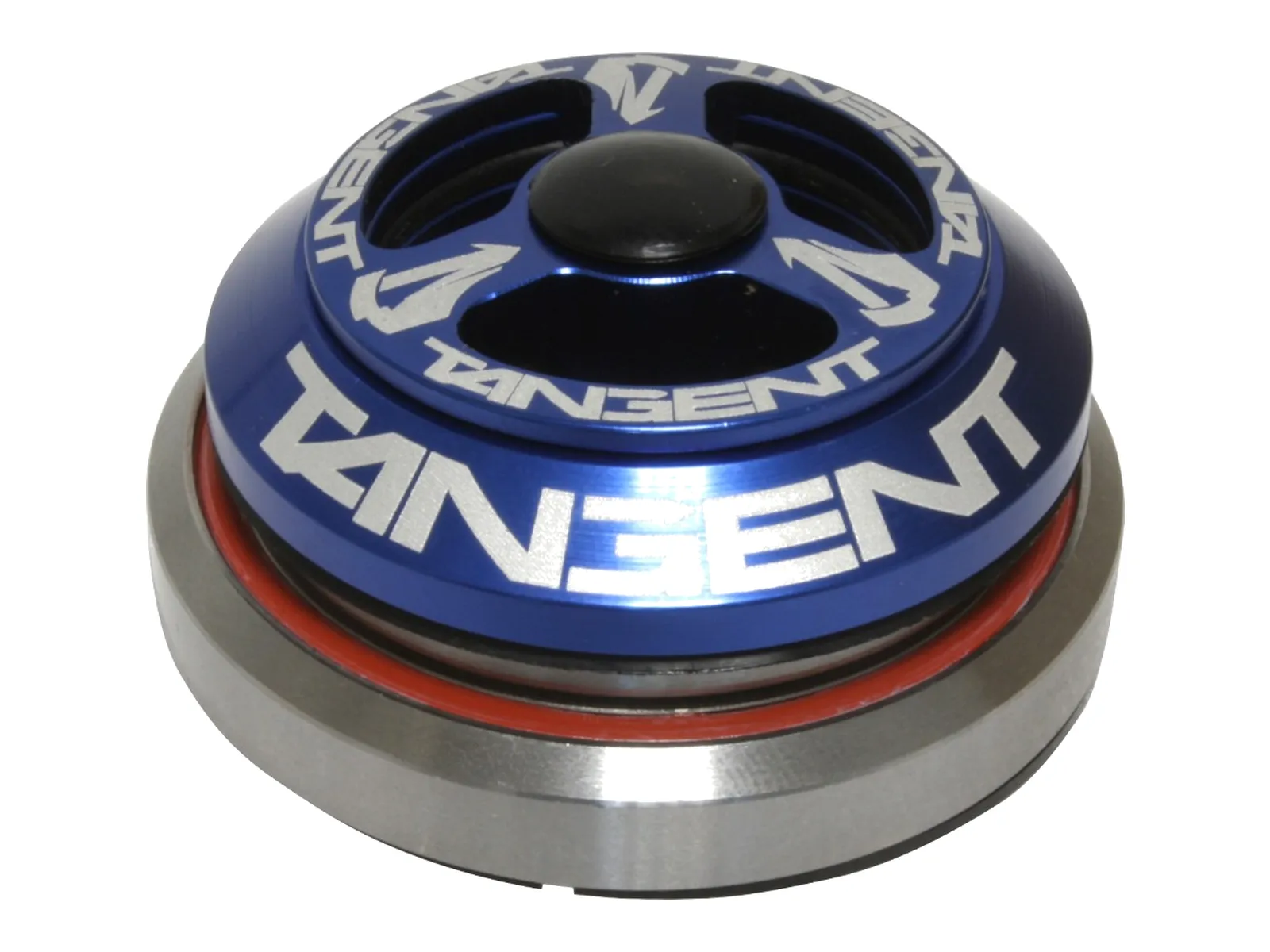

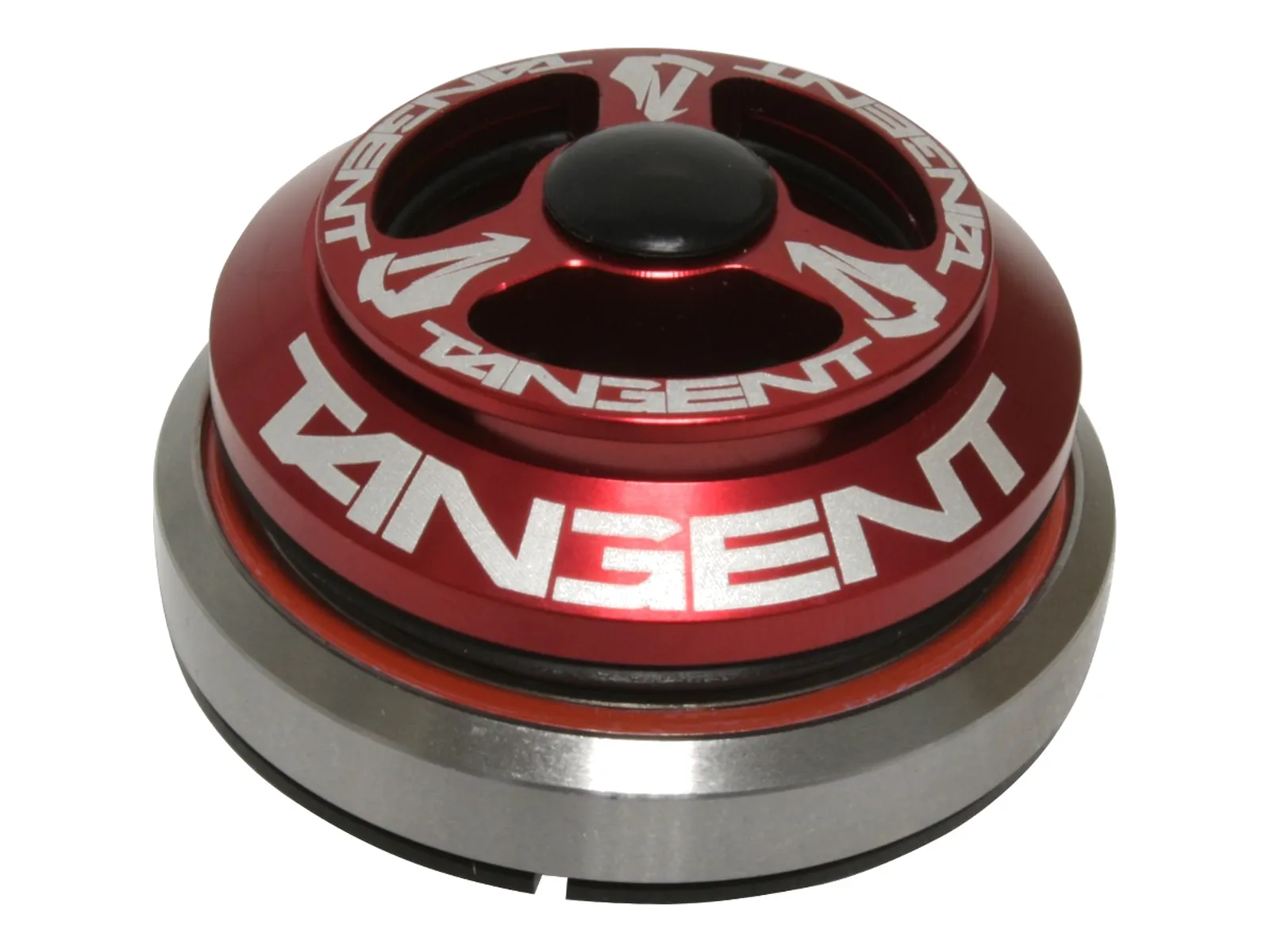

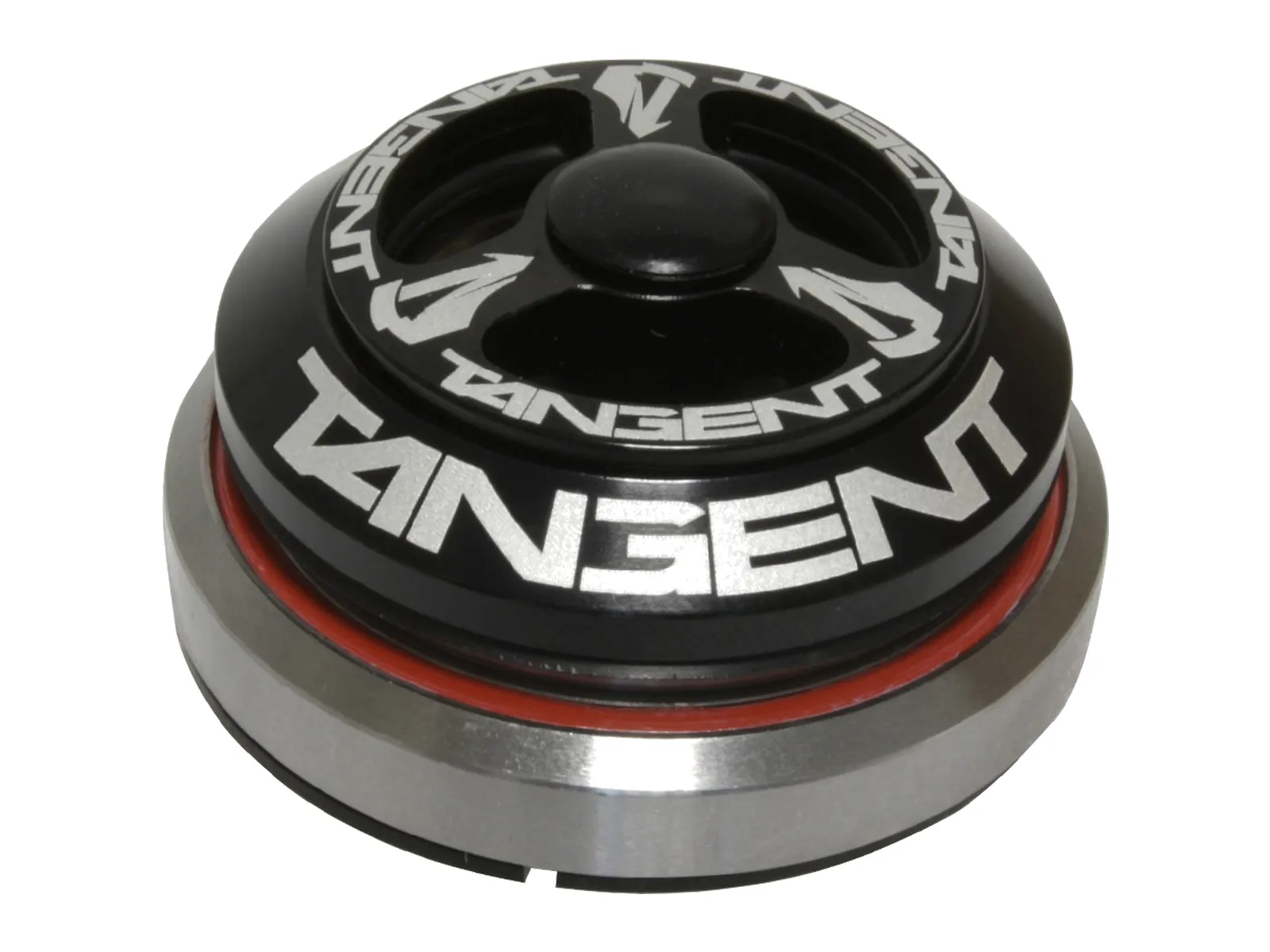

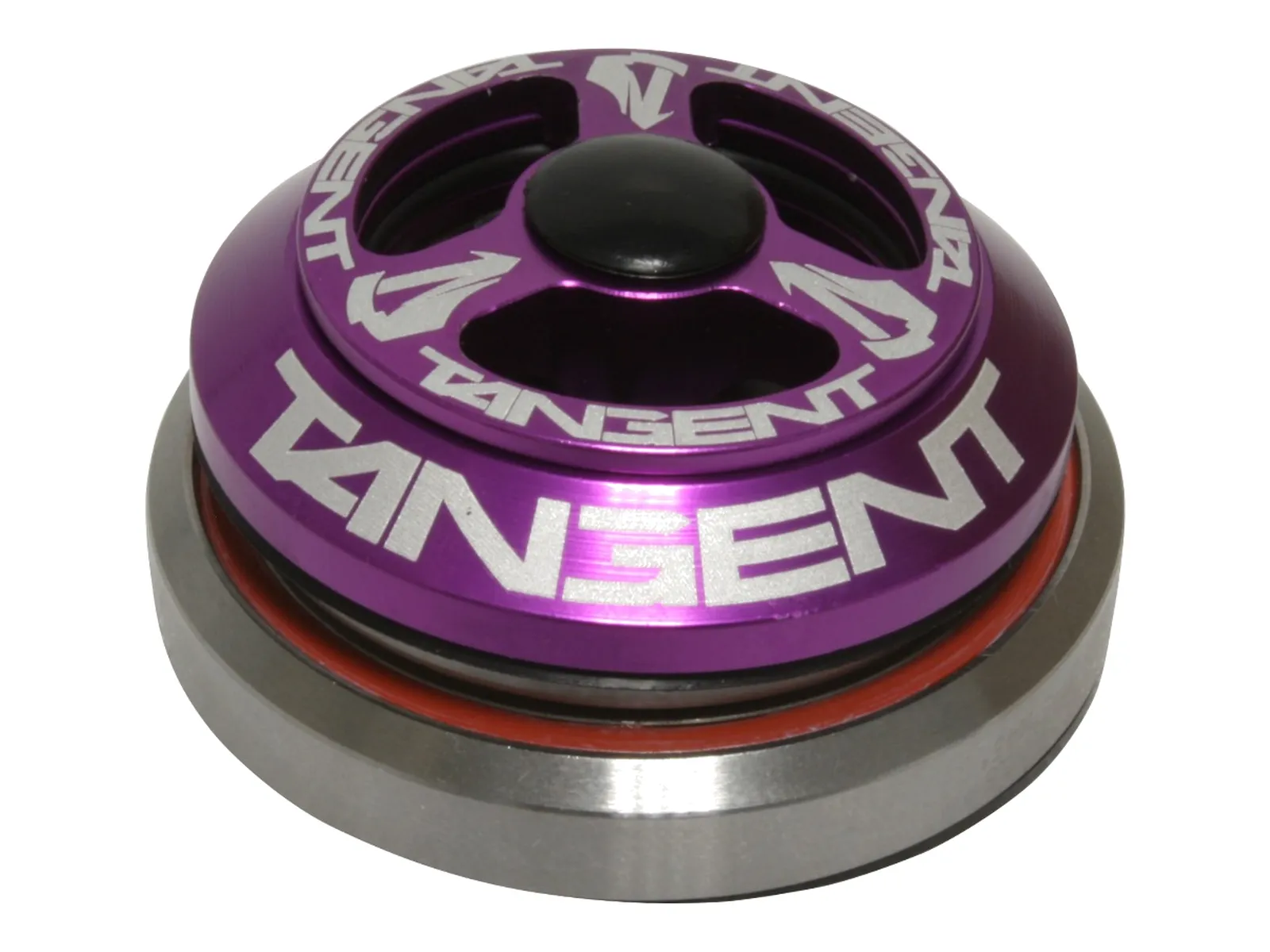

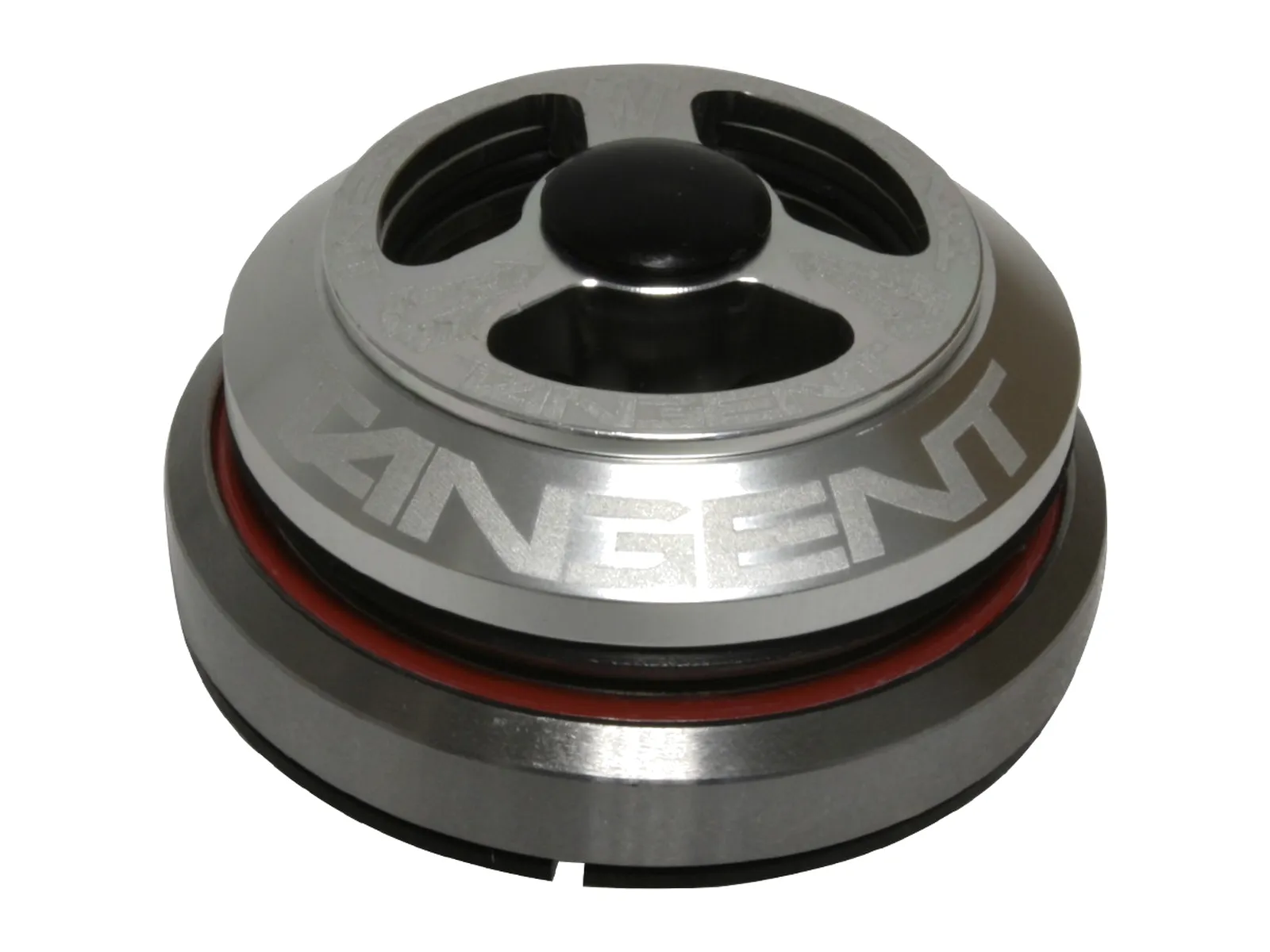

The Tangent "Tapered Integrated" BMX Race Headset - Tapered 1 1/8 - 1.5 Inch is made for frames with an integrated tapered head tube (1-1/8" top, 1.5" bottom). Two lower crown races come with it, one for forks with a tapered steerer and one for forks with a 1-1/8" steerer, so you only swap the lower race. It runs on sealed angular contact bearings, the cover and the compression star are CNC machined from 6061 aluminum. Choose the colour as an option.
Facts: Tangent "Tapered Integrated" BMX Race Headset - Tapered 1 1/8 - 1.5 Inch
- Material: 6061 aluminum cover and compression star, CNC machined
- Size: 1-1/8" - 1.5" (28.6mm - 38.1mm), IS42/28.6 top, IS52/40 bottom (IS52/30 for a 1-1/8" steerer with the second race), bearing angle 45° x 45° top, 36° x 45° bottom
- Bearing: 2 x sealed angular contact bearings
- Extras: sealed cover, for frames with an integrated tapered head tube and forks with a tapered steerer (1-1/8" top, 1.5" bottom) or a 1-1/8" steerer
- Content: 1 headset with 2 lower crown races (tapered and 1-1/8")
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
