Zink Bikes X Troy Lee Designs "Vacay Small" MTB Frame (without Rear Shock)
-
Weight : 3.5kg / 7.72lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29484
The

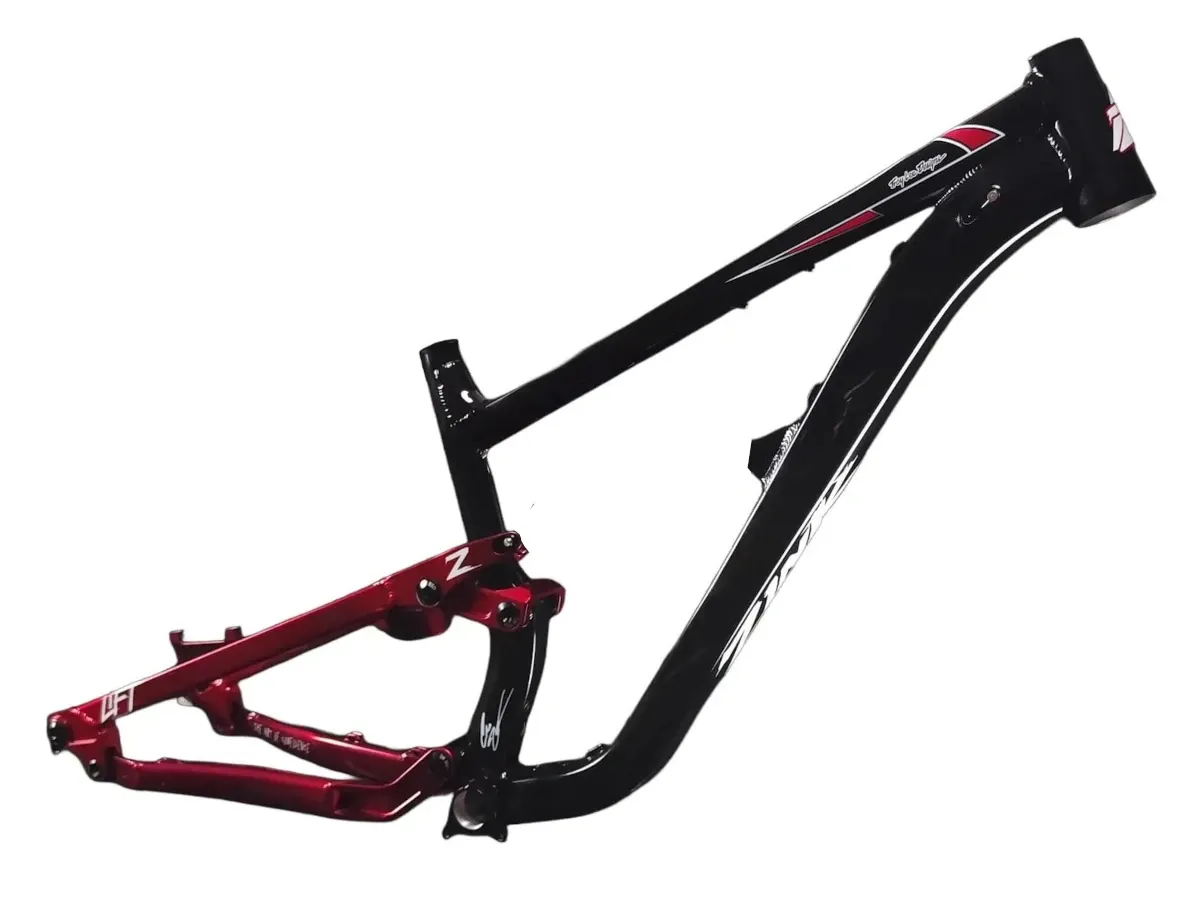

Zink Bikes X Troy Lee Designs "Vacay Small" MTB Frame (without Rear Shock)
is the result of a collaboration between Zink Bikes and Troy Lee Designs (TLD). The frame itself was designed by Cam Zink, while TLD handled the paint design. It features a special finish with Troy Lee Designs’ signature pin-striping from the TLD Paint Shop, complemented by a color-contrasting rear triangle.
The frame is designed for riders between 1.52m and 1.60m in height. It uses a progressive suspension platform with the so-called Lift Technology, which enhances stability and makes movements such as lifting the front wheel, jumping, or changing direction easier.
The short rear triangle geometry provides agile handling. Through three Flip-Chip positions, the seat tube and head tube angles can be adjusted by more than one degree, allowing the
Zink Bikes X Troy Lee Designs "Vacay Small" MTB Frame (without Rear Shock)
to be tailored to the desired riding style or terrain.
Features include a Universal Derailleur Hanger (UDH), a threaded bottom bracket, and options for internal or external cable routing, making maintenance straightforward.
Important: The shock spring is not included and must be purchased separately!
Facts: Zink Bikes X Troy Lee Designs "Vacay Small" MTB Frame (without Rear Shock)
- Recommended Rider Height: 1.52m (5.0") - 1.60m (5.6")
- Wheel Size (front): 29" or 27.5"
- Wheel Size (rear): 27.5"
- Geometry (Low Flip-Chip position with 160mm travel and 29” / 27.5” tires):
- Reach: 426mm
- Chainstay: 420mm
- Head Tube Length: 110mm
- Head Tube Angle: 63.9°
- Seat Tube Angle (SA): 77.8°
- Bottom Bracket Height: 37mm
- Wheelbase: 1204mm
- Frame Height (Stack): 629mm - Geometry (High Flip-Chip position with 160mm travel and 29” / 27.5” tires):
- Reach: 438mm
- Chainstay: 420mm
- Head Tube Length: 110mm
- Head Tube Angle: 65°
- Seat Tube Angle: 79°
- Bottom Bracket Height: 23mm
- Wheelbase: 1192mm
- Frame Height (Stack): 618mm - Seat Clamp: integrated (34.9mm diameter)
- Dropper Post:
- Diameter: 31.6mm
- Minimum Insertion Depth: 180mm - Bottom Bracket: Threaded BB (73mm BSA thread) - photos show press-fit BB
- Dropouts: Boost 148x12
- UDH equipped: Yes
- Brake Type: Disc Brake (180 post mount rear brake mounting)
- Brake Mounts: Post Mount 180mm
- Brake Mounts Included: Yes
- Headset: compatible with ZS 44/56 headset (not included)
- Suspension (not included):
- compatible with: Push Elvensix Rear Shock; Push SV 8 Rear Shock; Rockshox Vivid Ultimate; Rockshox Super Deluxe Ultimate
- Shock Size: 230mm x 65mm
- Shock Hardware: 22mm x 8mm / 40mm x 8mm - Features:
- Lift-Technology for improved handling
- Flip-Chip for geometry adjustment
- internal and external cable routing possible
- Fidlock compatible bottle mount (base included)
- Designed by Cam Zink
- Collaboration with Troy Lee Designs - Model Year: 2024
