BSD "ALVX AF" 2019 BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 15827
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

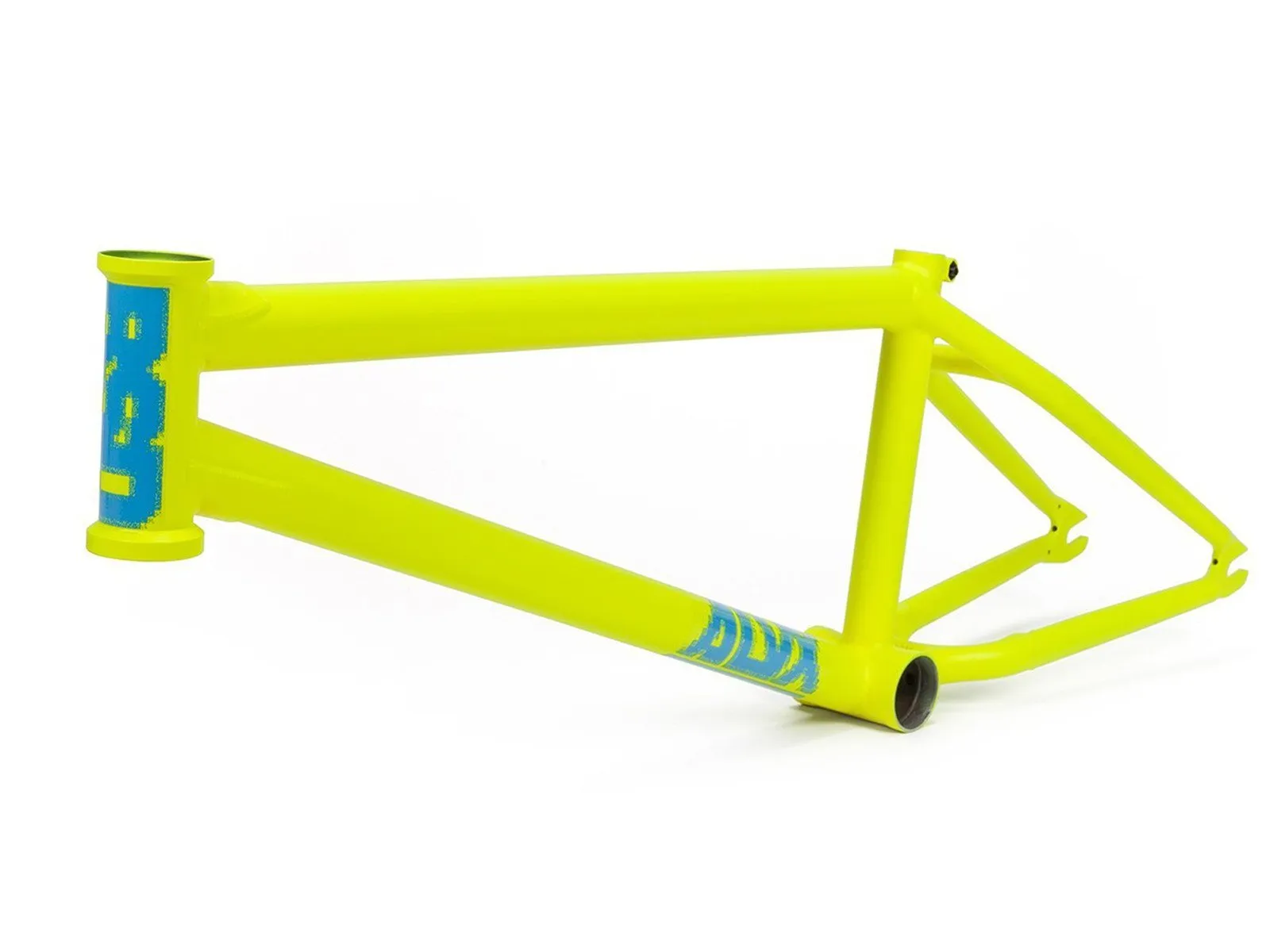

BSD "ALVX AF" 2019 BMX Frame
is the Signature BMX frame of Alex Donnachie, comes with new invest cast chainstay and has because of a very short rear end (12.5") a modern geometry.
The
BSD "ALVX AF" 2019 BMX Frame
is made for brakeless riding, has no U-brake sockets and is equipped with 5mm thick dropouts with integrated chain tensioners.
Facts: BSD "ALVX AF" 2019 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast chainstay
- Geometry:
- Top Tube (TT): 21.0"
- Chain Stay (CS): 12.5" - 13"
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.7"
- Standover Height (SO): 8.7" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: without (Brakeless)
- Extras: Alex Donnachie Signature frame, wide rear end for fat 2.4" tires, invest cast chainstay
- Model Year: 2019
