Chase "Element Pro+ Cruiser" 2024 BMX Race Bike - 24 Inch - Wine/Sand
- Weight : 9.85kg / 21.72lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45831
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

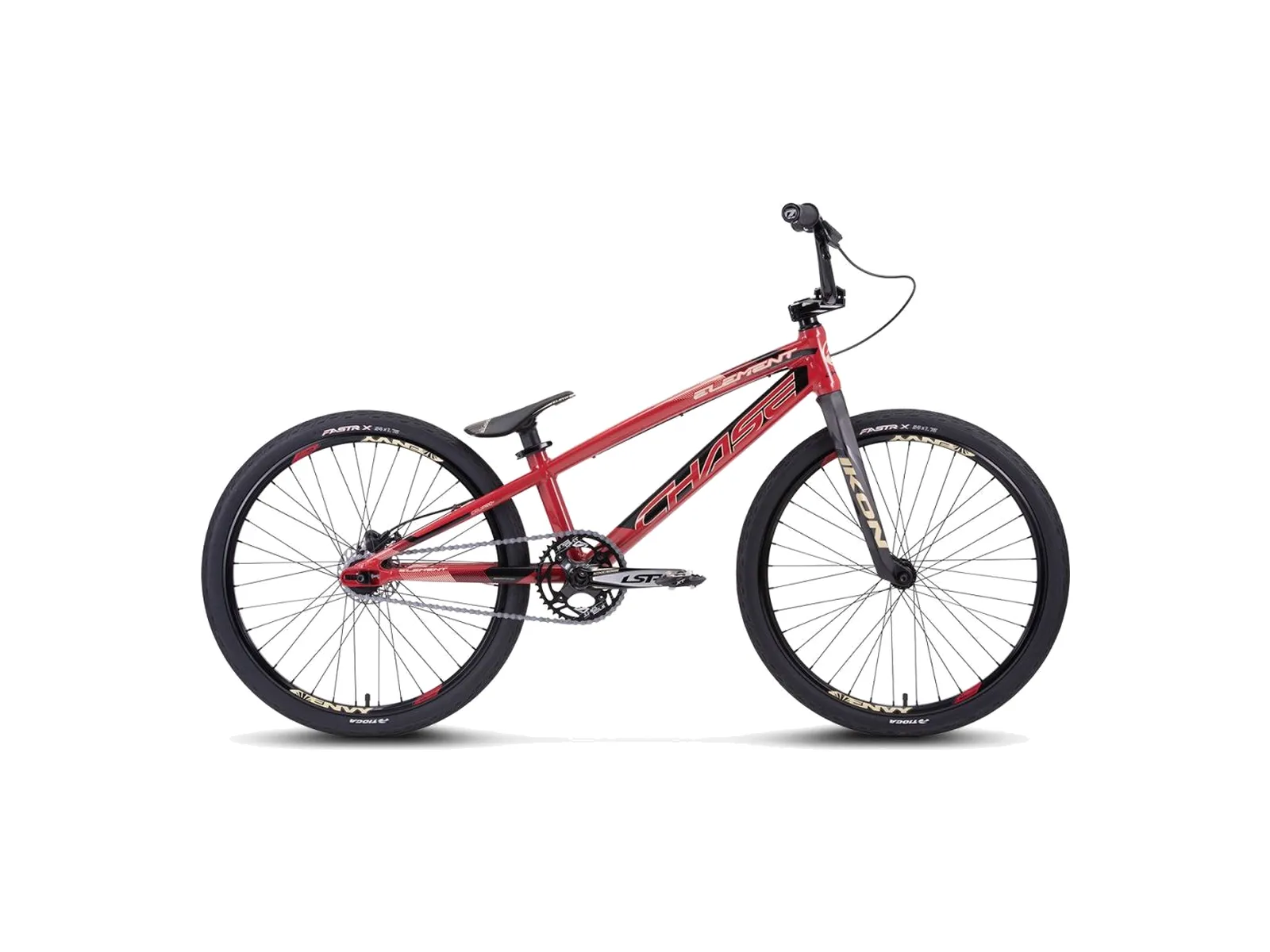

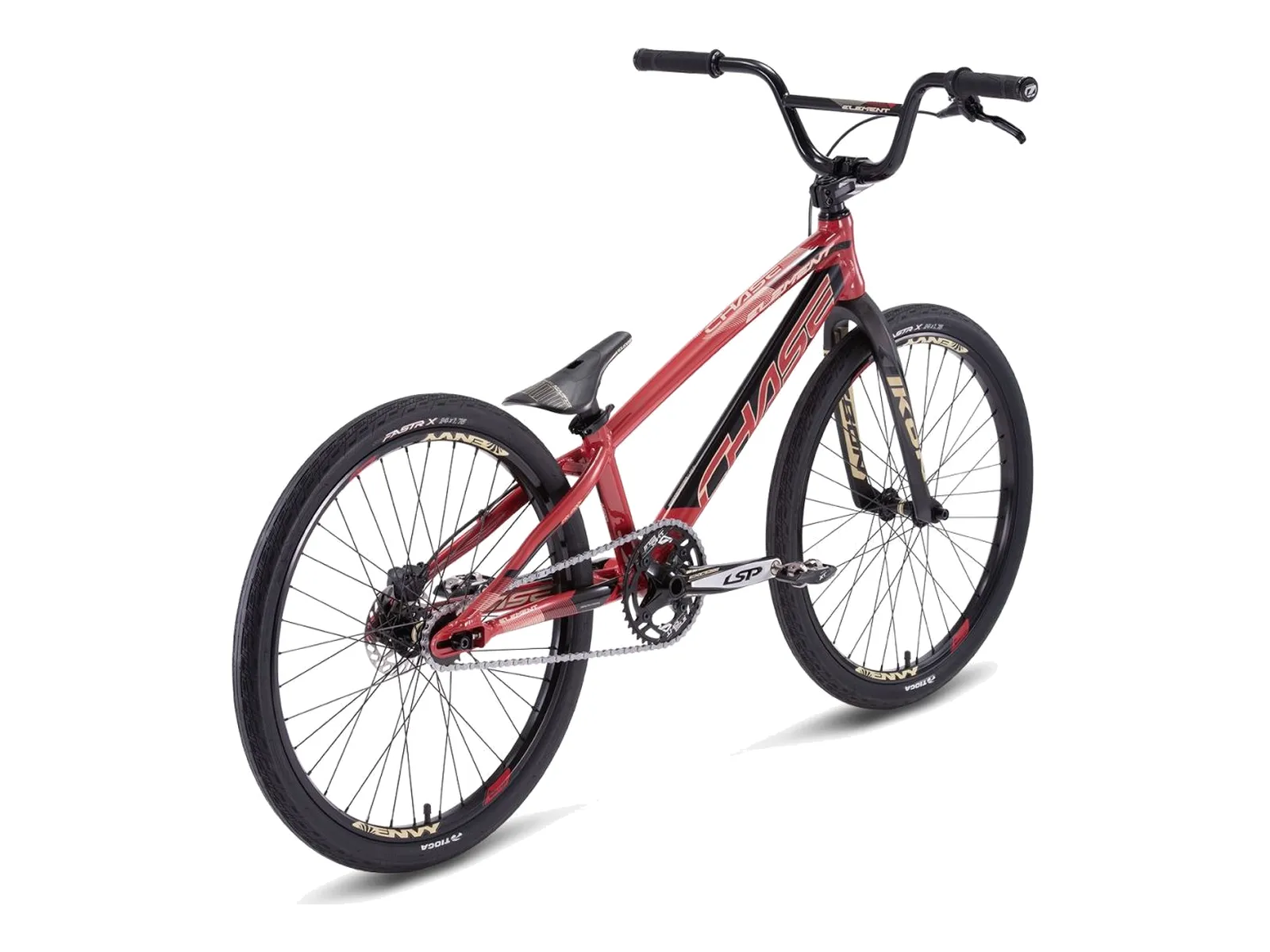

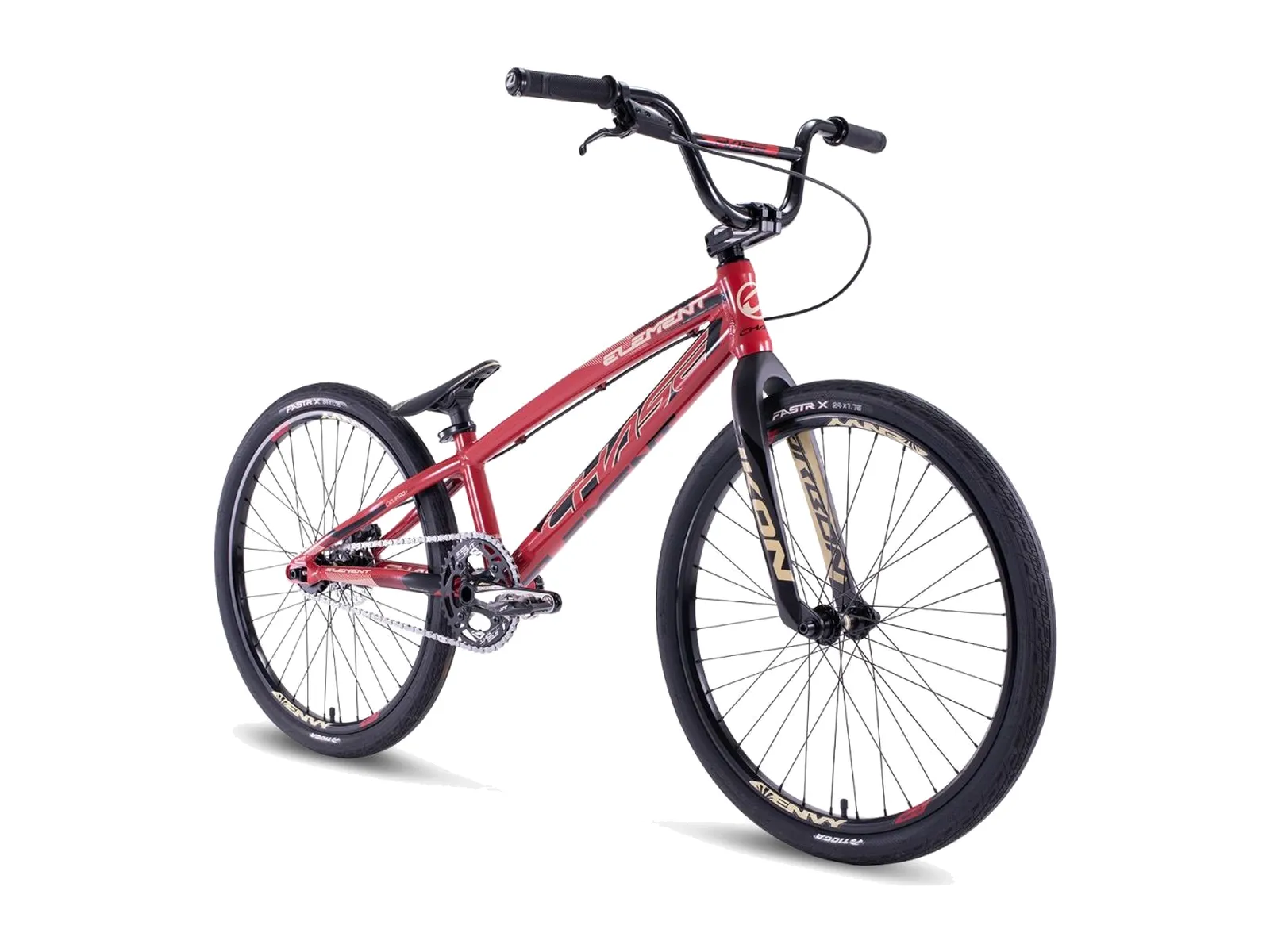

The Chase "Element Pro+ Cruiser" 2024 BMX Race Bike - 24 Inch - Wine/Sand is the 24 inch cruiser race bike of the Chase Element line in model year 2024, which Chase calls "Element 10", here in wine red paint with sand colored graphics. The frame is hydroformed 7005-T6 aluminum with an aero shaped seat tube, an integrated 1-1/8" head tube, a Press Fit BB86 bottom bracket and enclosed dropouts with a built-in chain tensioner. Pro+ Cruiser is the bigger of the two cruiser sizes, with a 22" top tube.
Up front sits an Ikon Pro Carbon fork for 24" wheels with an aluminum steerer and 20mm dropouts with an adaptor for a 3/8" axle, bar (5.75" rise) and stem (50mm) have a 31.8mm clamp. The rear brake is a Tektro hydraulic disc brake with a 120mm rotor. It comes with a 2-piece Excess LSP crank with 180mm arms, an Insight 41T chainring, an 18T cog, Chase Element hubs with 36 holes and a cassette body with three pawls, Sun Ringlé Envy rims without brake surface, Tioga Fastr X tires in 24" x 1.75" and an aero seat post with quick release and an Elevn PC pivotal seat. According to US Pro the washers of the Excess crank go between pedal and crank arm.
With pedals the bike weighs 9.85 kg according to US Pro. The photos show other pedals, the bike ships with nylon platform pedals.
Facts: Chase "Element Pro+ Cruiser" 2024 BMX Race Bike - 24 Inch - Wine/Sand
- Wheelsize: 24"
- Race-Size: Cruiser
- Model Year: 2024
- BMX Frame: Chase "Element Pro+ Cruiser", 7005-T6 aluminum, hydroformed, aero seat tube, enclosed dropouts with integrated chain tensioner, integrated 1-1/8" head tube, Press Fit BB86
- Frame-Geometry:
- Top Tube (TT): 22"
- Chain Stay (CS): 15.25" (min.)
- Head Angle (HA): 73°
- Seat Angle (SA): 69.5°
- Head Tube (HT): 4.7"
- BB Height (BBH): 12"
- Wheelbase (WB): 987.67mm - BMX Fork: Ikon "Pro Carbon" 24", carbon, 1-1/8" aluminum steerer, 20mm dropouts with adaptor for 3/8" axle, aluminum top cap
- BMX Bar:
- Chase "Element", CrMo
- Height: 5.75"
- Width: 28.5"
- Backsweep: 10°
- Upsweep: 2°
- Clamp: 31.8mm - Grips: Insight "C.O.G.S", 145mm, lock-on with aluminum clamps
- Stem: Chase "Element", 6061-T6 aluminum, 50mm, 1-1/8" steerer, 31.8mm clamp
- Headset: integrated (IS42/42), 1-1/8", sealed bearing
- Brake Lever (right): Tektro, hydraulic
- Brake (rear): Tektro "HD-M280", hydraulic disc brake, resin pads, 120mm rotor, lock disc adaptor
- Seat: Elevn "PC" pivotal
- Seat Post: Chase aero pivotal, aluminum, 27.2 x 260mm
- Seat Clamp: Chase aero, quick release, aluminum
- Pedals: nylon platform, 9/16"
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 4-bolt (104mm BCD), 41T, 5mm
- Cog: 18T
- Crank: Excess "LSP", 2-piece, aluminum, 180mm, 4-bolt spider, CrMo pedal inserts
- Bottom Bracket: Press Fit BB86, cartridge bearings
- Hub (front): Chase "Element", 36H, sealed bearings
- Hub (rear): Chase "Element" ISO cassette hub, 36H, sealed bearings, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, front 236mm, rear 231mm, brass nipples
- Rim (front): Sun Ringlé "Envy", aluminum, 36H, 24" x 1.75", no brake surface
- Rim (rear): Sun Ringlé "Envy", aluminum, 36H, 24" x 1.75", no brake surface
- Tire (front): Tioga "Fastr X", 24" x 1.75", 60 TPI, wire bead
- Tire (rear): Tioga "Fastr X", 24" x 1.75", 60 TPI, wire bead
- Tubes: 24" x 1.50"-1.75", Schrader valve
- Chain Tensioner: integrated, with lock disc adaptor
- Usage: BMX Race
