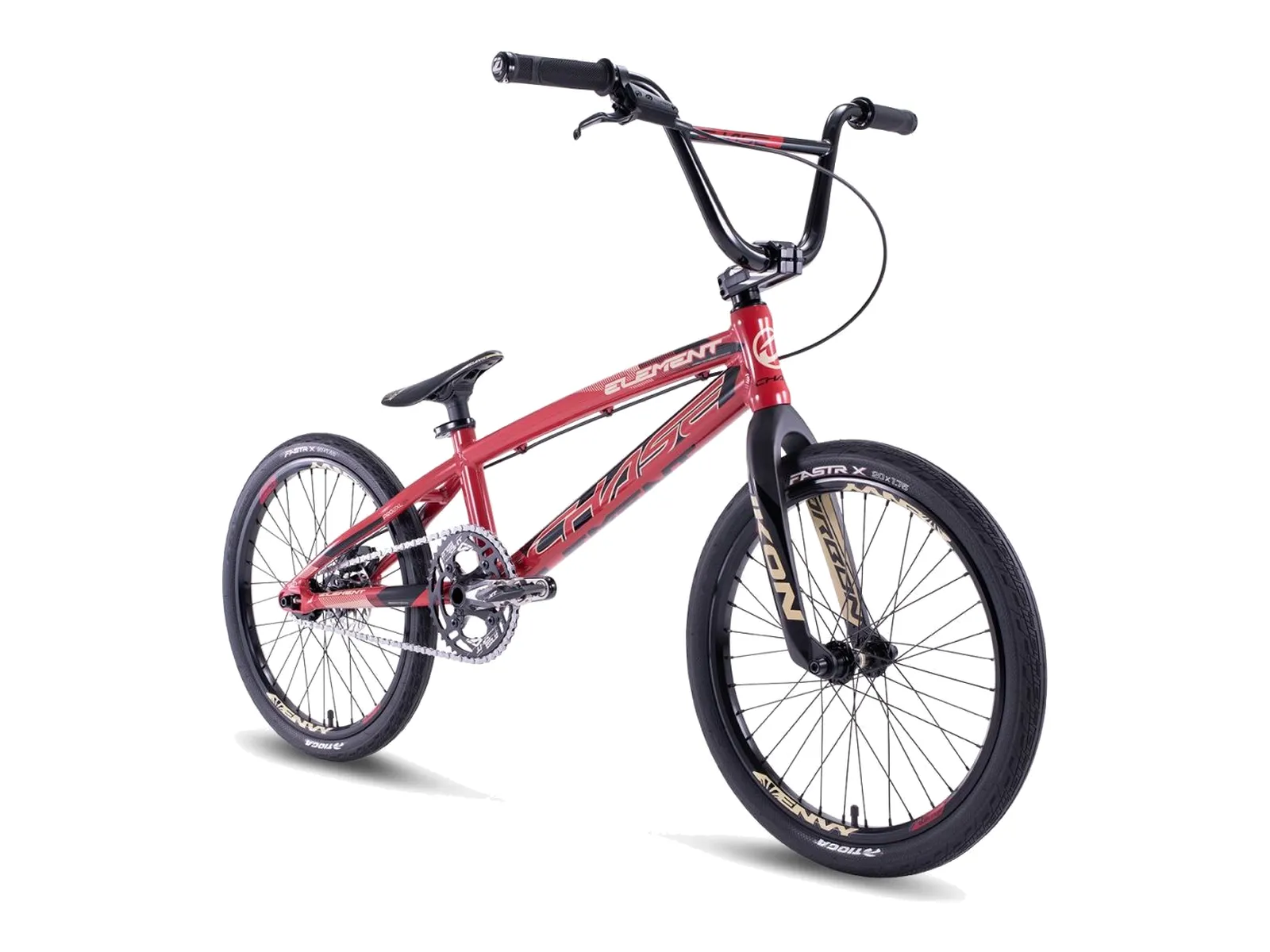

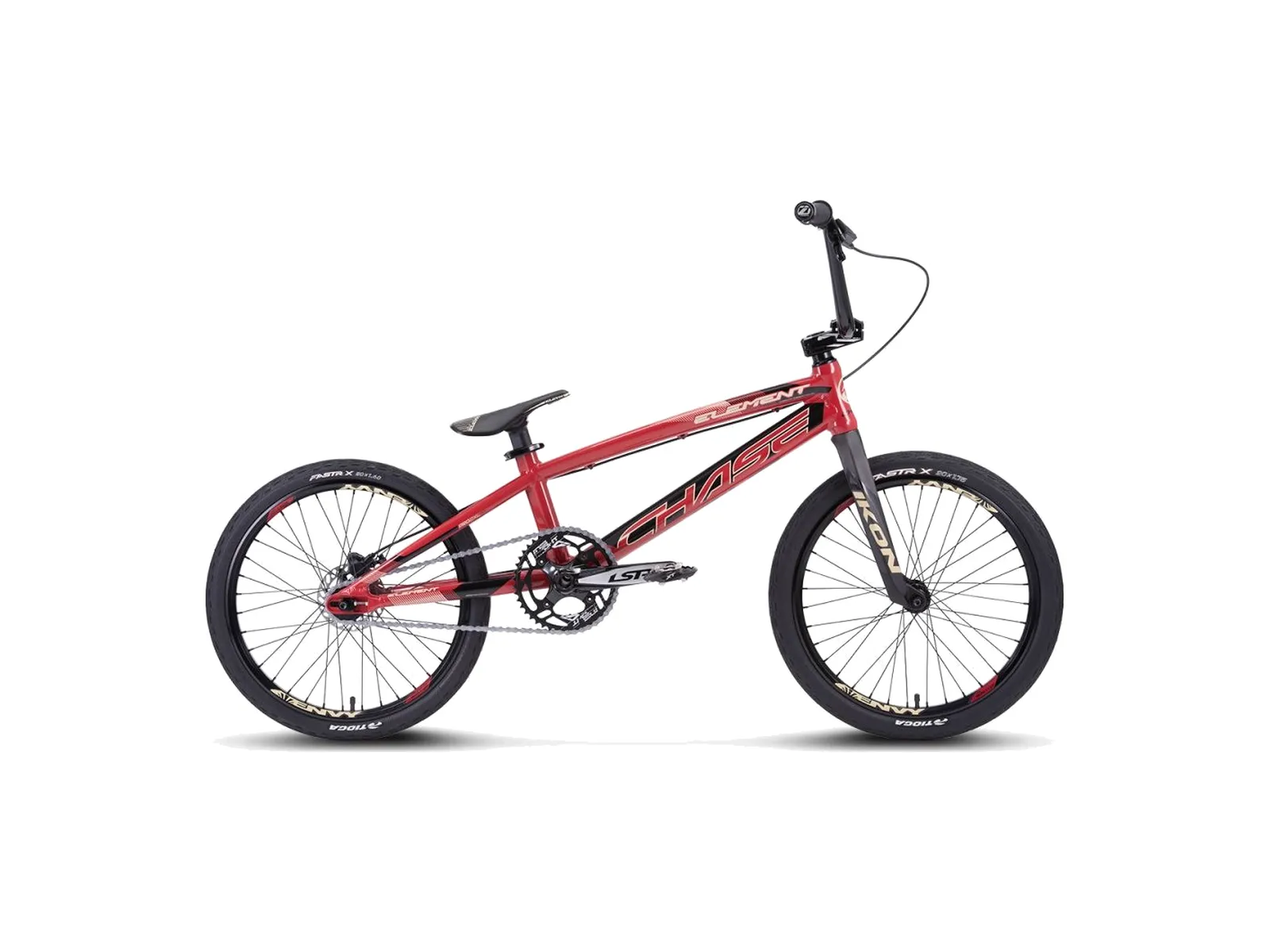

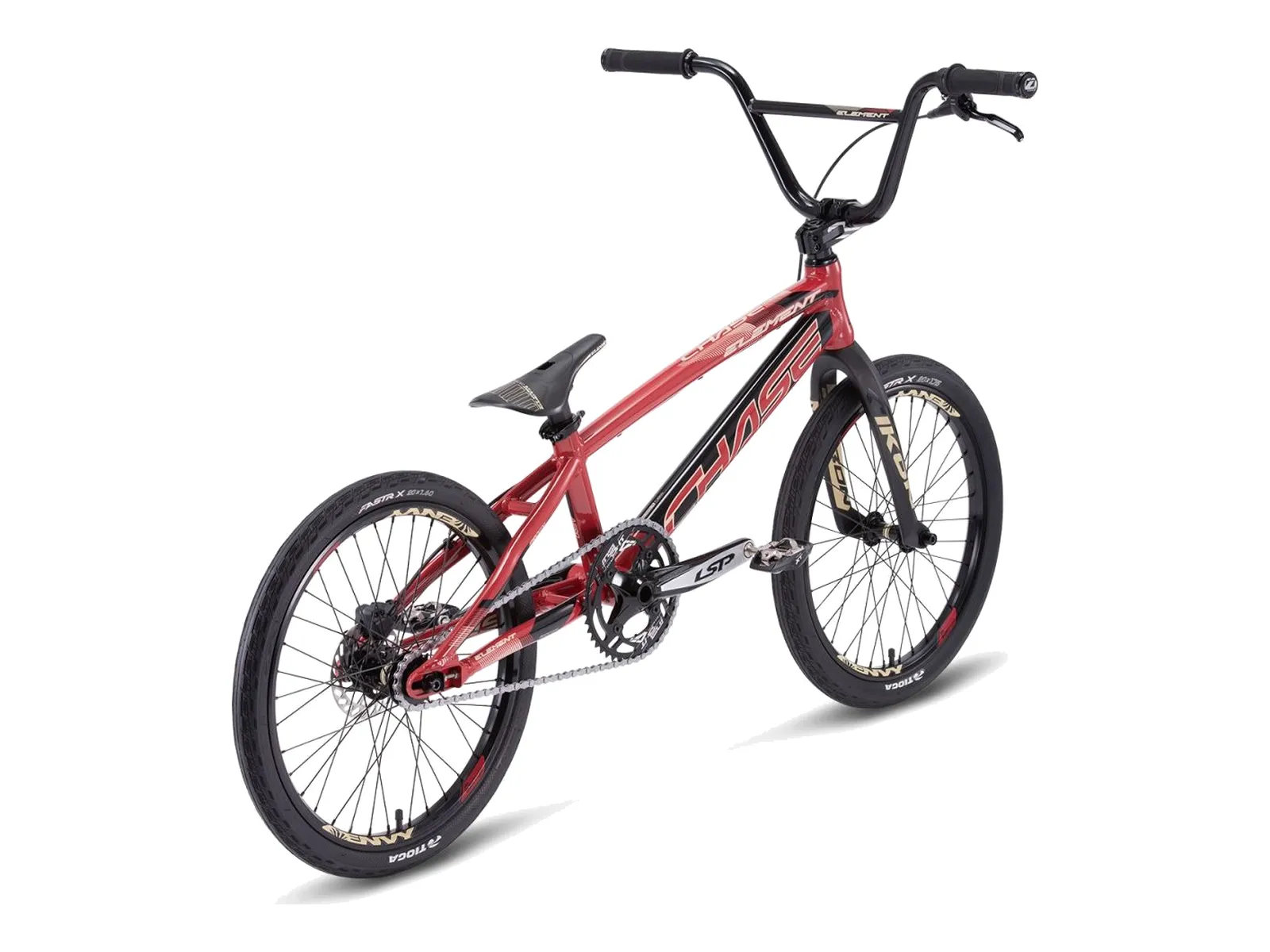

Chase "Element Pro XXL" 2024 BMX Race Bike - Wine/Sand
- Weight : 9.55kg / 21.05lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45829
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026
The Chase "Element Pro XXL" 2024 BMX Race Bike - Wine/Sand is the race bike of the Chase Element line in model year 2024, which Chase calls "Element 10", here in wine red paint with sand colored graphics. The frame is hydroformed, double and triple butted 7005-T6 aluminum and made for disc brakes only. It has an aero shaped seat tube, an integrated 1-1/8" head tube, a Press Fit BB86 bottom bracket and enclosed dropouts with a built-in chain tensioner and a mount for the brake adaptor. Chase took the geometry from its ACT and RSP race frames.
Up front sits an Ikon Pro Carbon fork with 20mm dropouts and an adaptor for a 3/8" axle, bar and stem have a 31.8mm clamp. The rear brake is a Tektro hydraulic disc brake with a 120mm rotor. It comes with a 2-piece Excess LSP crank with 180mm arms, an Insight 44T chainring, Chase Element hubs with 36 holes, 3/8" axle bolts and a cassette body with three pawls (72 points of engagement), Sun Ringlé Envy rims without brake surface, Tioga Fastr X tires and an aero seat post with quick release and an Elevn PC pivotal seat. According to US Pro the washers of the Excess crank go between pedal and crank arm.
Chase recommends size Pro XXL for riders from 1.75 to 1.87m. With pedals the bike weighs 9.55 kg according to US Pro. The photos show other pedals, the bike ships with nylon platform pedals.
Facts: Chase "Element Pro XXL" 2024 BMX Race Bike - Wine/Sand
- Wheelsize: 20"
- Race-Size: Pro XXL
- Model Year: 2024
- BMX Frame: Chase "Element Pro XXL", 7005-T6 aluminum, hydroformed, double and triple butted, aero seat tube, enclosed dropouts with integrated chain tensioner, integrated 1-1/8" head tube, Press Fit BB86
- Frame-Geometry:
- Top Tube (TT): 21.5"
- Chain Stay (CS): 14.5" (min.)
- Head Angle (HA): 74°
- Seat Angle (SA): 72.5°
- Head Tube (HT): 4.7"
- BB Height (BBH): 11.5"
- Wheelbase (WB): 973.39mm - BMX Fork: Ikon "Pro Carbon", carbon, 1-1/8" aluminum steerer, 20mm dropouts with adaptor for 3/8" axle, aluminum top cap
- BMX Bar:
- Chase "Element", CrMo
- Height: 8.5"
- Width: 28.5"
- Backsweep: 10°
- Upsweep: 2°
- Clamp: 31.8mm - Grips: Insight "C.O.G.S", 145mm, lock-on with aluminum clamps
- Stem: Chase "Element", 6061-T6 aluminum, 53mm, 1-1/8" steerer, 31.8mm clamp
- Headset: integrated (IS42/42), 1-1/8", sealed bearing
- Brake Lever (right): Tektro, hydraulic
- Brake (rear): Tektro "HD-M280", hydraulic disc brake, resin pads, 120mm rotor, lock disc adaptor
- Seat: Elevn "PC" pivotal
- Seat Post: Chase aero pivotal, aluminum, 27.2 x 260mm
- Seat Clamp: Chase aero, quick release, aluminum
- Pedals: nylon platform, 9/16"
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 4-bolt (104mm BCD), 44T, 5mm
- Cog: 16T
- Crank: Excess "LSP", 2-piece, aluminum, 180mm, 4-bolt spider, CrMo pedal inserts
- Bottom Bracket: Press Fit BB86, cartridge bearings
- Hub (front): Chase "Element", 36H, sealed bearings, 3/8" axle bolts
- Hub (rear): Chase "Element Pro" ISO cassette hub, 36H, sealed bearings, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, front 186mm, rear 181mm, brass nipples
- Rim (front): Sun Ringlé "Envy", aluminum, 36H, 20" x 1.75", no brake surface
- Rim (rear): Sun Ringlé "Envy", aluminum, 36H, 20" x 1.75", no brake surface
- Tire (front): Tioga "Fastr X", 20", 60 TPI, wire bead
- Tire (rear): Tioga "Fastr X", 20", 60 TPI, wire bead
- Tubes: 20" x 1.50"-1.75", Schrader valve
- Chain Tensioner: integrated, with lock disc adaptor
- Rider Height: 1.75 - 1.87m
- Usage: BMX Race
