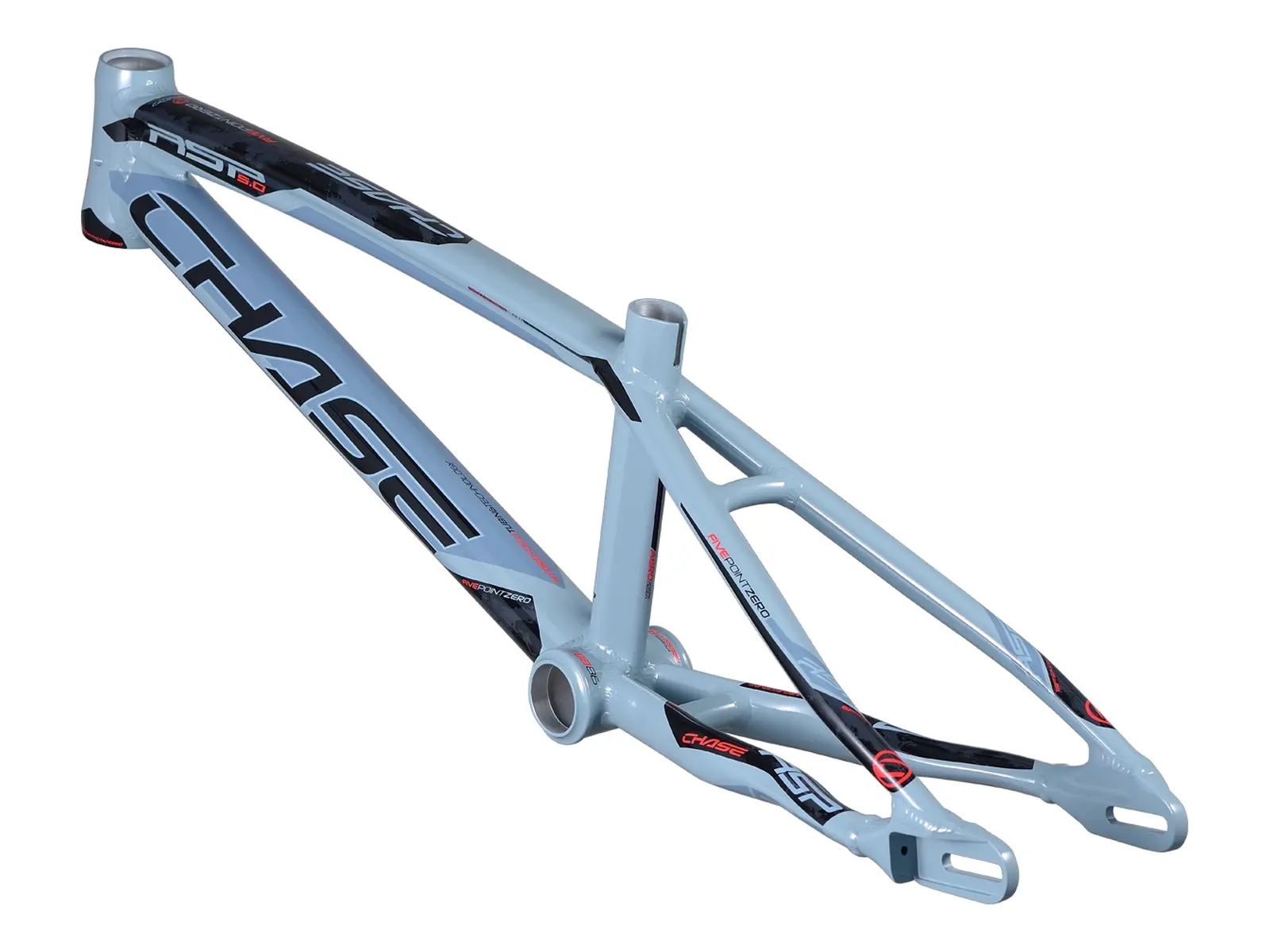

Chase "RSP 5.0 Pro XXL OS20" BMX Race Frame
- Weight : 1.72kg / 3.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45763
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

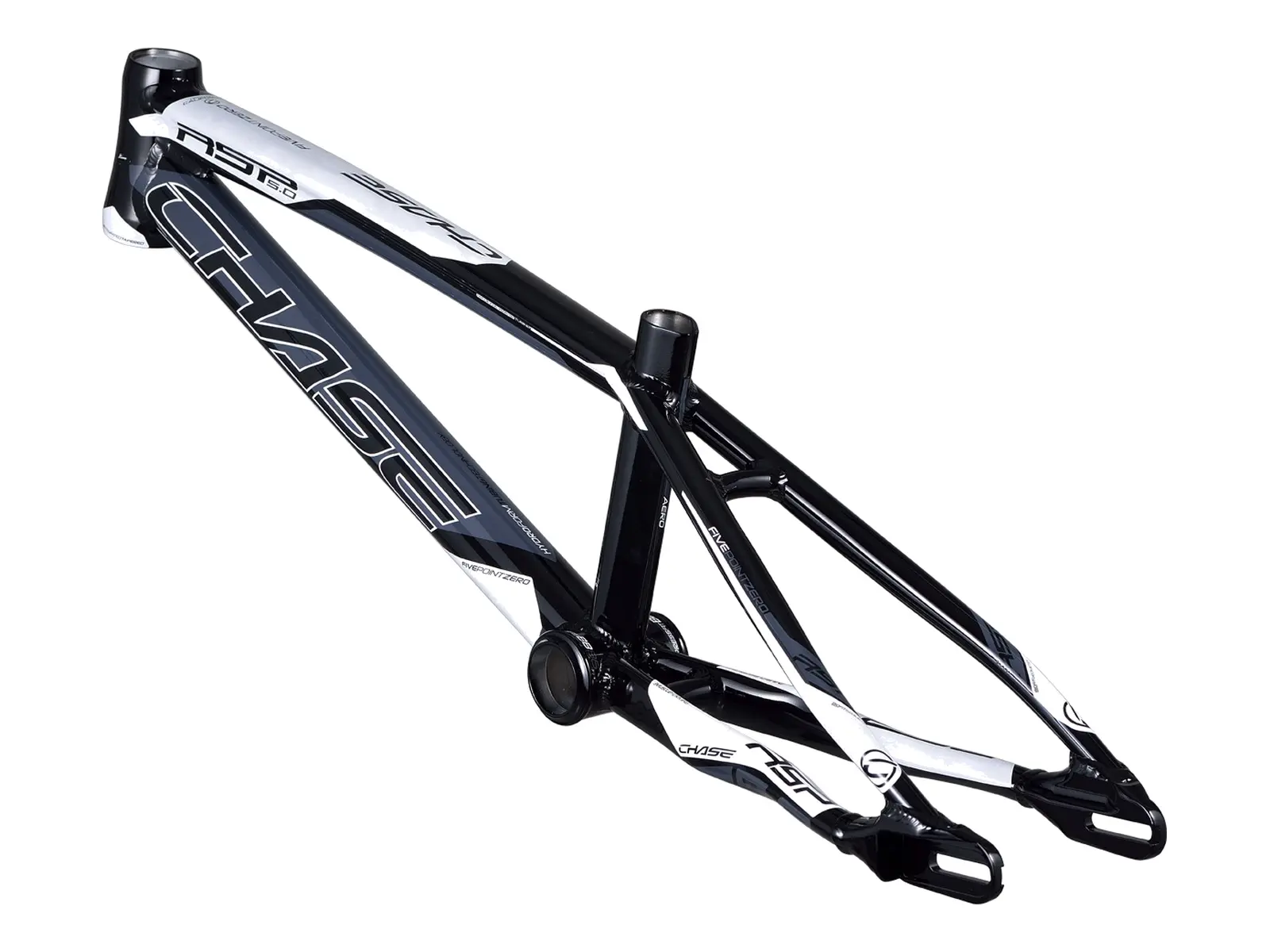

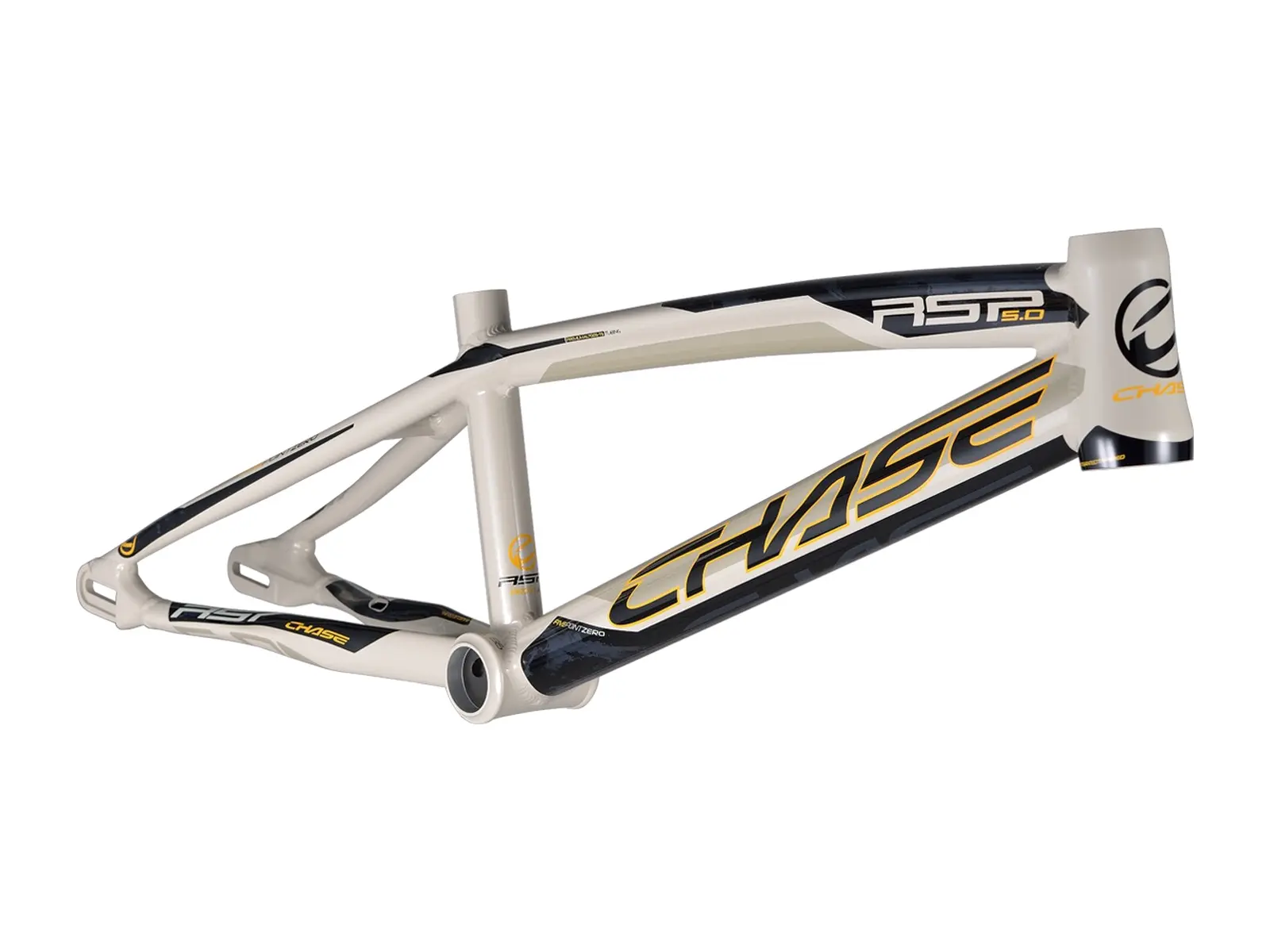

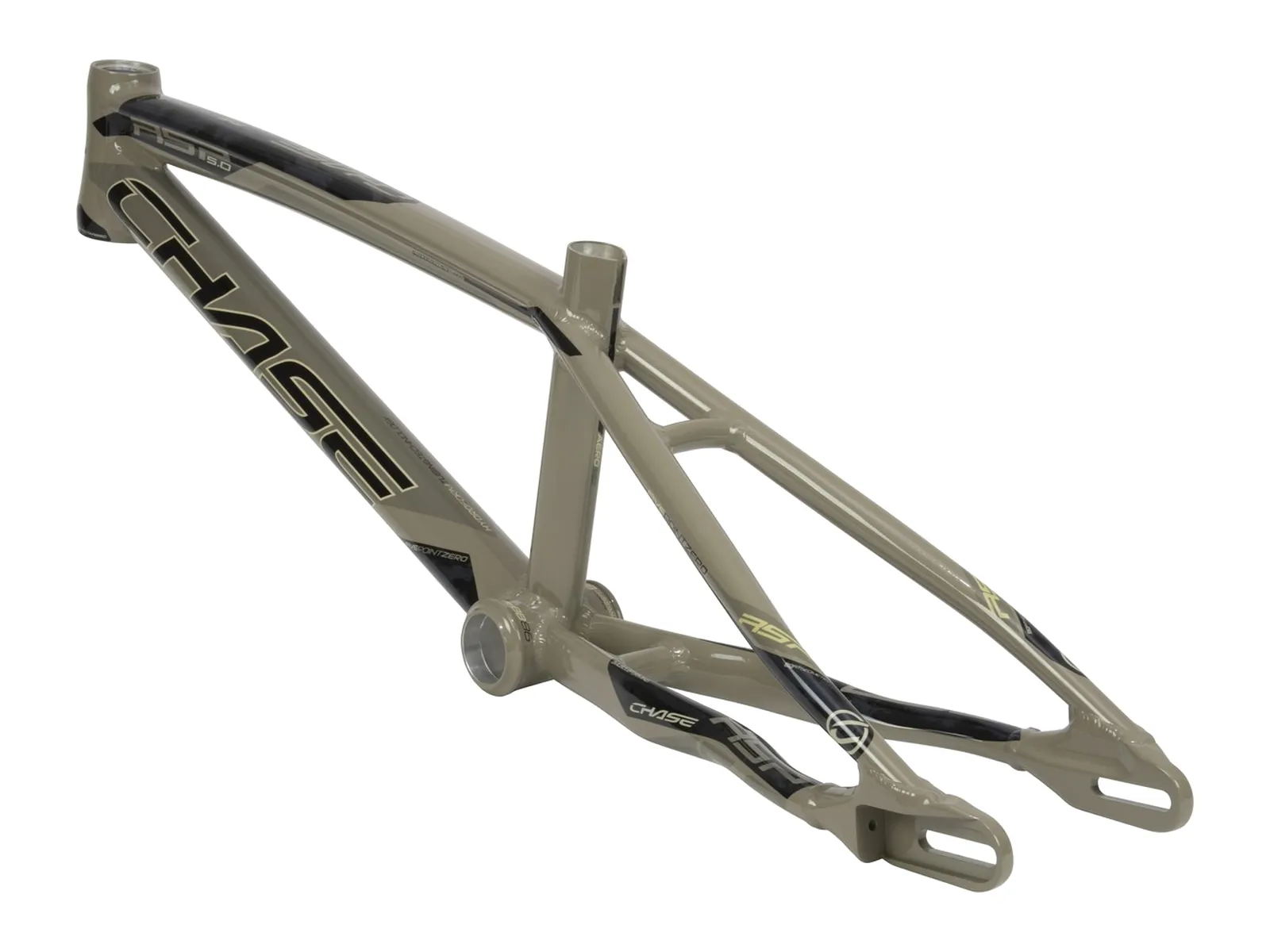

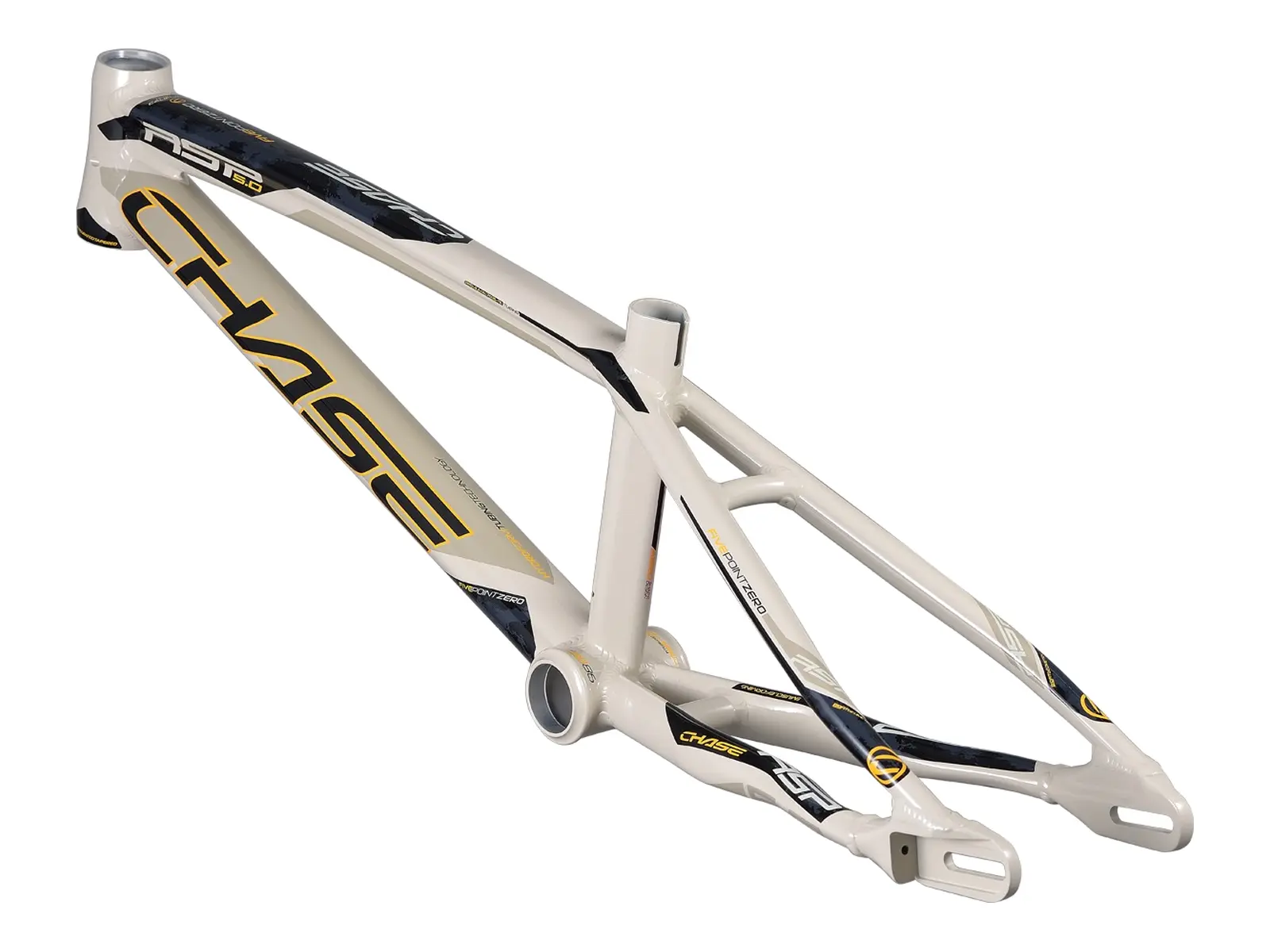

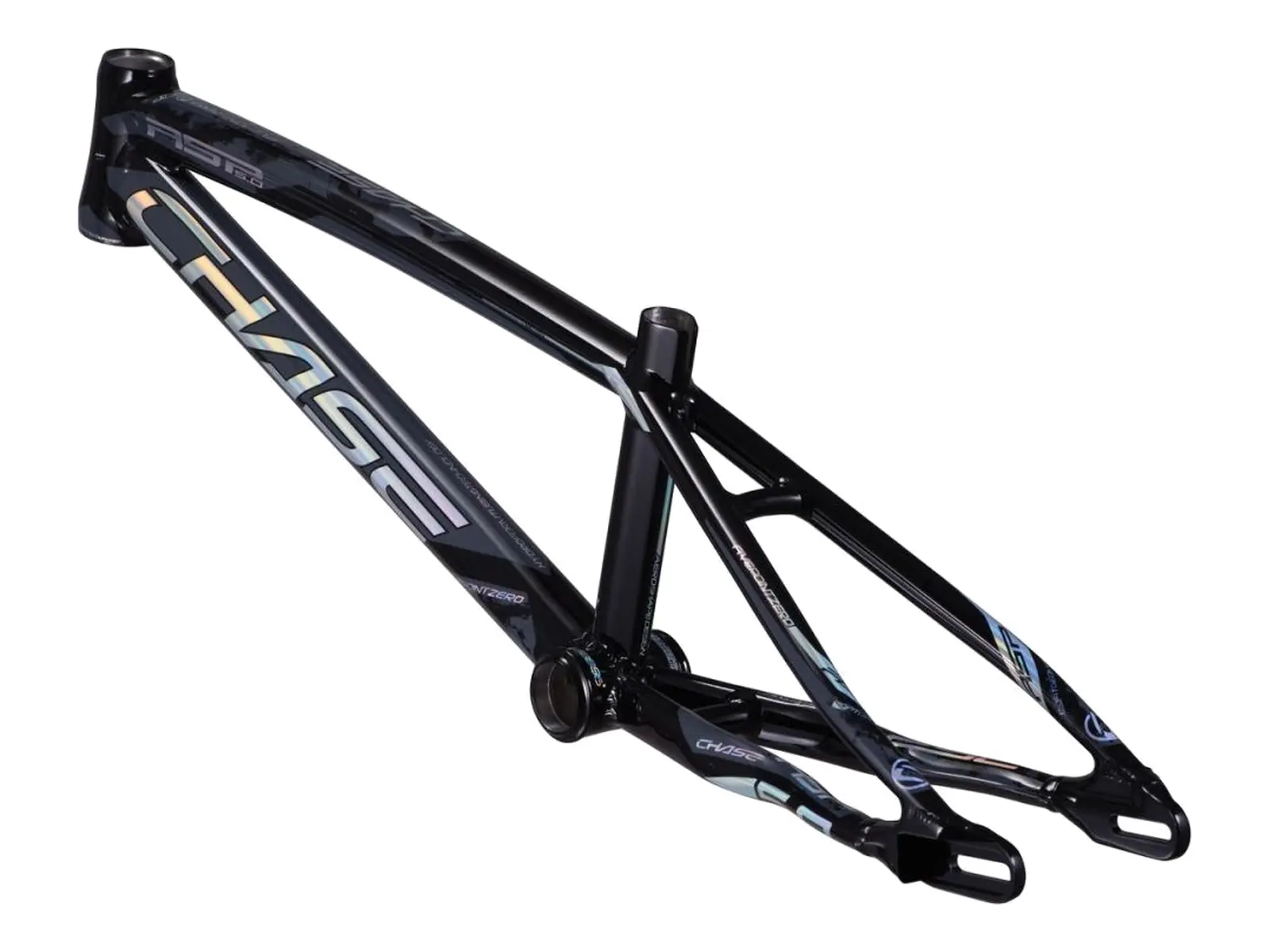

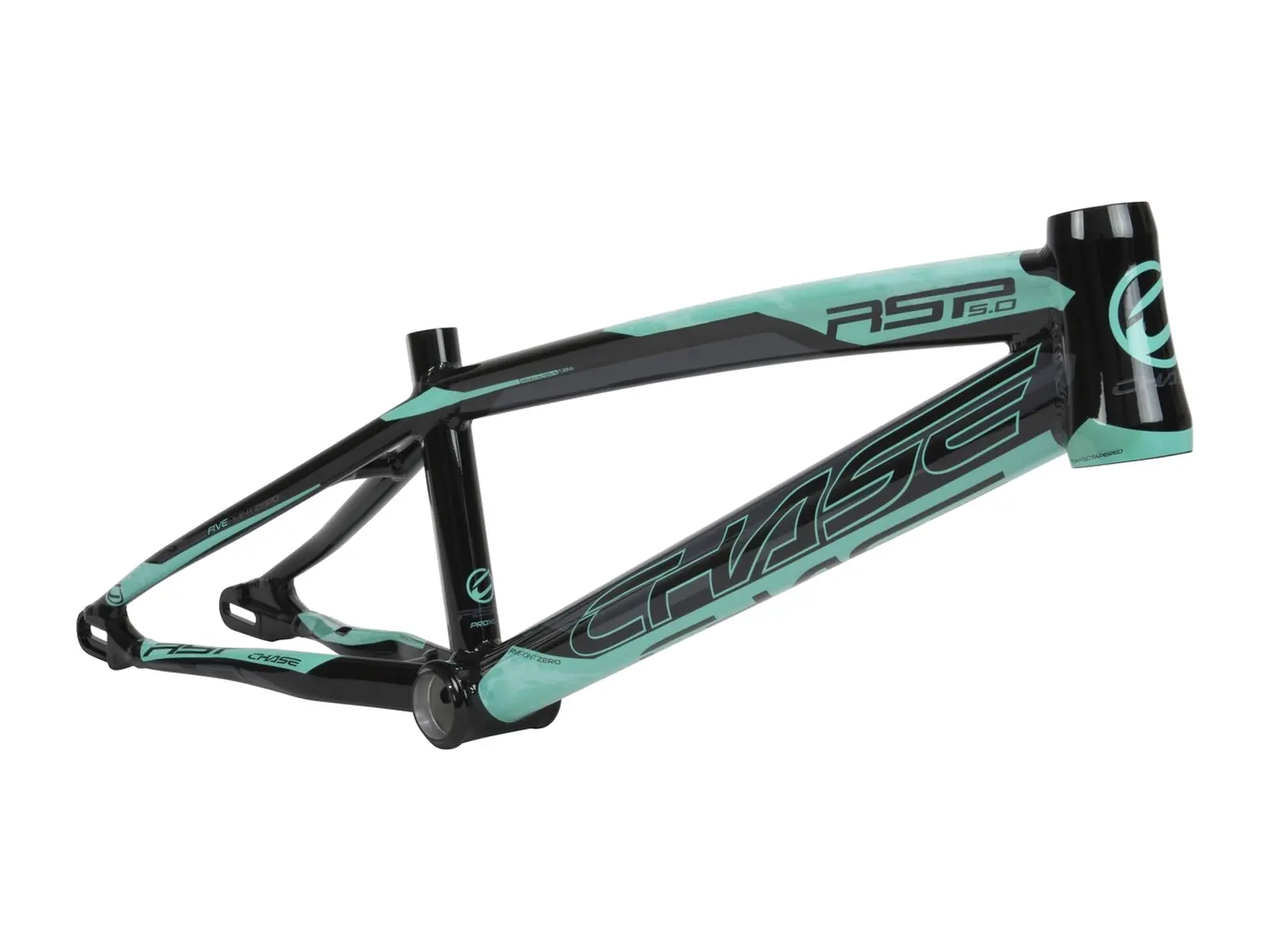

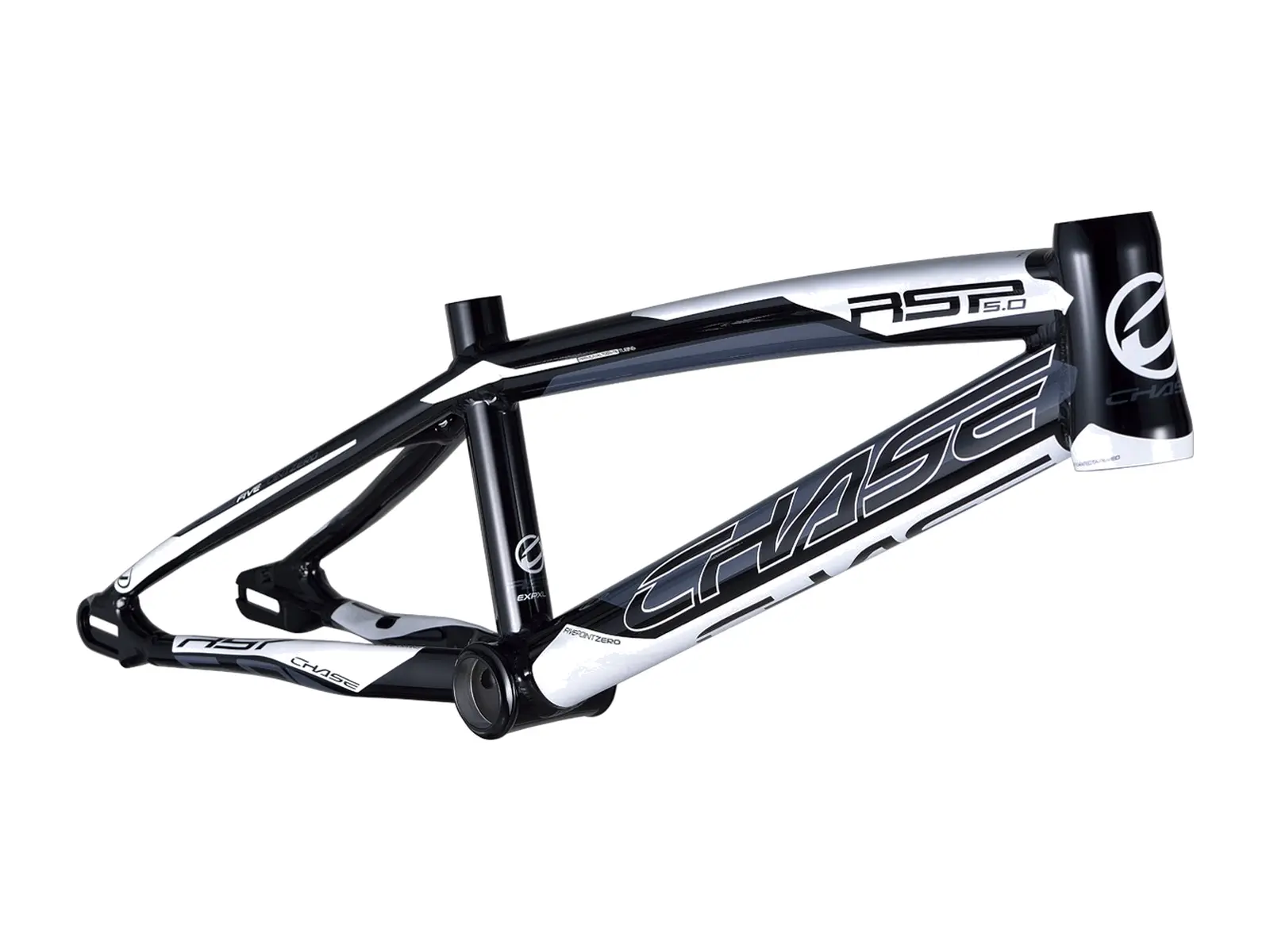

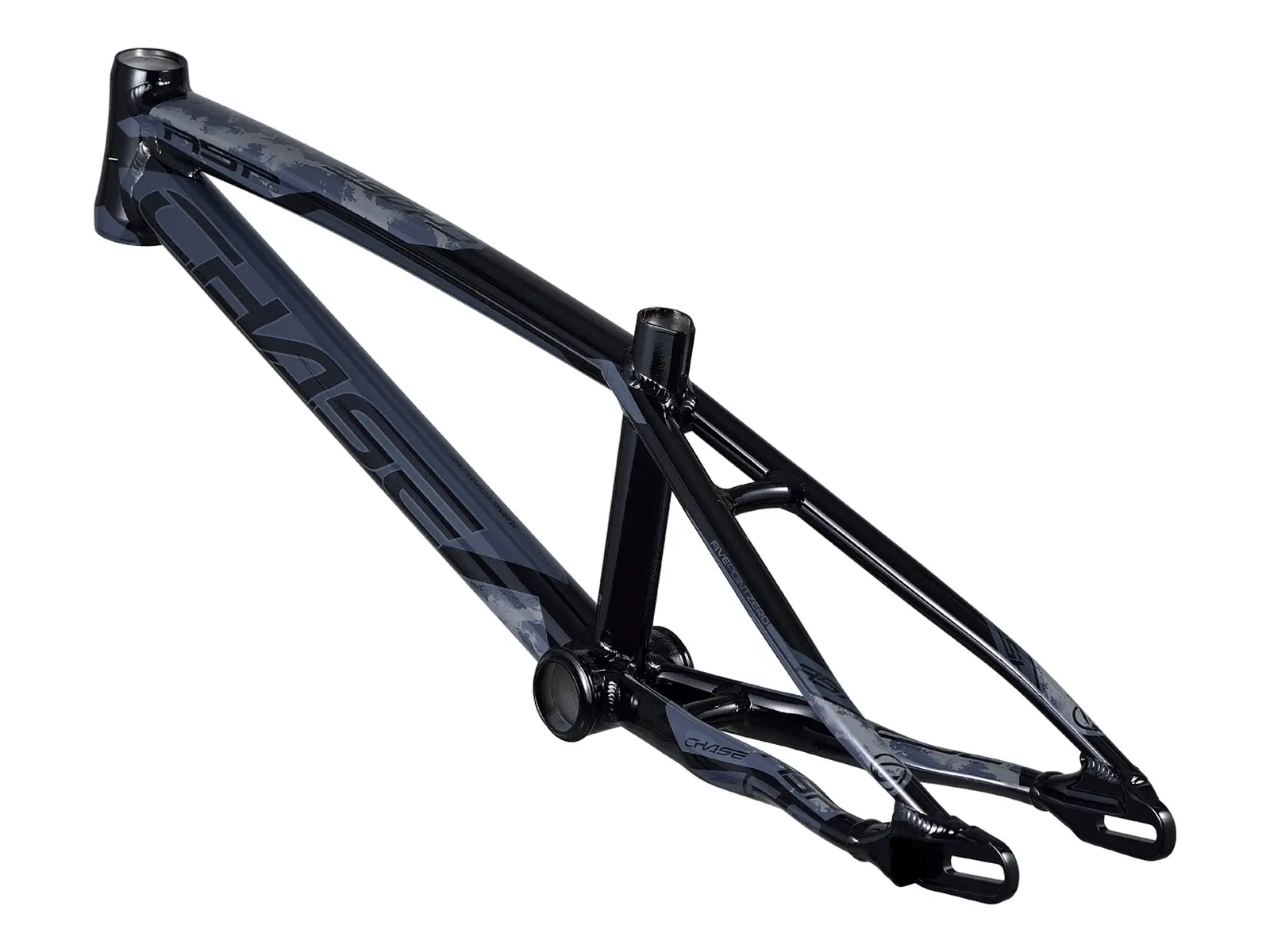

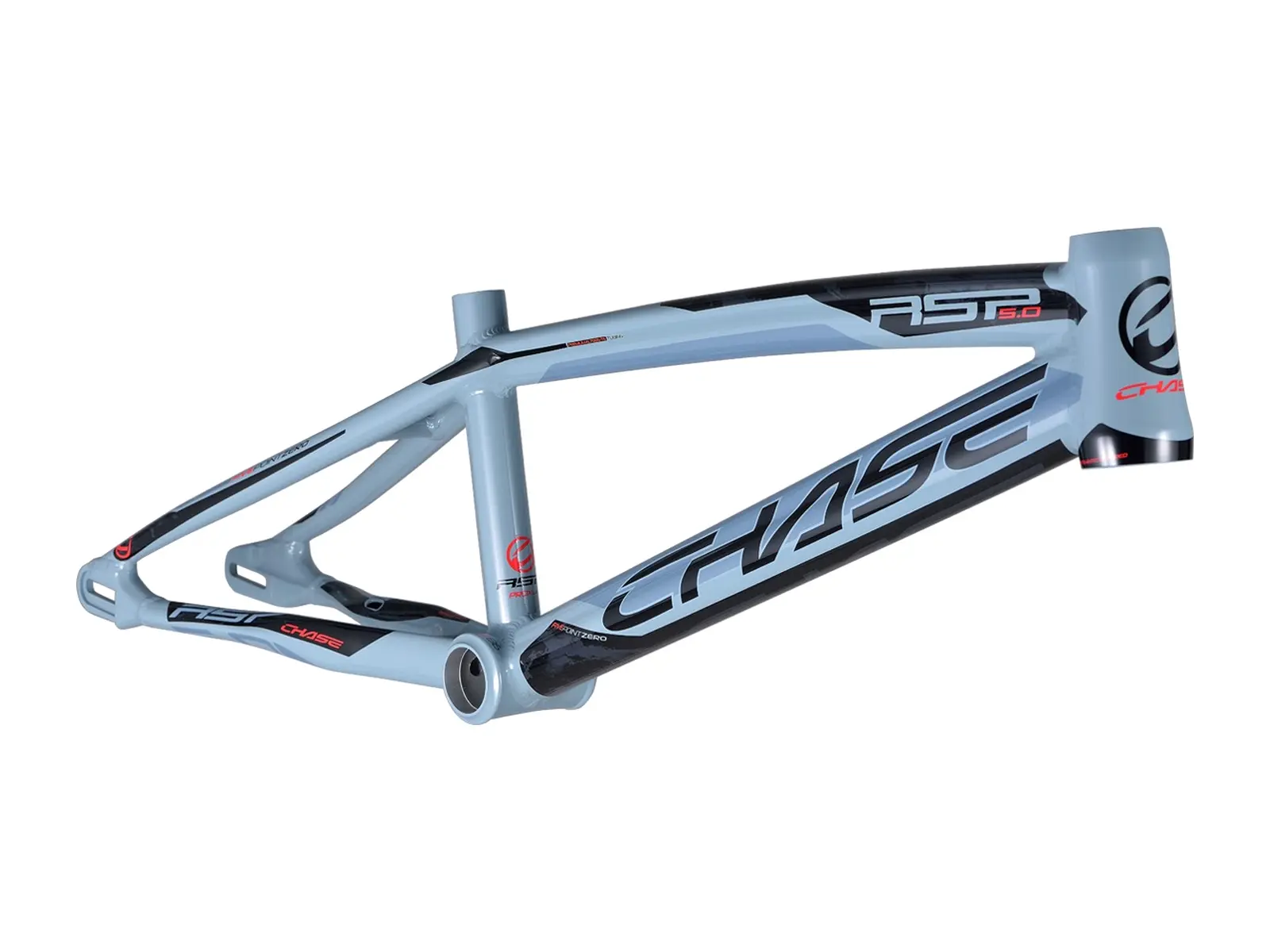

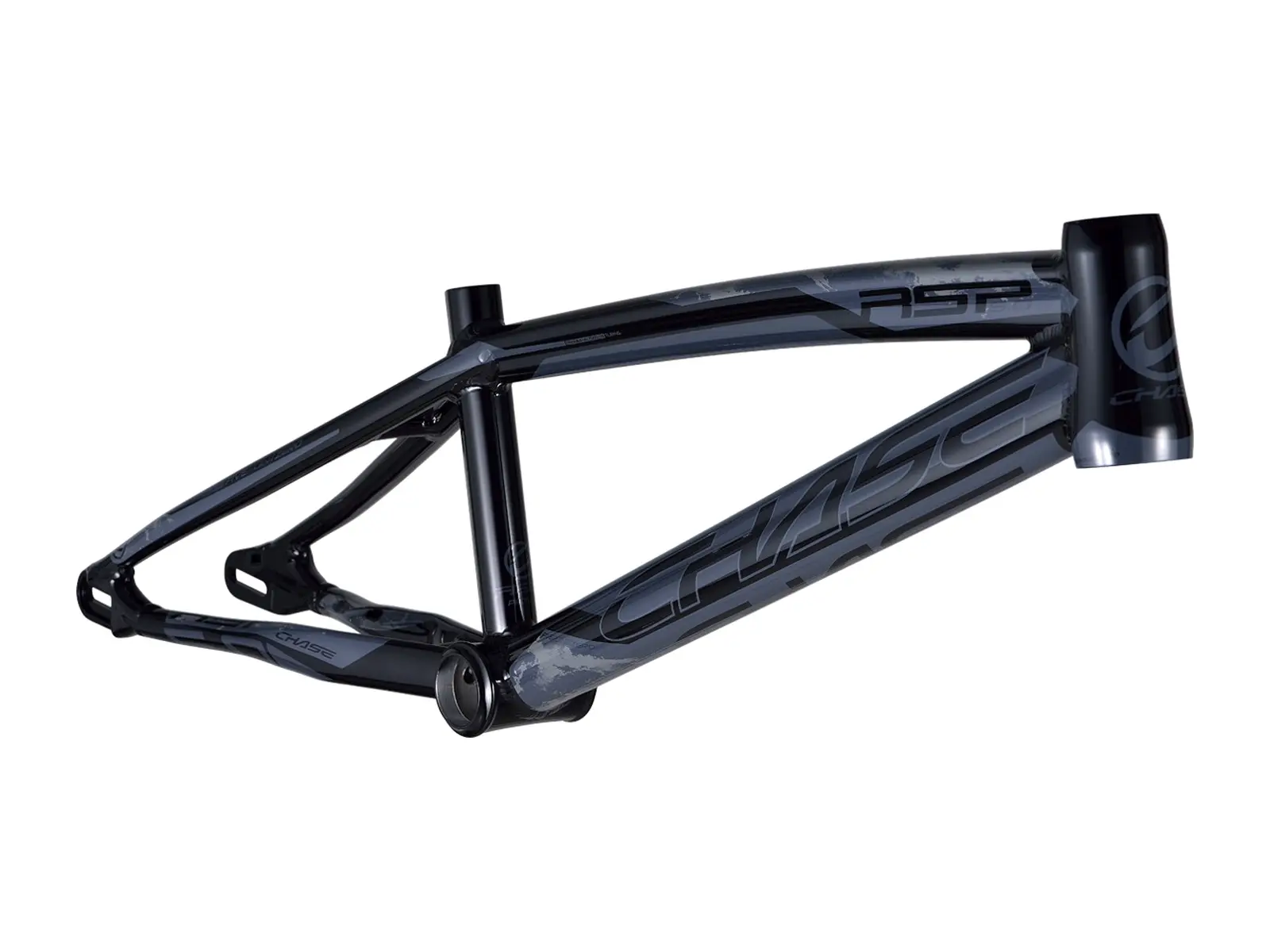

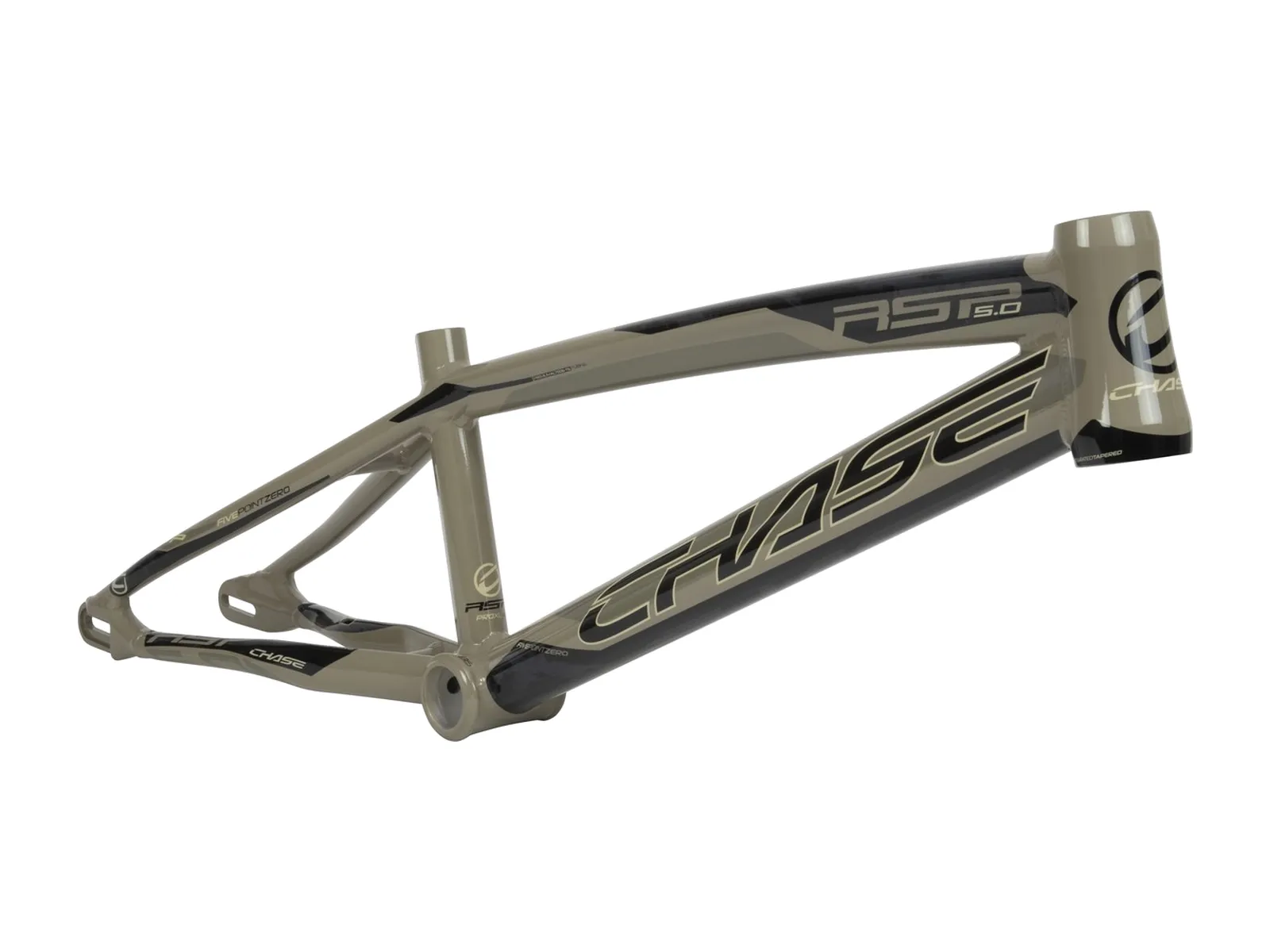

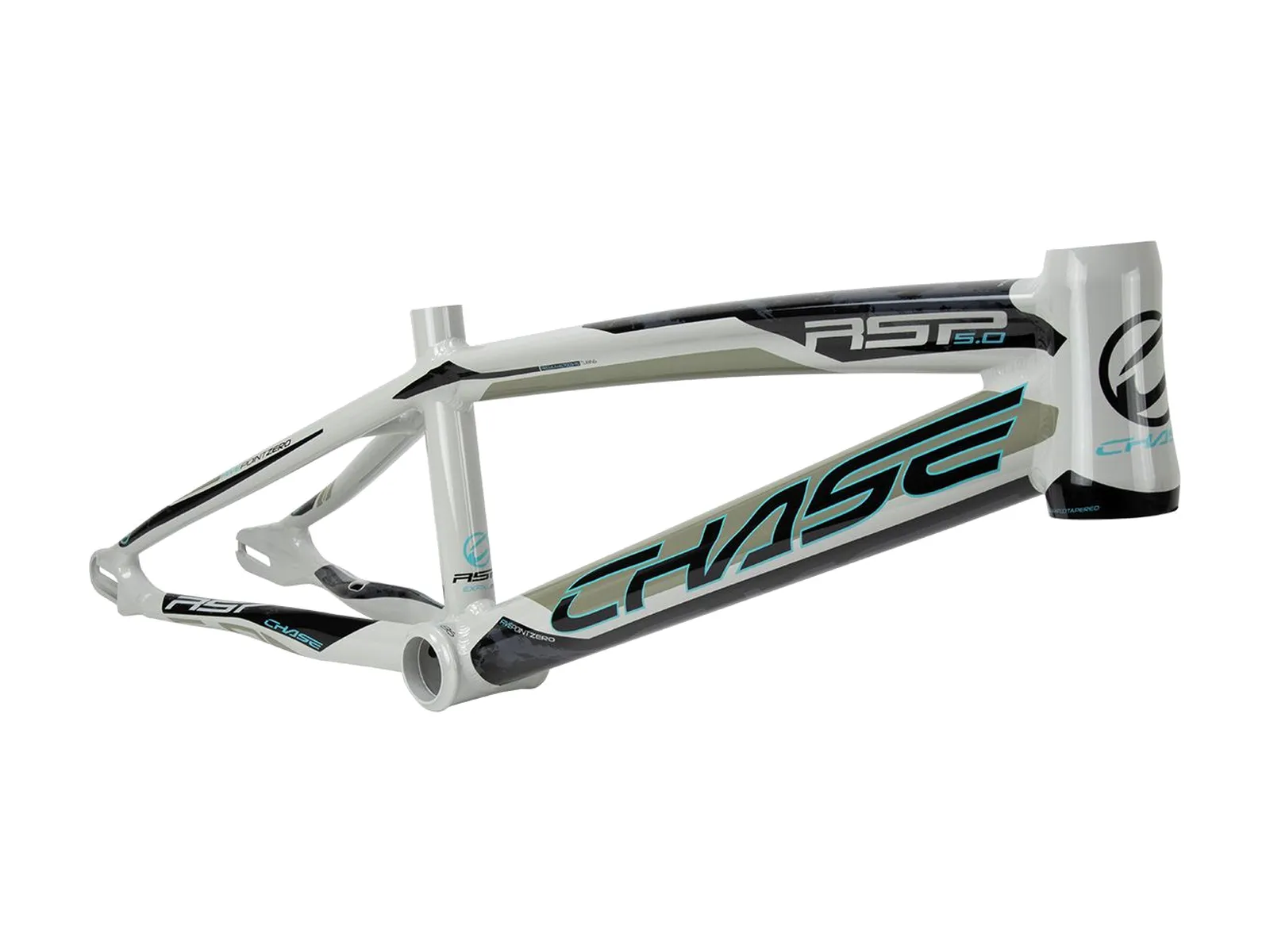

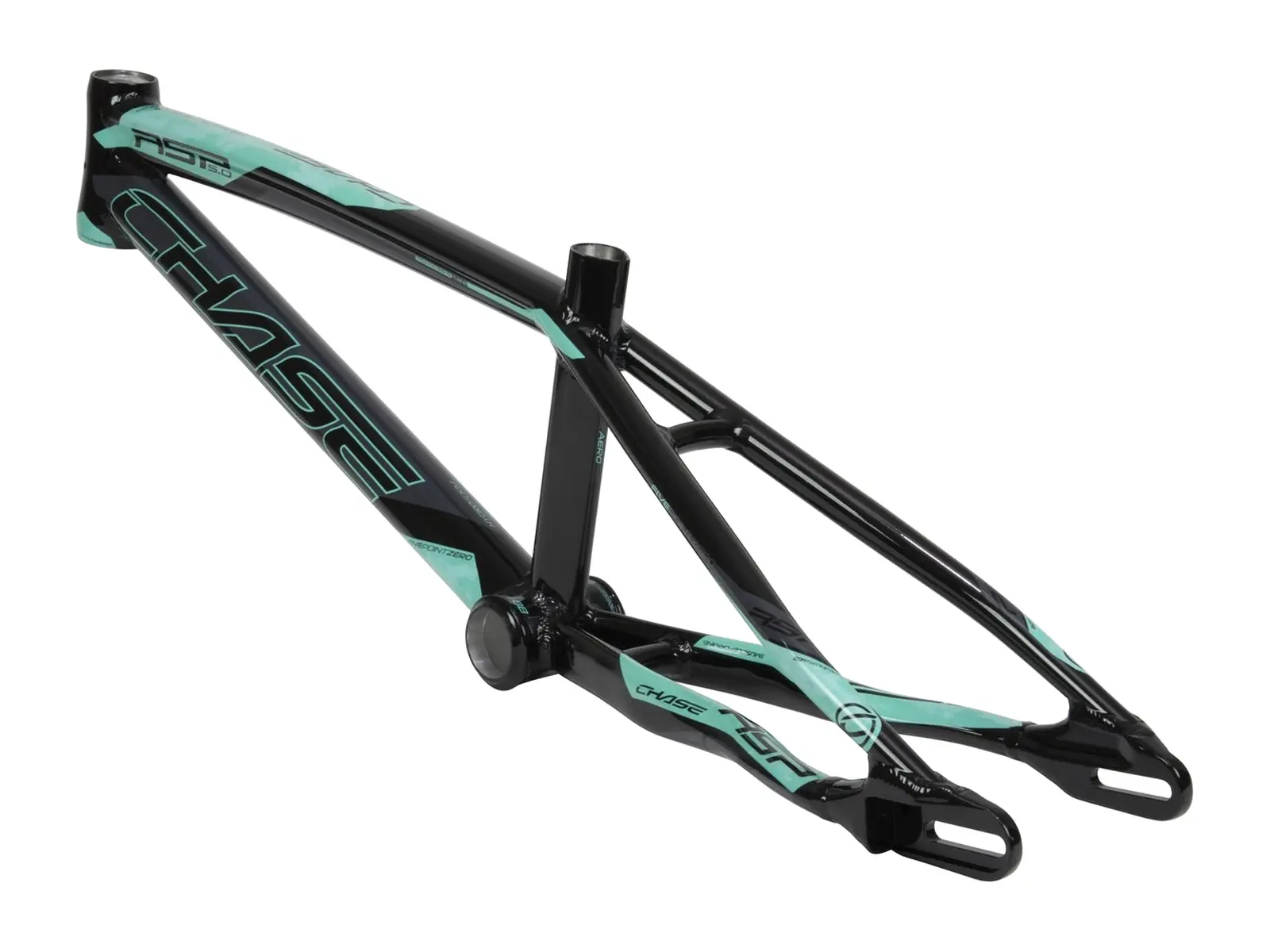

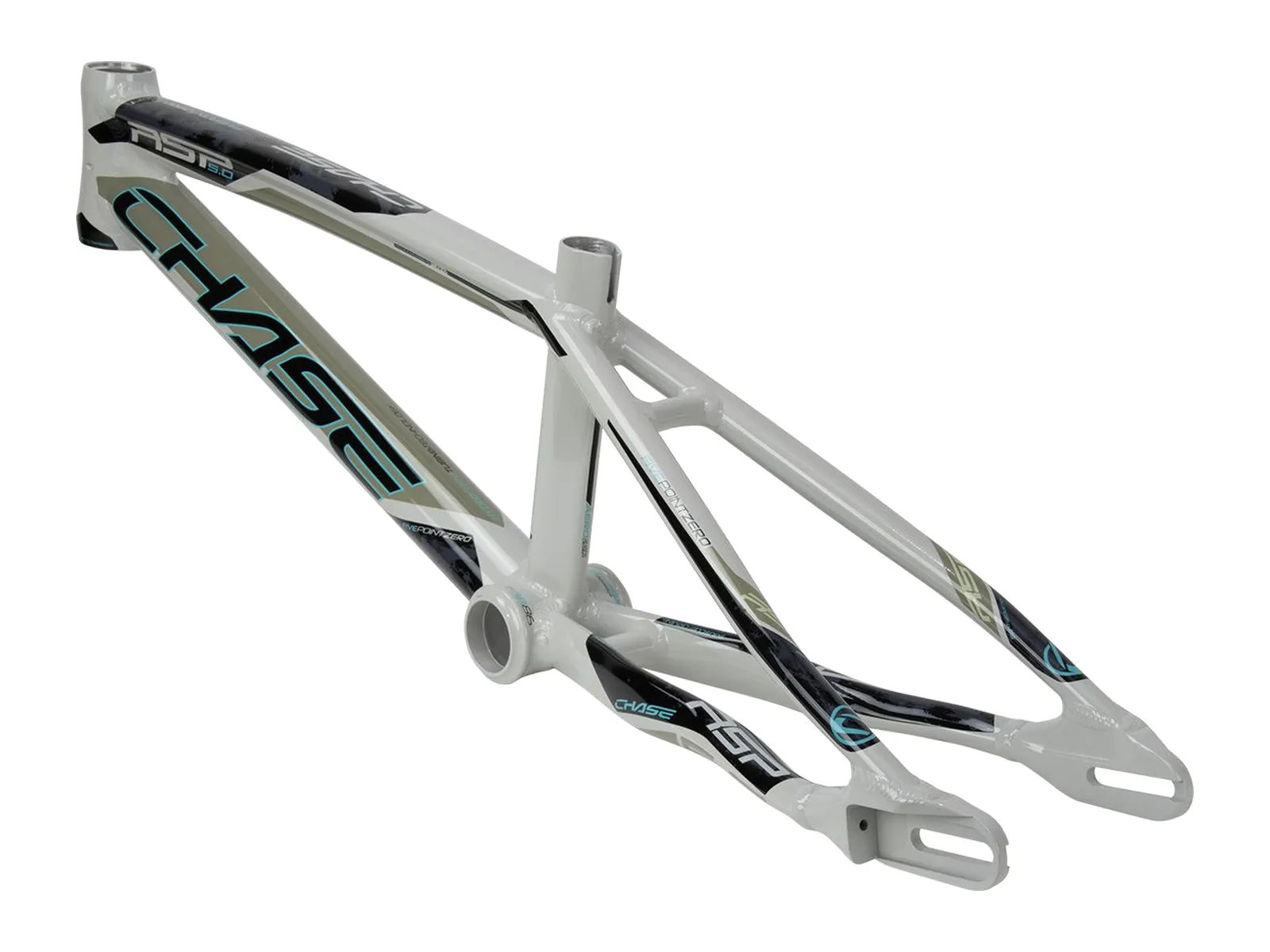

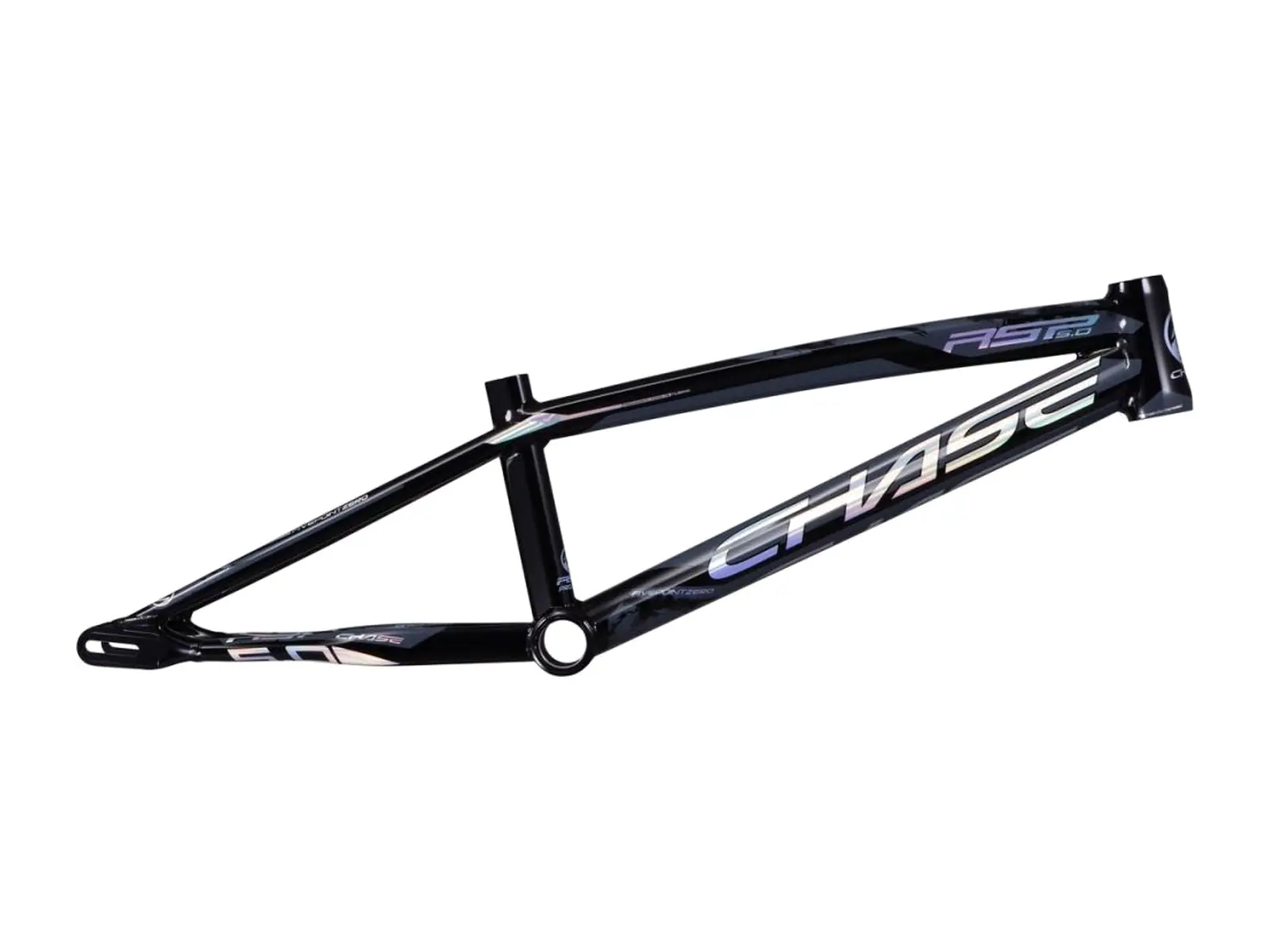

The Chase "RSP 5.0 Pro XXL OS20" BMX Race Frame is the aluminum race frame Chase developed its RSP line into, with feedback from pros Connor Fields and Joris Daudet in every version. It is built from 7005-T6 aluminum: the top tube is hydroformed and double butted, the down tube hydroformed and triple butted, the stays are muscle formed, and the seat tube has an aero profile.
The frame is made for disc brakes only. The enclosed CNC machined dropouts leave room for many calipers and take post mount or flat mount brakes via an adapter sold separately. The chain tensioners for 10mm axles are built in, so the hub needs removable axle bolts. The brake housing runs inside. From Expert XL up it has a tapered IS42/52 head tube and a Press Fit BB86 bottom bracket, the small sizes up to Expert a straight 1-1/8" head tube and Euro BSA. The OS20 sizes are made for OS20 wheels, forks and tires and need an OS20 fork according to Chase.
In size Pro XXL OS20 it has a 21.5" top tube and weighs 1.72 kg according to Chase. Aero seat post and seat clamp are not included.
Facts: Chase "RSP 5.0 Pro XXL OS20" BMX Race Frame
- Wheel Size: 20" (OS20)
- Race Size: Pro XXL
- Material: 7005-T6 aluminum, hydroformed, double butted top tube, triple butted down tube, muscle formed stays, aero seat tube
- Geometry:
- Top Tube Length (TT): 21.5"
- Chainstay Length (CS): 14.5" (min.)
- Head Tube Length: 4.7" (120mm)
- Head Tube Angle (HA): 74° to 74.4°
- Seat Tube Angle (SA): 72.5° to 72.9°
- Bottom Bracket Height: 11.5" to 11.67"
- angles and bottom bracket height vary with the tires according to Chase - Headsets Size: tapered 1-1/8" - 1.5" (integrated, IS42/52)
- Seat Clamp: aero 27.2mm (not included)
- Seat Post Diameter: aero 27.2mm
- Bottom Bracket: Press Fit BB86
- Dropouts: enclosed, CNC machined, 10mm (3/8") axle, only for hubs with removable axle bolts
- Chain Tensioners: integrated, for 10mm axle, included
- Brake Type: Disc Brake (120mm) or Disc Brake (140mm), disc brake only
- Brakemounts: post mount or flat mount for 120/140mm rotors via adapter, no V-brake mounts
- Brakemounts included with delivery: No, disc brake adapter sold separately
- Tire Clearance: max. OS20 x 1.85"
- Features: internal brake routing (housing runs from the head tube through the down tube and bottom bracket and exits at the chainstay), aero seat tube

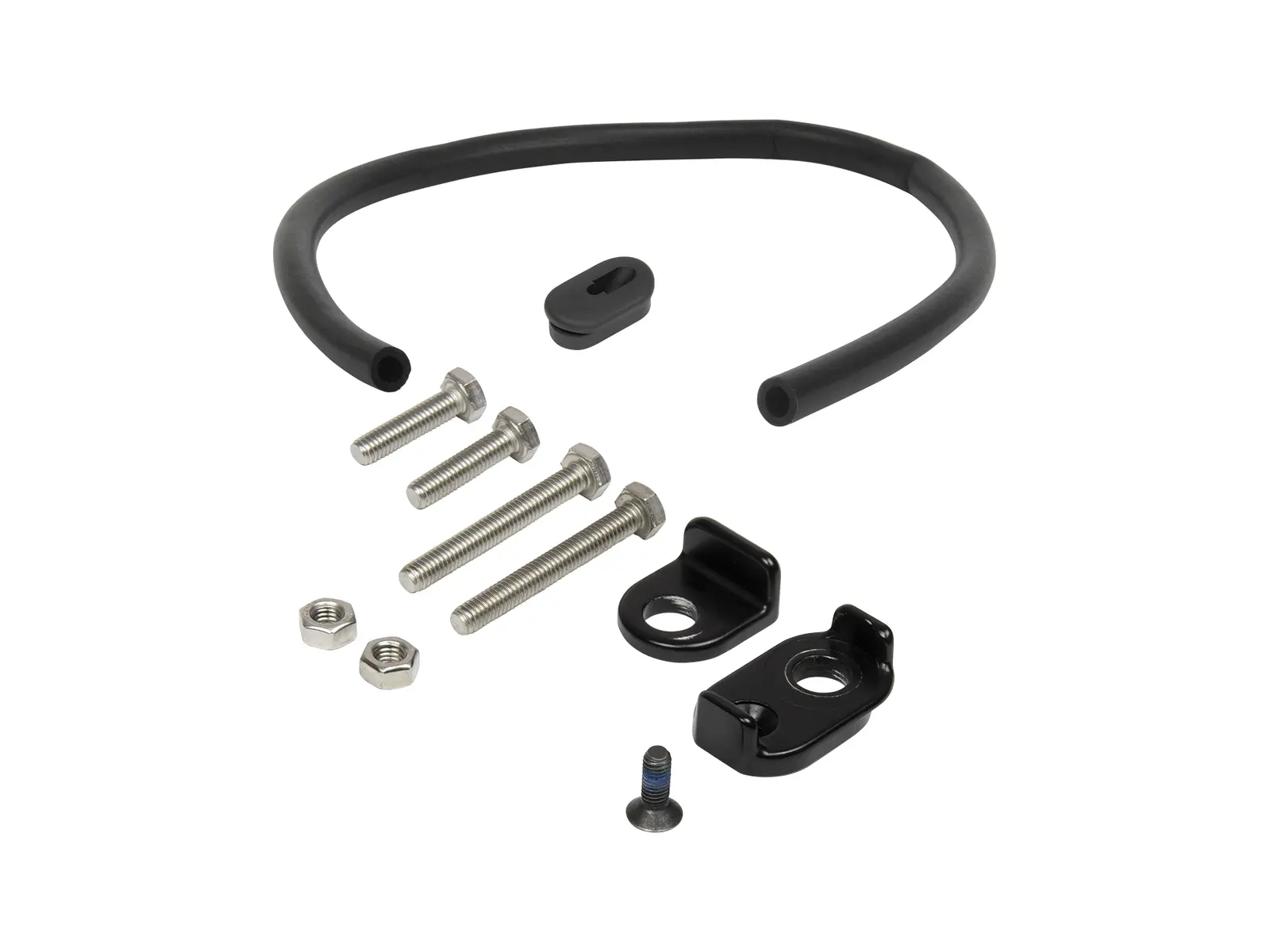

- Includes: 1 frame, chain tensioners with bolts, foam damper for the brake housing
