Haro Bikes "Citizen Carbon Pro" BMX Race Frame
- Weight : 1.16kg / 2.56lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 26388
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/haro-bikes-citizen-carbon-pro-bmx-race-frame-p-26388
Printed: 10/21/2026
Printed: 10/21/2026

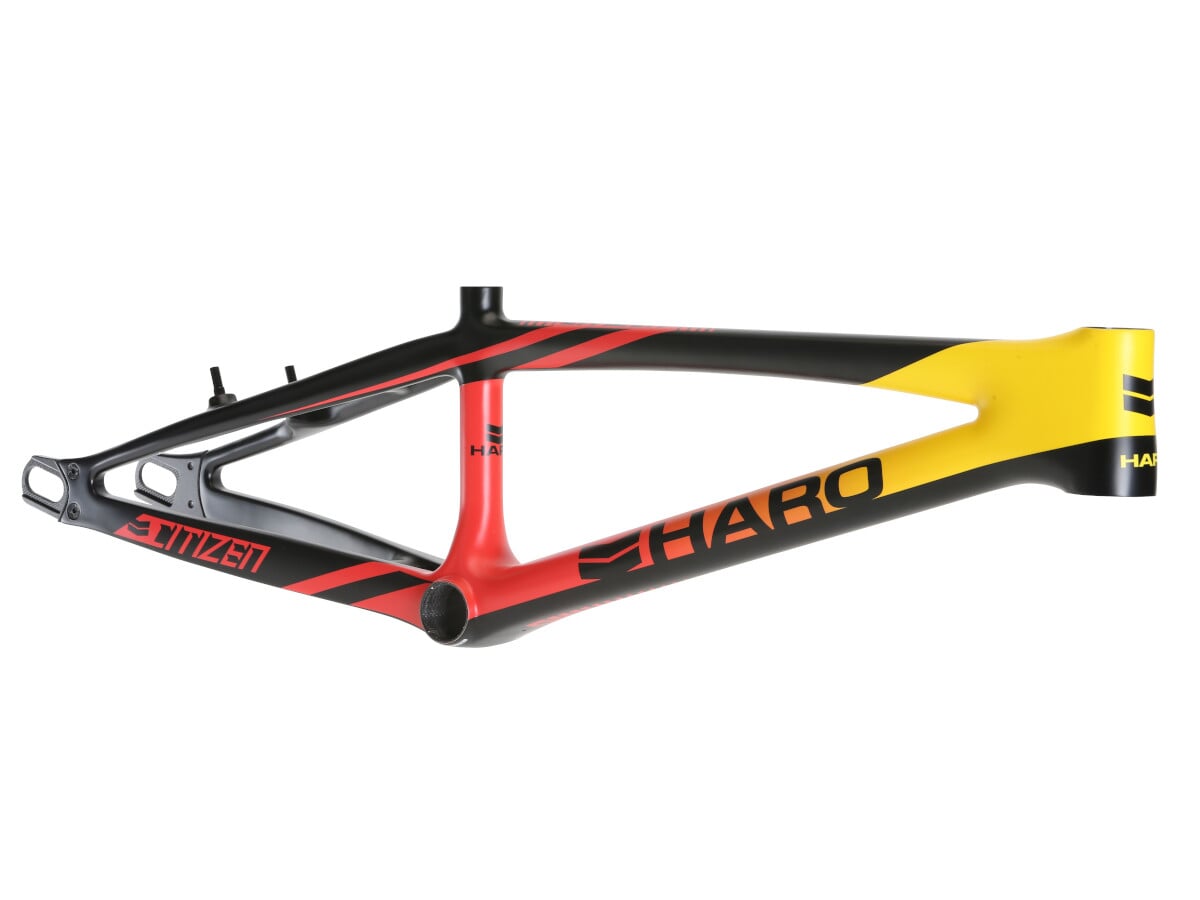

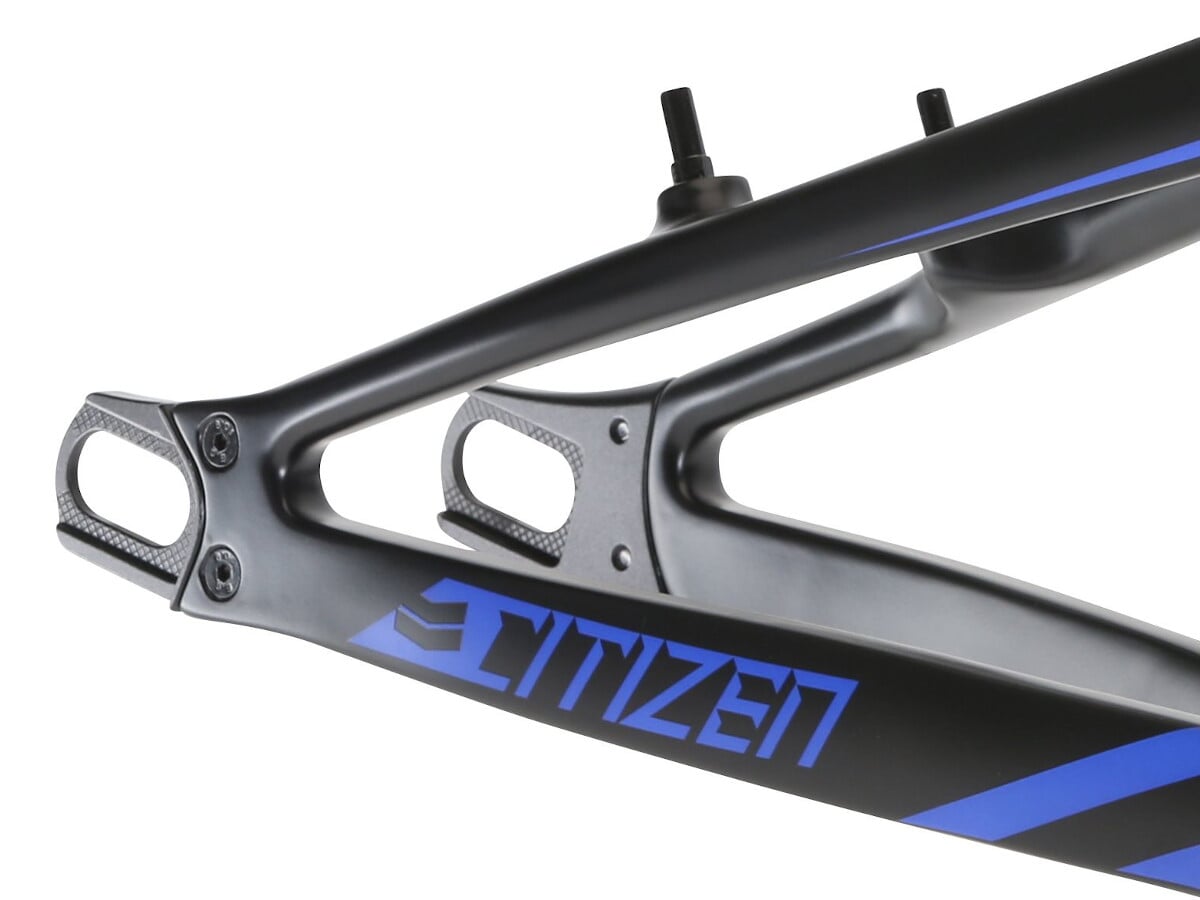

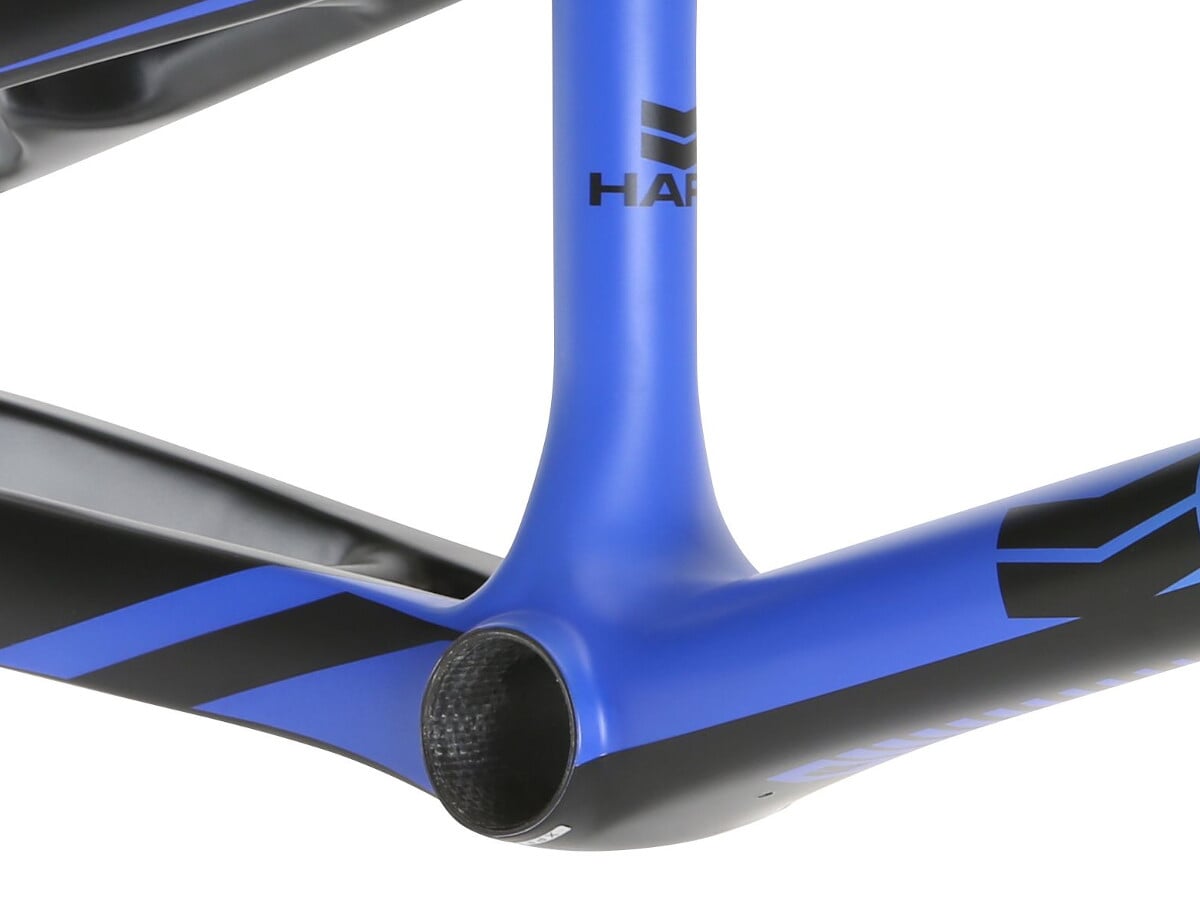

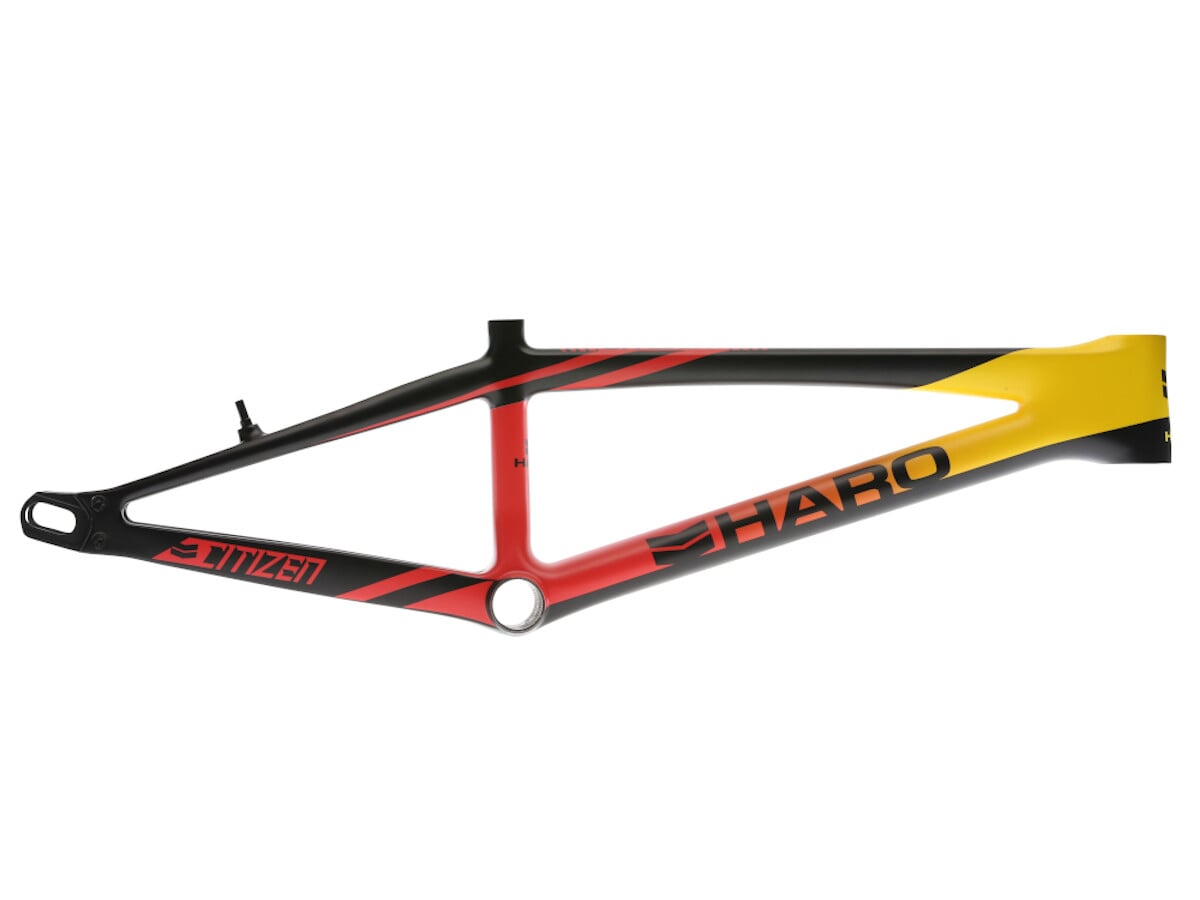

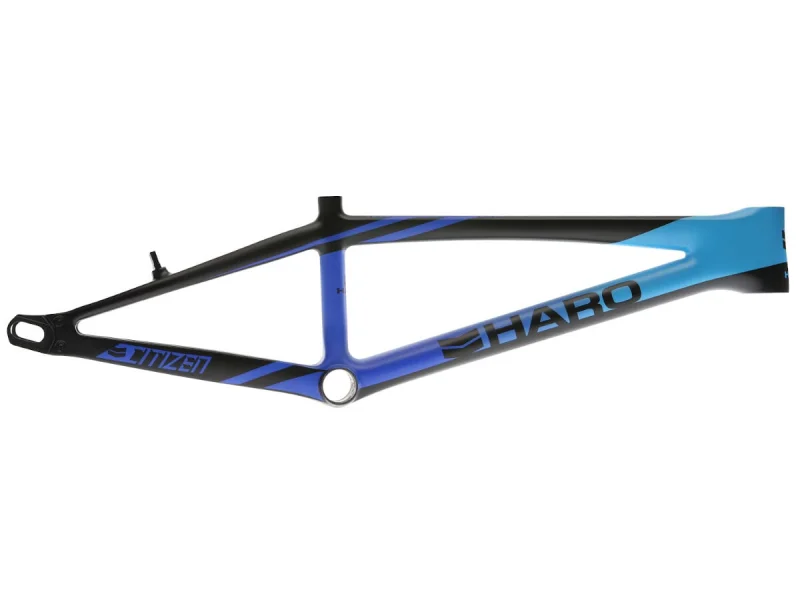

The Haro Bikes "Citizen Carbon Pro" BMX Race Frame is a carbon frame for 20 x 1.75" tyres with an integrated tapered head tube (1-1/8" to 1.5"). The geometry has a 14.75" chainstay, 74° head angle and 72° seat angle. The brake line runs inside the frame, and the bolt-on aluminium dropouts (PTC Power Transfer System) are made for 20 mm axles, with chain tensioners for 10 mm and 15 mm included. Press Fit BB68 bottom bracket, 27.2 mm seatpost, V-brake bosses fitted.
Facts: Haro Bikes "Citizen Carbon Pro" BMX Race Frame
- Wheel size: 20" x 1.75"
- Material: Carbon, integrated tapered (1 1/8" to 1.5") Headset
- Geometry:
- Toptube (TT): 20.5"
- Chainstay (CS): 14.75"
- Headtube Angle (HA): 74°
- Seattube angle: 72°
- Dropouts: 20mm (including chain tensioner for 10mm and 15mm) - Seat clamp: without
- Seat post diameter: 27.2mm
- Bottom Bracket: Press Fit (BB68)
- Chain tensioners: Included
- Brake style: V-Brake
- Brake ahrdware: Mounted
- Extra: Internally routed brake line channels for best aerodynamics and a clean look, screwable aluminum 70000 dropouts (PTC power transfer system)
