BMX Shop & Mailorder - Cranks - English

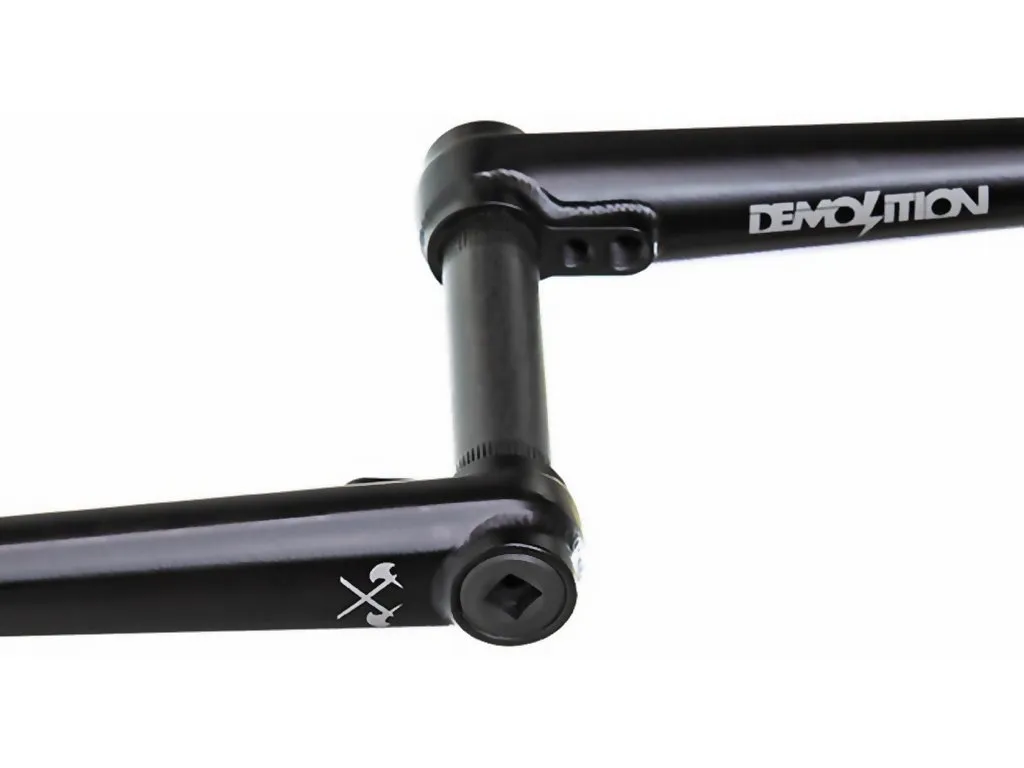

This 3-piece Demolition "Rig 24" BMX Crank has a very stable 24mm CrMo 48 spline hollow crank spindle which provides more stability compared to conventional 19mm CrMo crank spindles at almost the same weight. The 165mm, 170mm or 175mm long crank arms of the Demolition "Rig 24" BMX Crank have a round shape with a flattened outside profile and the areas of the spindle and the pedal hole are fully welded around to ensure maximum strength. This very high quality crank set is equipped with sprocket holes for regular sprockets (23T and bigger) and Micro Drive sprockets (smaller than 23T) on both crank arms.

Facts: Demolition "Rig 24" BMX Crank

• Material Crank Arms: 4130 CrMo, heat treated
• Material Crank Spindle: 4130 CrMo, heat treated, hollow
• Crank-Type: 3-piece
• Crank Arm Length: 165mm, 170mm or 175mm (selectable as an option)
• Spindle Diameter: 24mm
• Spindle-Type: 48-Spline
• possible Sprocket Mount by:
  Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
  Bolt-Drive (25T or larger): right (RHD) and left (LHD)
  Spline-Drive: right (RHD) and left (LHD)
• Pedal Threat: for 9/16" pedals
• Spindle Bolt: 2x bolts (18x1mm, 24mm Axle) with 6mm allen key
• Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
• Extras: signature crank of Denis Enarson, completely surround welded axle and pedal jacks
• Recommended for: Street, Park or Trails
