Wolf Tooth "Waveform Large" MTB Pedals
-
Weight : 0.38kg / 0.84lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: Pair
- Product ID (PID): 36505
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

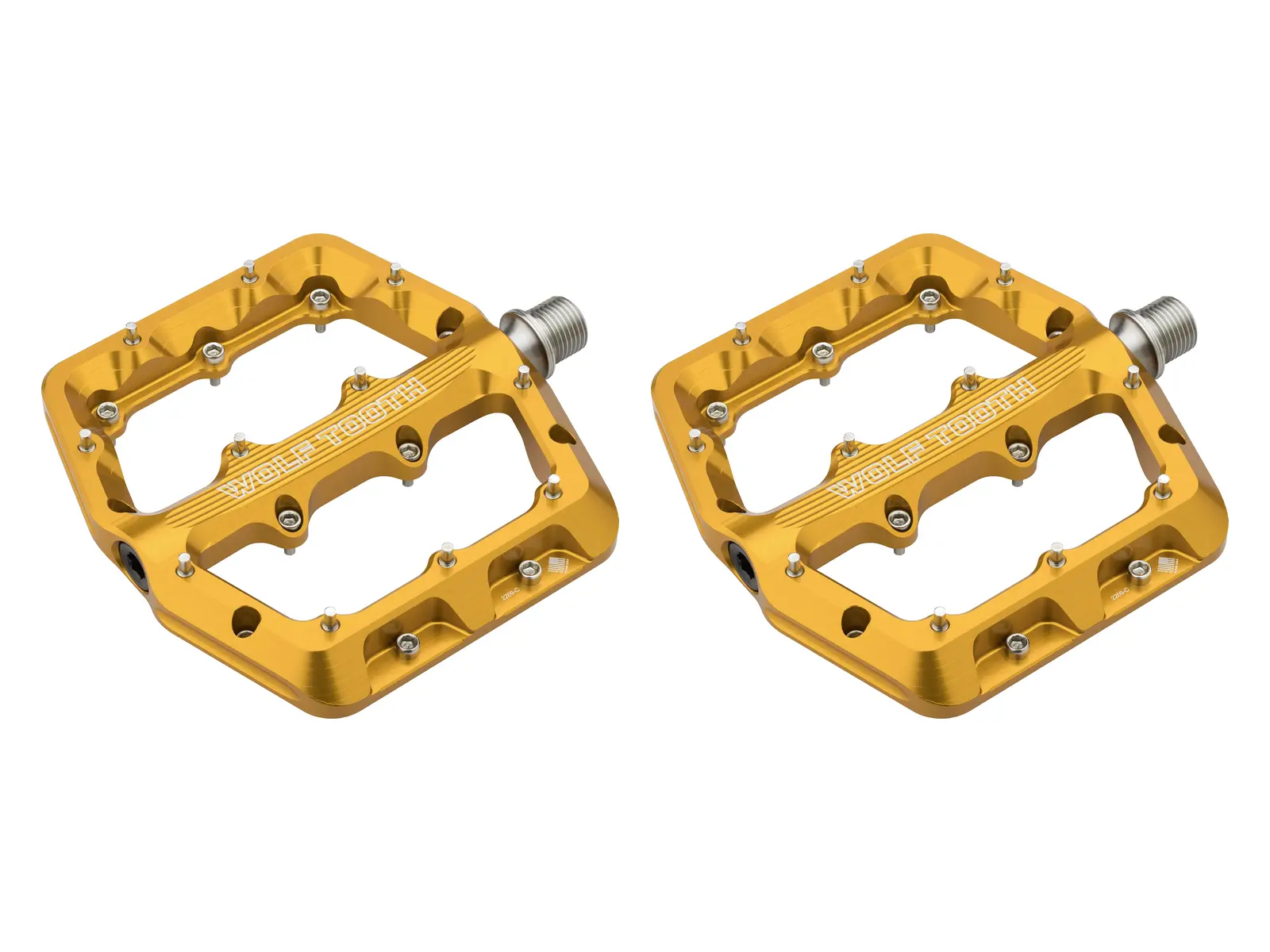

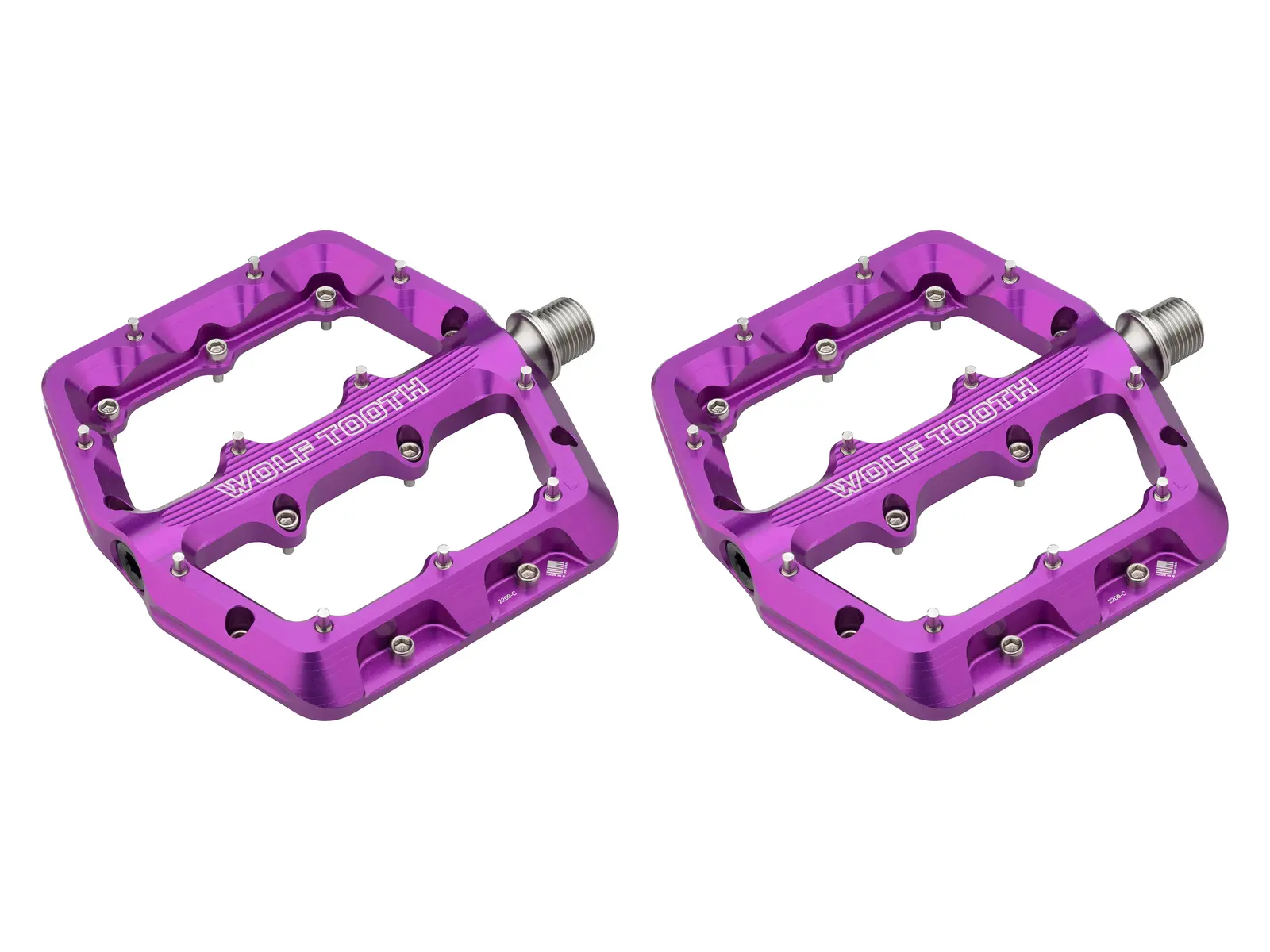

Wolf Tooth "Waveform Large" MTB Pedals is a slim aluminium platform pedal for everything from XC trails to downhill. The platform is dual concave, 14mm thick at the edge and 12.5mm in the centre, eleven stainless steel pins per side load from the rear and hold the shoe. The wave machined into the inside front edge gives the pedal its name. Inside run three sealed cartridge bearings and an igus bushing behind a radial seal, machined and assembled in Minnesota. Large measures 112 x 106mm, see the Waveform Small for the smaller version.
Facts: Wolf Tooth "Waveform Large" MTB Pedals
- Material:
- Pedal Body: 6061-T6 aluminium
- Axle: 17-4 PH stainless steel
- Pins: 304 stainless steel - Thread Size: 9/16" x 20 tpi
- Bearing: three sealed cartridge bearings and one igus bushing per pedal, radial seal against water and dirt
- Extras:
- 11 pins per side (4.5mm, rear loading), 6 spare pins included
- dual concave, 14mm at the edge, 12.5mm in the centre
- tapered leading edge to deflect strikes
- spare parts and service guide from the manufacturer (Right to Repair), 5 year warranty - Width: 106mm
- Length: 112mm
- Height: 14mm
- Scope of Delivery: 1 pair of pedals, 6 spare pins
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
