eclat "Tibia" BMX Crank

142.95 EUR- 9 %

from 129.95 EUR

Color | Length
  • Please Select
Unavailable options

These product options are currently unavailable. Should they come back in, we can let you know!

Color | Length
  • black | 170mm
  • black | 165mm
Add it on and save (optional)
  • Weight : 0.93kg / 2.05lbs
  • Packaging Unit: 1 Set
  • Product ID (PID): 18196
  • Product safety

Product safety

Manufacturer
WE MAKE THINGS GmbH
Richard-Byrd-Straße 12
50829 Köln, Deutschland
[email protected]

Information pursuant to the EU General Product Safety Regulation (GPSR).

Report a product error

Spotted an error in the product data? Let us know, we'll check your report. If the error is confirmed you'll receive a 5 EUR voucher as a thank you (max. 1 voucher per week and customer, applies to the first confirmed report of an error).

We only use your email address to get back to you about this report and to send the voucher.

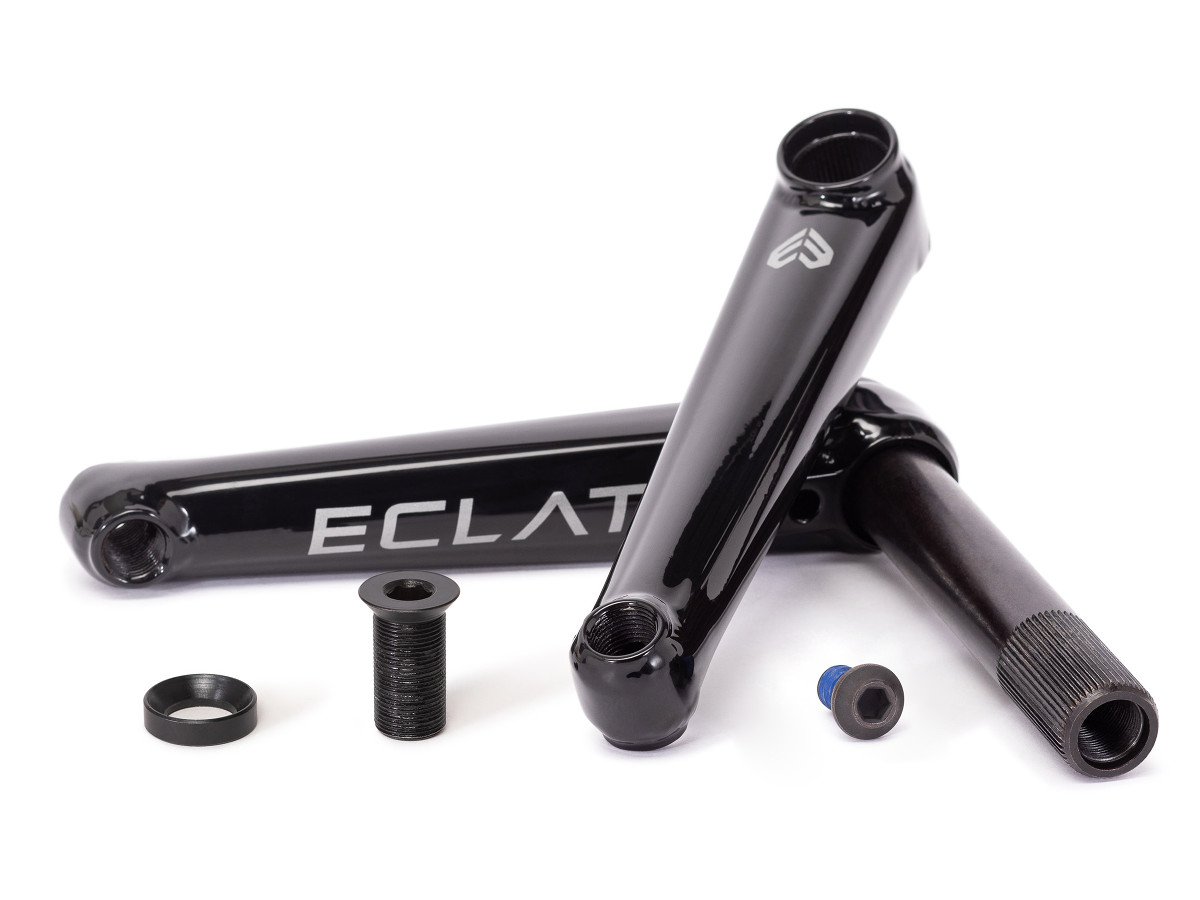

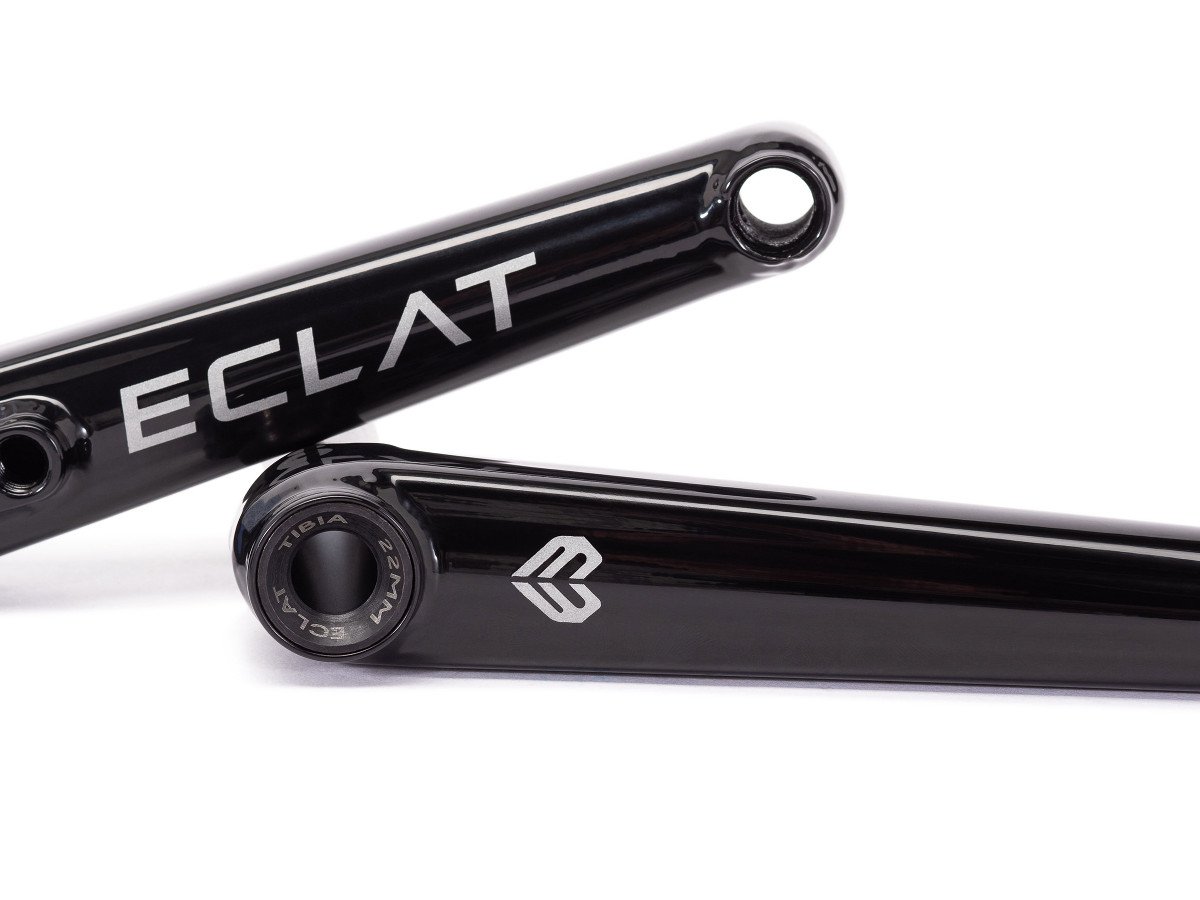

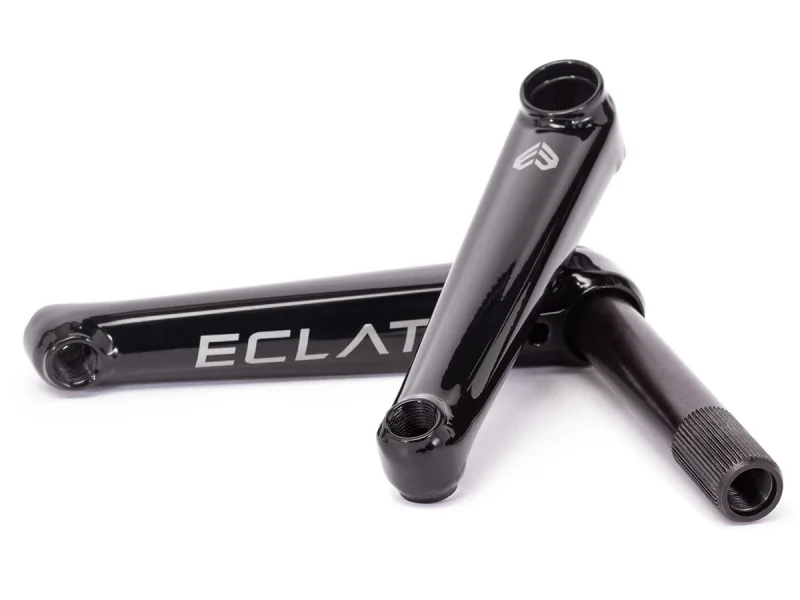

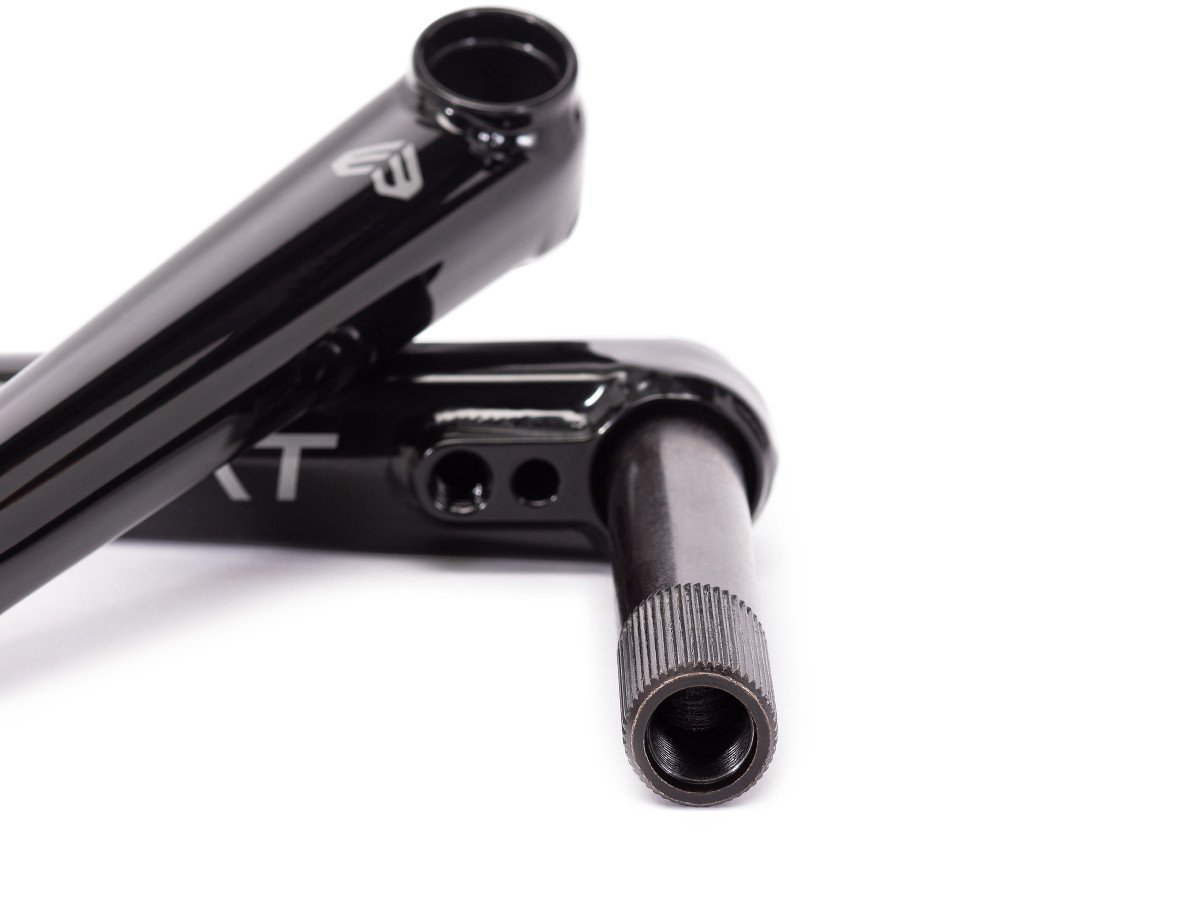

The eclat "Tibia" BMX Crank is a 2pc. crankset with a 22mm CrMo hollow spindle and because of its modern, fully heat treated manufacturing technology very strong and light weight, too. The eclat "Tibia" BMX Crank comes with double sprocket mounts on both crank arms for regular and microdrive sprockets ( smaller as 25T ) which makes it RHD/LHD compatible.

Facts: eclat "Tibia" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated, hollow
  • Crank-Type: 2-piece
  • Crank Arm Length: 160mm or 175mm
  • Spindle Diameter: 22mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    - Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
    - Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    - Spline-Drive: right (RHD)
  • Pedal Thread: for 9/16" pedals
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 1x bolt (15x1mm, 22mm Axle) with 8mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
  • Extras: completely surround welded axle and pedal jacks, rectangular flattened arms
  • Recommended for: Street, Park or Trails
  • Model Year: 2020
