Elevn Technologies "Integrated" BMX Race Headset - 1 Inch
- Weight : 0.07kg / 0.15lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45413
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/elevn-technologies-integrated-bmx-race-headset-1-inch-p-45413
Printed: 10/29/2026
Printed: 10/29/2026

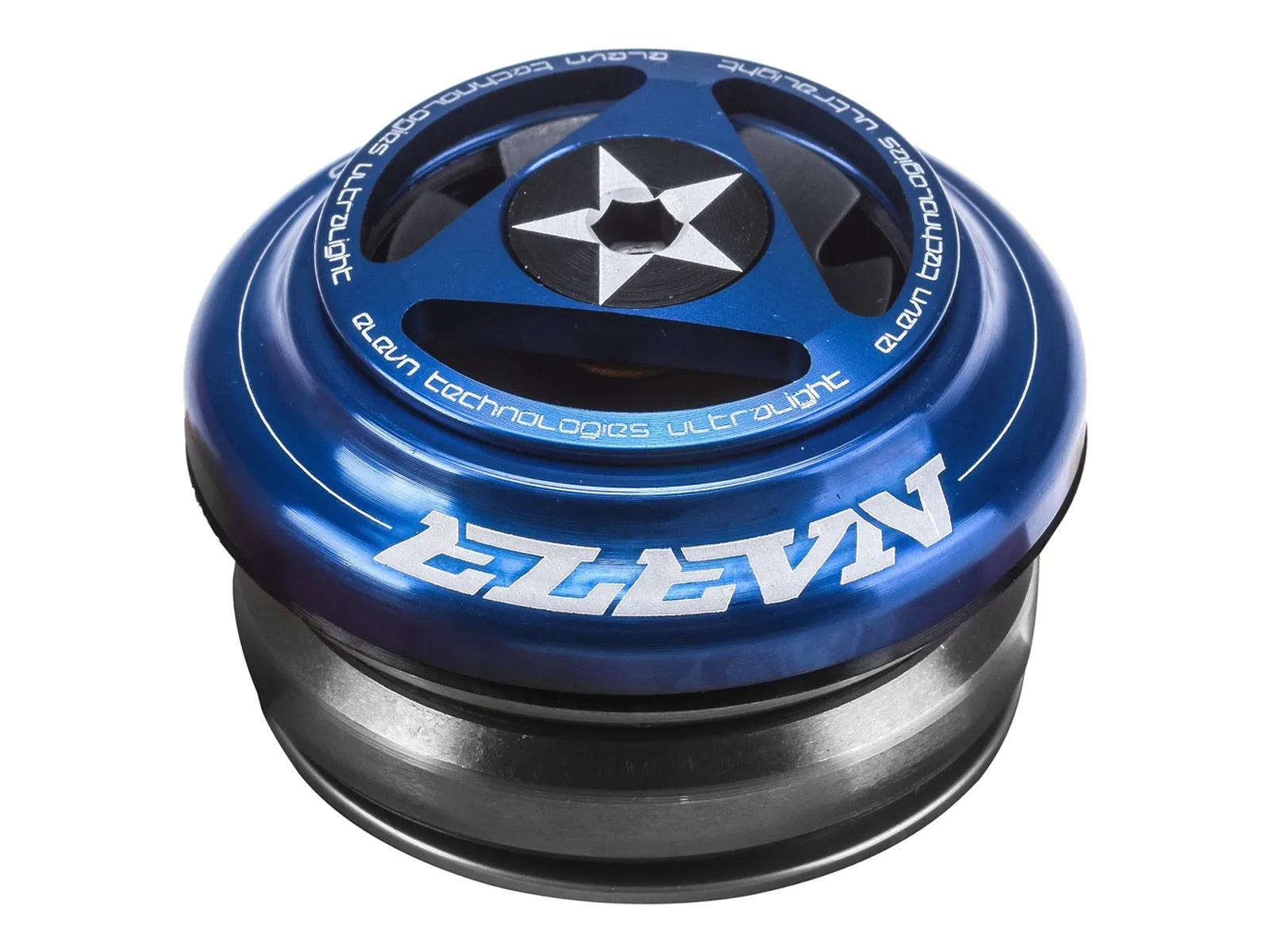

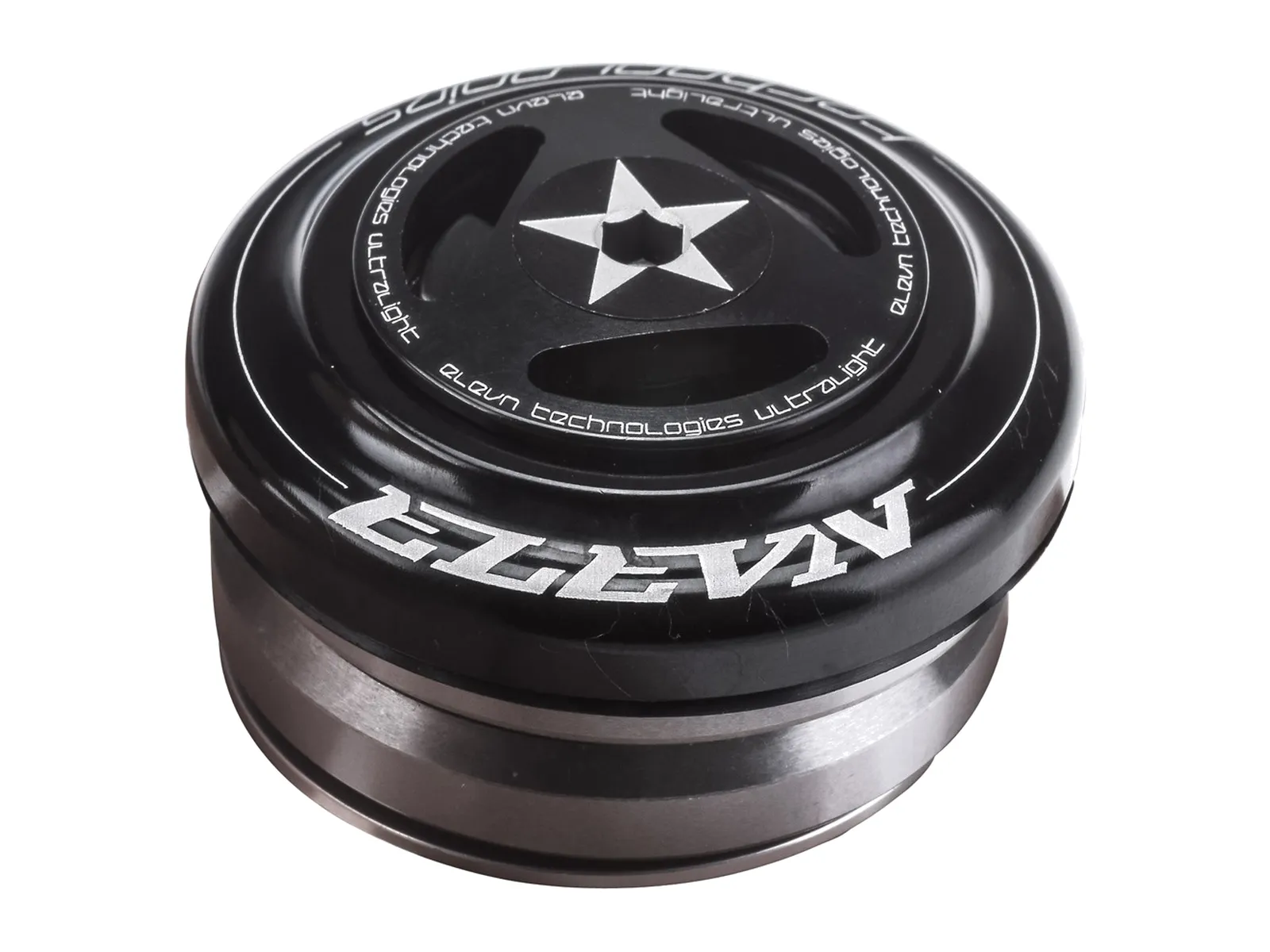

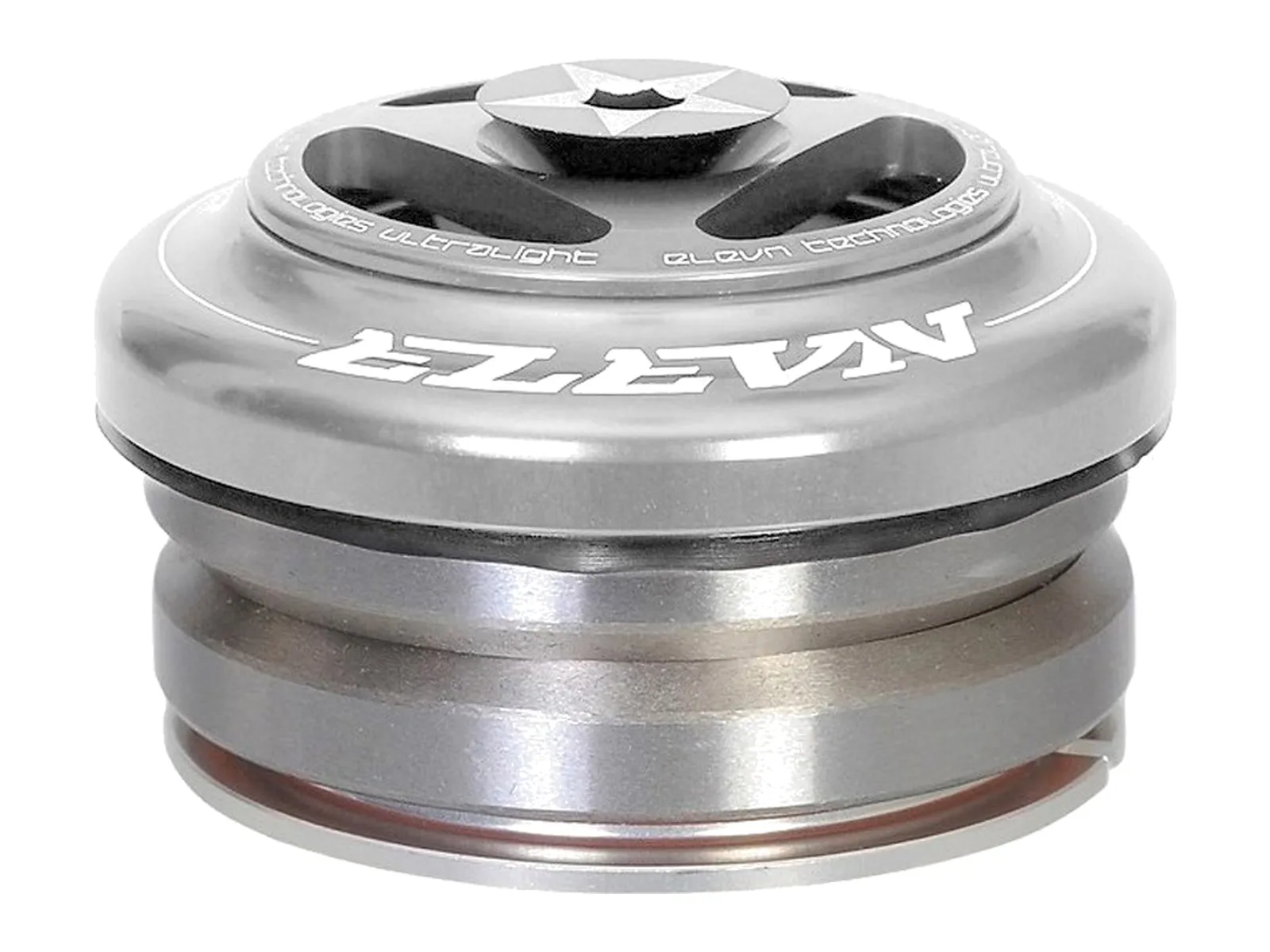

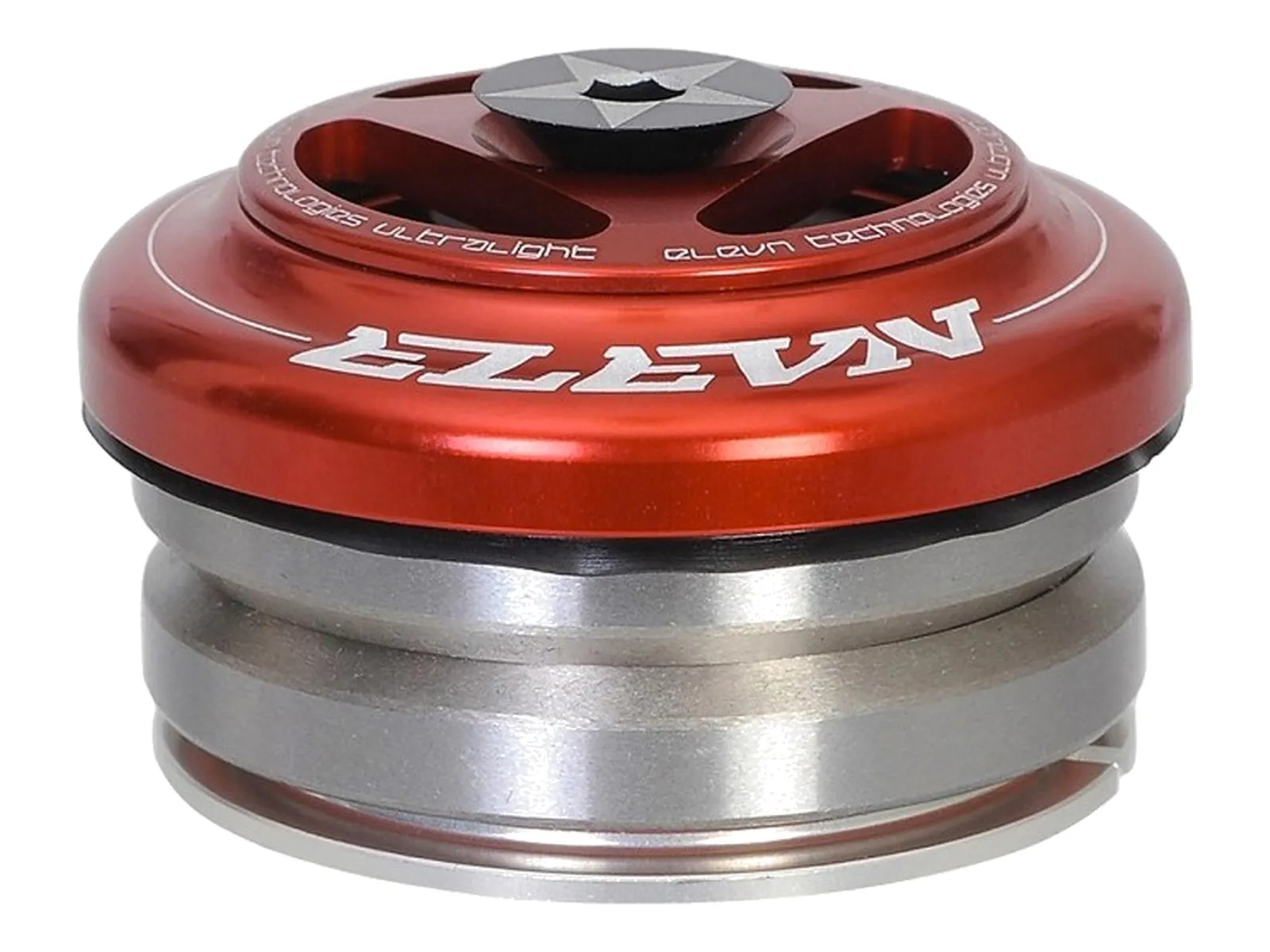

The Elevn Technologies "Integrated" BMX Race Headset - 1 Inch lets you run a fork with a 1" steerer in a frame with an integrated 1-1/8" head tube, as many mini and junior frames have today (for example Chase Mini and Junior). The angular contact bearings fit the 1-1/8" frame, the crown race has a 1" inner diameter. That is handy when a rider moves up a frame size but does not need a fork with a bigger steerer yet.
It runs on sealed 45° x 45° bearings, the cover is sealed. Cups, top cap, star nut and compression bolt are CNC machined aluminum, the crown race is 7075 aluminum.
Facts: Elevn Technologies "Integrated" BMX Race Headset - 1 Inch
- Material: 6061 aluminum cups, aluminum top cap, star nut and compression bolt, CNC machined, 7075 aluminum crown race
- Size: 1" (25.4mm), IS42 top and bottom (42mm bearing seat), for integrated 1-1/8" head tubes
- Bearing: 2 x sealed angular contact bearings 45° x 45°
- Extras: for forks with a 1" steerer in frames with an integrated 1-1/8" head tube, sealed cover
- Content: 1 headset with top cap, star nut and compression bolt
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
