Family BMX "Tubular 48 Spline" BMX Crank
-
Weight : 0.89kg / 1.96lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 25440
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

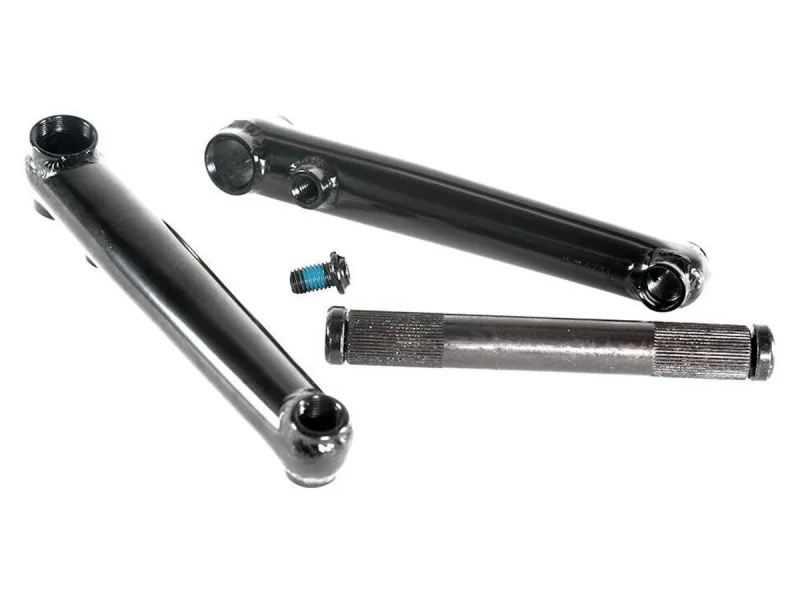

Family BMX "Tubular 48 Spline" BMX Crank
is an affordable 3-piece crank for advanced riders made of 4130 CrMo and comes with a 48 Spline 19mm spindle. The sprocket bolt of this
Family BMX "Tubular 48 Spline" BMX Crank
keeps big sprockets (25T) tight.
Facts: Family BMX "Tubular 48 Spline" BMX Crank
- Material Crank Arms: 4130 CrMo
- Material Crank Spindle: 4130 CrMo
- Crank-Type: 3-piece
- Crank Arm Length: 170mm
- Spindle Diameter: 19mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
- Bolt-Drive (25T or larger): right (RHD) and left (LHD)
- Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Pedal Thread: for 9/16" pedals
- Spindle Bolt: 2x bolts (8x1mm, 19mm 8 Spline Axle) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Recommended for: Street, Park or Trails
