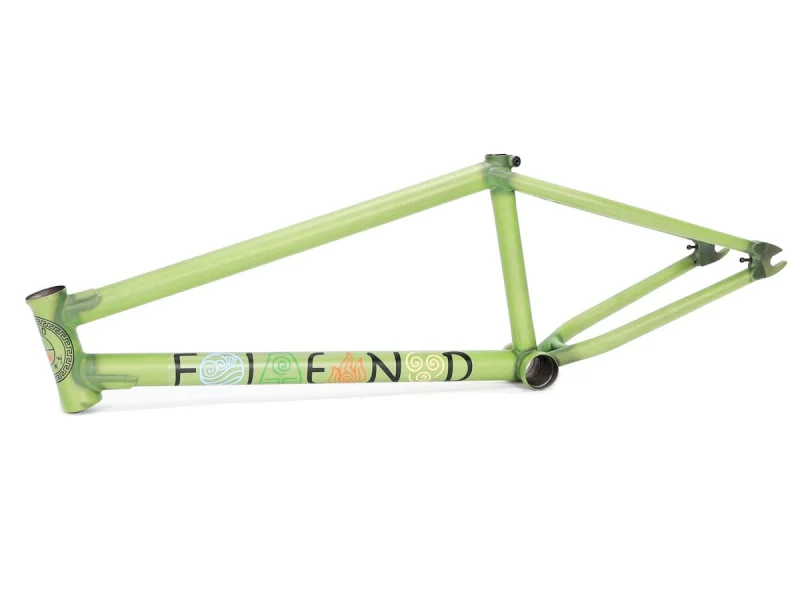

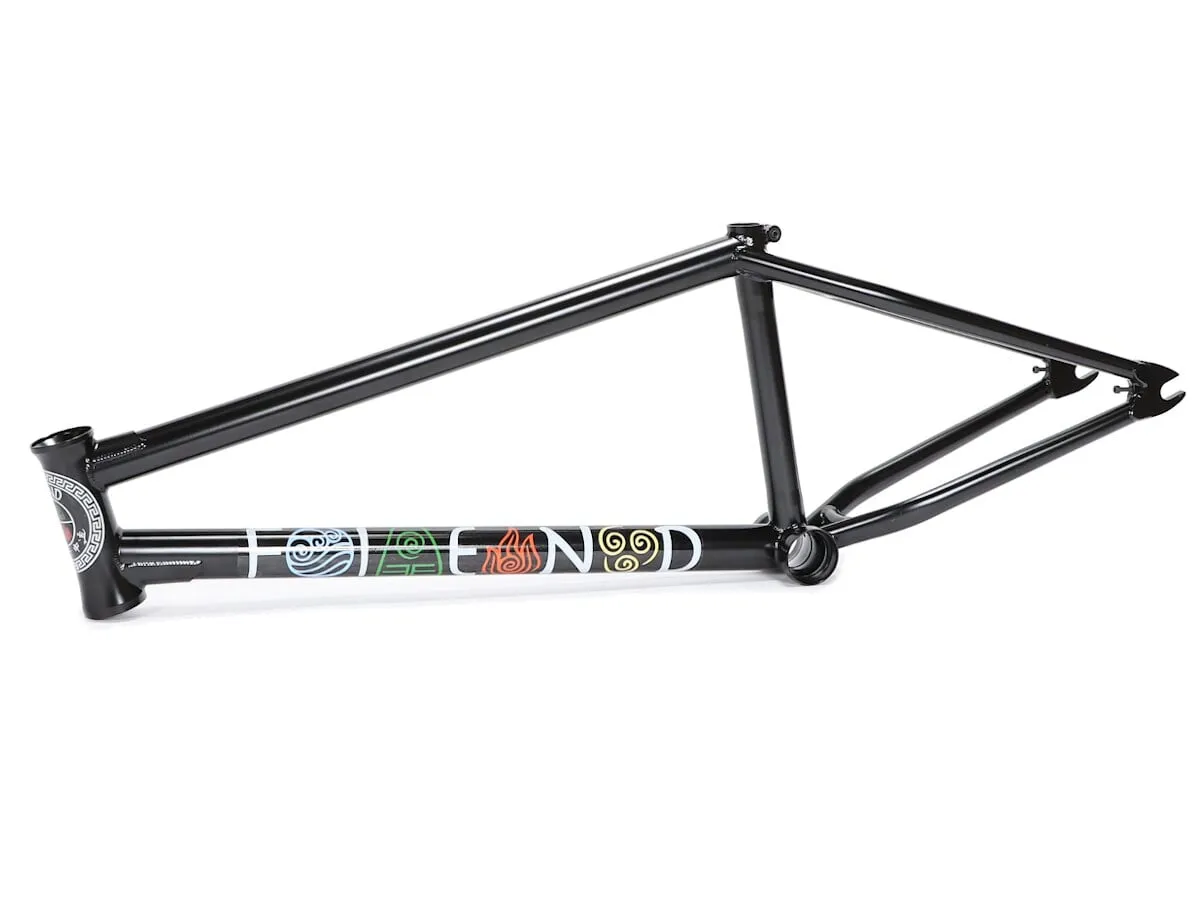

Fiend BMX "Raekes" 2022 BMX Frame
- Weight (in kg): 2.4
- Weight (in lbs): 5.29
- Packaging Unit: 1 Piece
- Product ID (PID): 23555
This
Fiend BMX "Raekes" 2022 BMX Frame
is Johnny Raekes signature frame and was designed for top modern and technical Pro level street riding.
Of course this
Fiend BMX "Raekes" 2022 BMX Frame
is made from best quality, heat treated 100% 4130 CrMo, a steep 75.5° degrees head tube paired with a medium length 12.9" rear end and a 9.5" Standover make this high quality Street super solid.
Note: This frame has holes to put brakemounts but there are not included.
Facts: Fiend BMX "Raekes" 2022 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.6", 20.8" or 21.0"
Chainstay Length (CS): 12.7" (32.26cm) - 13.1" (33.27cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 8mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Johnny Raekes Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2022
