FOX "Float DPS Factory" MTB Rear Shock
- Weight : 0.22kg / 0.49lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36460
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/fox-float-dps-factory-mtb-rear-shock-p-36460
Printed: 11/05/2026
Printed: 11/05/2026

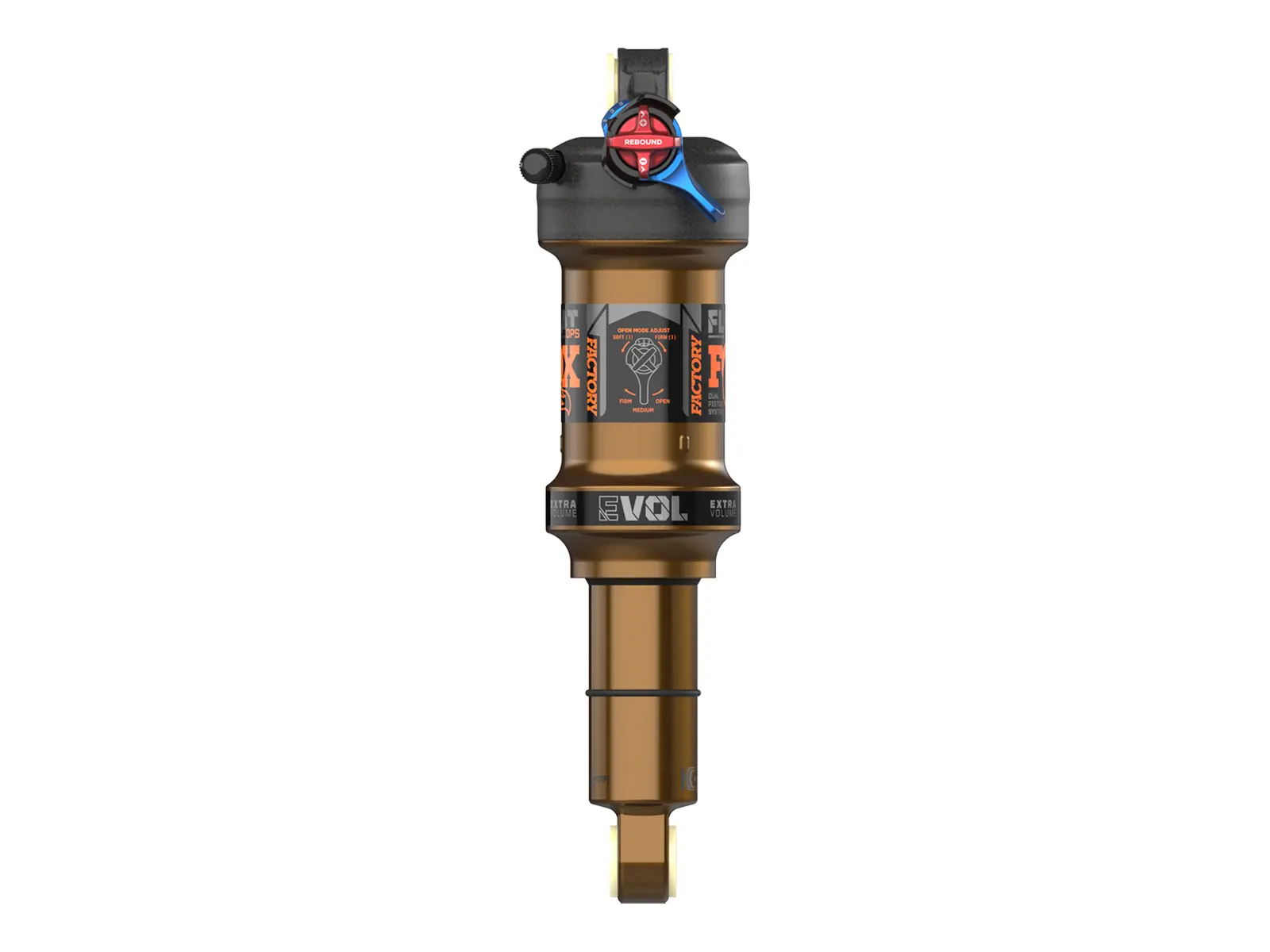

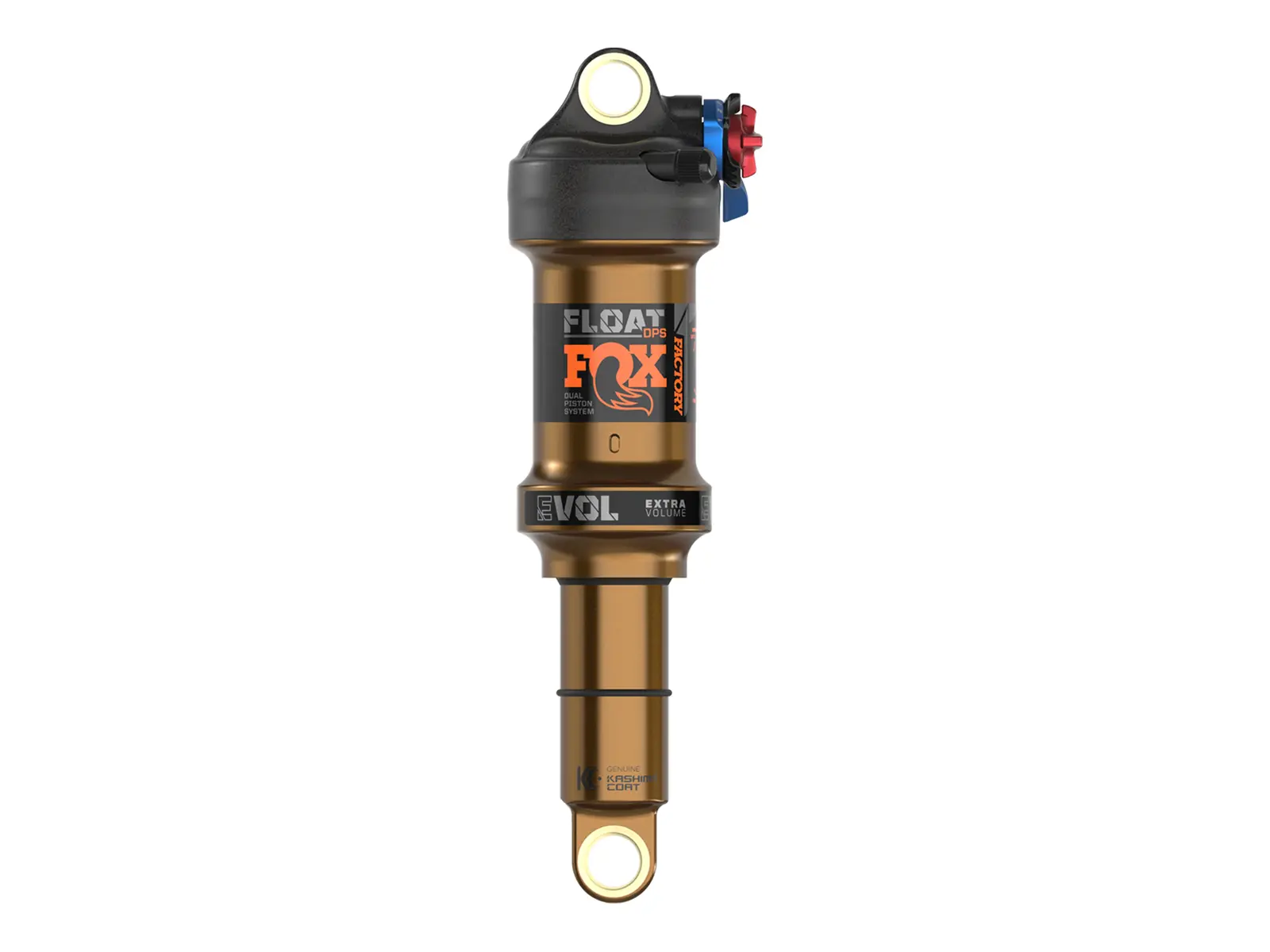

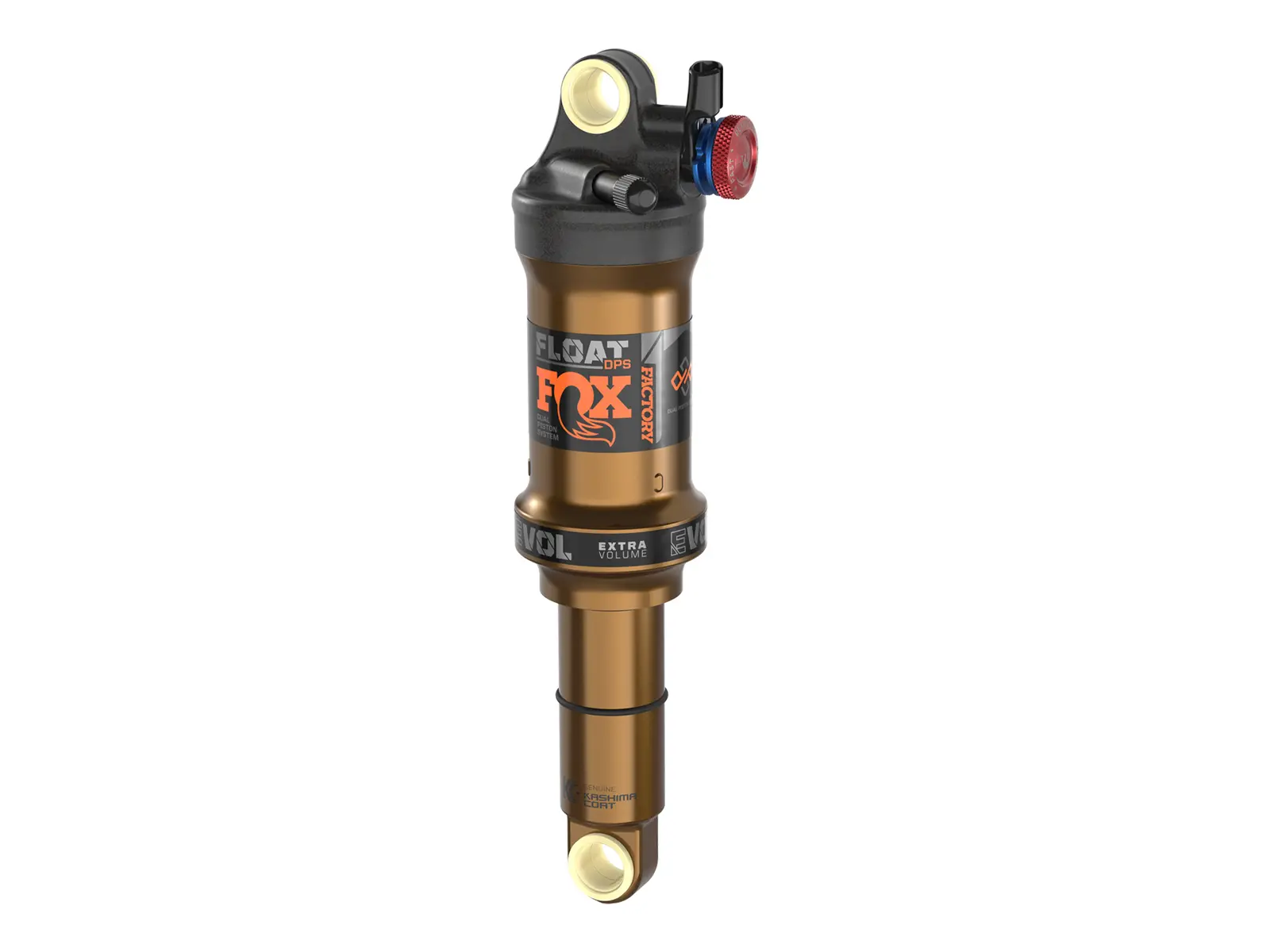

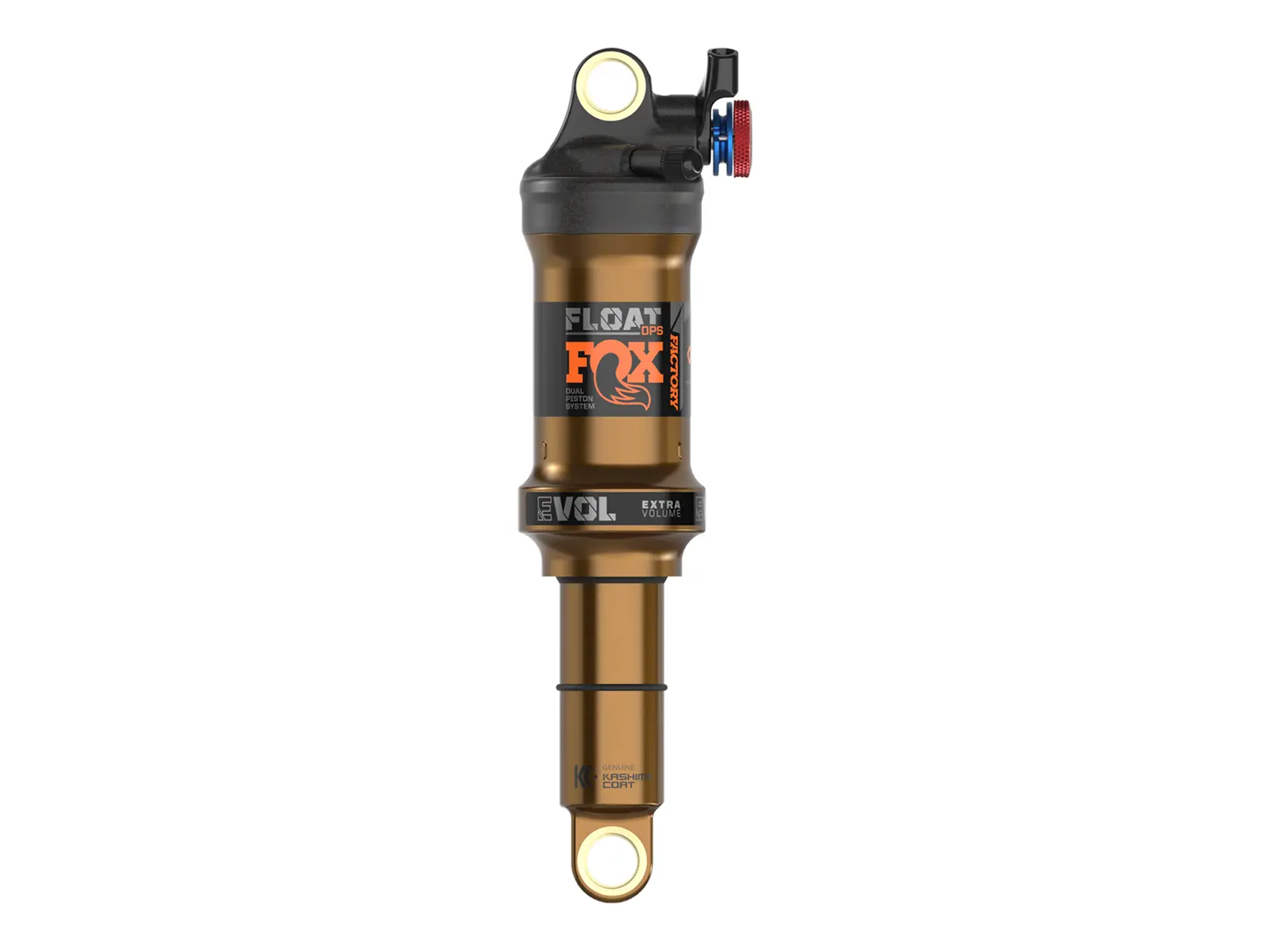

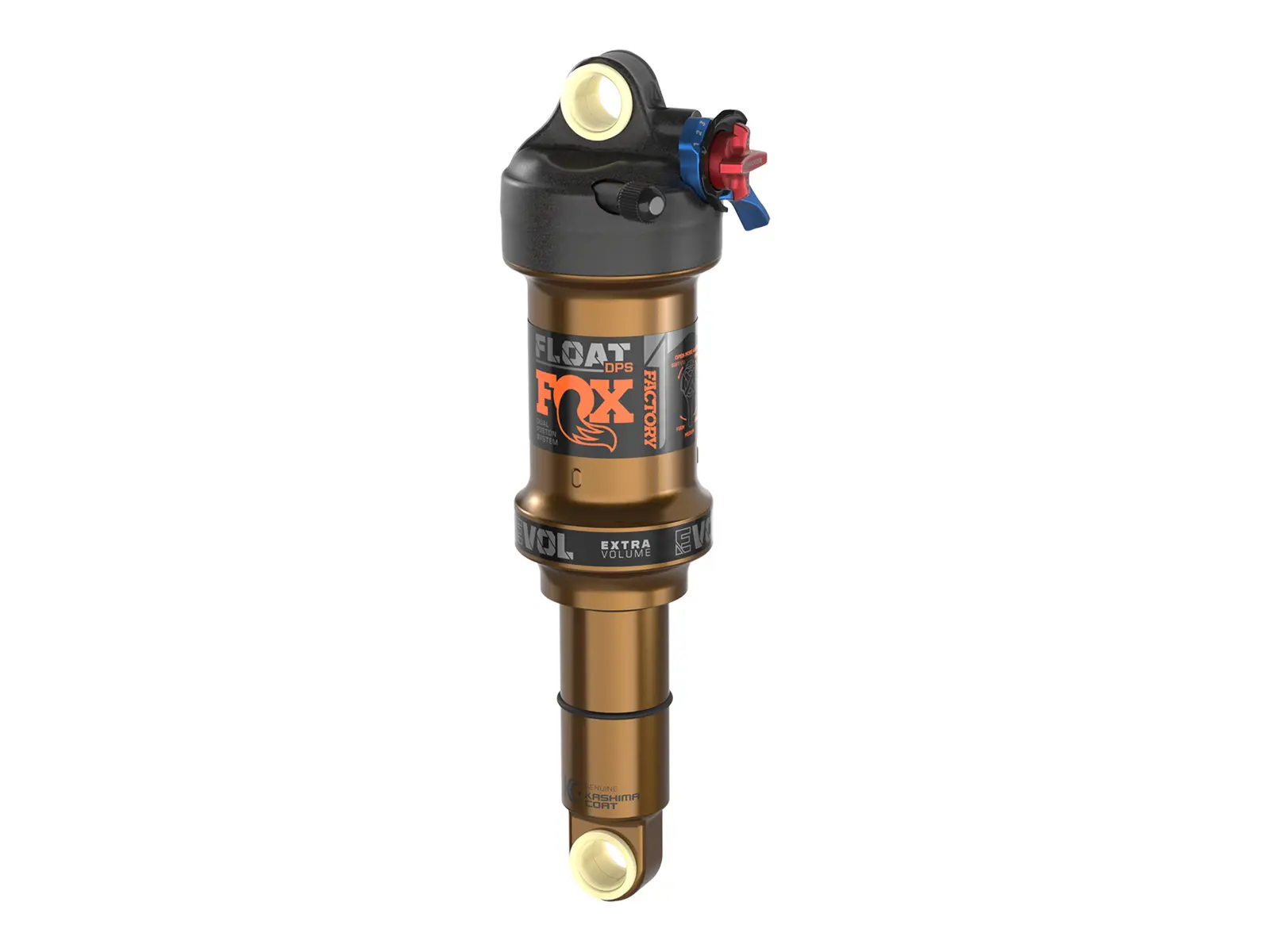

The FOX "Float DPS Factory" MTB Rear Shock is the lightweight FOX trail air shock with the DPS damper (Dual Piston System): three lever positions Open, Medium and Firm, the dual piston improves both compression and rebound oil flow. The one-piece EVOL air sleeve is sensitive off the top, as Large Volume (LV) or Small Volume (SV) depending on the version. The remote version switches via a handlebar remote (push to lock, remote not included). The FOX "Float DPS Factory" MTB Rear Shock comes in imperial sizes and as Factory series with Kashima Coat.
Facts: FOX "Float DPS Factory" MTB Rear Shock
- Eye-to-Eye x Stroke: 6.5 x 1.5" (165 x 38 mm), 6.5 x 1.5" (165 x 38 mm) Remote, 7.5 x 2.0" (190 x 51 mm), 7.5 x 2.0" (190 x 51 mm) Remote, 7.875 x 2.0" (200 x 51 mm) or 7.875 x 2.25" (200 x 57 mm)
- Spring:
- EVOL air spring, one-piece air sleeve
- EVOL LV on 7.5 x 2.0" (also remote) and 7.875 x 2.25"
- EVOL SV on 6.5 x 1.5" (also remote), 7.25 x 1.75" and 7.875 x 2.0" - Damping:
- DPS damper with dual piston
- 3 positions Open, Medium, Firm (3POS)
- Rebound adjustable
- 6.5 x 1.5" and 7.5 x 2.0" remote: Remote Up, push to lock, remote not included - Mounting: Standard (imperial), see version
- Hardware: Not included (mounting hardware depends on the frame)
- Weight: From 221 g (6.5 x 1.5", with Igus bushings, without mounting hardware, manufacturer)
- Contains: 1 shock, owner's manual
- Extras: Factory series, Kashima Coat
