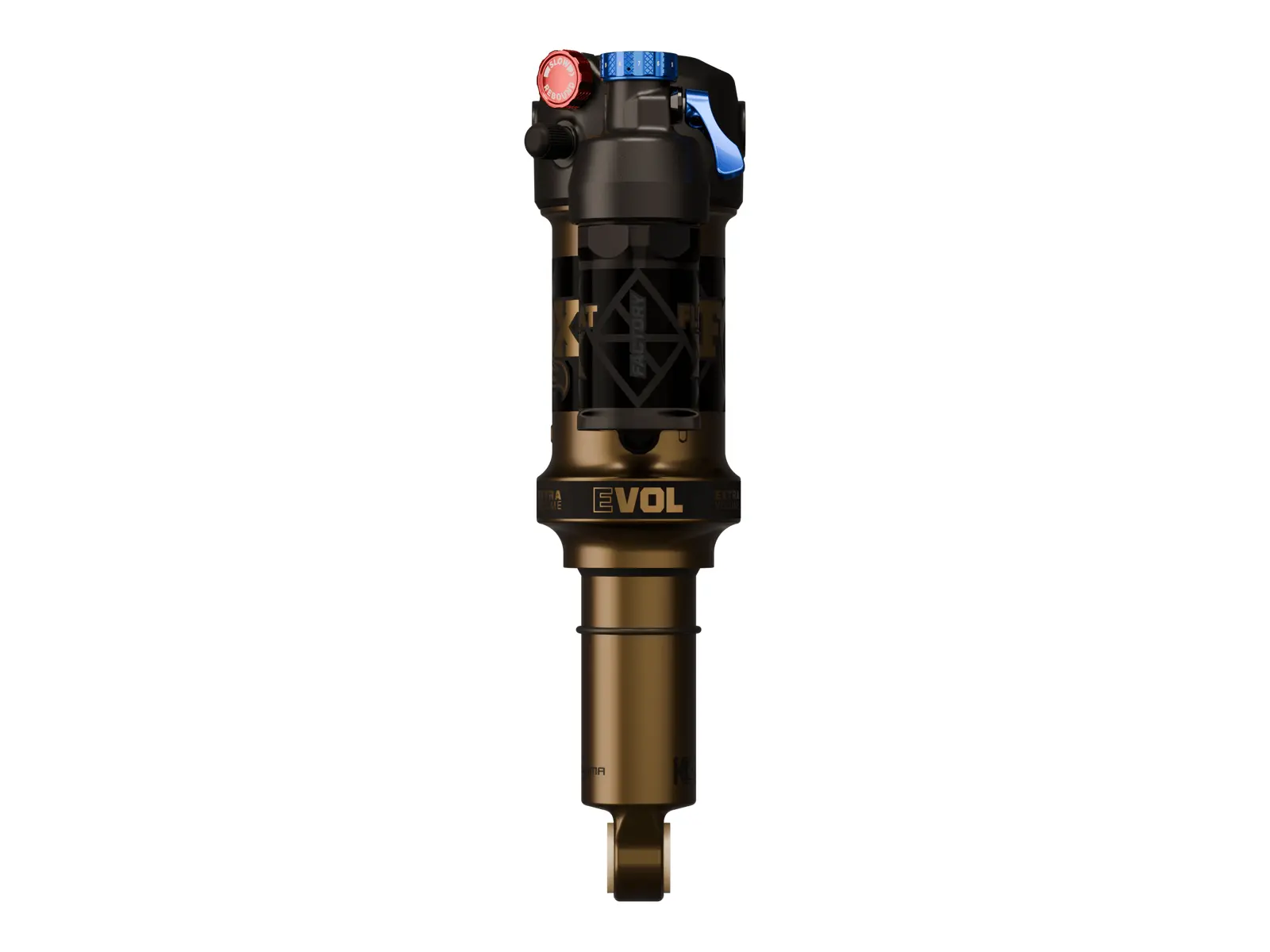

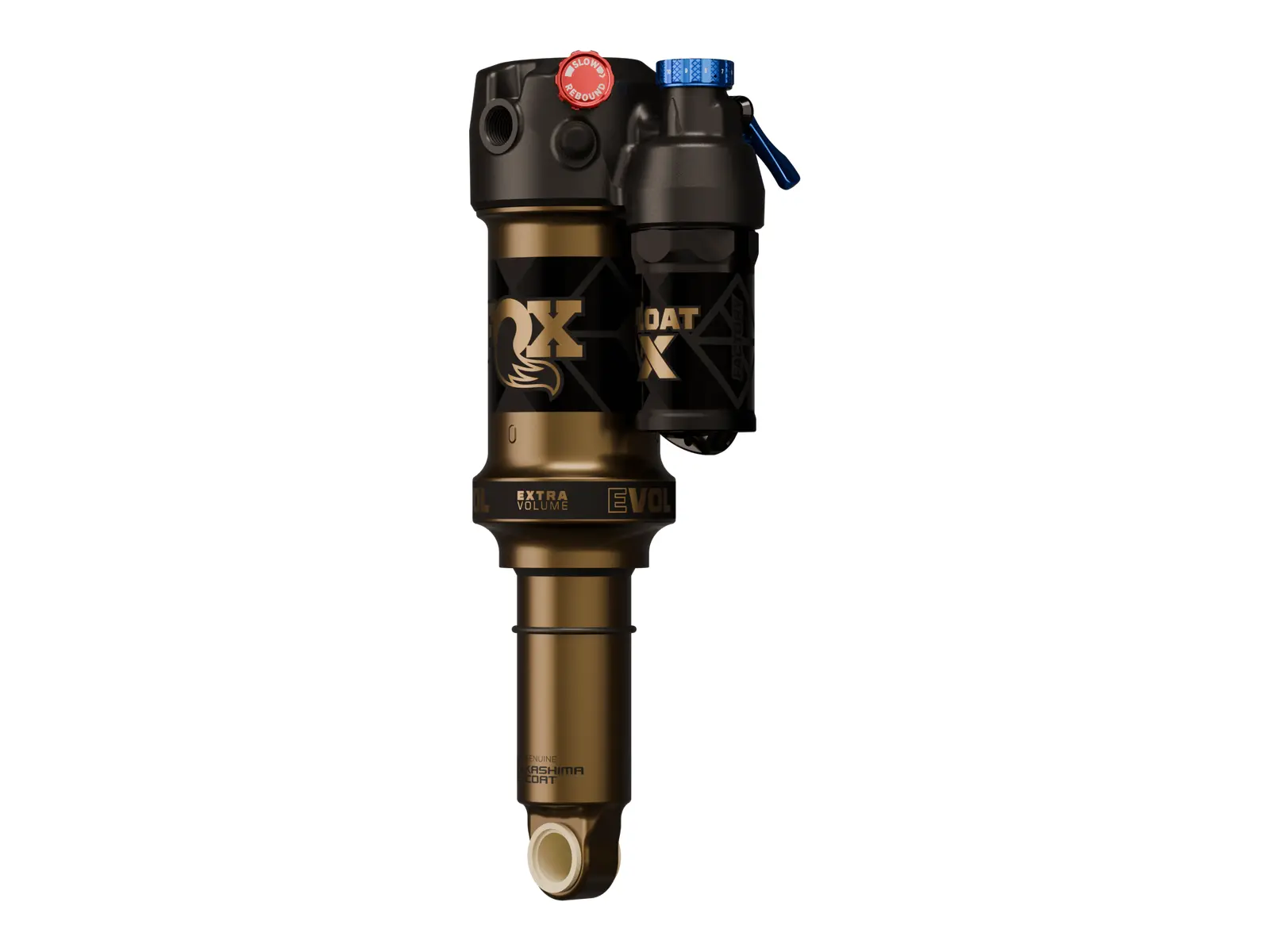

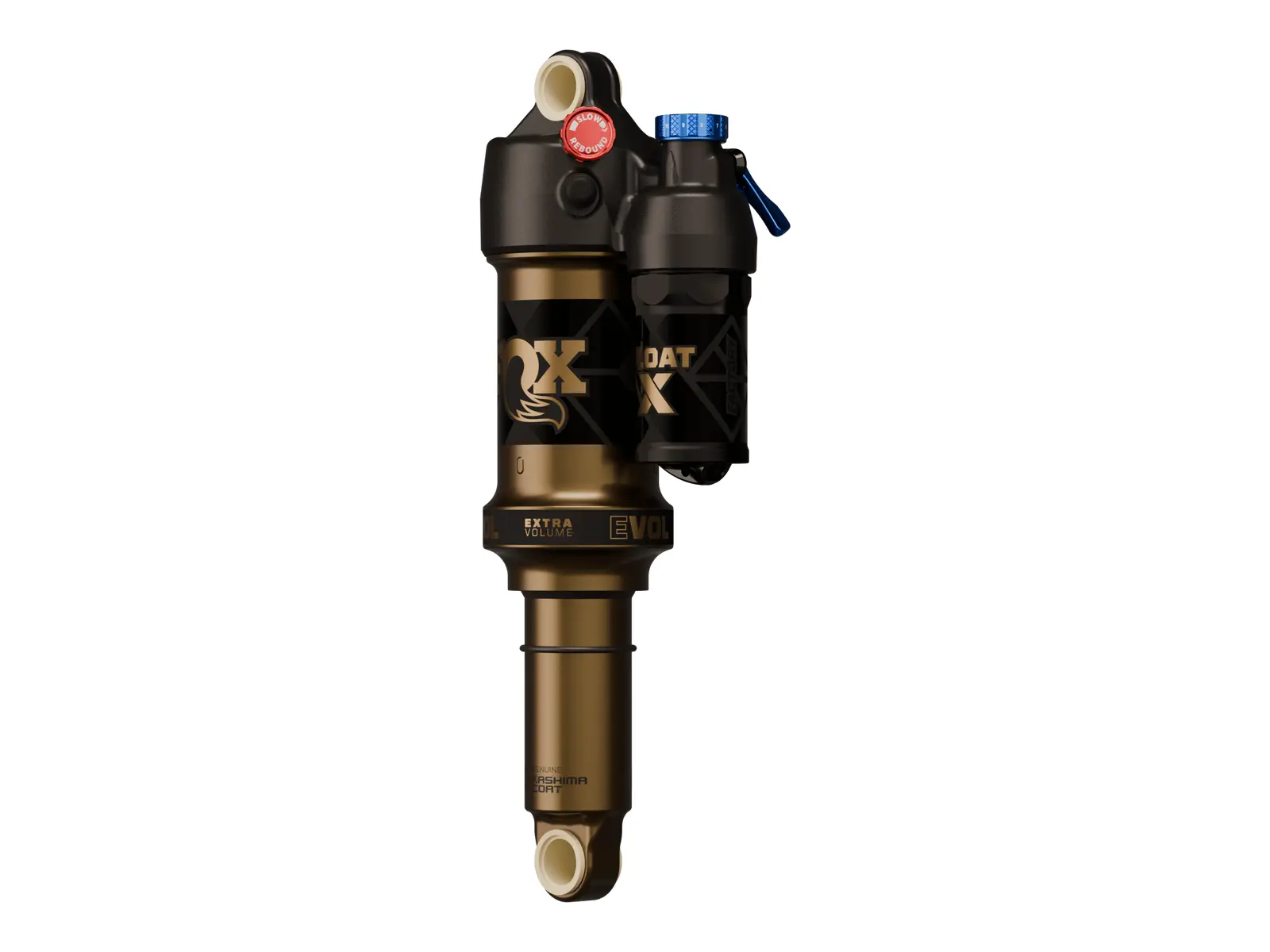

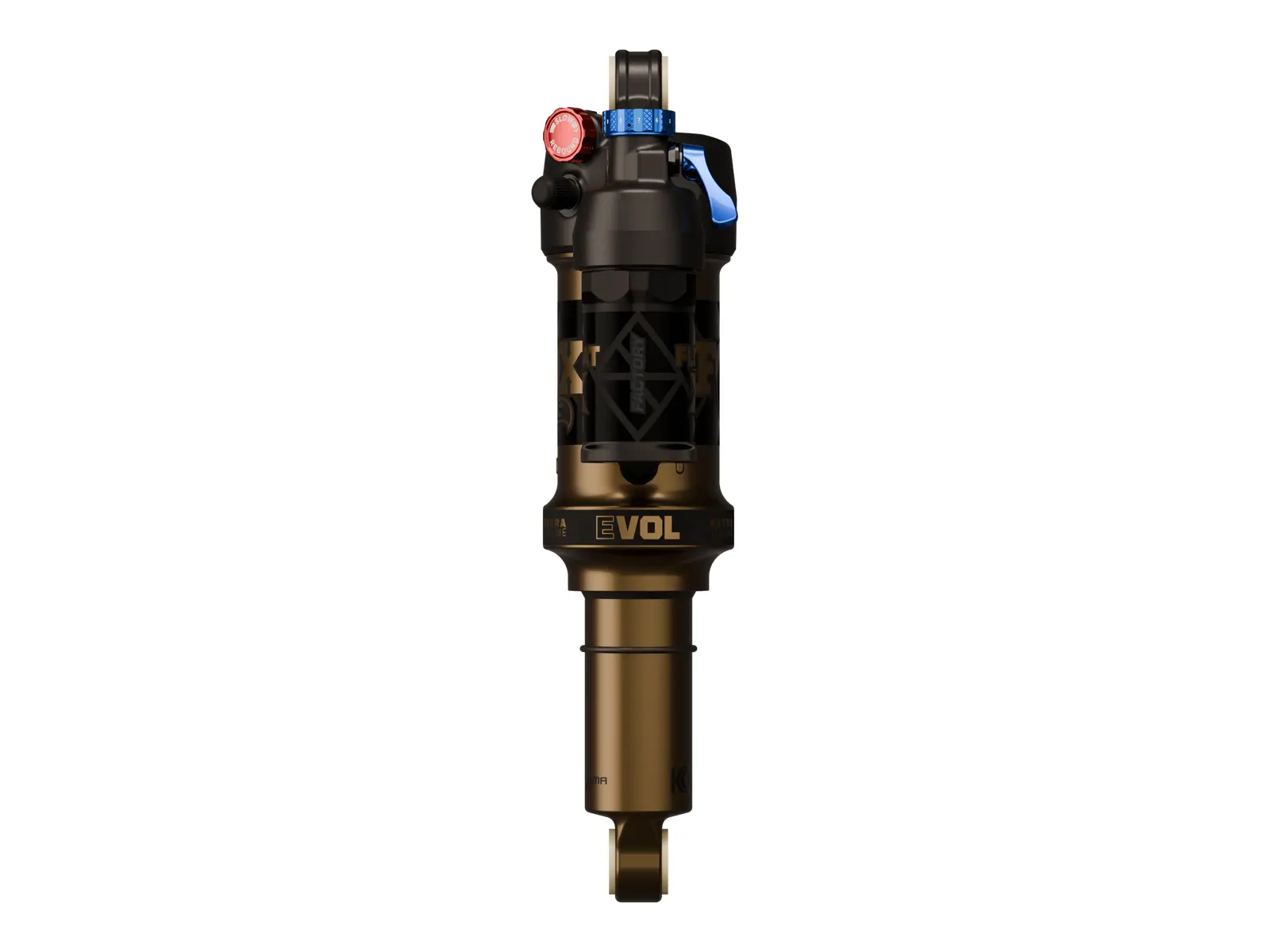

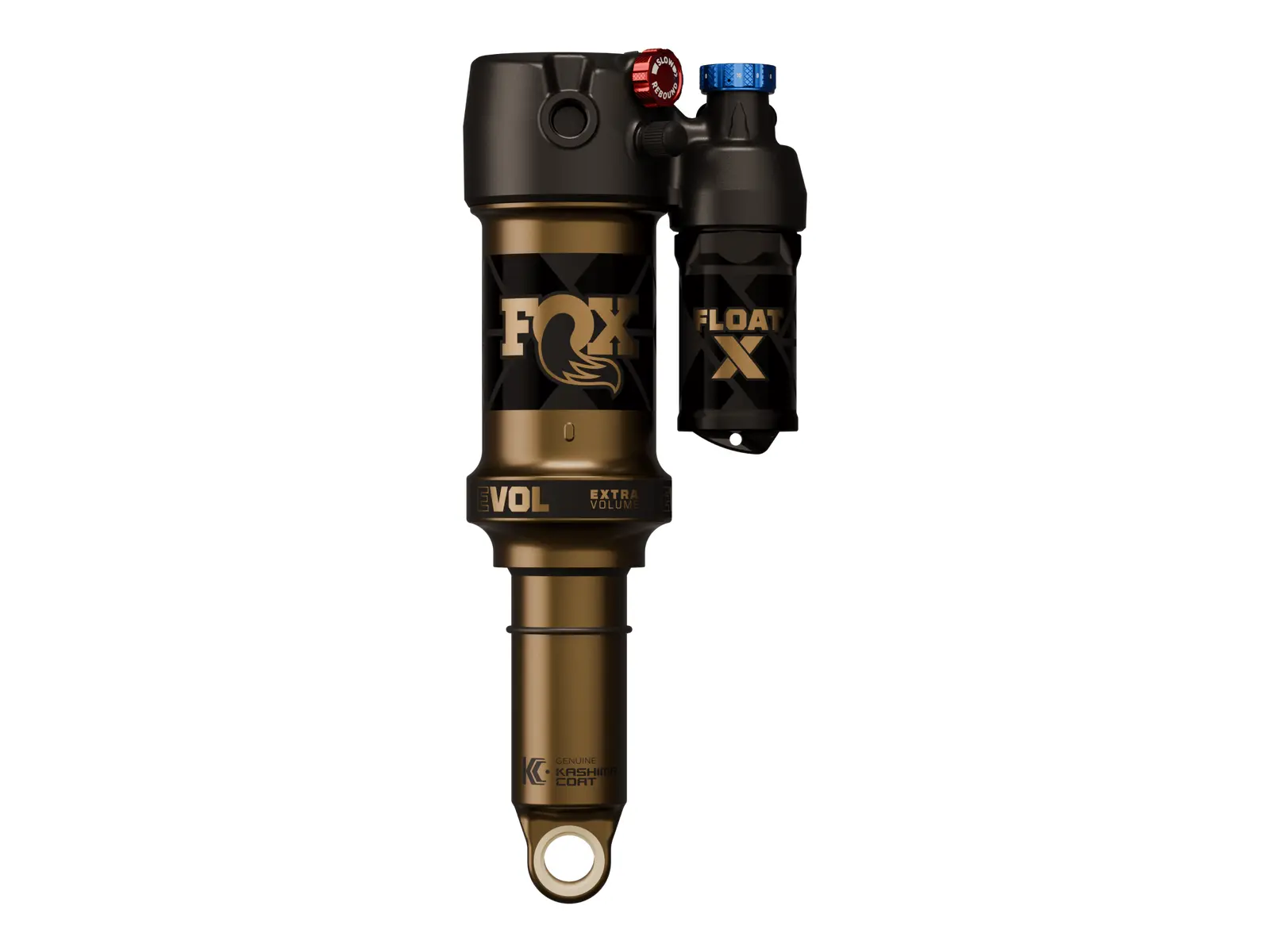

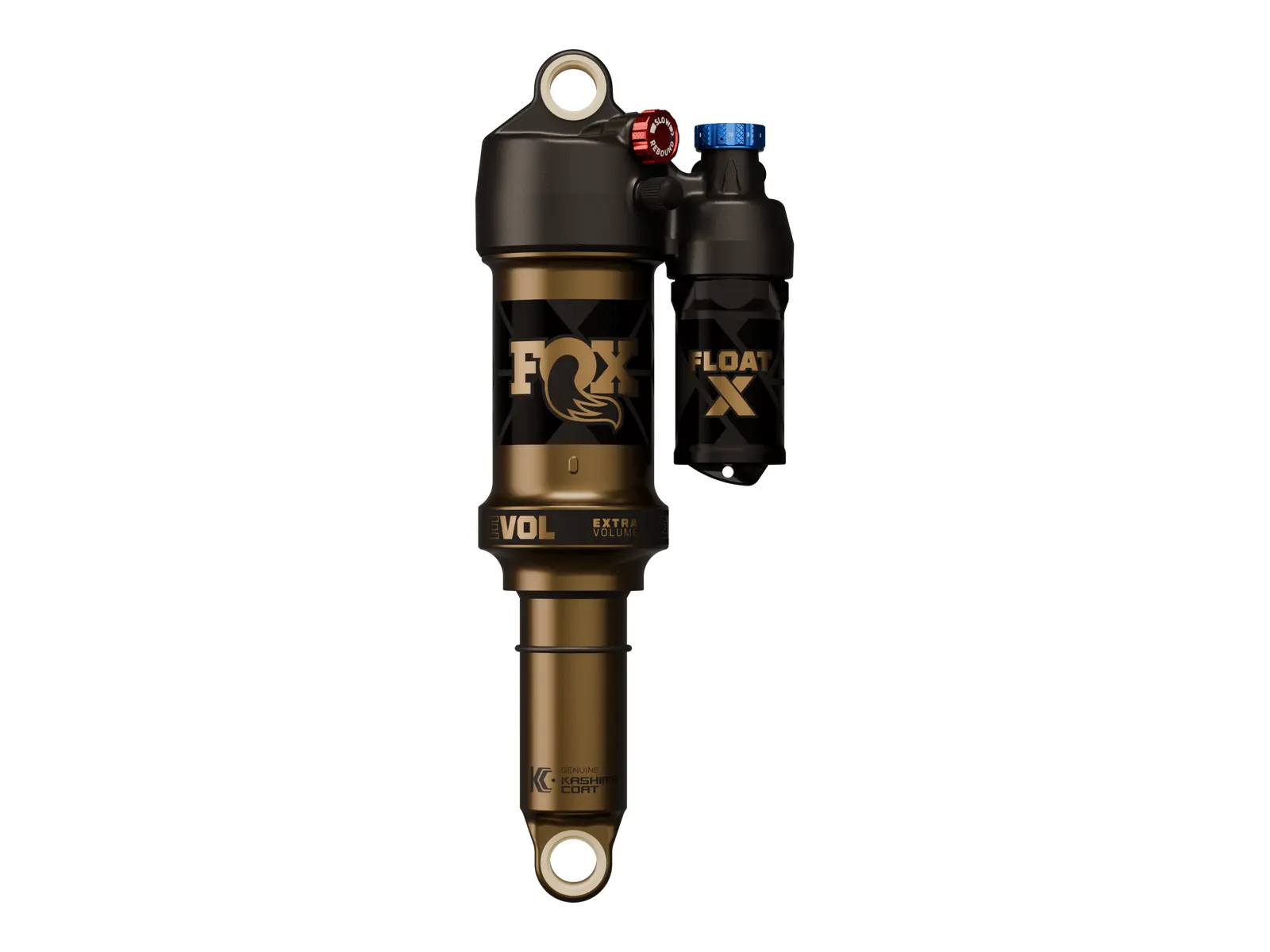

FOX "Float X Factory" MTB Rear Shock
- Weight : 0.46kg / 1.01lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36467
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/fox-float-x-factory-mtb-rear-shock-p-36467
Printed: 11/05/2026
Printed: 11/05/2026
The FOX "Float X Factory" MTB Rear Shock is the FOX all-mountain air shock for aggressive trail riders: monotube with a new high-flow main piston for sensitivity, support and grip close to the Float X2. The size-specific piggyback reservoir adds oil volume and a secondary compression circuit, the large EVOL air sleeve keeps the damping consistent on long descents. Tool-free adjusters: low-speed compression with 11 clicks and rebound with 16 clicks, the 2-position lever runs on its own circuit and toggles between Open and Firm. Factory series with Kashima Coat.
Facts: FOX "Float X Factory" MTB Rear Shock
- Eye-to-Eye x Stroke: 185 x 55 mm (Trunnion), 190 x 45 mm, 205 x 60 mm (Trunnion), 205 x 62.5 mm (Trunnion), 210 x 50 mm, 210 x 52.5 mm or 230 x 60 mm
- Spring:
- EVOL air spring, one-piece air sleeve, size-specific piggyback reservoir
- EVOL LV on 190 x 45, 210 x 50, 210 x 52.5, 210 x 55 and 230 x 60 mm and trunnion
- EVOL EV on 230 x 65 mm - Damping:
- 2-position lever Open/Firm (2POS) on its own circuit
- Low-speed compression: 11 clicks, tool-free
- Low-speed rebound: 16 clicks, tool-free
- Monotube with high-flow main piston, MCU bottom-out bumper, top-out bumper - Mounting: Metric or trunnion, see version
- Hardware: Not included (mounting hardware depends on the frame); bearing mount compatible on both ends
- Weight: From 459 g (manufacturer)
- Contains: 1 shock, FOX sticker, owner's manual
- Extras: Factory series, Kashima Coat; model year 2027
