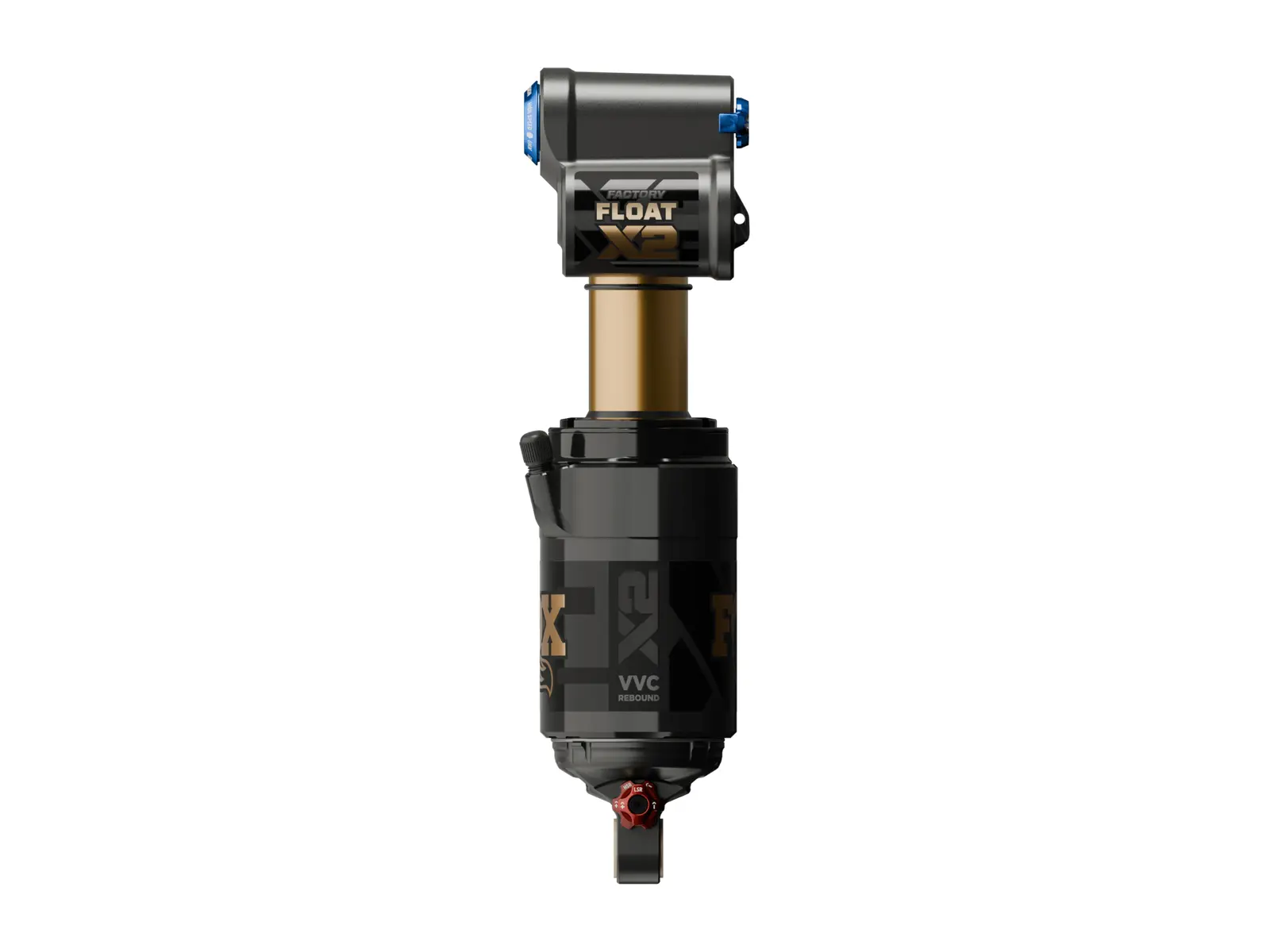

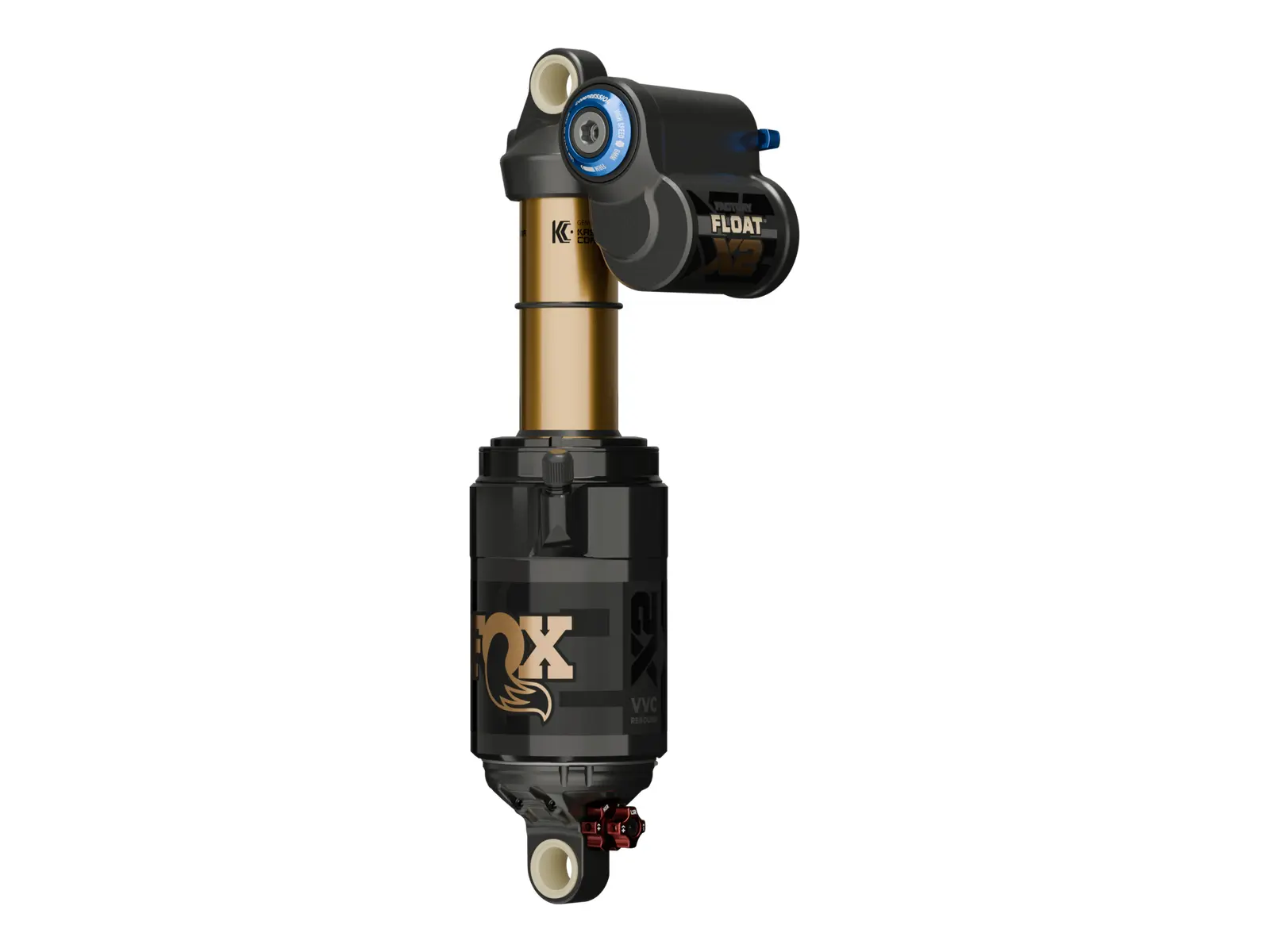

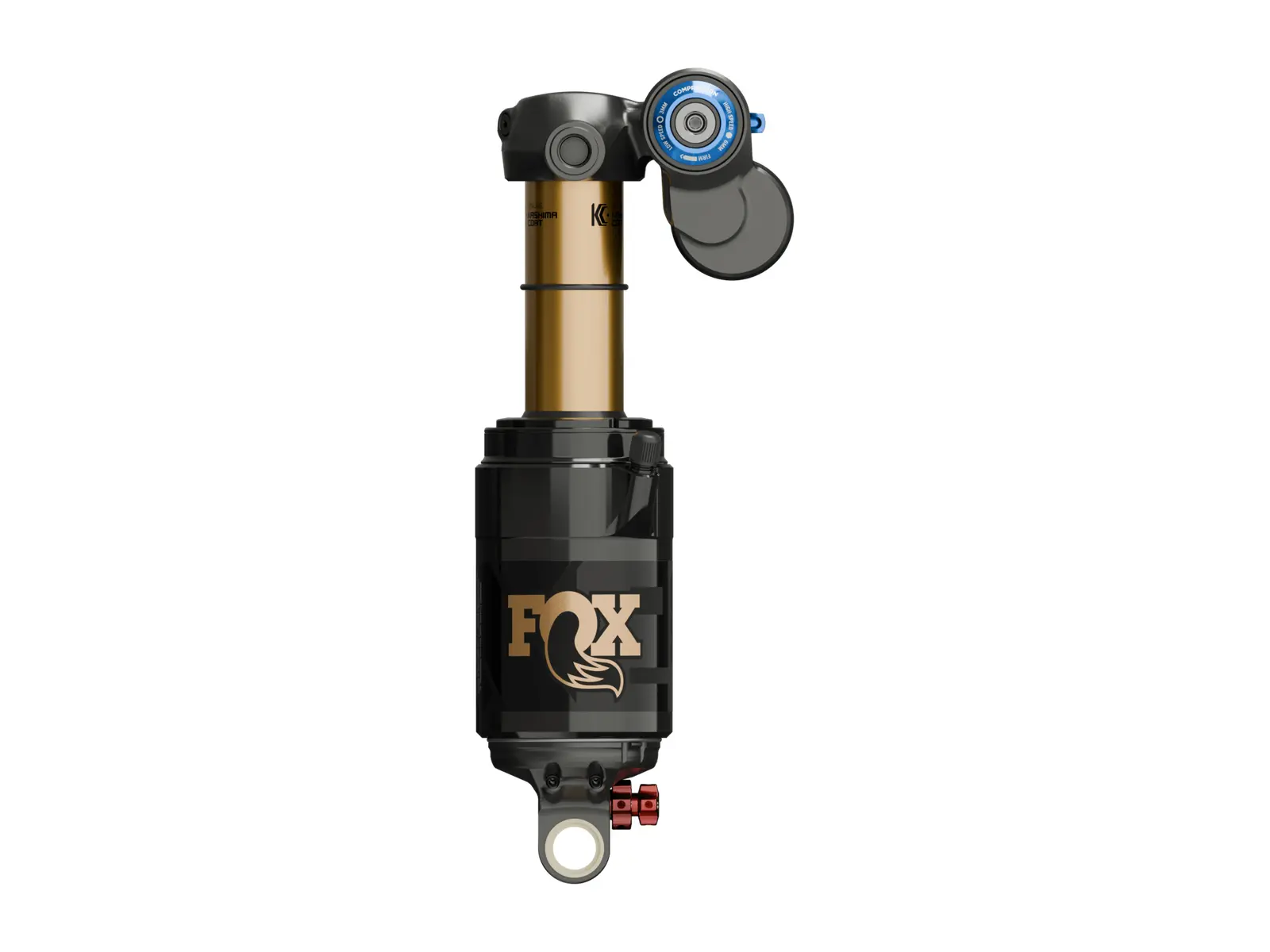

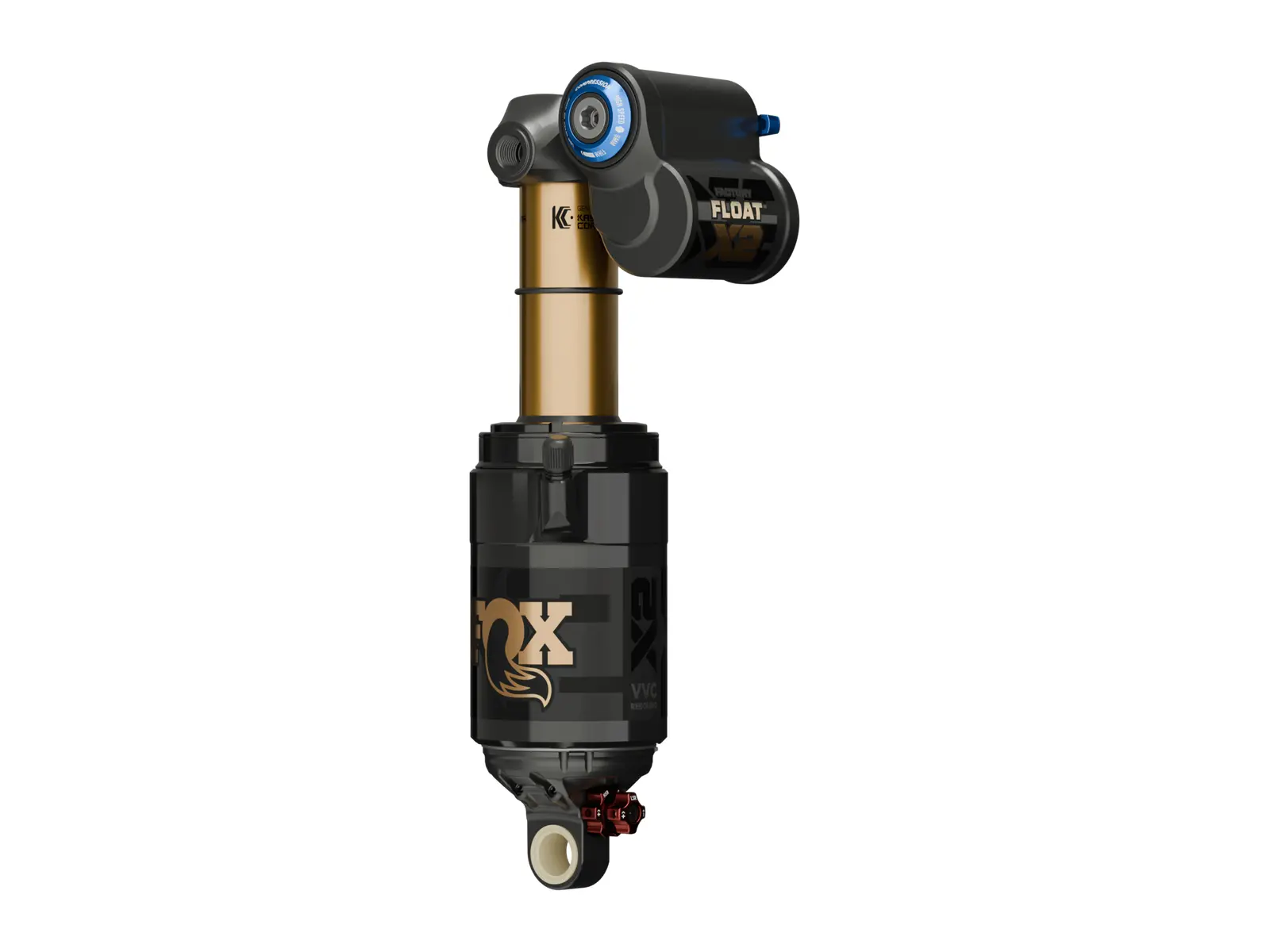

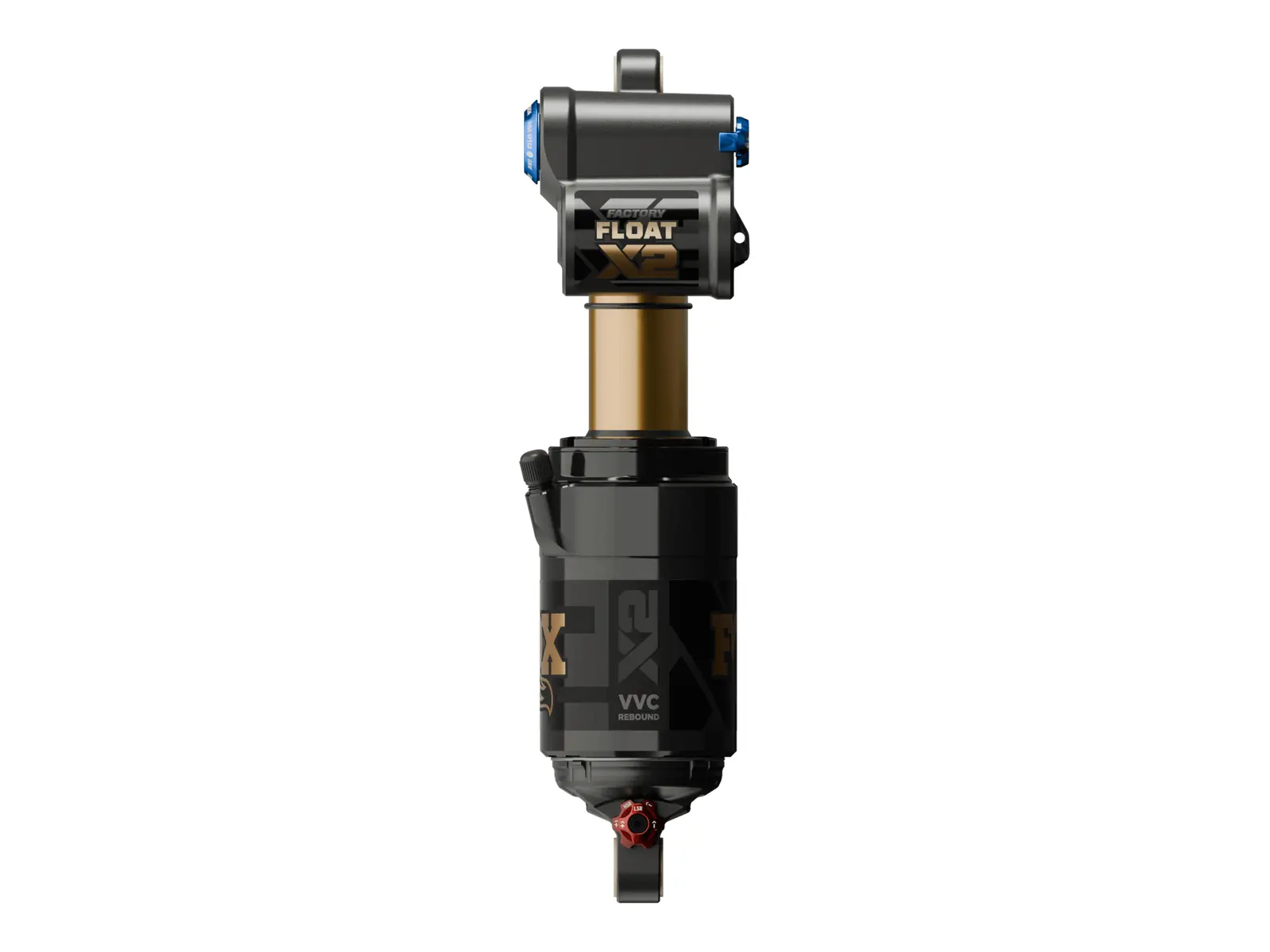

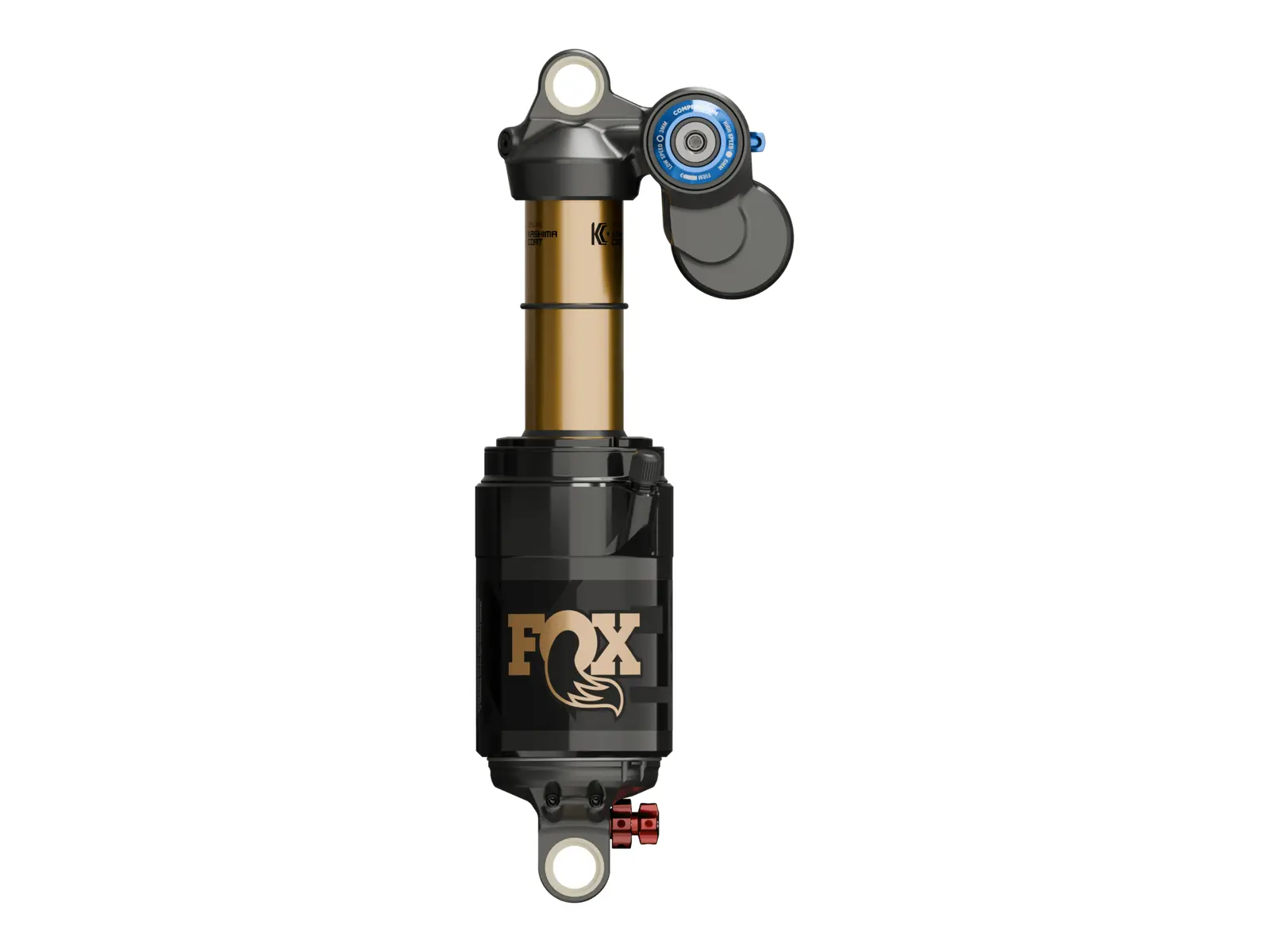

FOX "Float X2 Factory" MTB Rear Shock
-
Weight : 0.71kg / 1.57lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36470
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The FOX "Float X2 Factory" MTB Rear Shock is the FOX gravity air shock for downhill and enduro: new monotube chassis with the world's first 4-way adjustable monotube damper, pressure balanced for more sensitivity and support. High- and low-speed compression and high- and low-speed rebound are adjusted externally, the high-speed circuits via Variable Valve Control (VVC). The oversized air chamber with low-friction seals gives a linear, planted feel, air volume is tuned in 1 cc steps, the 1/2 inch damper shaft adds durability. The 2POS versions add the independent firm mode lever for climbing. Factory series with Kashima Coat.
Facts: FOX "Float X2 Factory" MTB Rear Shock
- Eye-to-Eye x Stroke: 185 x 55 mm (Trunnion), 205 x 60 mm (Trunnion), 210 x 50 mm, 210 x 52.5 mm, 210 x 55 mm, 230 x 60 mm, 230 x 62.5 mm or 230 x 65 mm
- Spring: Air spring with oversized air chamber and low-friction seals, volume spacers in 1 cc steps, piggyback reservoir
- Damping:
- High-speed compression with VVC: 8 clicks
- Low-speed compression: 16 clicks
- High-speed rebound with VVC: 8 clicks
- Low-speed rebound: 16 clicks
- Independent firm mode lever Open/Firm (2POS)
- Pressure balanced monotube damper - Mounting: Metric or trunnion, see version
- Hardware: Not included (mounting hardware depends on the frame)
- Weight: From 708 g (210 x 55 mm, 2POS, manufacturer)
- Contains: 1 shock, 3 volume spacers 1 cc, 6 volume spacers 2 cc, compression adjustment tool, FOX sticker, owner's manual with tuning guide
- Extras: Factory series, Kashima Coat; 1/2 inch damper shaft; model year 2026
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
