Gusset "IASC Euro 19" Bottom Bracket
- Weight : 0.25kg / 0.55lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43176
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

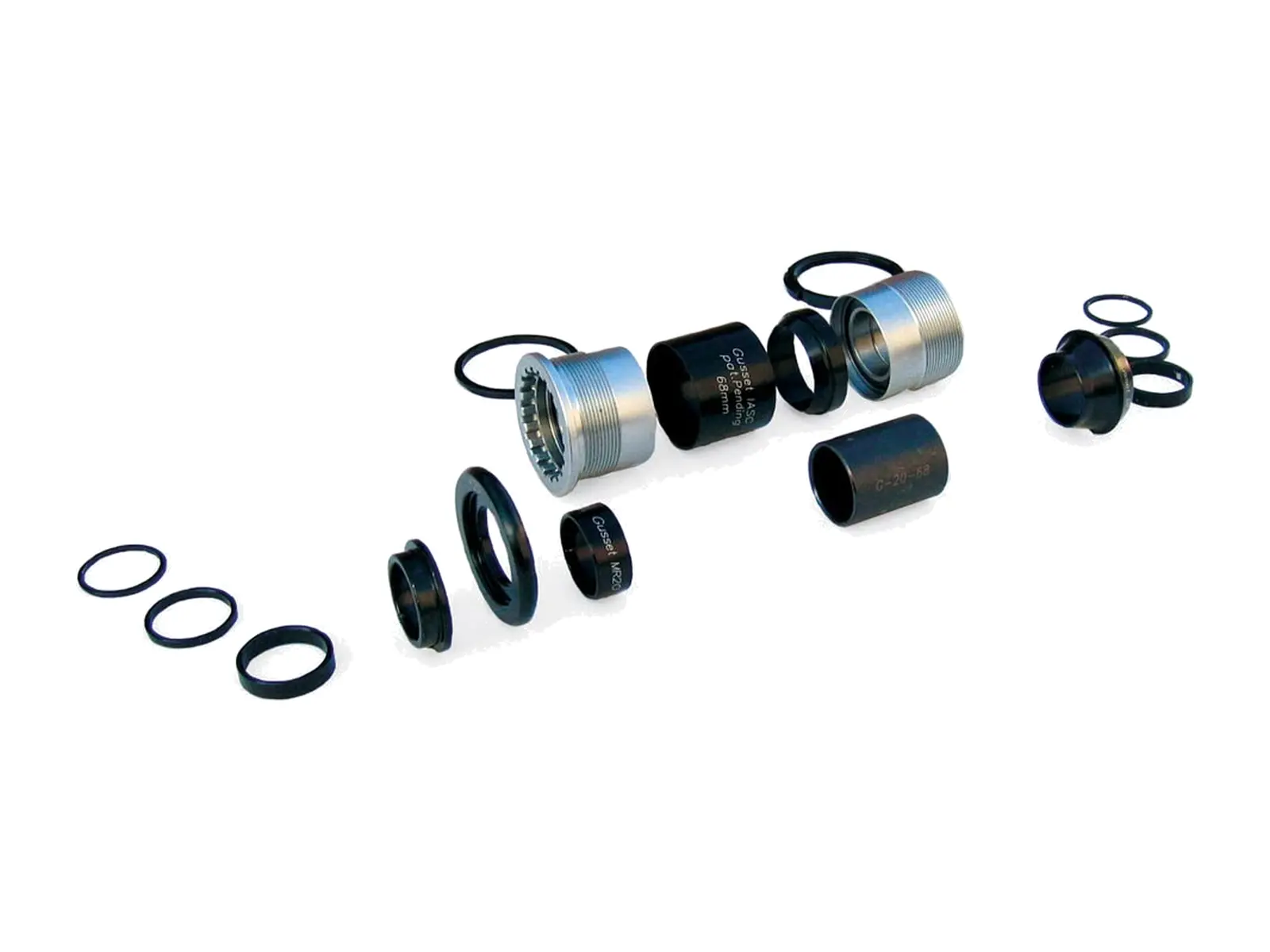

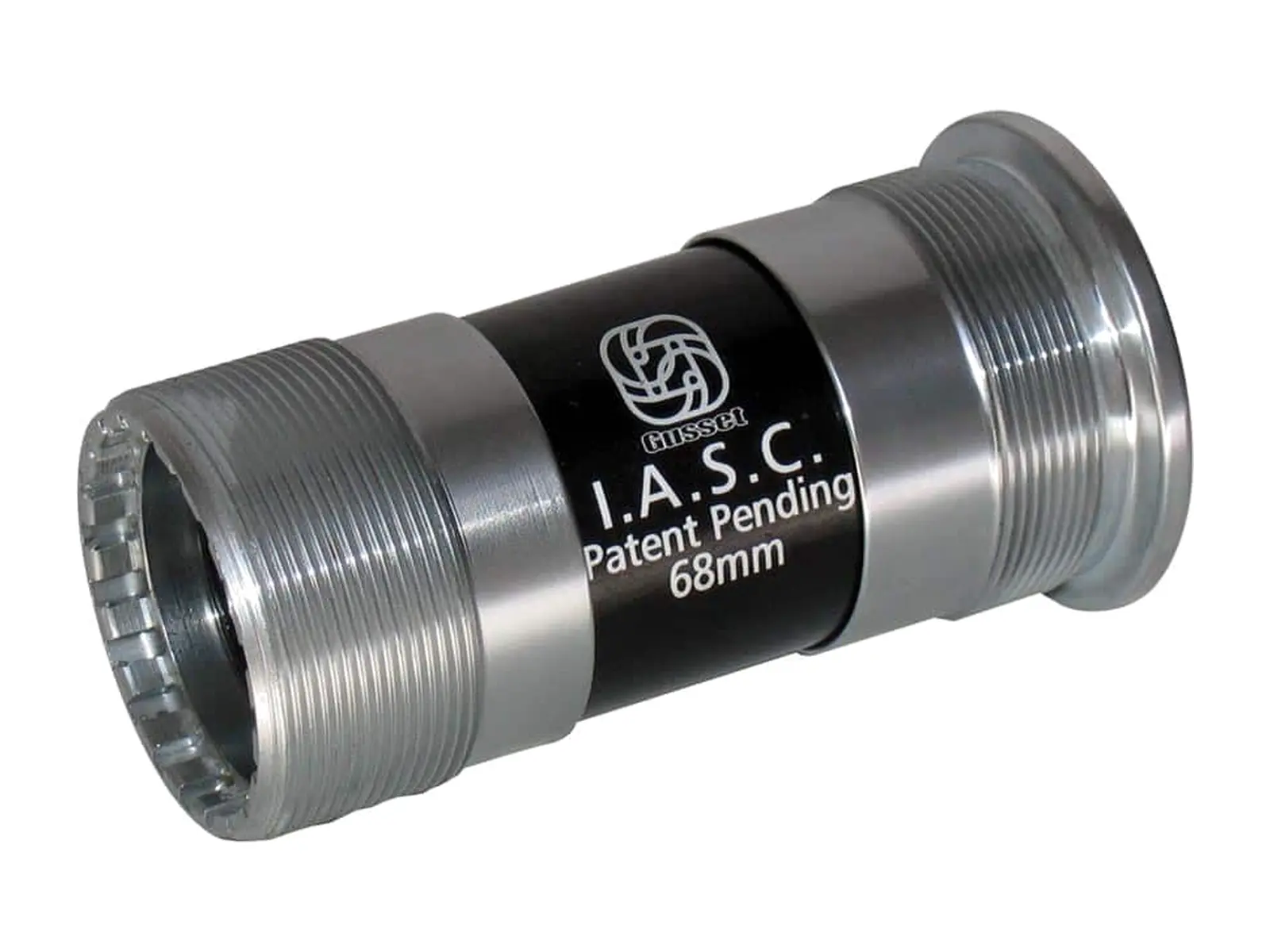

The Gusset "IASC Euro 19" Bottom Bracket takes 19mm BMX crank axles into a Euro (BSA) BB shell: the I.A.S.C system (Internal Assembled Semi Cartridge) of forged Cr-Mo cups installs with a UN type tool, sets the bearing adjustment and shields the inside from dirt and water. Four cartridge bearings can be replaced individually, and spacers set the chain line. Fits Gusset Hunter and Woodstock cranks and most sliding 19mm axle cranks.
Facts: Gusset "IASC Euro 19" Bottom Bracket
- Style: EuroBB
- Axle Diameter: 19mm
- Bearings: 4 individually replaceable sealed cartridge bearings
- Spacers: for adjustable chain line (sliding axle system)
- Extras:
- forged Cr-Mo UN style cups, installs with a UN type tool
- for Euro (BSA) BB shells, 19mm axles
- fits Gusset Hunter and Woodstock cranks and most sliding 19mm axle cranks
- weight 246 g incl. spacers (manufacturer) - Contains: 1 bottom bracket set, crank axle not included
