Hayes Disc Brake Adapter - PM-PM
- Weight : 0.05kg / 0.11lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 43268
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Hayes adapters for forks and frames with post mount, to run a bigger rotor. The first number is the mount on the bike, the second the rotor. For 203 mm rotors on a 200 mm mount there is the spacer kit, and the 160 to 180 mm adapter also comes with titanium bolts.
Facts: Hayes Disc Brake Adapter - PM-PM
- Mount: post mount (fork/frame) to post mount (caliper)

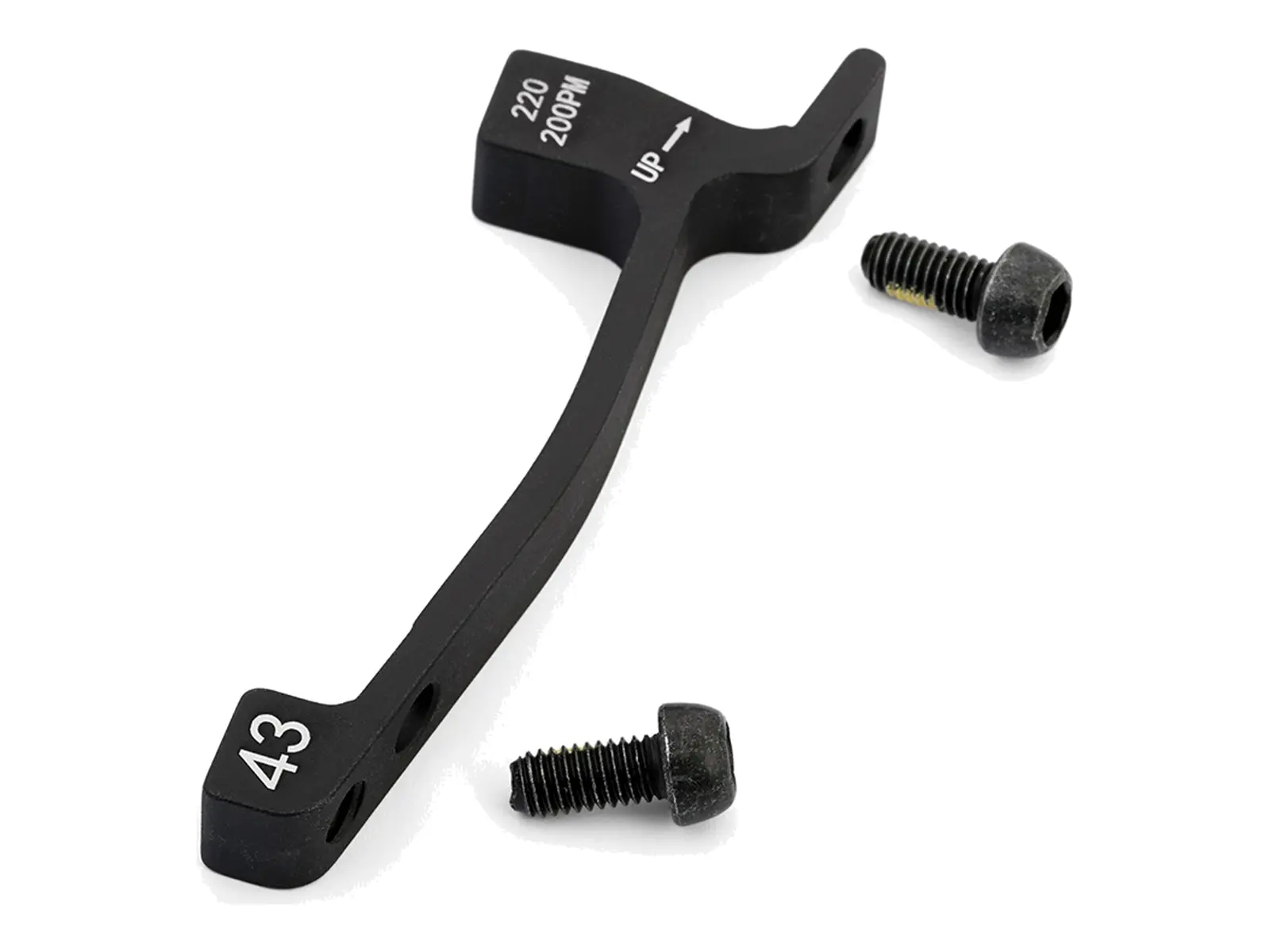

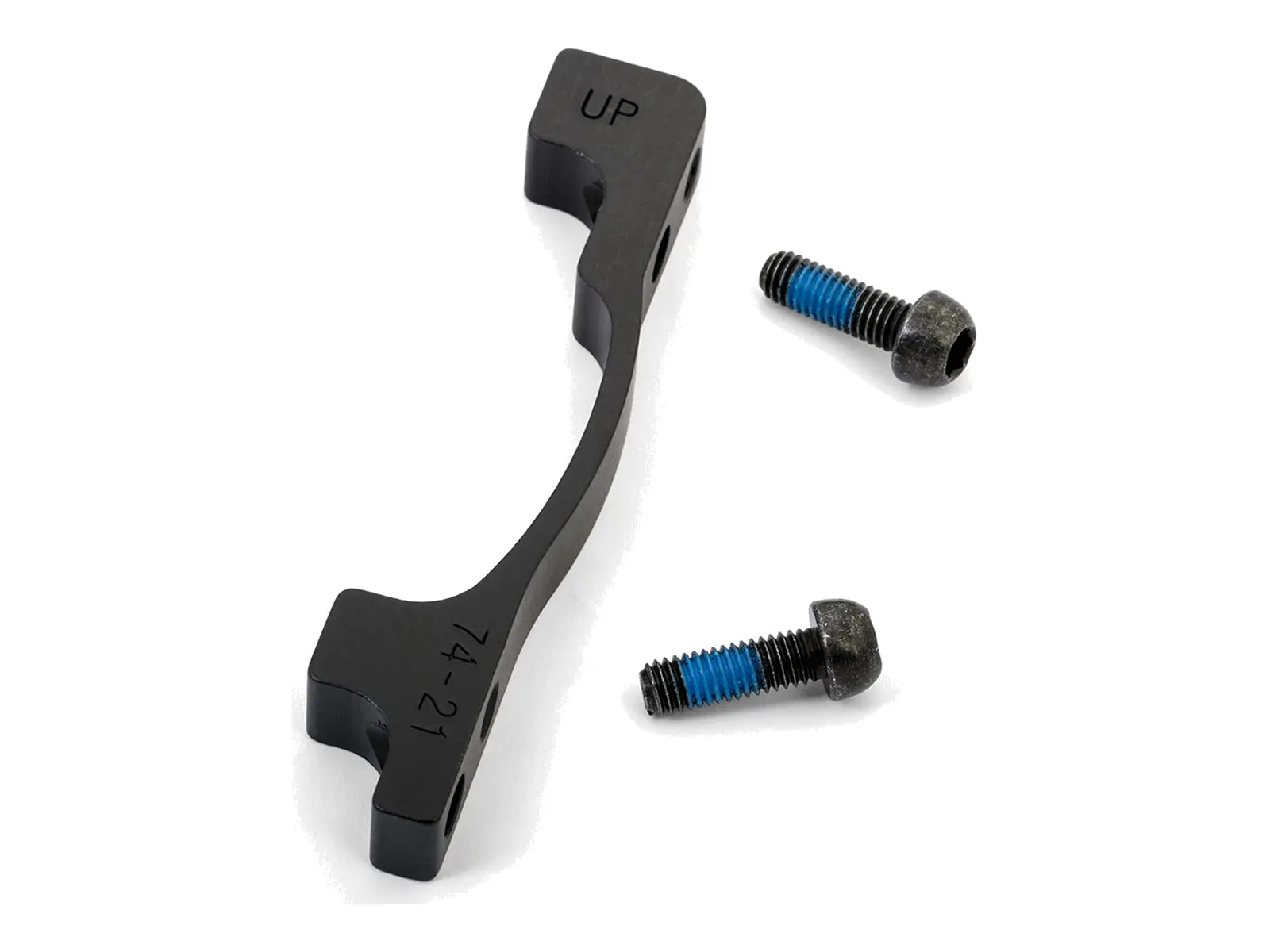

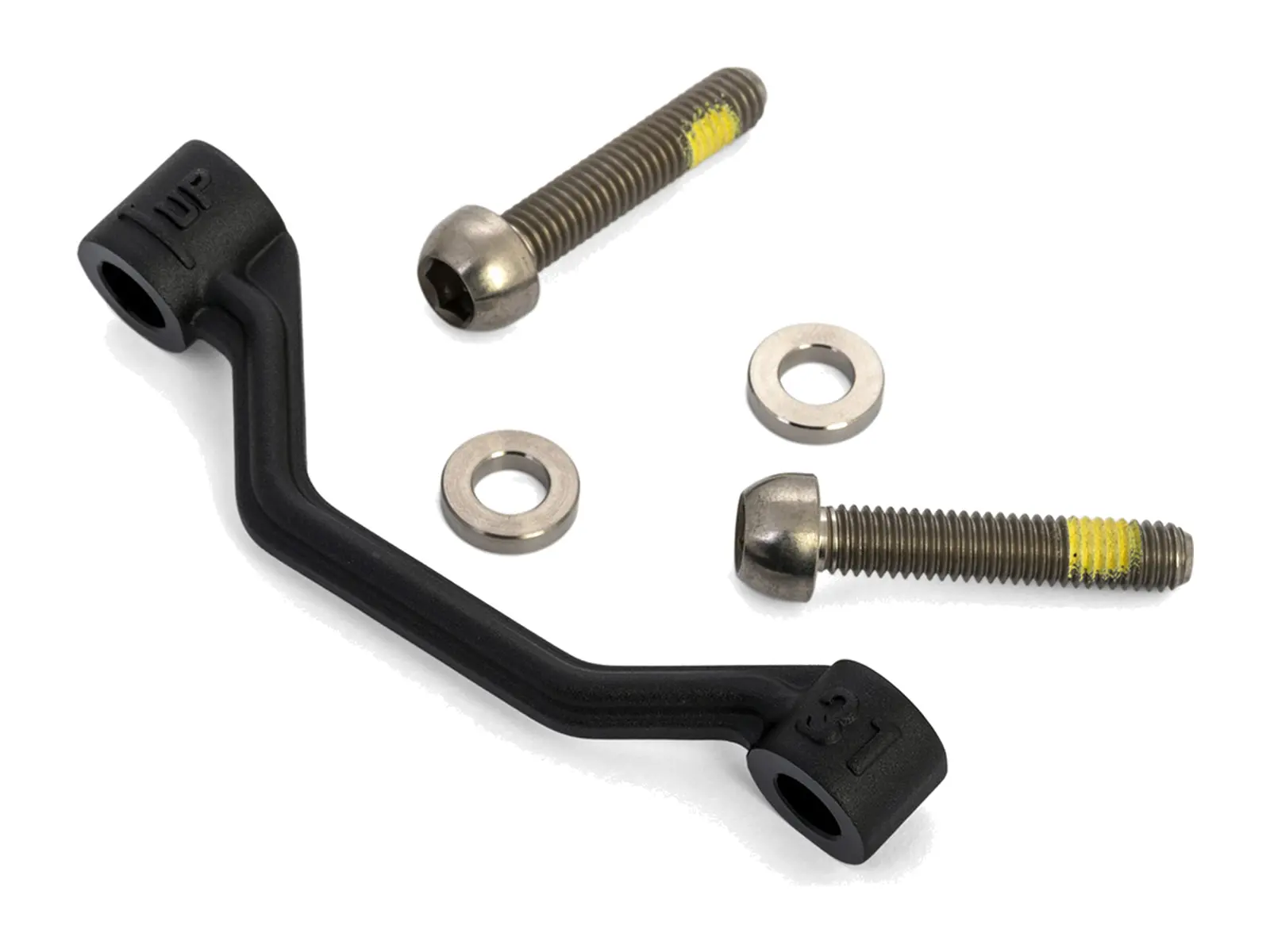

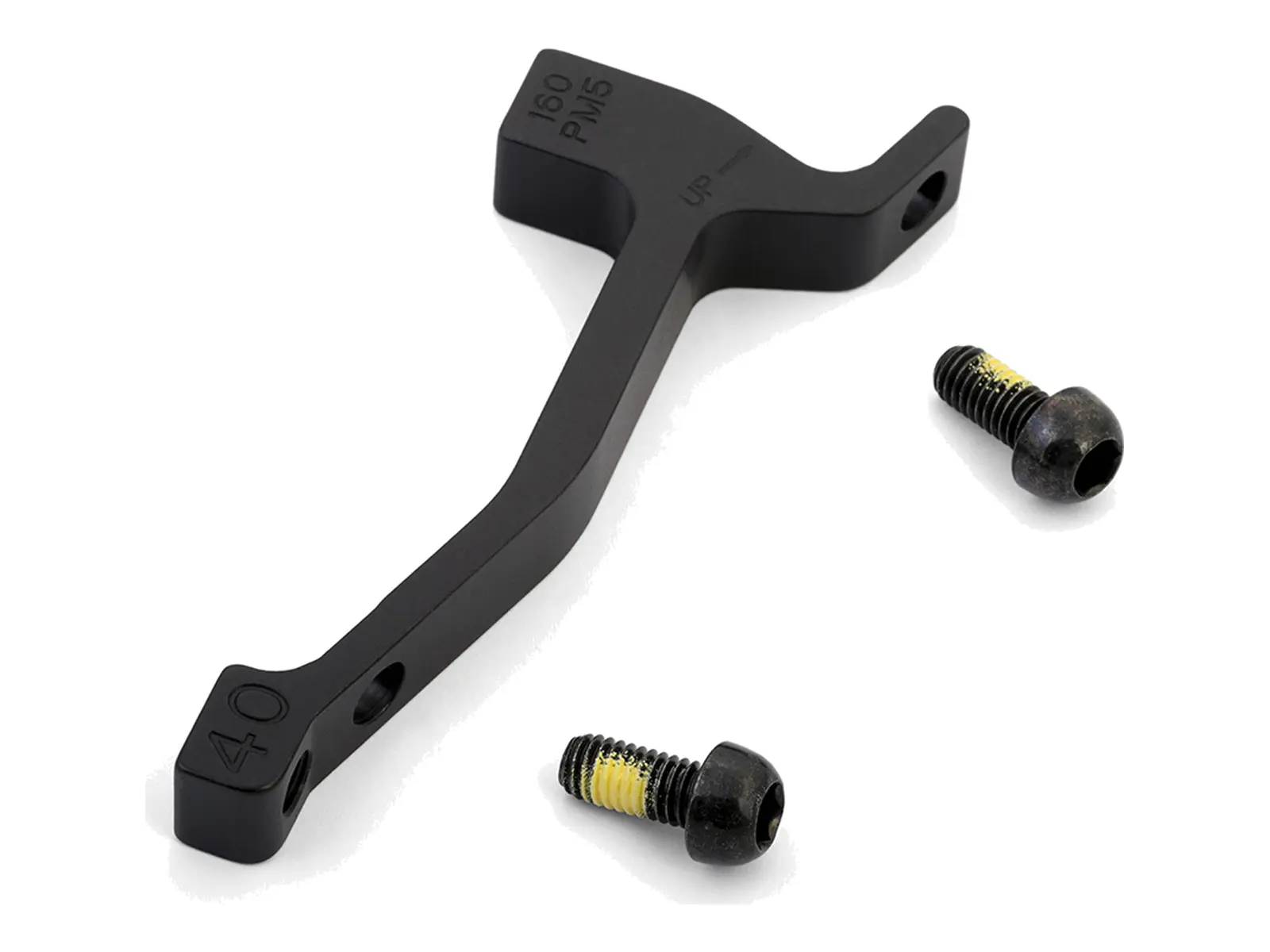

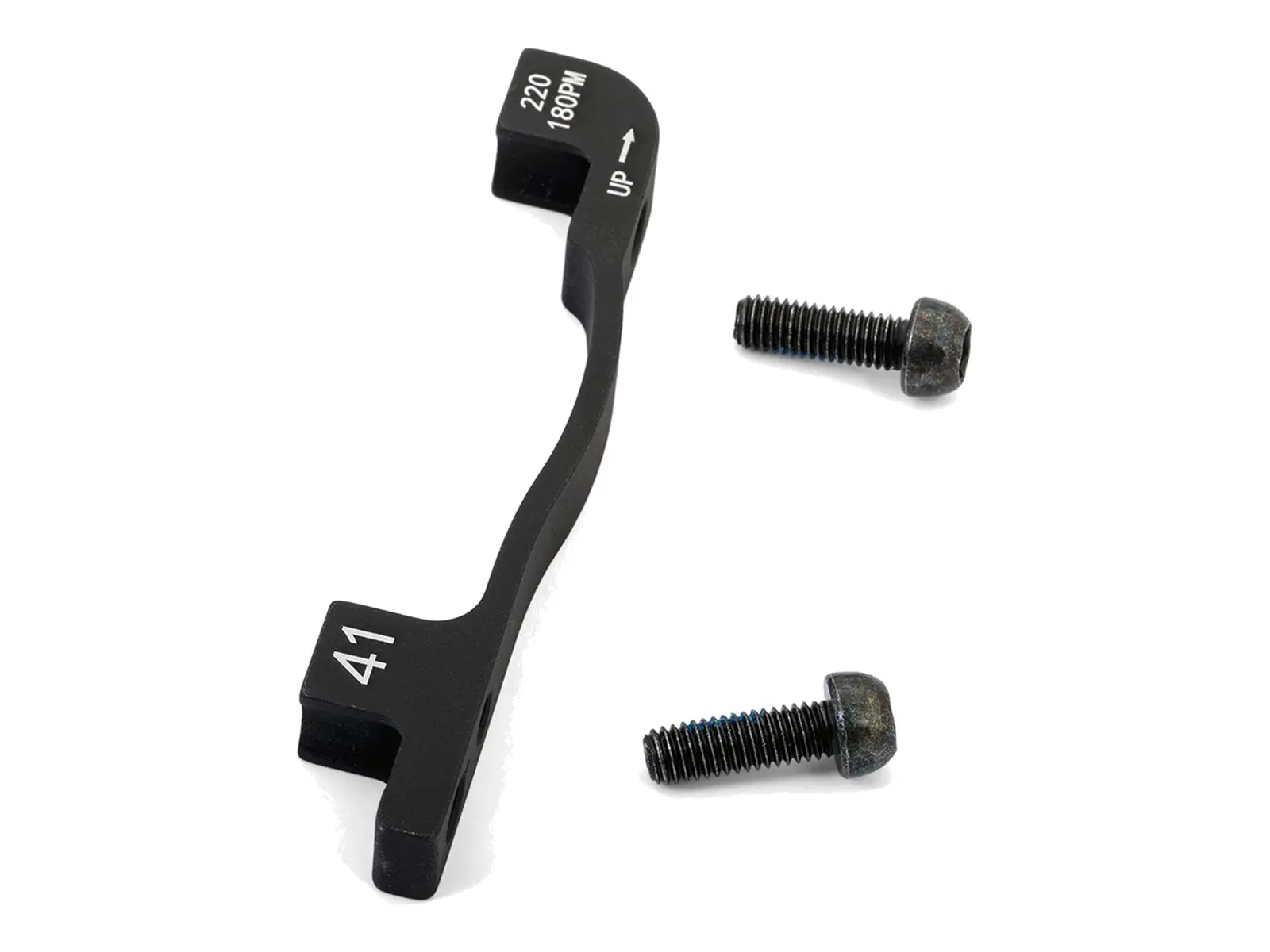

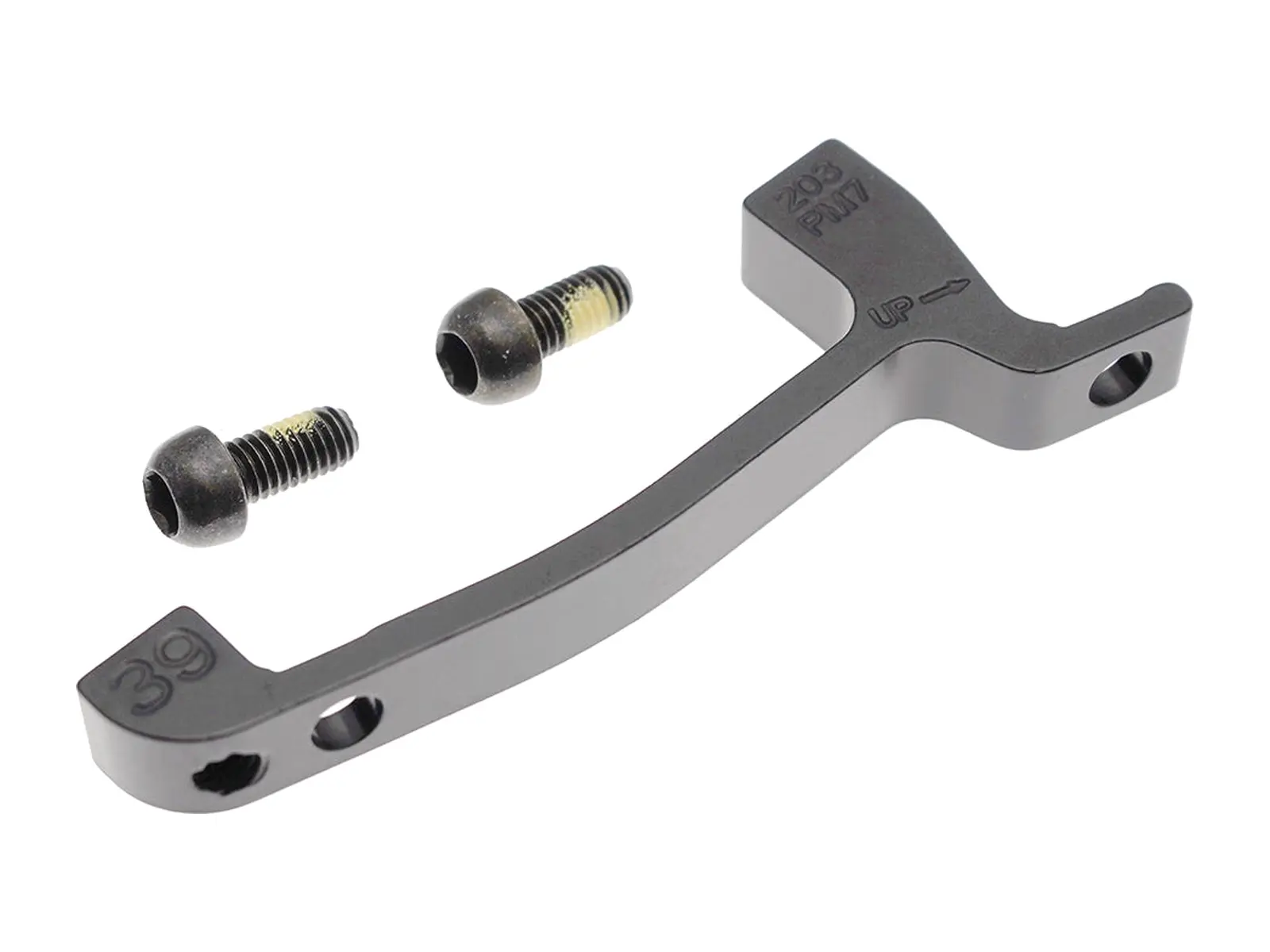

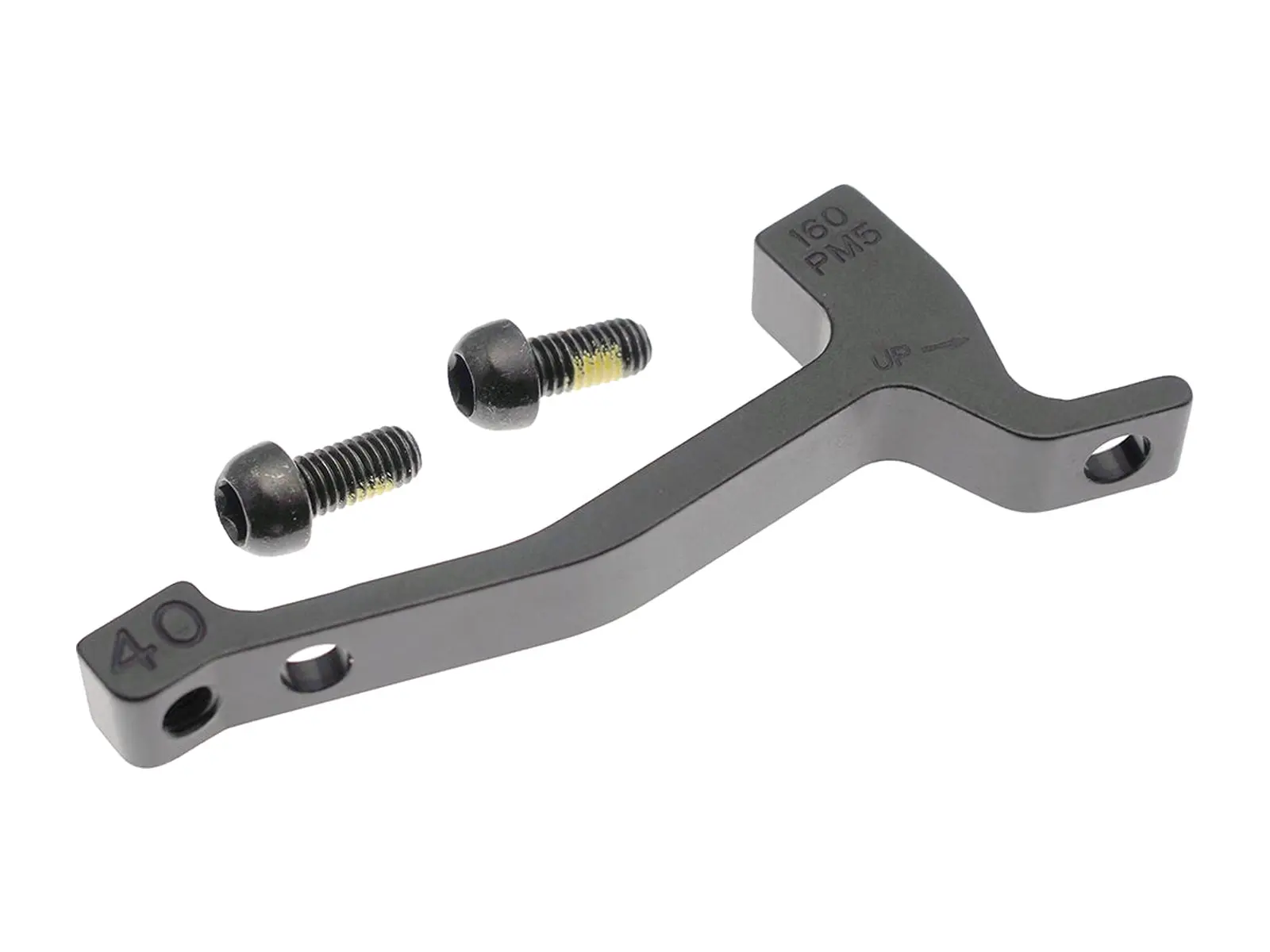

- Version: PM-PM 140 to 160 mm, PM-PM 160 to 180 mm, titanium bolts, PM-PM 180 to 203 mm, PM-PM 180 to 220 mm, PM-PM 200 to 203 mm (spacer), PM-PM 200 to 220 mm, PM-PM 160 auf 180 mm, PM-PM 160 auf 203 mm or PM-PM 203 auf 220 mm
- Material: adapter aluminium, bolts steel (Ti version with titanium bolts)

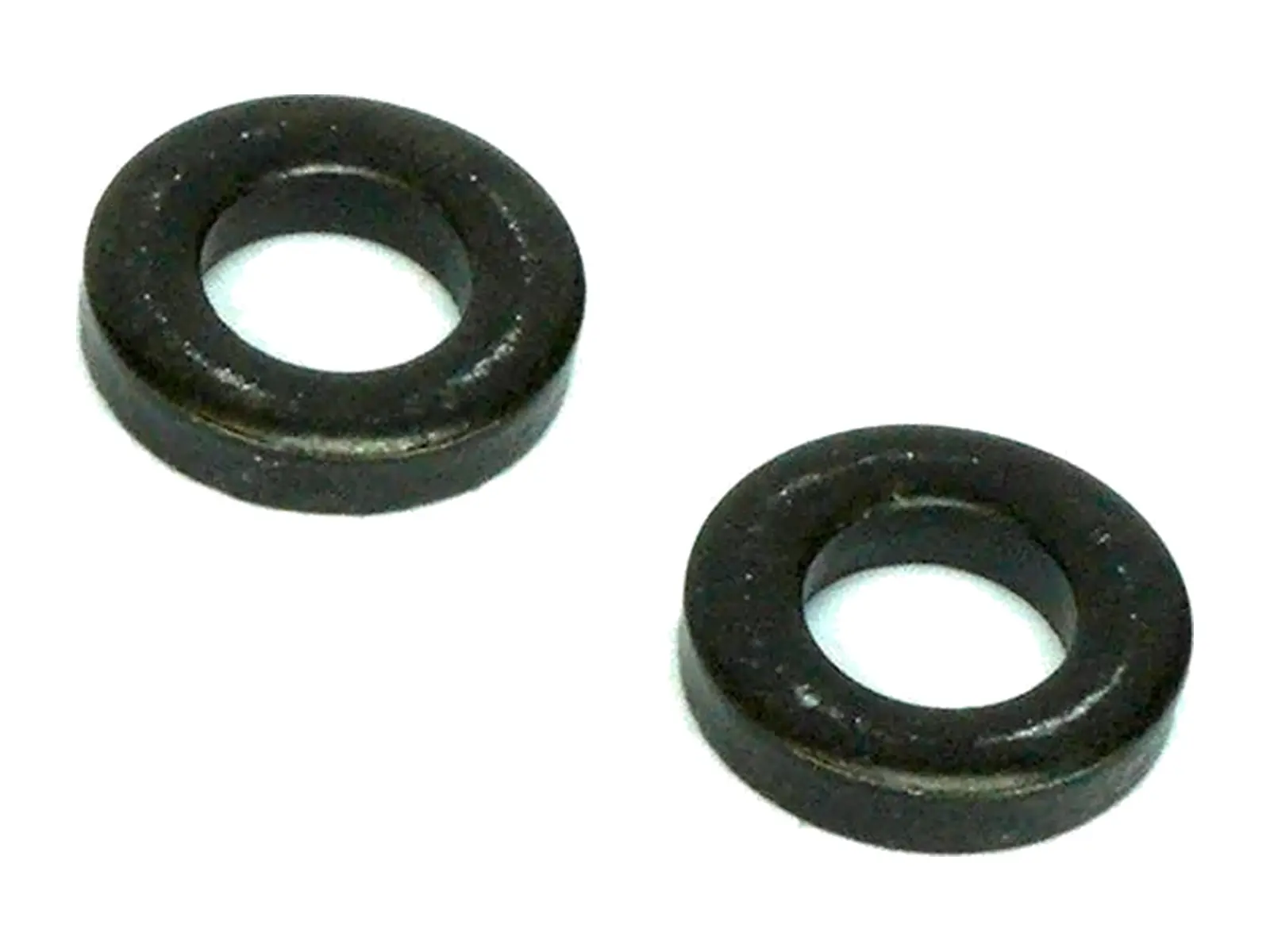

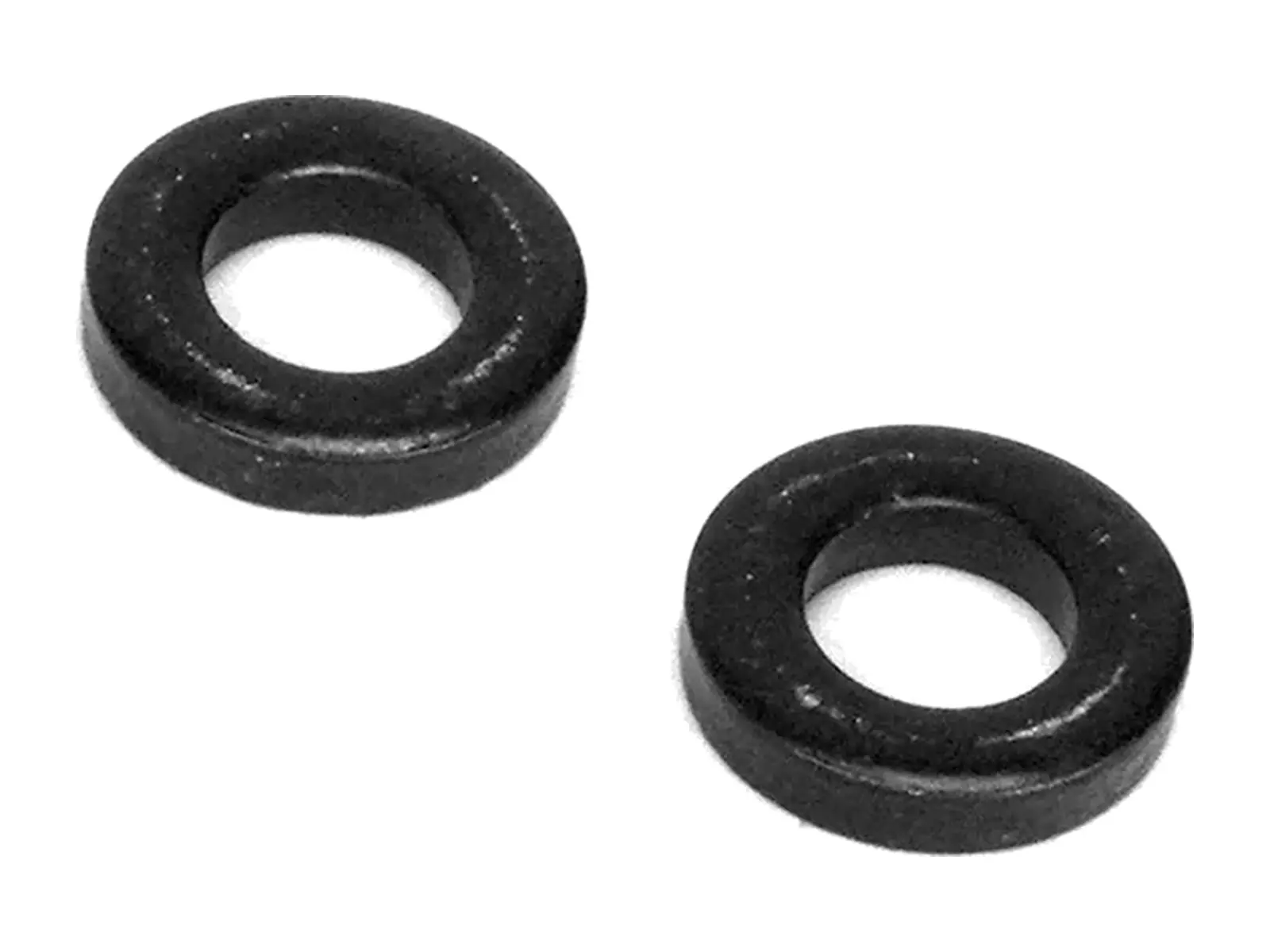

- Content: 1 adapter incl. mounting bolts, 2 spacers with the 200 to 203 mm kit
- Extras:
- first number: mount on fork or frame, second number: rotor

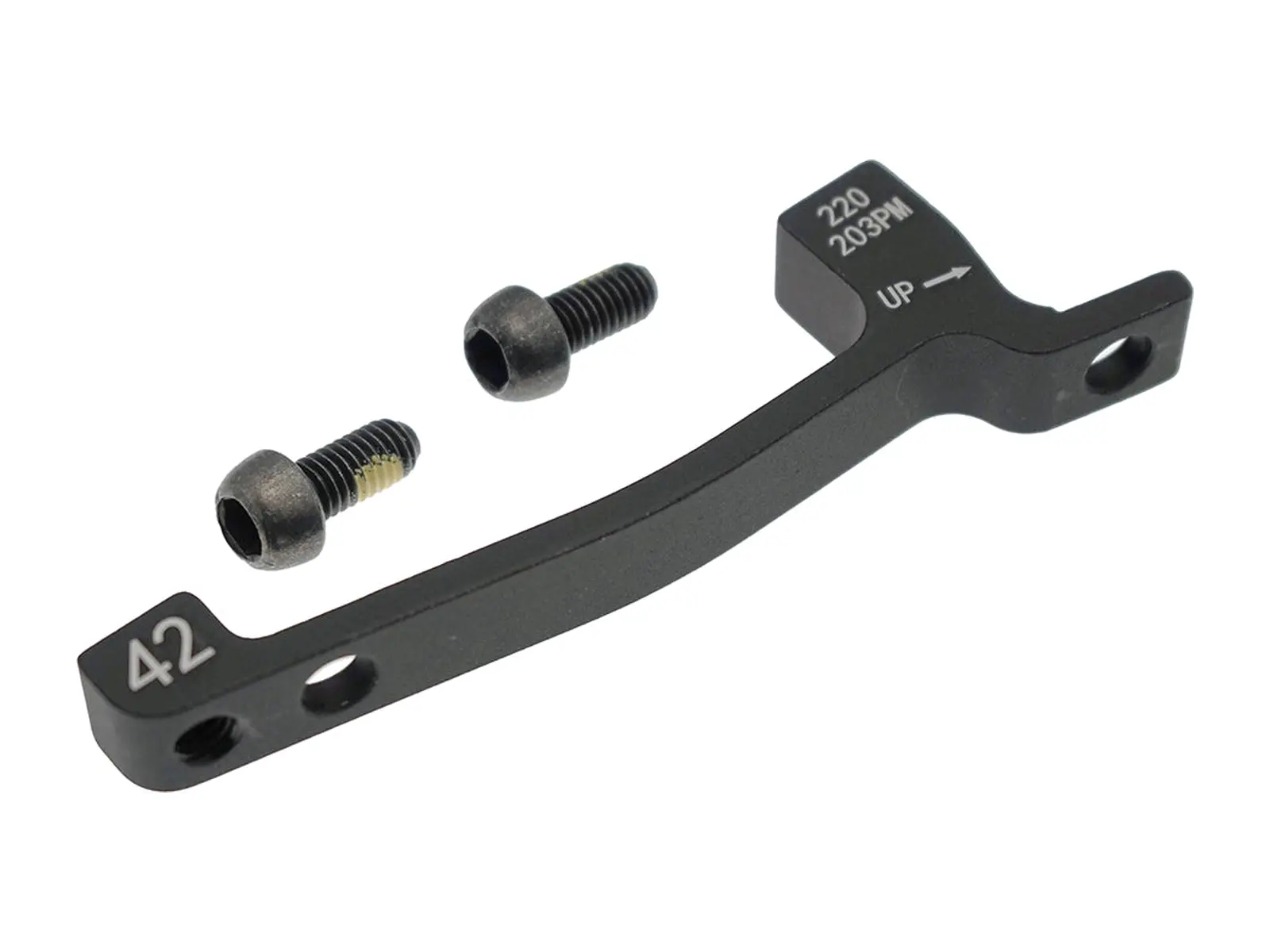

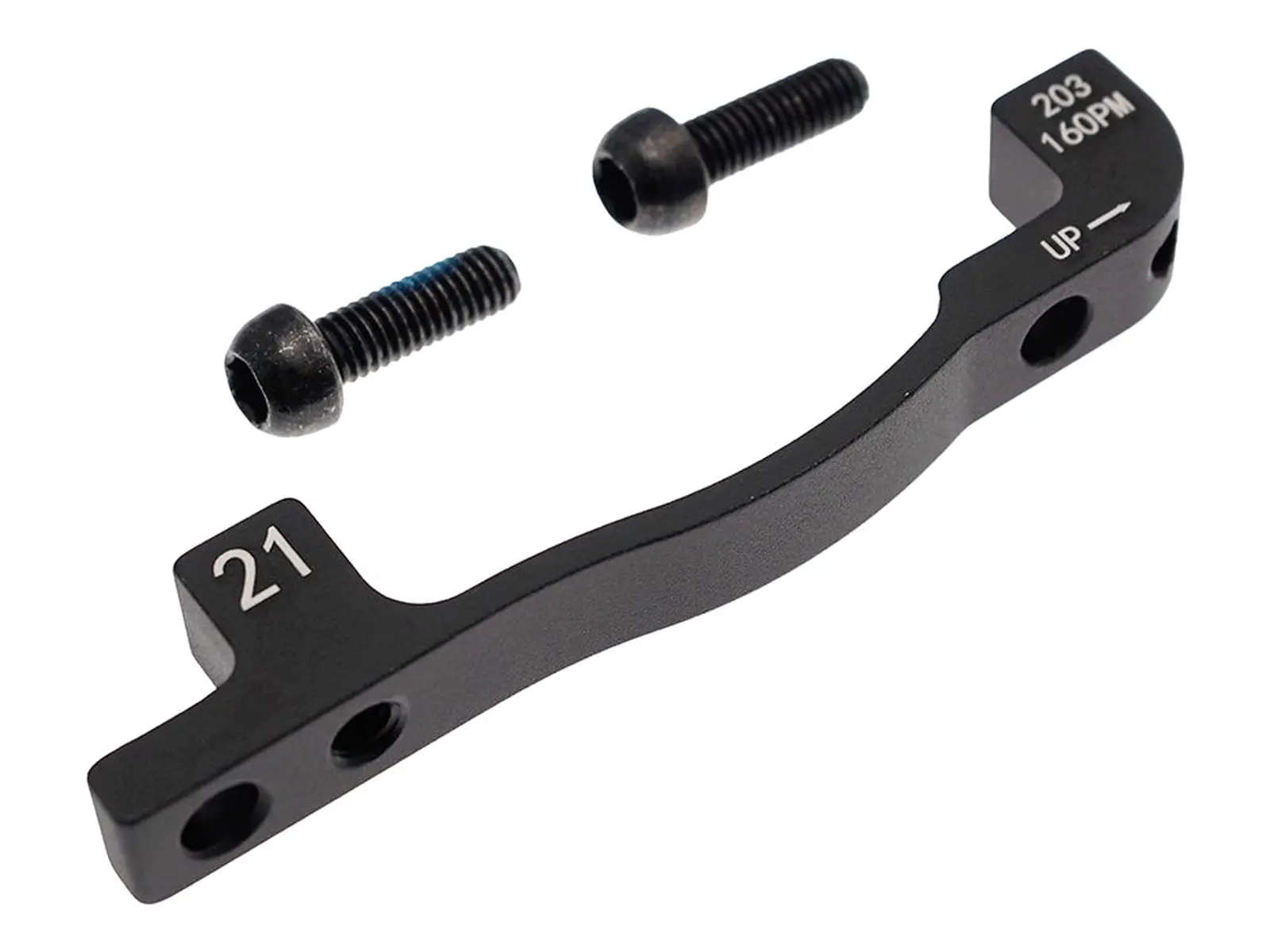

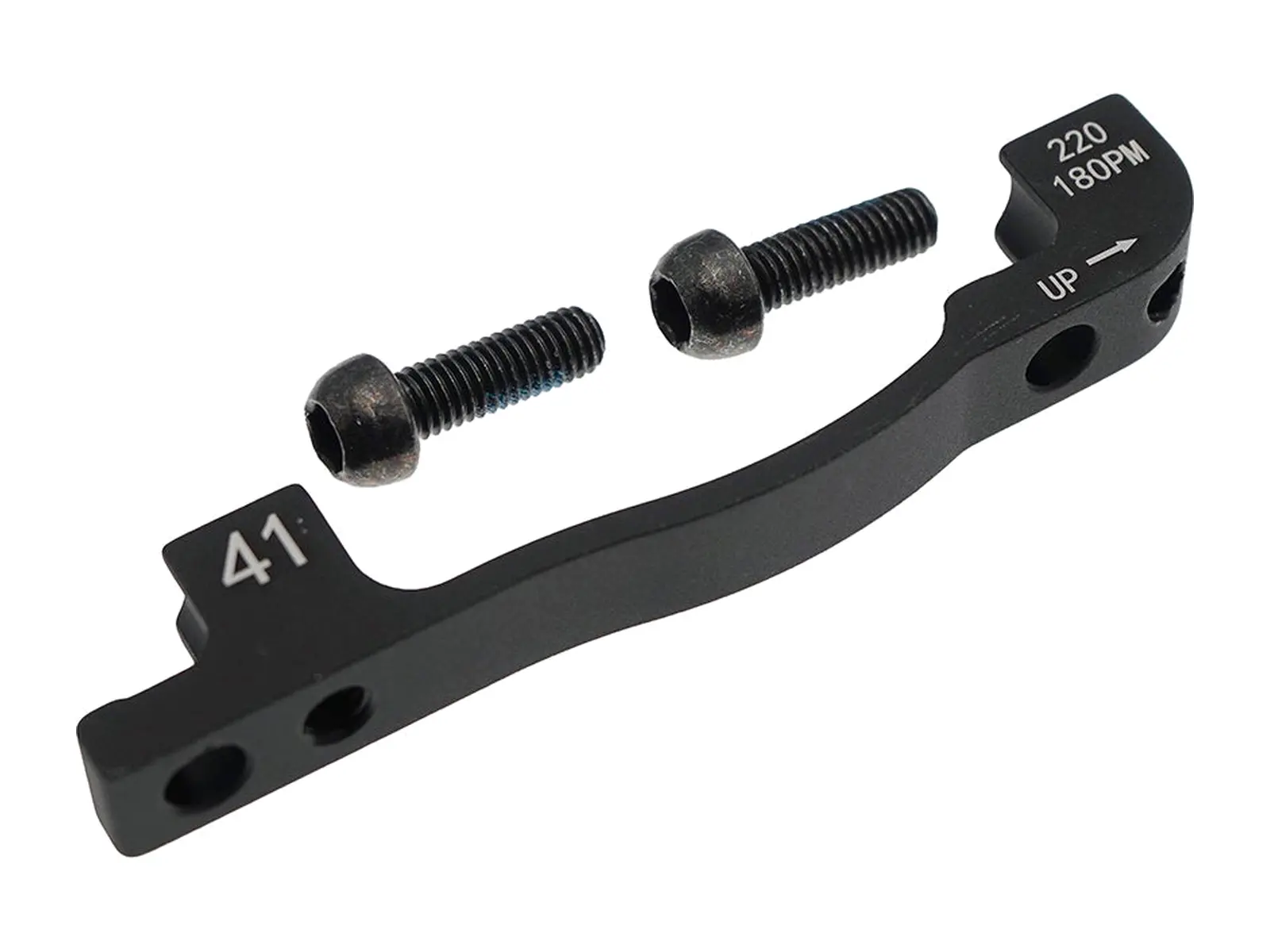

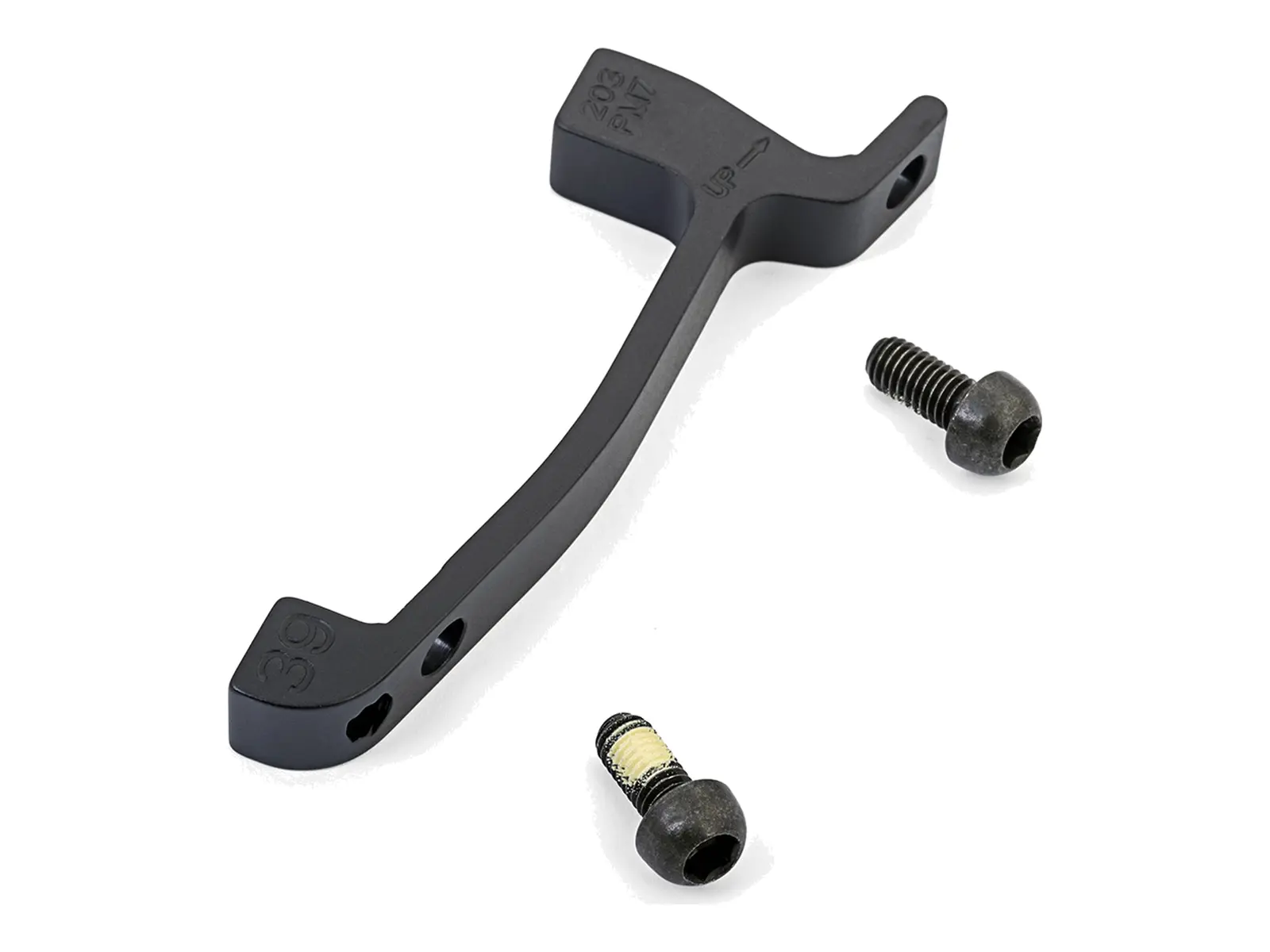

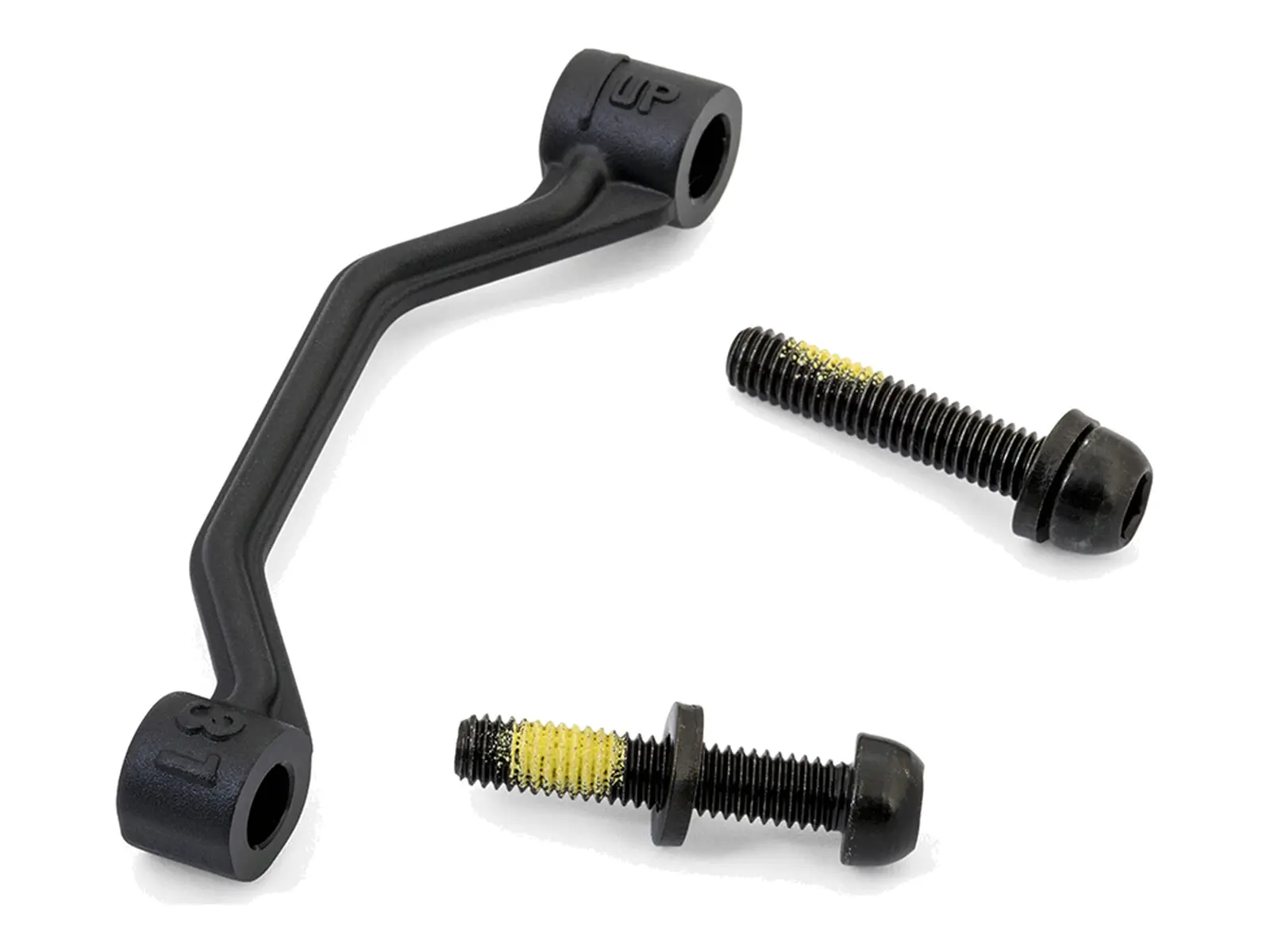

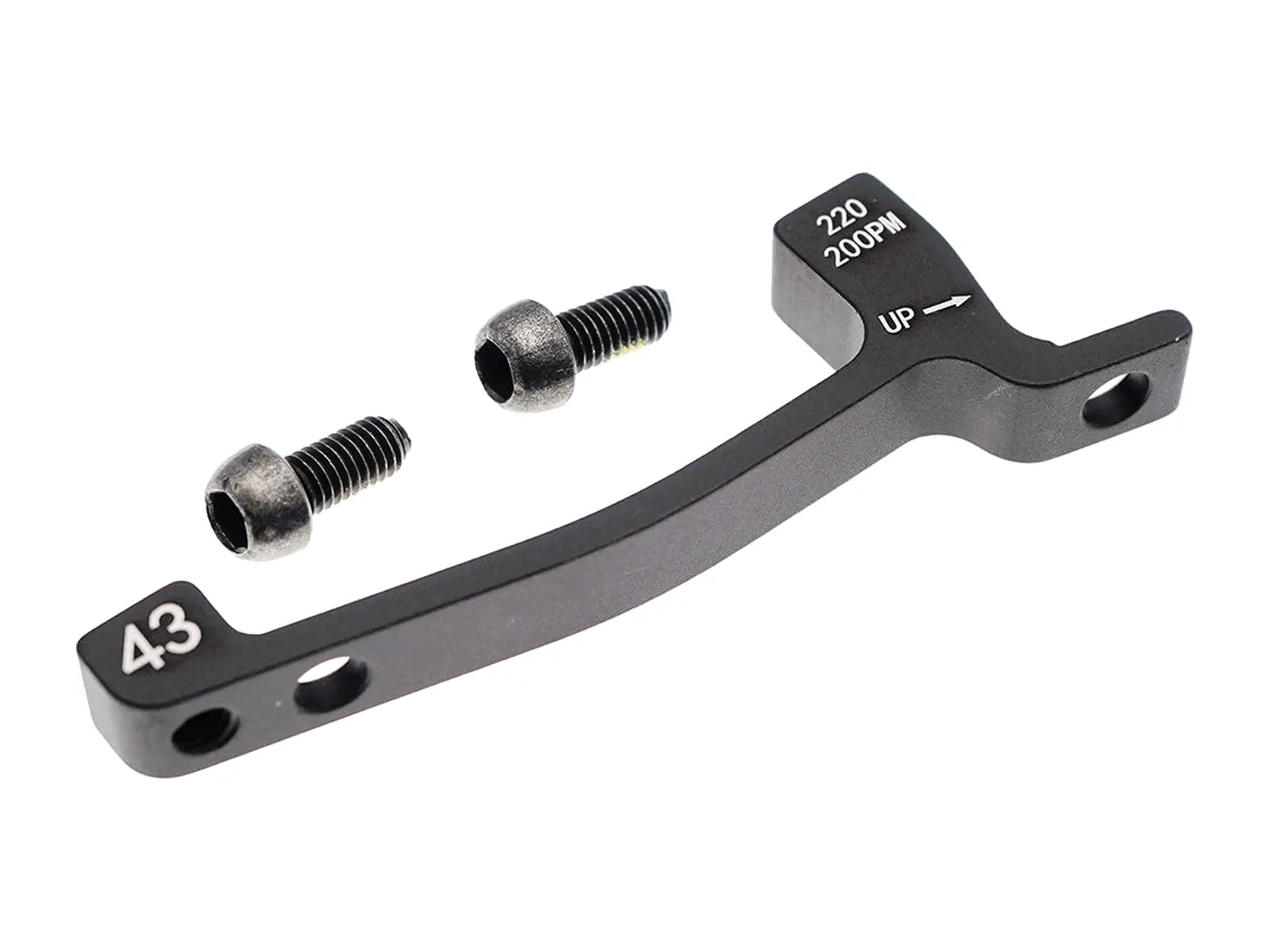

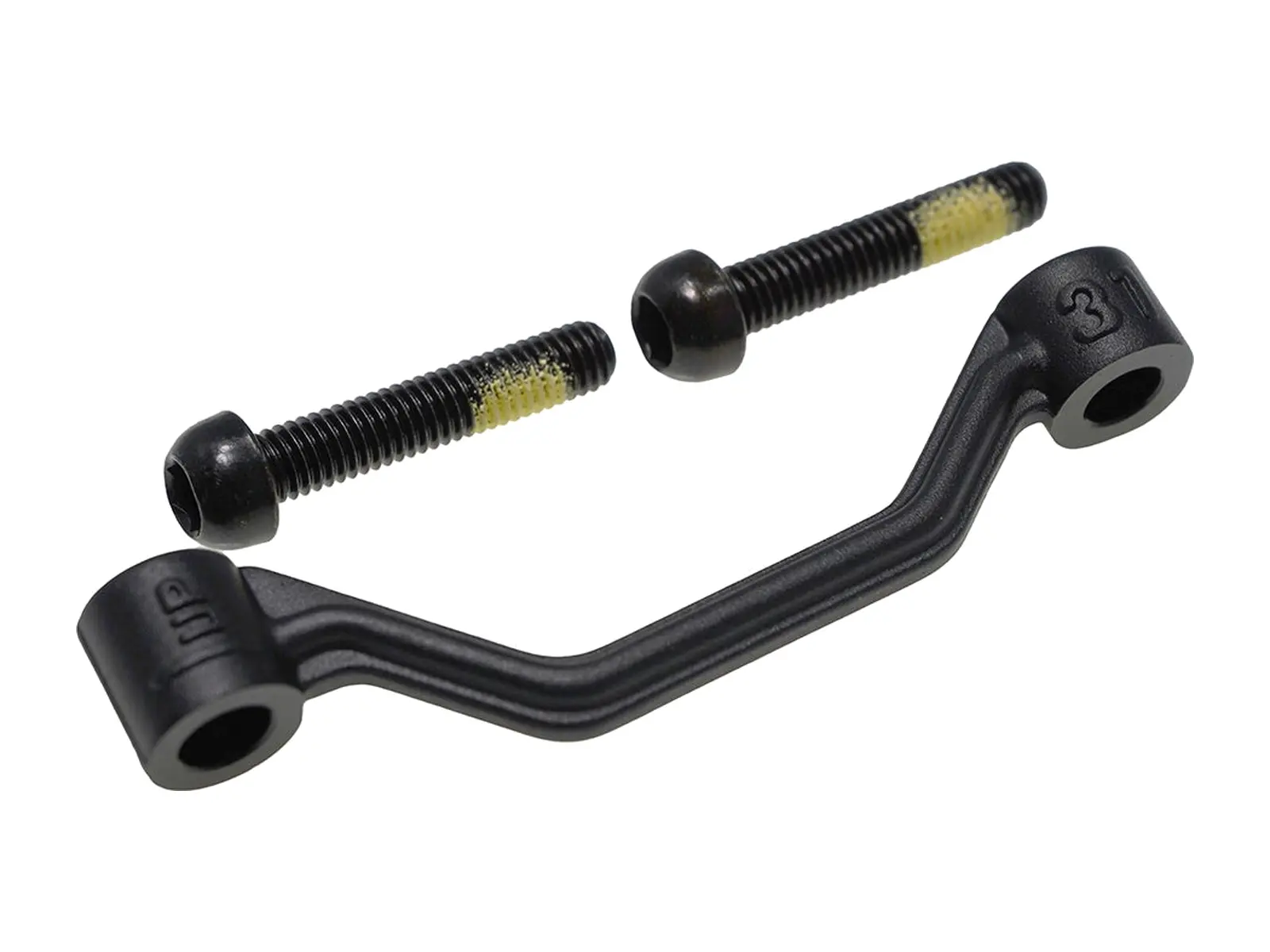

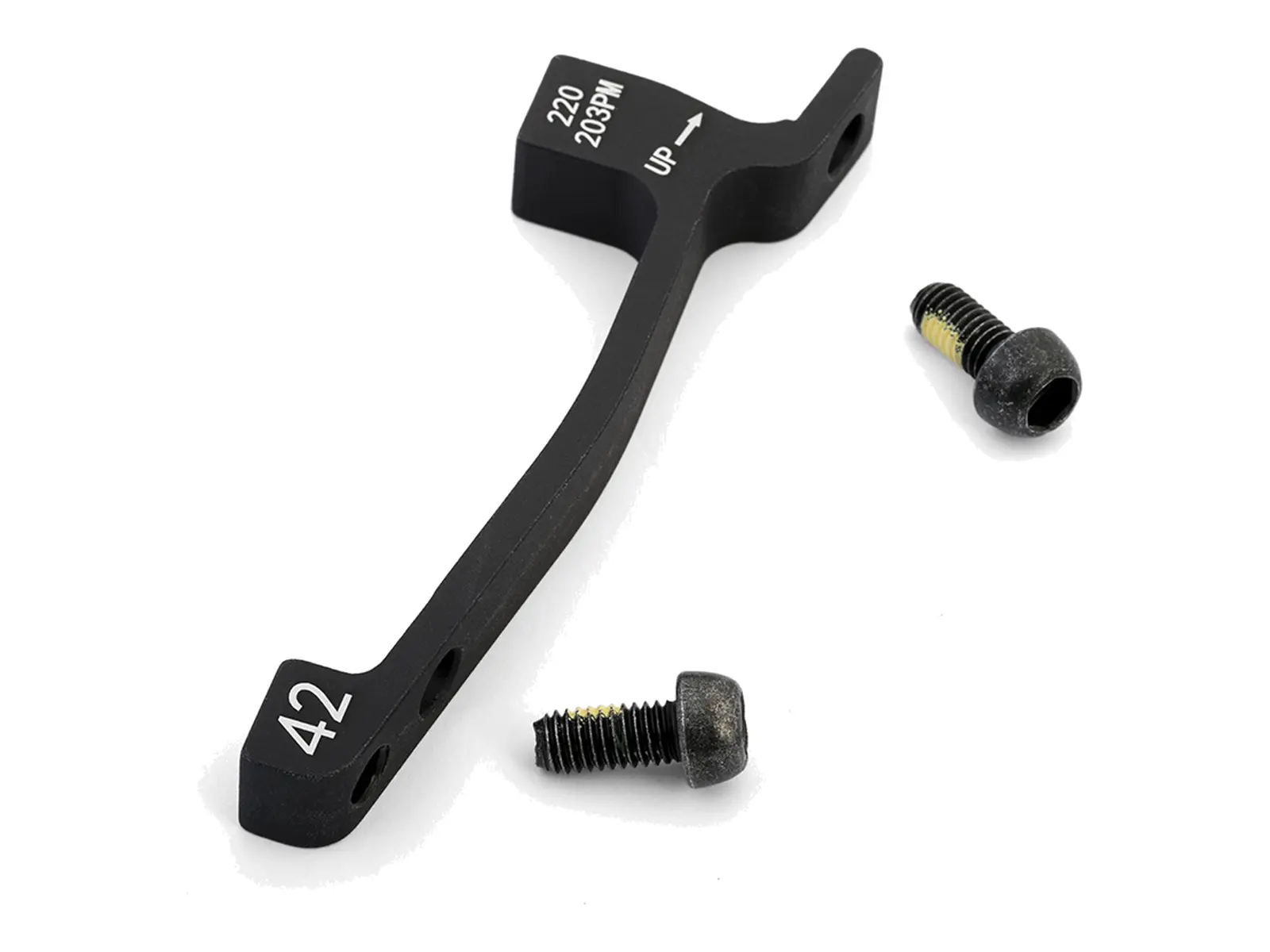

- part number 98-30028 (140 to 160), 98-32223 (160 to 180), 98-39290 (160 to 180 titanium), 98-15072 (160 to 203), 98-30027 (180 to 203), 98-37804 (200 to 203), 98-40039-K001 (180 to 220), -K002 (200 to 220), -K003 (203 to 220)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
