Hayes "Dominion T4" Disc Brake
- Weight : 0.32kg / 0.71lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 43256
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

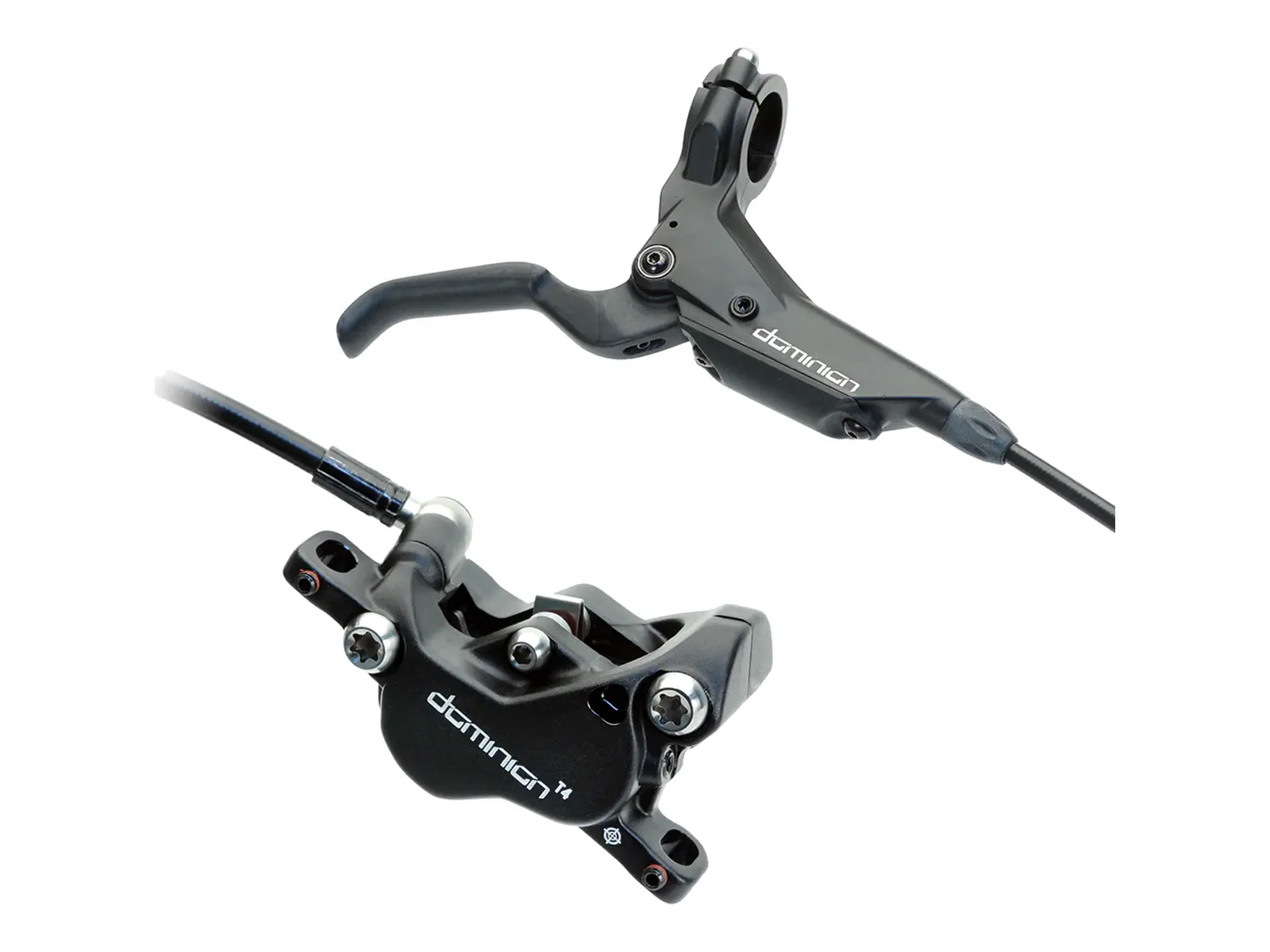

The Hayes "Dominion T4" Disc Brake is the lightweight four piston Dominion: a carbon lever by Reynolds, titanium hardware, a composite reservoir cover and pads with aluminium backing plates save weight without taking power away. Four 17mm pistons, the KingPin bolt and the Crosshair alignment come from the A4.
Reach and pad contact are adjusted with a tool, and the lever mounts on either side. This version is the rear brake. Rotor and adapter are not included, Hayes recommends its D-Series rotors.
Facts: Hayes "Dominion T4" Disc Brake
- Mounting: post mount (caliper), 2-piece handlebar clamp
- Hose Length: rear brake, can be shortened
- Type: hydraulic disc brake (1 brake with lever, hose and caliper), rear

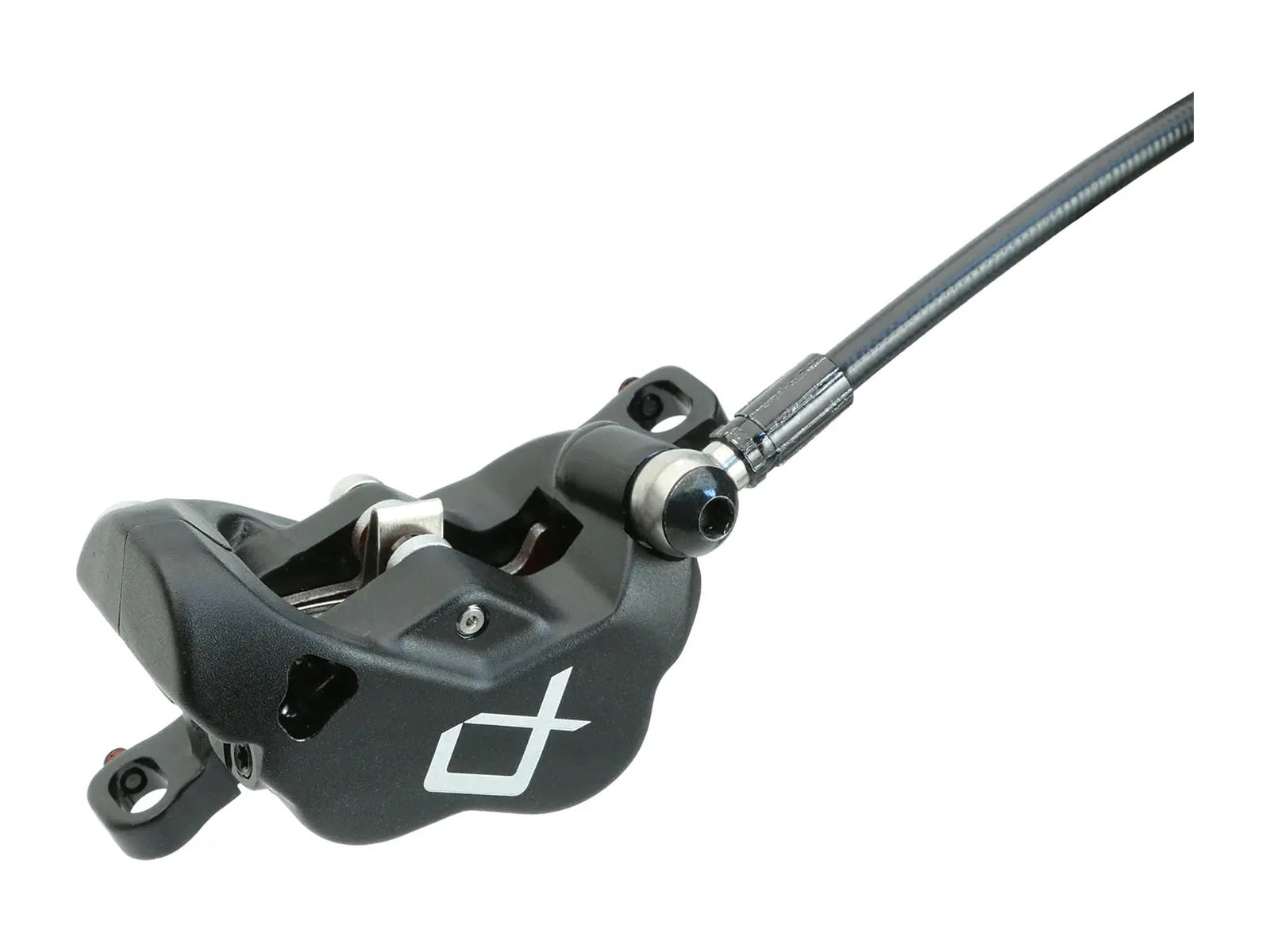

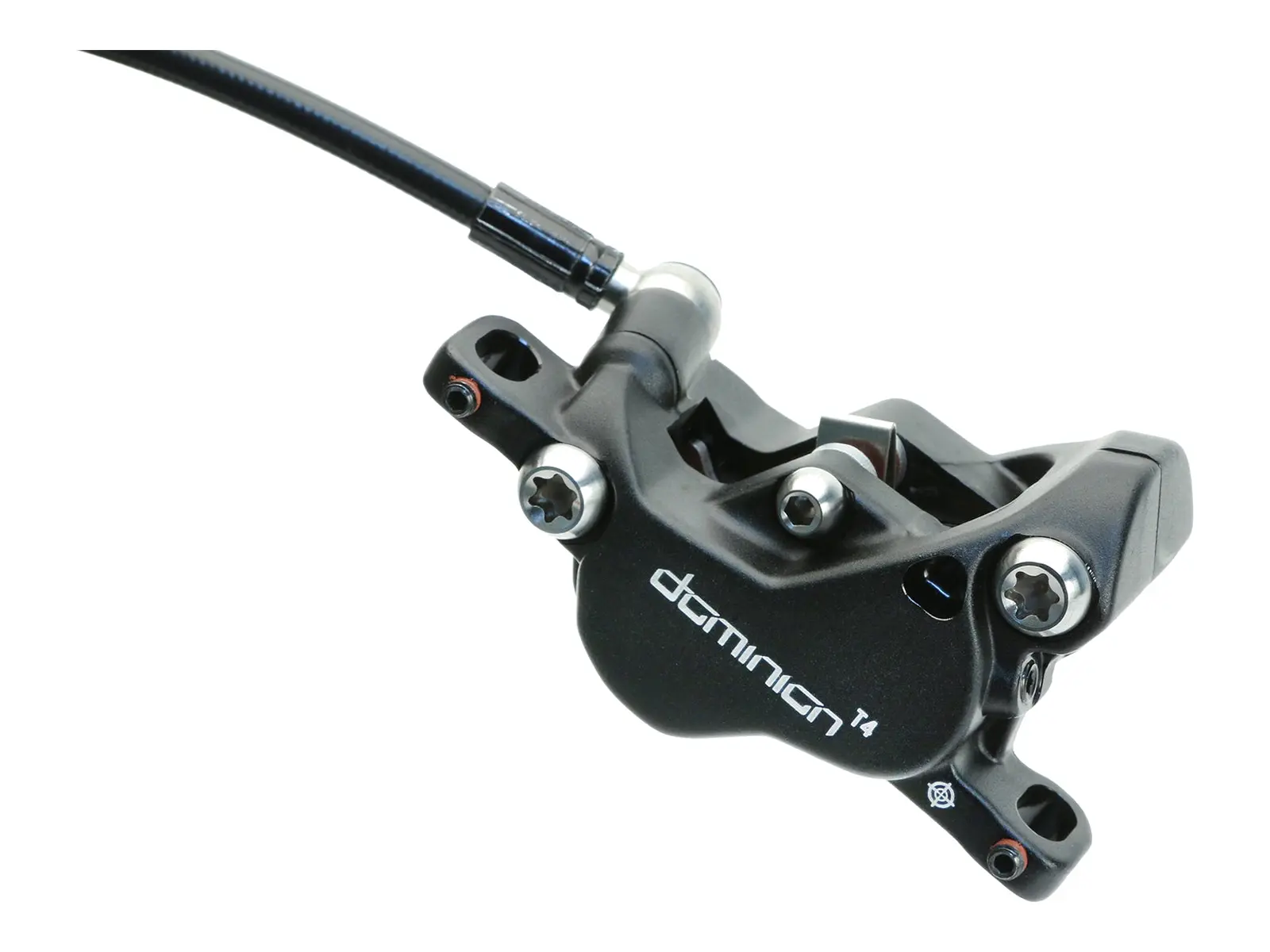

- Caliper: 4 pistons (Ø 17mm), KingPin pad retention, bottom load pads, Crosshair alignment screws

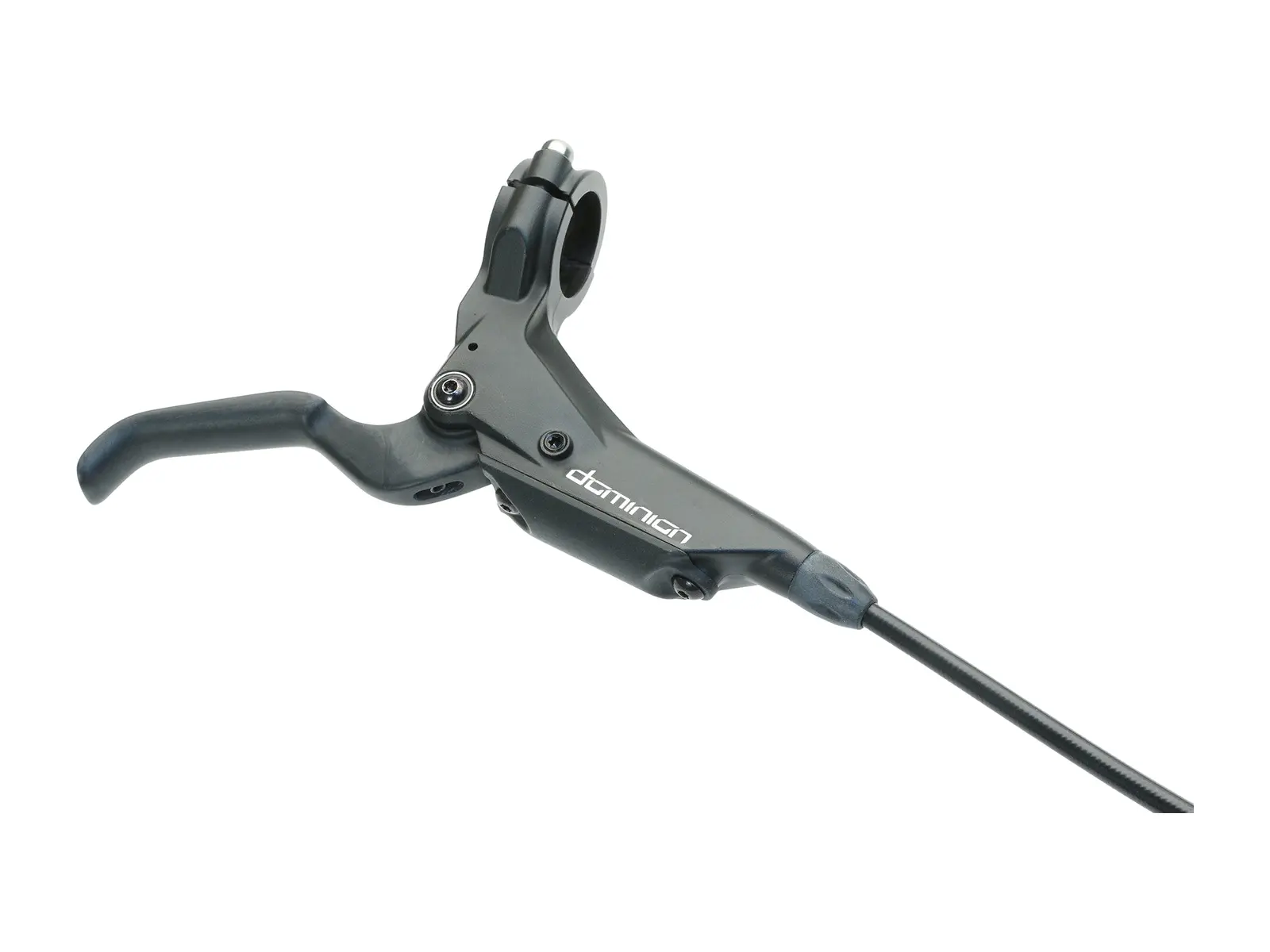

- Lever: carbon lever (designed by Reynolds), tooled reach and pad contact adjustment, flip-flop, lever pivot on sealed cartridge bearings, adjustable banjo connection
- Brake Fluid: DOT 5.1
- Note: rotor and adapter not included, fits the D-Series rotors 160, 180 and 203mm
- Contains: 1 disc brake
- Extras:
- titanium hardware, composite reservoir cover, pads with aluminium backing plates
- Kevlar reinforced K2 hose, Two-Stroke bleed
- weight 257 g (manufacturer, with 900mm hose and mount hardware)
- part number 95-38499-K002
