Hoffman Bikes "Orrin" BMX Frame
-
Weight : 2.35kg / 5.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20123
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

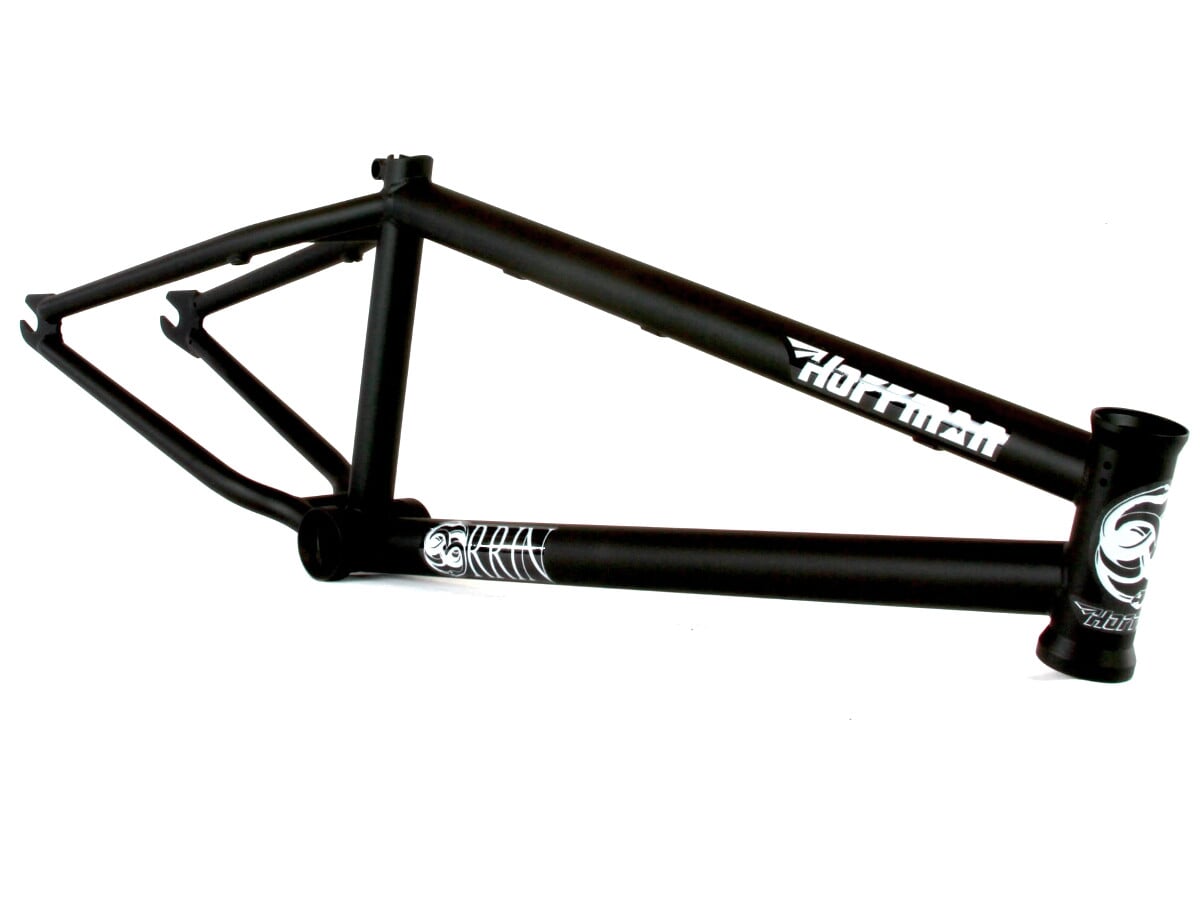

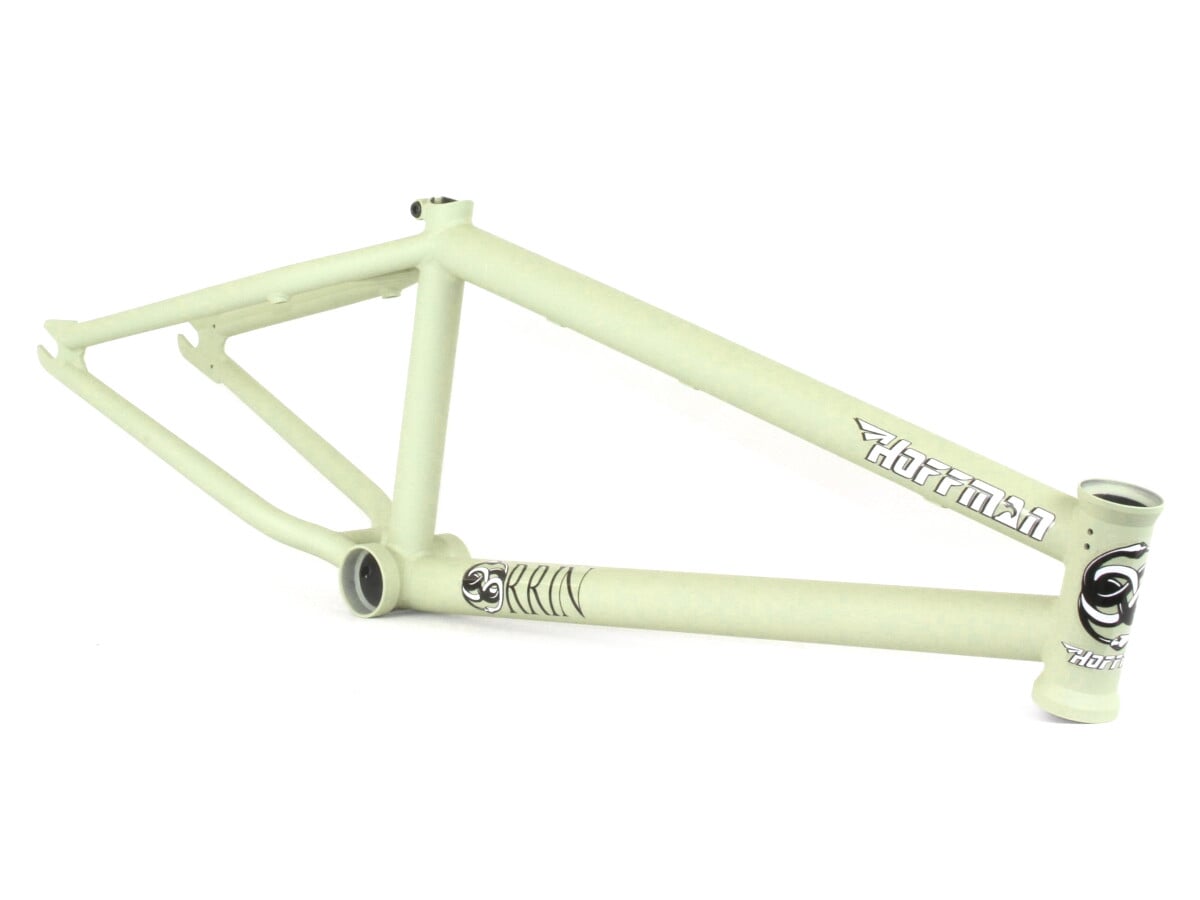

Hoffman Bikes "Orrin" BMX Frame
is the signature frame of Seth Kimbrough and was designed after his preferences.
The
Hoffman Bikes "Orrin" BMX Frame
is made of 100% 4130 chromoly and comes with a short rear end which feels responsive.
Facts: Hoffman Bikes "Orrin" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
- Top Tube Length (TT): 21.0"
- Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.56" (29.36cm)
- Standover Height (SO): - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Seth Kimbrough signature, Wide rear end for fat 2.5" tires
- Model Year: 2020
