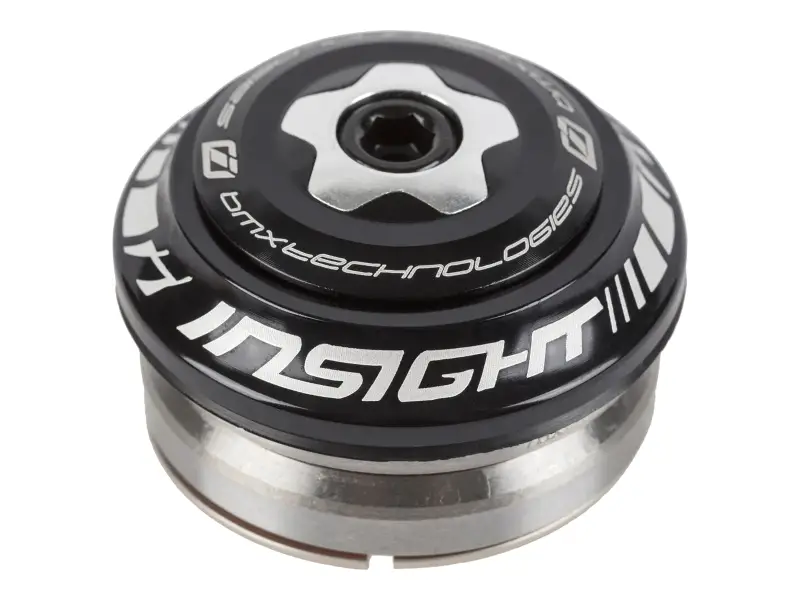

Insight "Integrated" BMX Race Headset - 1 Inch
- Weight : 0.07kg / 0.15lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45528
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-integrated-bmx-race-headset-1-inch-p-45528
Printed: 10/29/2026
Printed: 10/29/2026

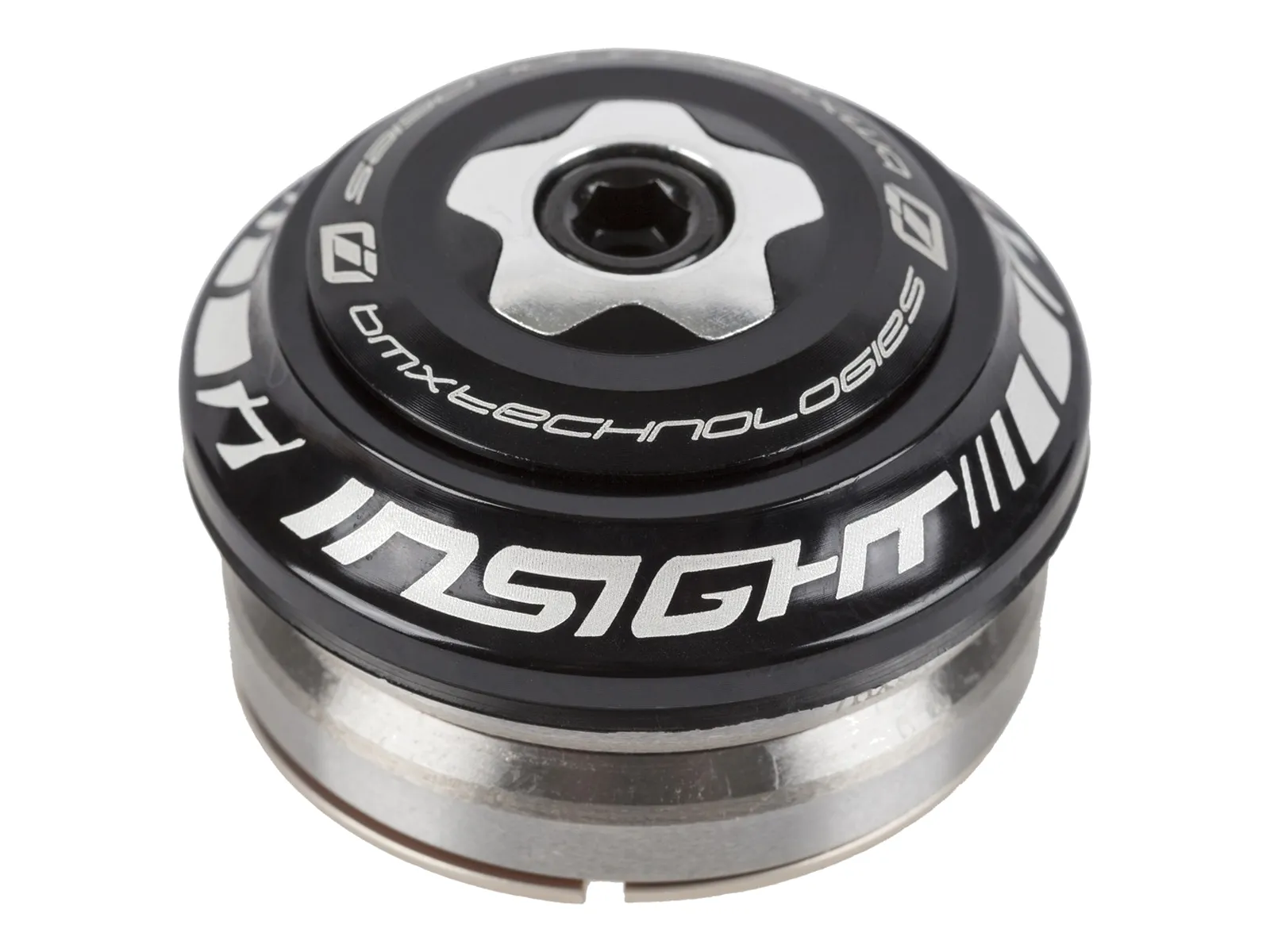

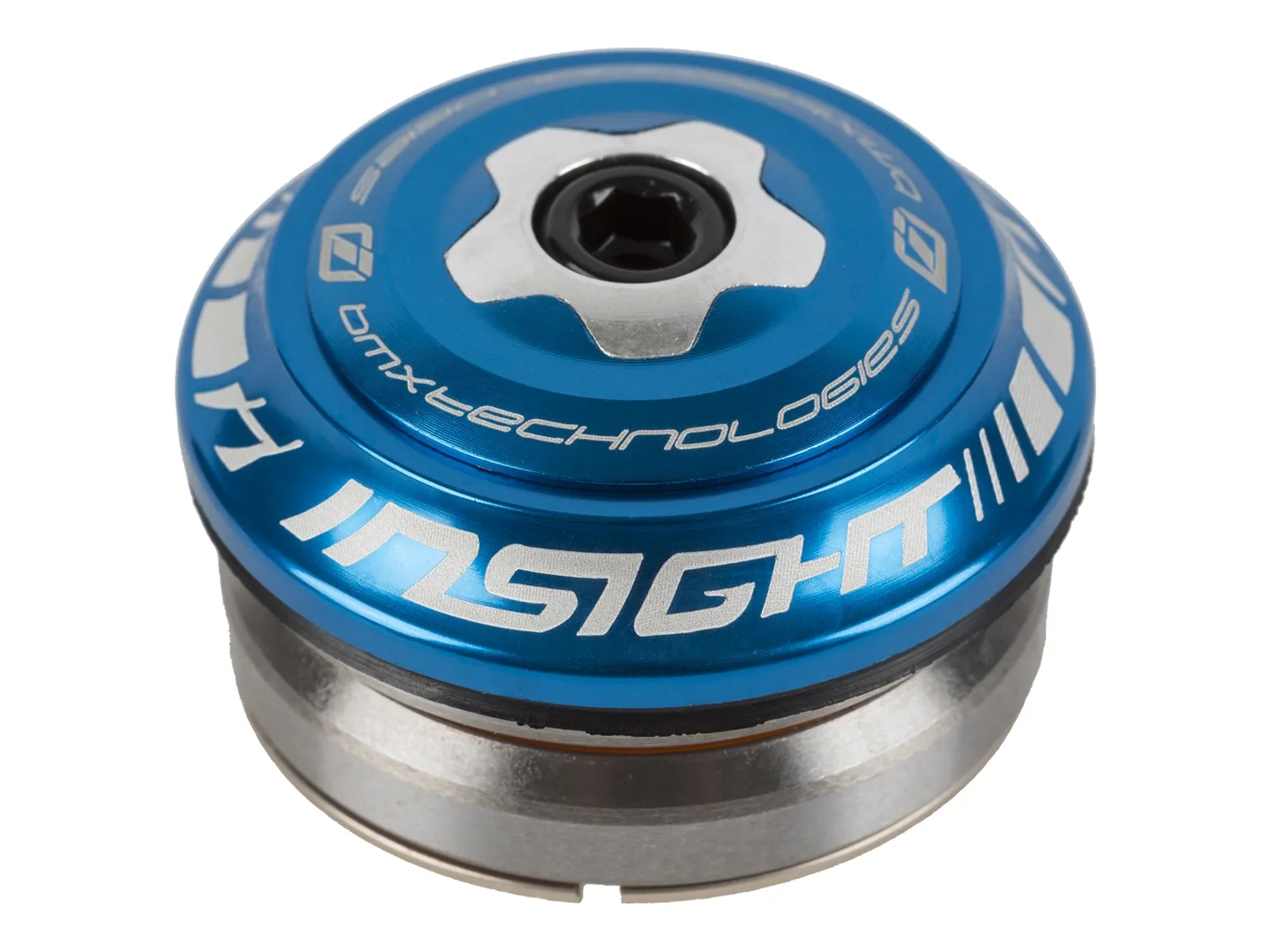

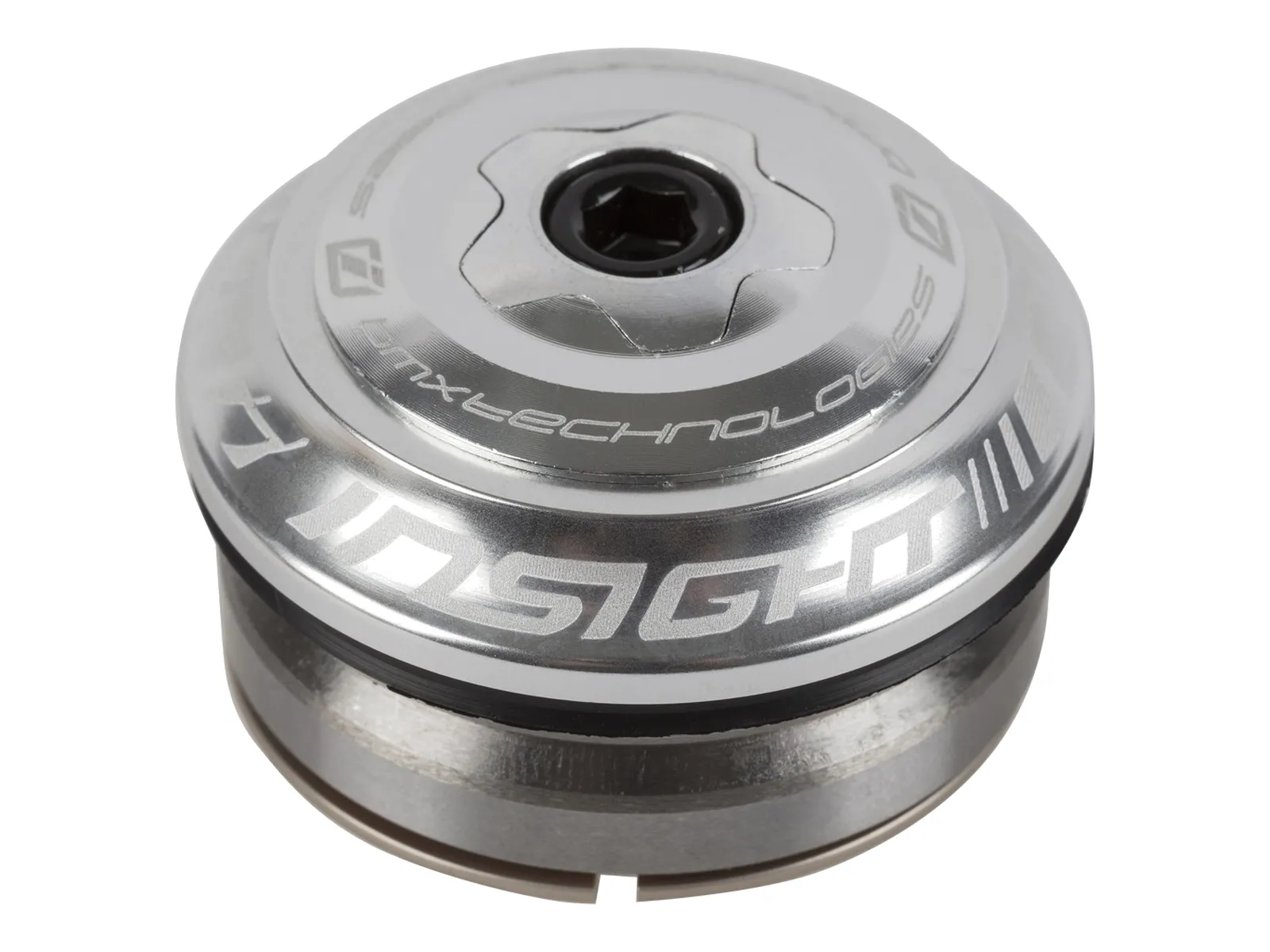

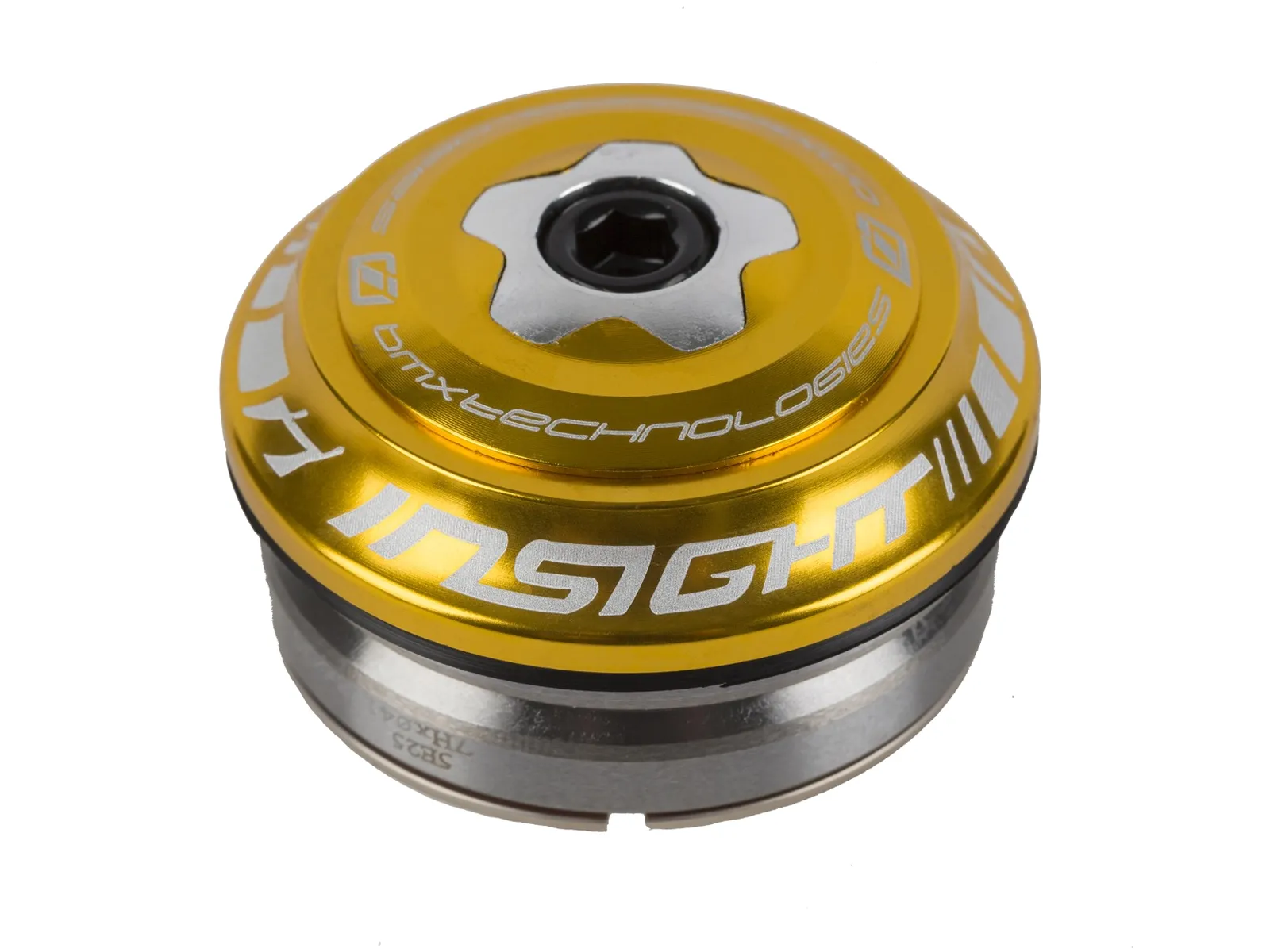

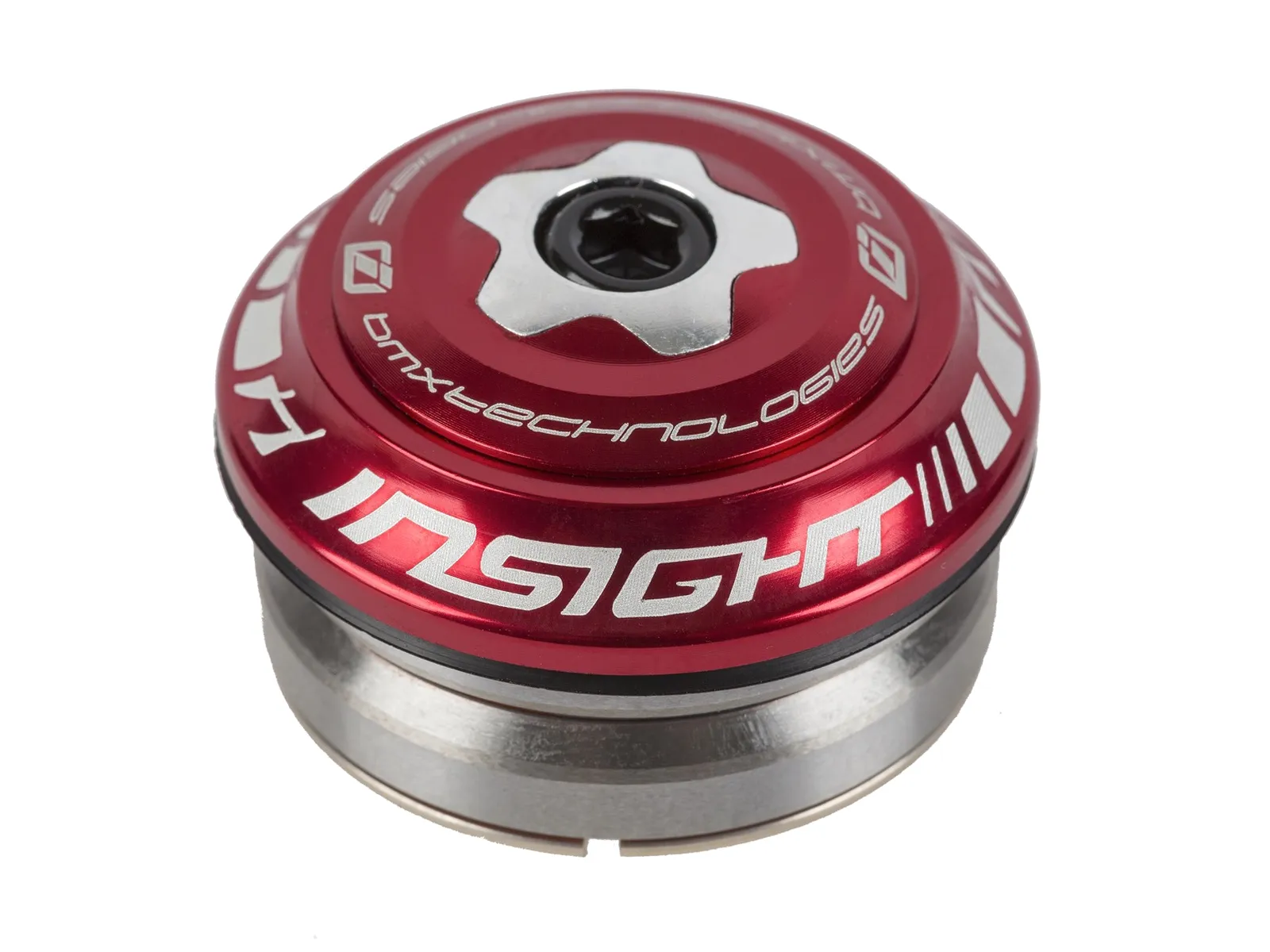

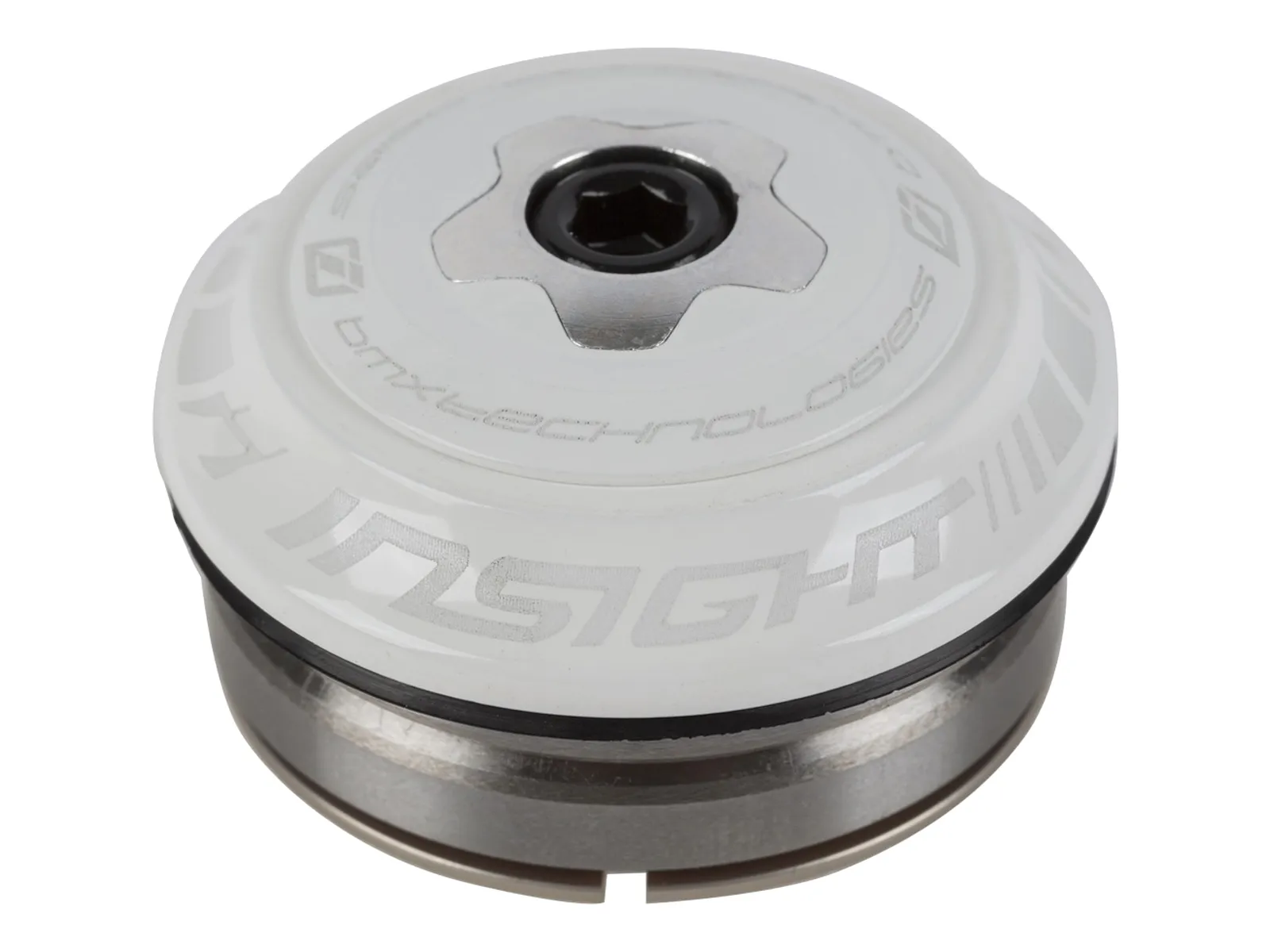

The Insight "Integrated" BMX Race Headset - 1 Inch is an integrated headset for frames with an integrated 1-1/8" head tube and forks with a 1" steerer. The sealed angular contact bearings (45° x 45°, 41.8mm, Campagnolo size) spin smoothly, and the sealed top cap keeps dirt and water out.
Top cap and compression bolt are made from 6061 aluminium, name and logo are laser etched. The slotted bearing race makes installation easier. The whole headset weighs 67g.
Facts: Insight "Integrated" BMX Race Headset - 1 Inch
- Material: 6061 aluminium top cap, star nut and compression bolt
- Size: 1" (25.4mm), IS42/25.4 top, IS42/26 bottom (42mm bearing seat), for integrated 1-1/8" head tubes
- Bearing: 2 x sealed angular contact bearings 45° x 45°, 41.8mm, Campagnolo size
- Extras: sealed top cap, slotted bearing race, laser etched name and logo, compression bolt with 4mm hex, weight 67g
- Content: 1 headset with top cap, star nut and compression bolt
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
