Insight "Mini" BMX Race Stem - 1 Inch - Ø22.2mm
- Weight : 0.23kg / 0.51lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45533
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-mini-bmx-race-stem-1-inch-222mm-p-45533
Printed: 10/29/2026
Printed: 10/29/2026

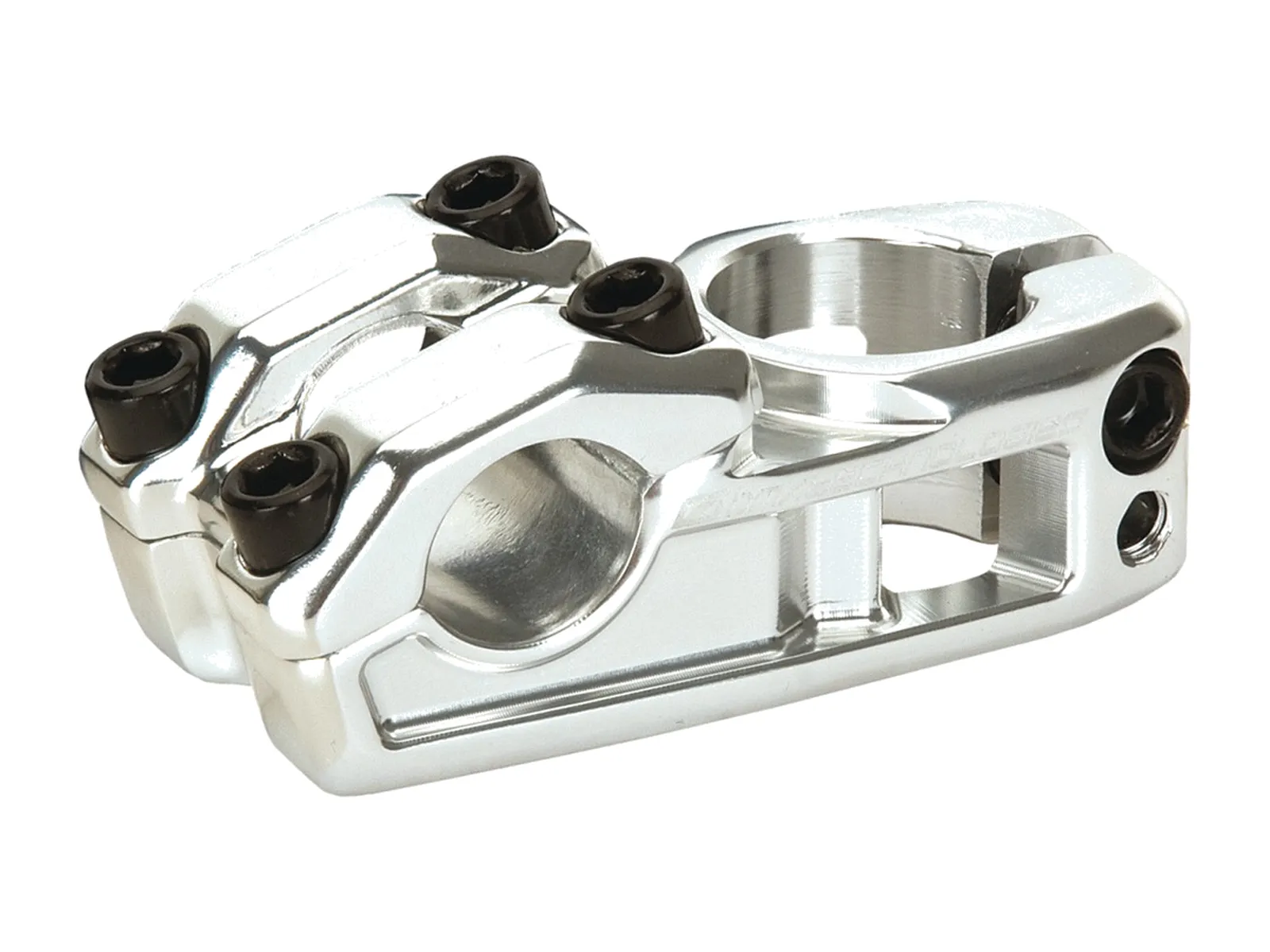

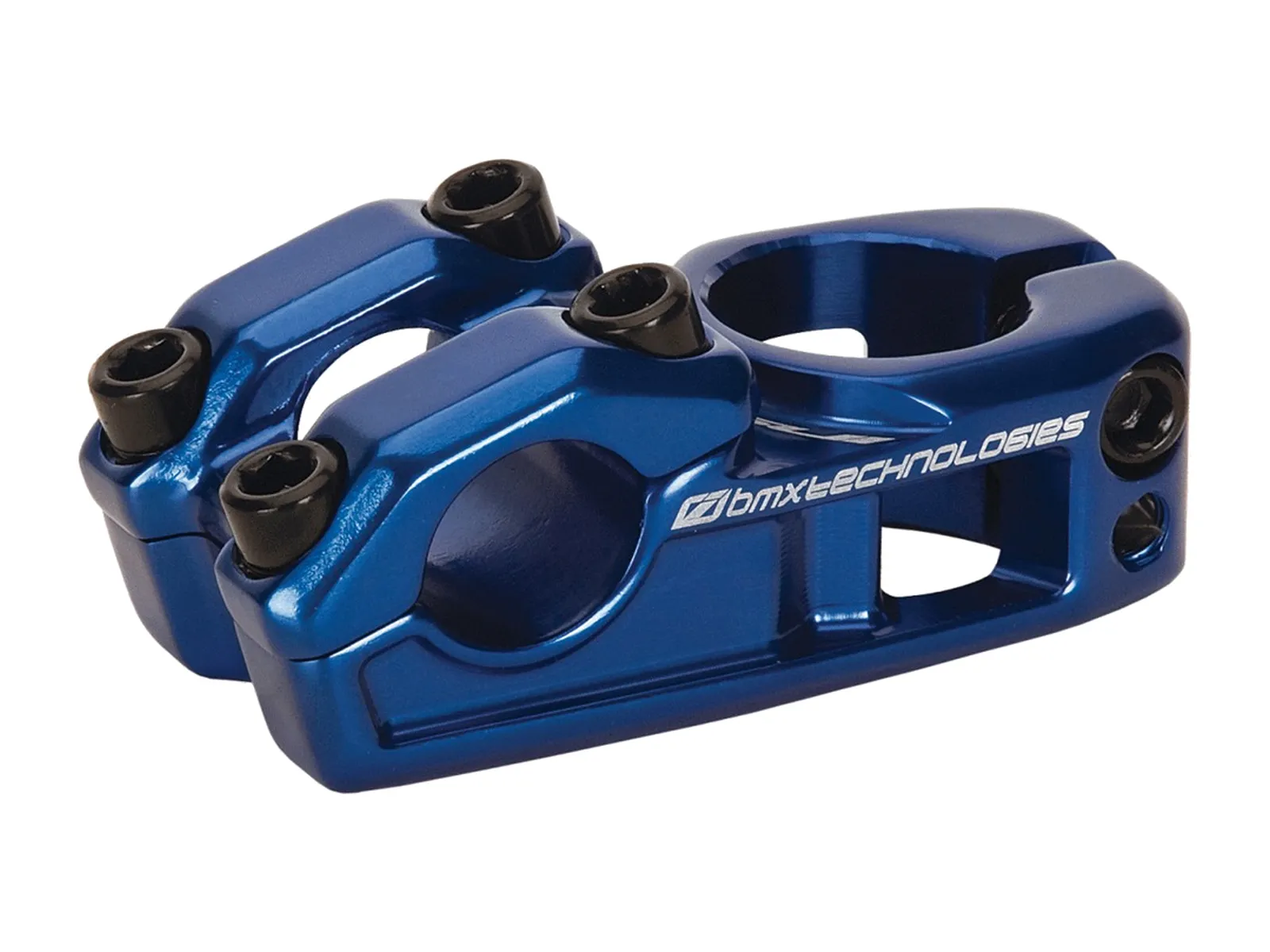

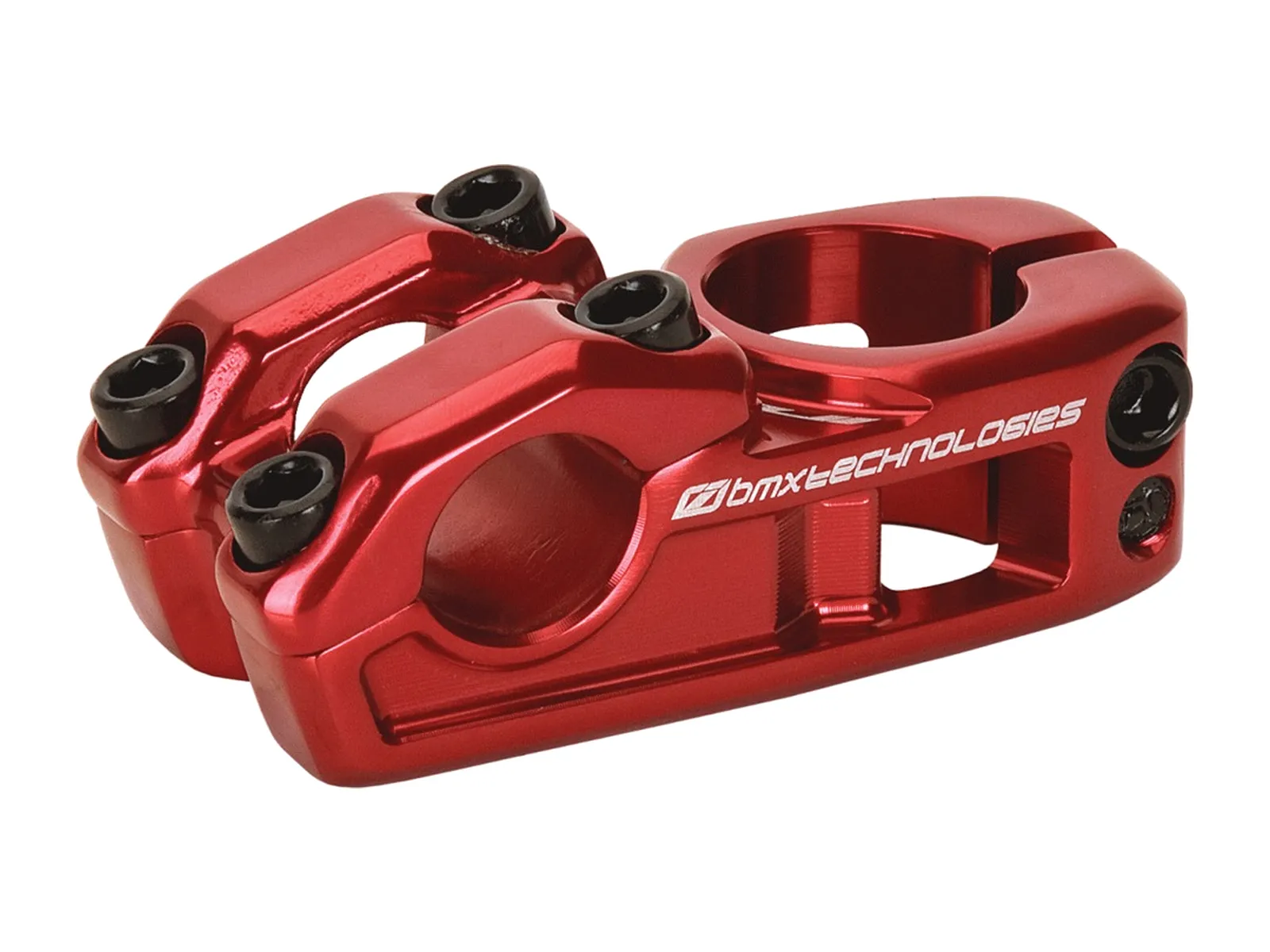

The Insight "Mini" BMX Race Stem - 1 Inch - Ø22.2mm is the small Insight stem for Mini and Junior bikes with a 1 inch steerer. It is forged from 6061-T6 aluminium and then CNC machined, so it stays light while it still clamps the bar with full power. The single piece top load cap holds the 22.2mm bar with four 6mm bolts, the Insight logos are laser etched.
According to Insight it has 24.18mm rise at 30mm stack height. Choose length and colour as options, at 35mm it weighs 220g, at 40mm 227g.
Facts: Insight "Mini" BMX Race Stem - 1 Inch - Ø22.2mm
- Stem-Type: Ahead Stem
- Stem-Style: Topload Stem
- Stem-Material: 6061 Aluminum
- Manufacturing-Method: forged, then CNC machined
- Reach: 35mm or 40mm
- Rise: 24.18mm
- Bar-Clamp: 22.2mm
- Fork-Clamp Diameter: 1" (25.4mm)
- Recommended for: Race
- Stack Height: 30mm
- Bolts: 4 clamp bolts 6mm at the bar clamp
- Extras: single piece top load cap, laser etched Insight logos, for Mini and Junior bikes, weight 220g (35mm), 227g (40mm)
- Content: 1 stem
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
