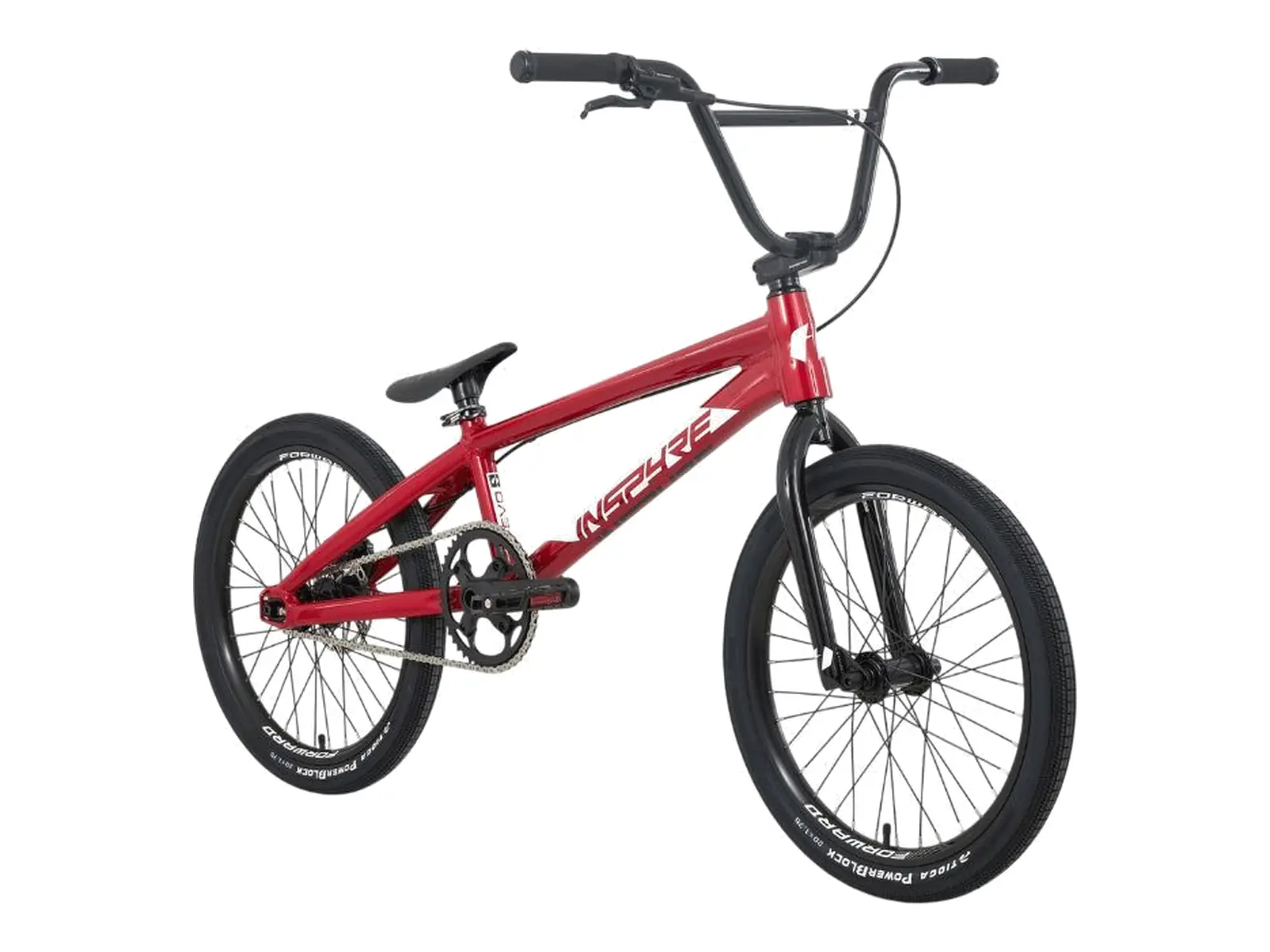

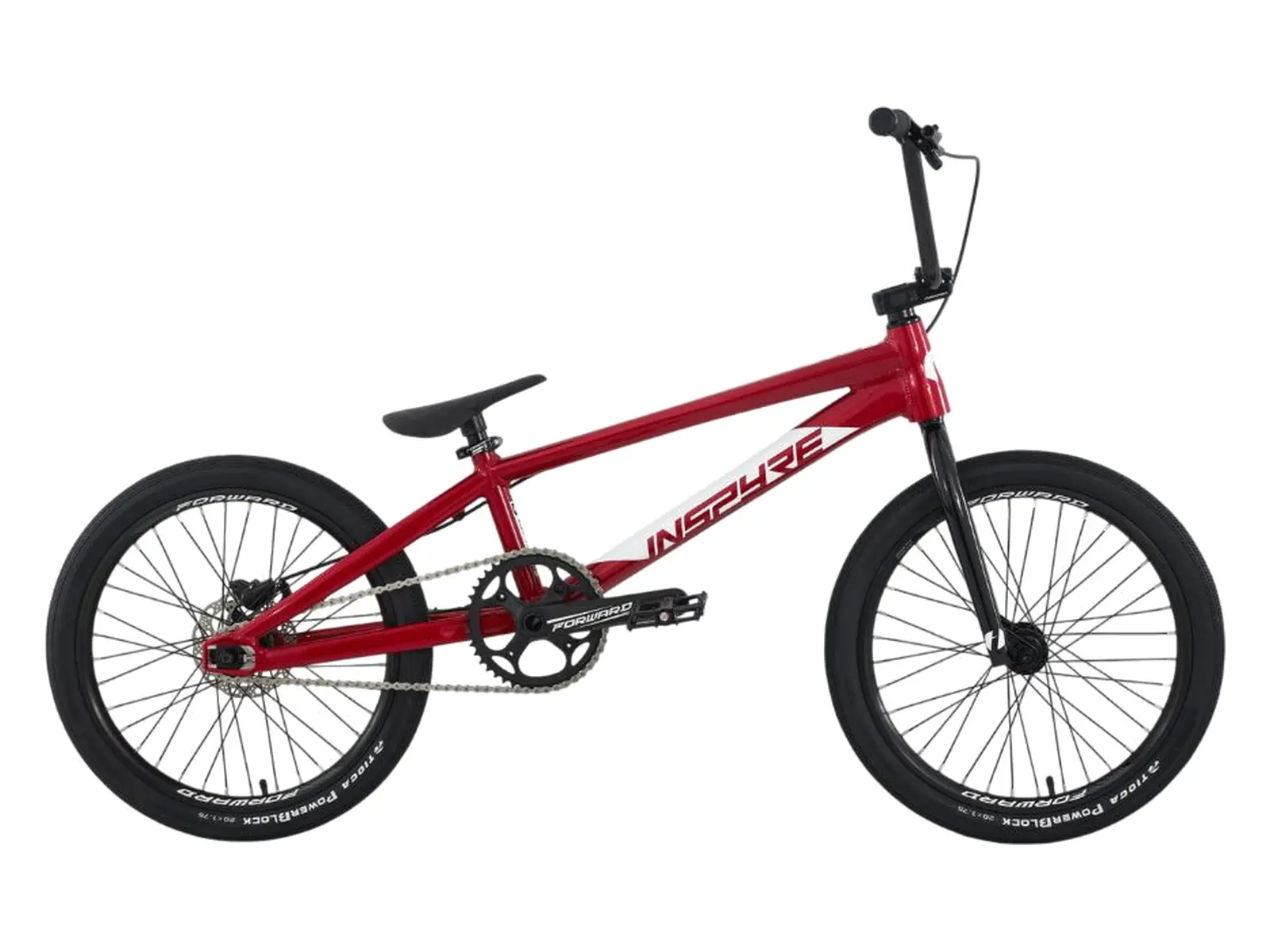

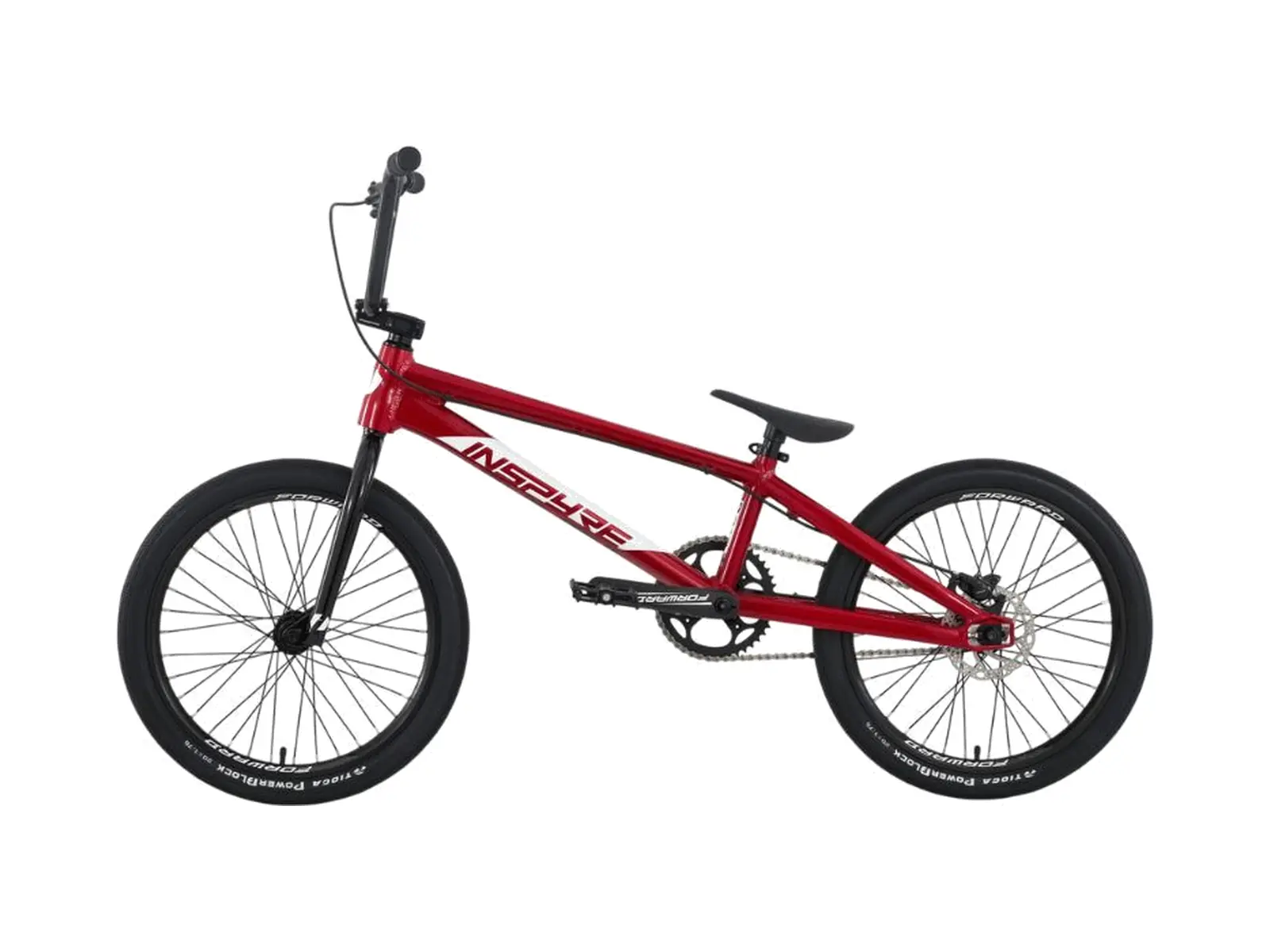

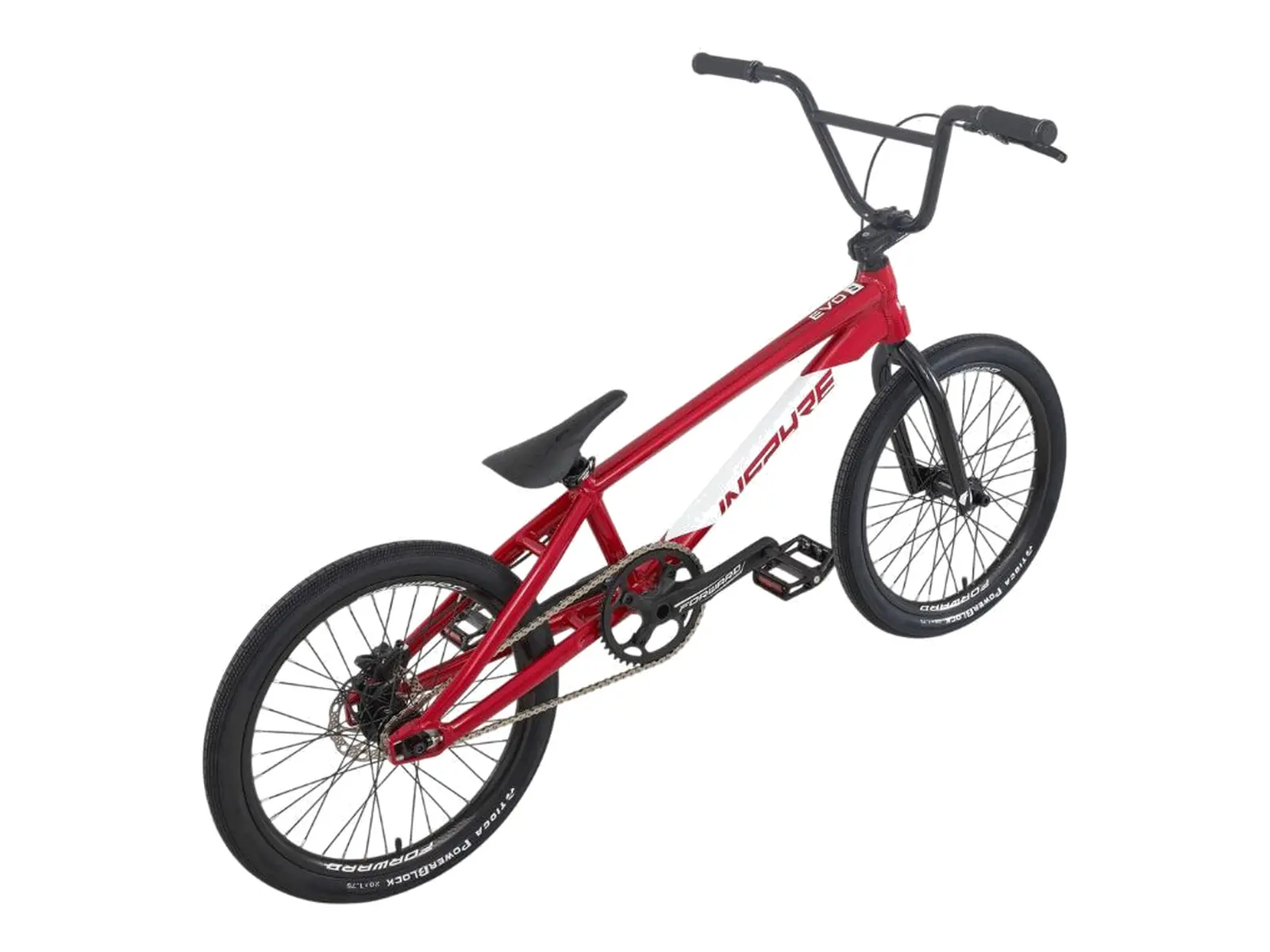

Inspyre Bicycles "Evo Disk Pro XXL" 2027 BMX Race Bike - Red
- Weight : 9.7kg / 21.38lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 41660
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
The Inspyre Bicycles "Evo Disk Pro XXL" 2027 BMX Race Bike - Red is Inspyre's race bike for riders who already race and want to go further: light, stiff and direct when sprinting.
The Evo Disk frame is built from hydroformed, triple butted 6061-T6 aluminium tubing. The forged Swell dropouts stiffen the rear end, carry the Pride Racing disc brake mount and tension the chain. For model year 2027 the Evo Disk comes with Shimano hydraulic disc brakes, the Forward "Joyride AM" crankset and Tioga "Powerblock" tires; the Mini size and two colours are new. The components are matched to the rider's height in every size.
According to Inspyre this size fits riders of about 1.75 m to 1.85 m.
Facts: Inspyre Bicycles "Evo Disk Pro XXL" 2027 BMX Race Bike - Red
- Wheelsize: 20"
- Race-Size: Pro XXL
- Model Year: 2027
- BMX Frame: Inspyre "Evo Disk Pro XXL", 6061-T6 aluminium, hydroformed and triple butted tubing, forged Swell 3D dropouts with integrated chain tensioners and disc brake mount
- Frame-Geometry: Top Tube (TT): 21.85"
- BMX Fork: Inspyre "Evo", 100% CrMo, 1-1/8" steerer, tapered legs
- BMX Bar:
- Inspyre "Evo", 100% CrMo
- Height: 8"
- Width: 28.5"
- Backsweep: 7°
- Upsweep: 1.5°
- Clamping Diameter: 22.2mm - Grips: Forward, Lock-On, Kraton, 130mm
- Stem: Forward, toploader, 6061-T6 aluminium, 50mm offset
- Headset: integrated (tapered, IS42 | IS52), sealed bearing
- Brake Lever (right): Shimano "MT401", hydraulic
- Brake (rear): Shimano "MT410", hydraulic disc brake, rotor Forward, 140mm
- Seat: seat/seatpost combo
- Seat Post: seat/seatpost combo, 27.2mm
- Seat Clamp: Forward "AM", 31.8mm
- Pedals: aluminium, 9/16"
- Chain: KMC "Z1", 1/2" x 3/32"
- Sprocket: aluminium, 4-bolt (104mm BCD), 44T
- Cog: CrMo, 16T, 1/2" x 3/32"
- Crank: Forward "Joyride AM", 2-piece, 4-bolt, 175mm
- Bottom Bracket: Forward, external BSA, sealed bearing
- Hub (front): Inspyre Evo, aluminium, sealed bearing, 10mm axle, female bolts, 36H
- Hub (rear): Inspyre Evo Disc, cassette hub, aluminium, sealed bearing, 10mm axle, female bolts, 120 points of engagement, 3 pawls, 36H
- Rim (front): Forward "Joyride", aluminium, double wall, 36H
- Rim (rear): Forward "Joyride", aluminium, double wall, 36H
- Tire (front): Tioga "Powerblock", 20" x 1.75"
- Tire (rear): Tioga "Powerblock", 20" x 1.75"
- Delivery: The BMX bike comes pre-assembled in a box. For final assembly, only the handlebar, front wheel, pedals, and saddle need to be installed. Tools are not included.
- Usage: BMX Race, designed for BMX race tracks and pump tracks.
