Kink Bikes "Brace 22mm" BMX Crank
-
Weight : 0.95kg / 2.09lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 18600
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Kink Bikes "Brace 22mm" BMX Crank

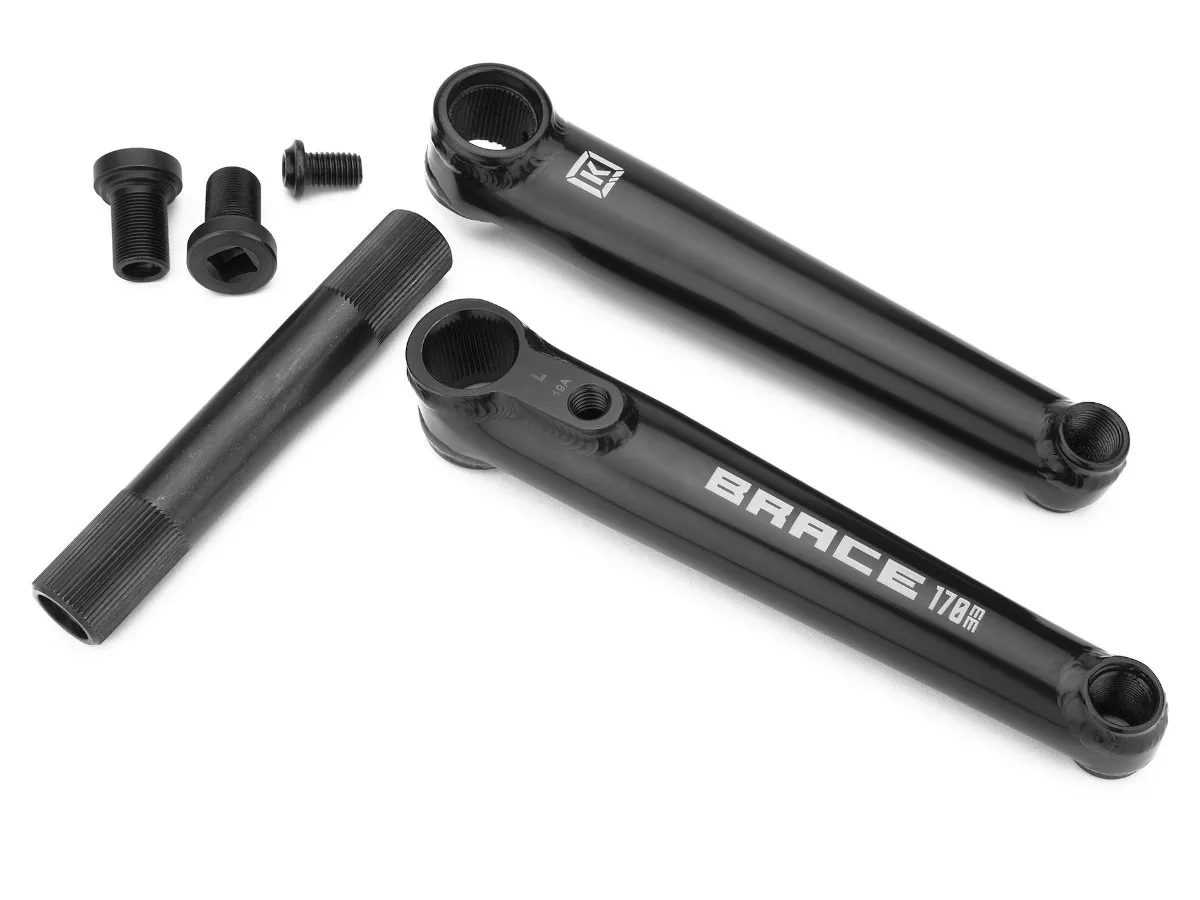

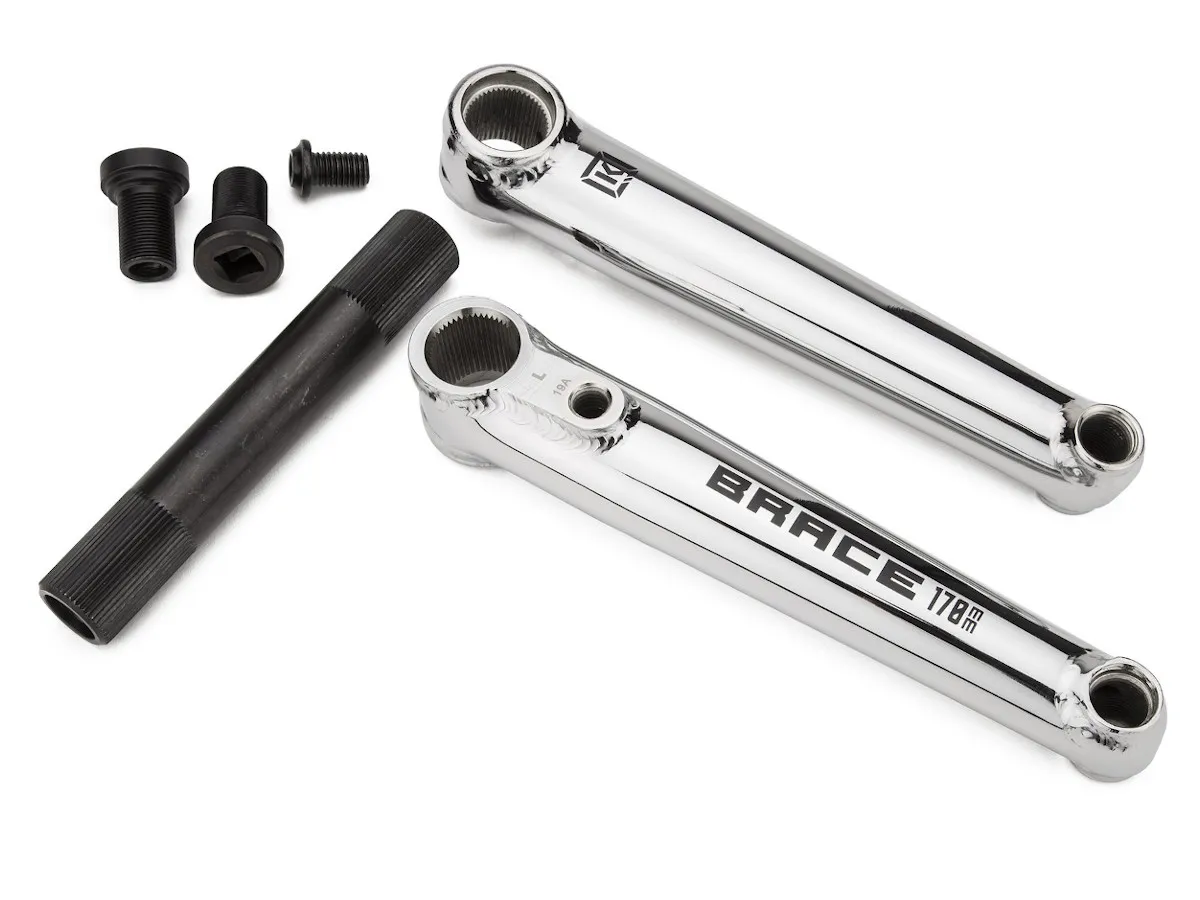

is a solid 3-piece crank made of 100% 4130 CrMo with a 48 spline hollow axle with 22mm diameter. The crank arms of the
Kink Bikes "Brace 22mm" BMX Crank
have an oval shape and the areas of the axle mount, as well as the pedal mount are completely wrapped to ensure the highest possible stability here.
Facts: Kink Bikes "Brace 22mm" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 160mm, 165mm, 170mm or 175mm
- Spindle Diameter: 22mm
- Spindle-Type: 48 Spline
- possible Sprocket Mount by:
- Bolt-Drive (25T or larger): right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 2x bolt (15x1mm, 22mm Axle) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: oval tapered tubing, completely surround welded axle and pedal jacks
- Recommended for: Street, Park, Trails or Flatland
