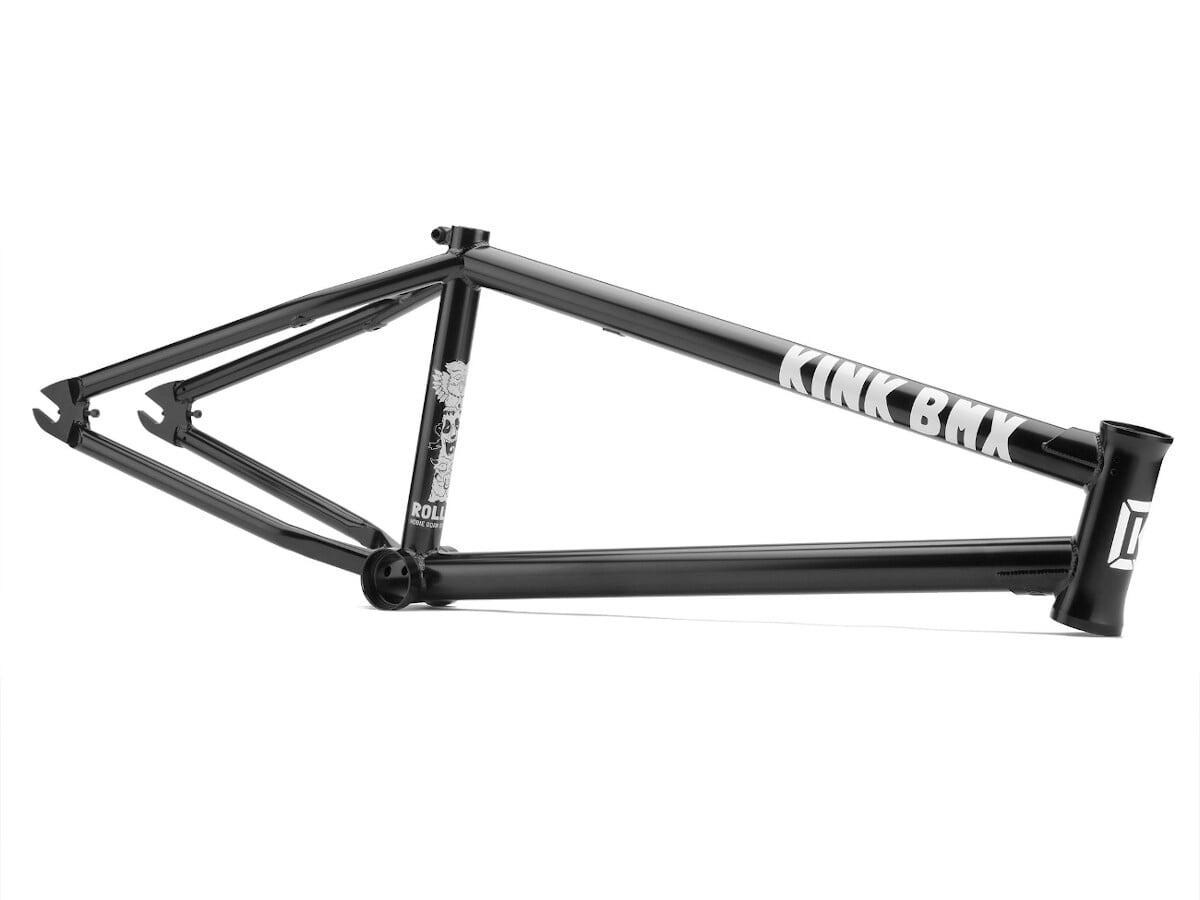

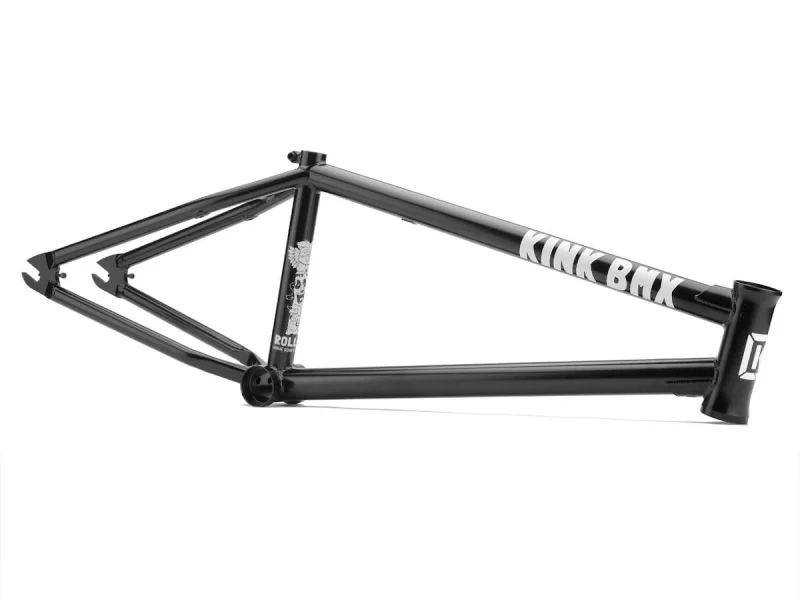

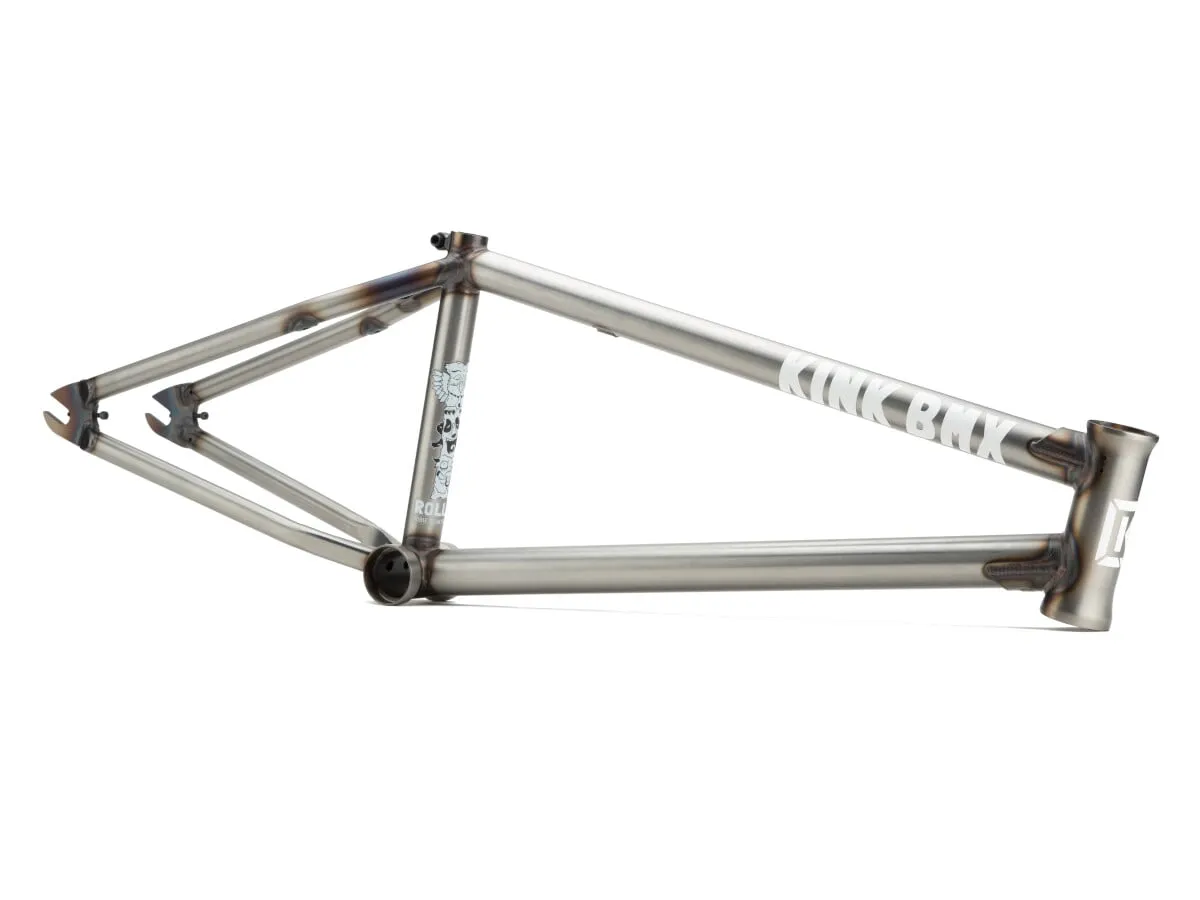

Kink Bikes "Roll Up" BMX Frame

336.09 EUR

Color | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight (in kg): 2.38
  • Weight (in lbs): 5.25
  • Packaging Unit: 1 Piece
  • Product ID (PID): 24255

The Kink Bikes "Roll Up" BMX Frame is Hobie Doans signature BMX frame, which was specially developed for street riding. The Kink Bikes "Roll Up" BMX Frame is made of double-hardened seamless 4130 CrMo steel and with its 75° steep head tube, paired with the 12.75" long chainstay, it is particularly short and therefore very manoeuvrable, perfect for technical tricks.

Facts: Kink Bikes "Roll Up" BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
  • Geometry:
    Top Tube Length (TT): 20.75", 21.0" or 21.25"
    Chainstay Length (CS): 12.75" (32.39cm) - 13.25" (33.65cm)
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 71°
    Bottom Bracket Height: 11.75" (29.85cm)
    Standover Height (SO): 9.25" (23.49cm)
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 6.5mm thick, 14mm slots, Laser Cut with Integrated Chain Tensioners
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: with (screwable, M6)
  • Brakemounts included with delivery: No
  • Gyro compatible: Yes
  • Features: Wide rear end for fat 2.5" tires
  • Model Year: 2022
  • Features: Hobie Doan Signature frame
