Meybo "HSX AL Expert" 2026 BMX Race Frame

801.95 EUR

Taxfree excl. shipping

Color | Top Tube Length

Please Select
- - berry/orange | 19.69"
  - flat-black/grey | 19.69"

Pick up in our shop?

Weight : 1.24kg / 2.73lbs
Packaging Unit: 1 Piece
Product ID (PID): 31329
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

Online: https://www.kunstform.org/en/meybo-hsx-al-expert-2026-bmx-race-frame-p-31329
Printed: 10/21/2026

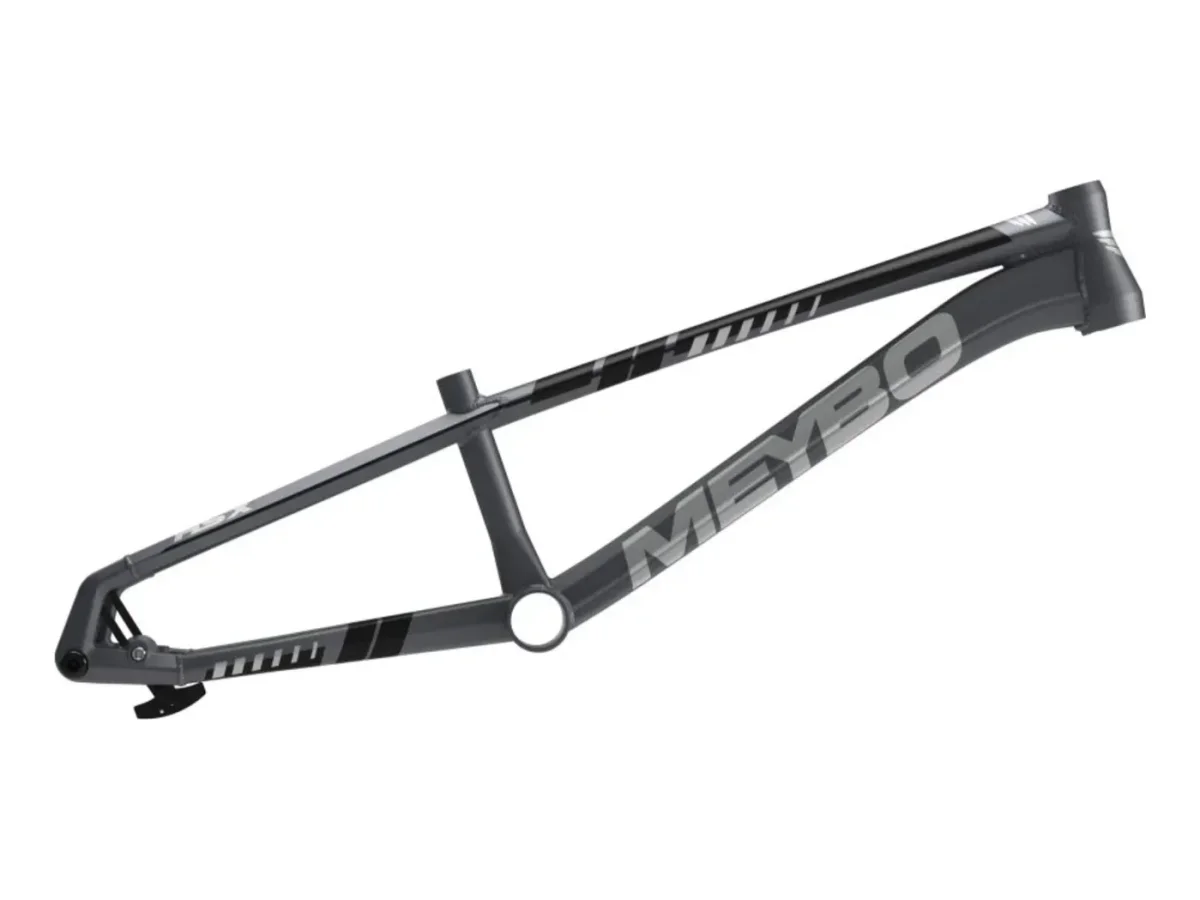

The Meybo "HSX AL Expert" 2026 BMX Race Frame is the aluminum version of the HSX, with the same features and geometry as the carbon flagship: flat-mount disc brake tabs, fixed 15mm dropouts with a solid chainstay and internal cable routing. A CNC-machined 7005 aluminum 15mm thru axle is included, plus a reducer insert for 10mm hubs.

The hydroformed, multi-butted 6061-T6 tubing makes the HSX AL the stiffest alloy frame in the Meybo line-up, for racers who want carbon geometry without the carbon price.

Facts: Meybo "HSX AL Expert" 2026 BMX Race Frame

Wheel size: 20"
Race size: Expert
Model year: 2026
Material: 6061-T6 aluminum, hydroformed multi-butted tubing
Geometry:
- Top Tube (TT): 19.69"
- Chainstay (CS): 13.39" (340mm)
- Head Tube Angle (HA): 73.5°
- Seat Tube Angle (SA): 71.0°
Head tube: 1-1/8" integrated
Bottom bracket: BB86
Dropouts:
- 15mm fixed, solid chainstay
- incl. CNC-machined 15mm thru axle (7005 aluminum)
- insert for 10mm hubs included
Brake mount: disc flat mount
Cable routing: internal
Seat clamp: without
Seat post diameter: 25.4mm
Content: 1 frame incl. 15mm thru axle
Intended use: BMX race
