Meybo "Patron Pro 22.5" 2025 BMX Race Bike - Red/Black/White
-
Weight : 10.1kg / 22.27lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28820

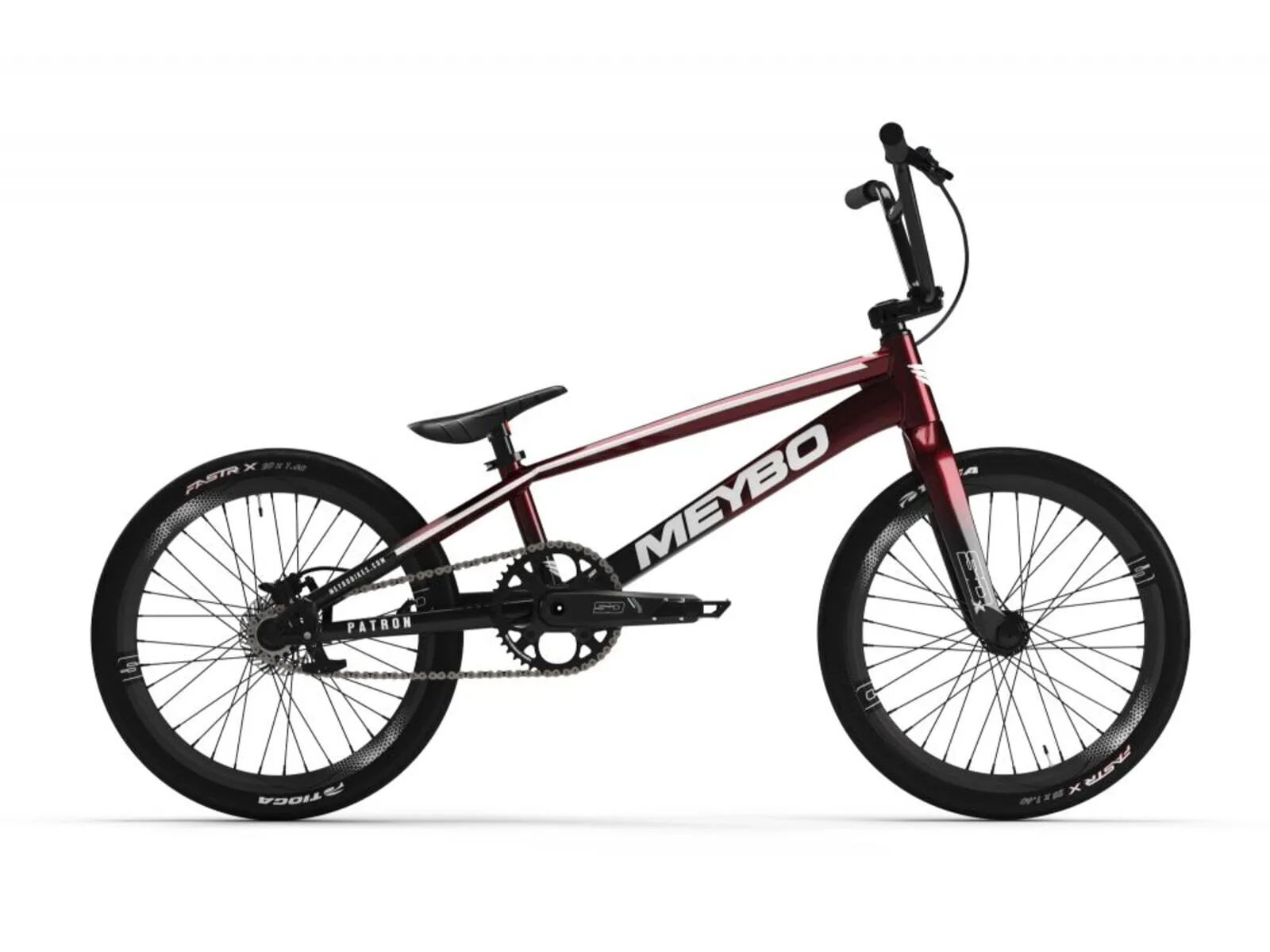

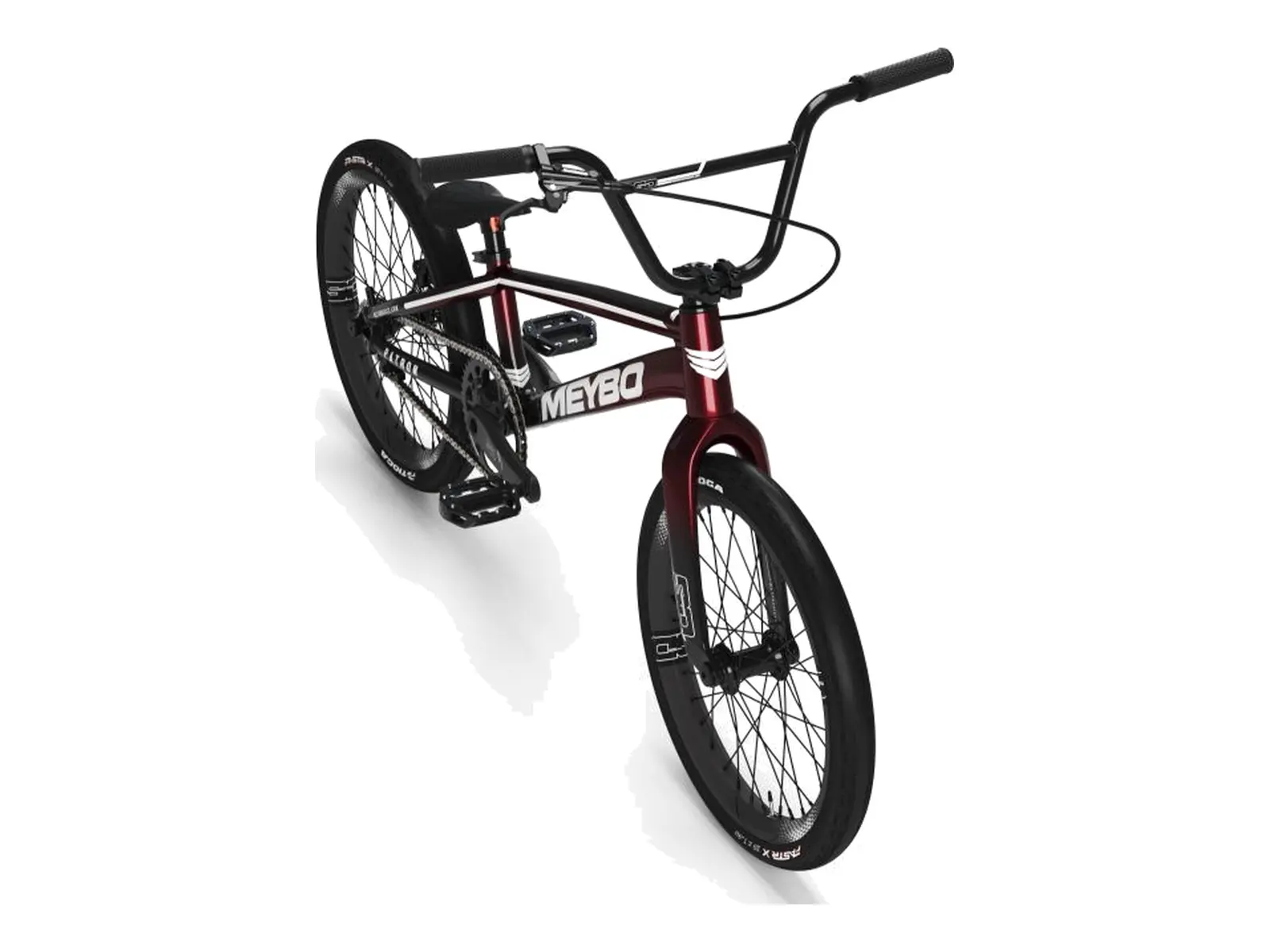

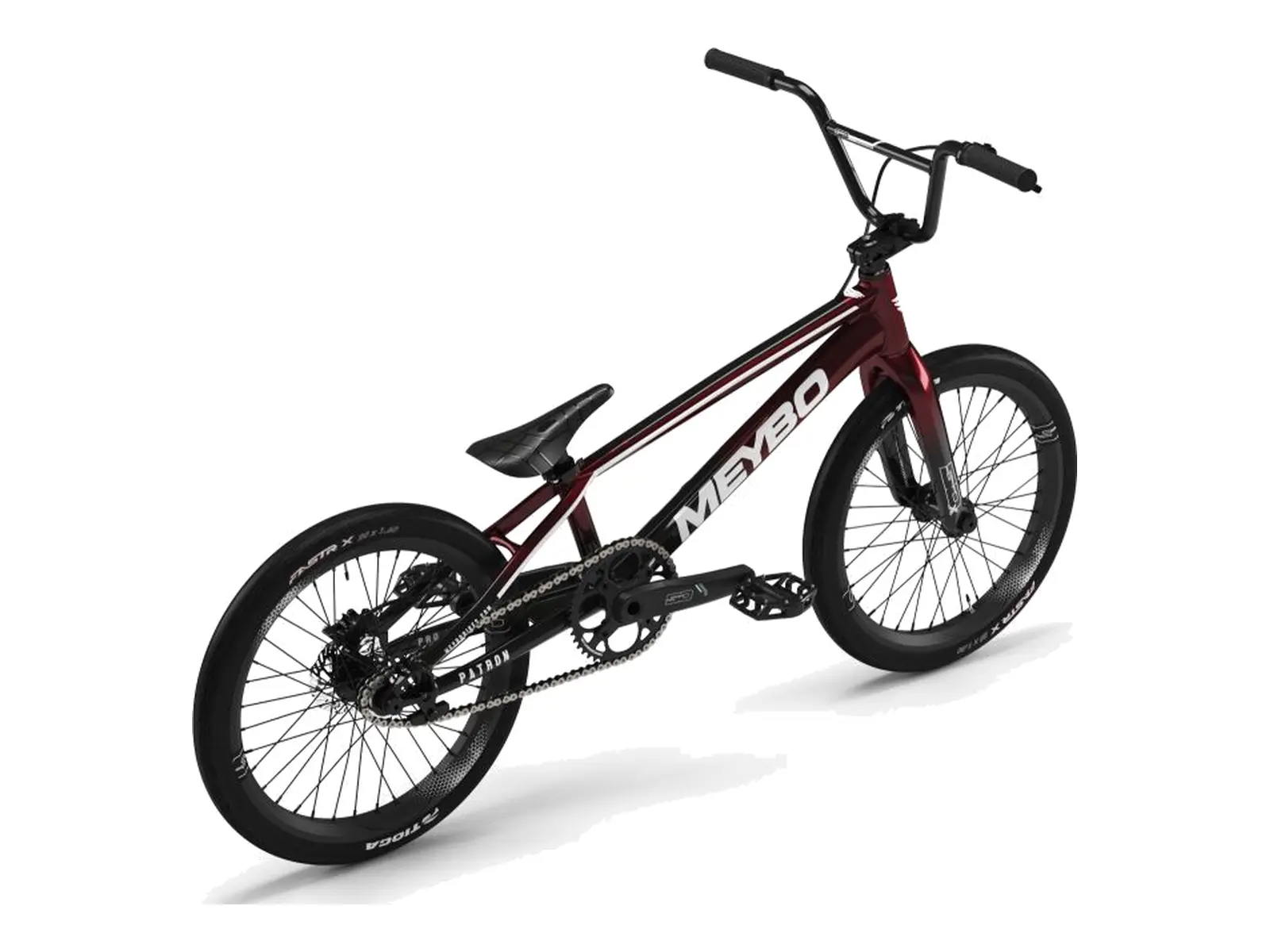

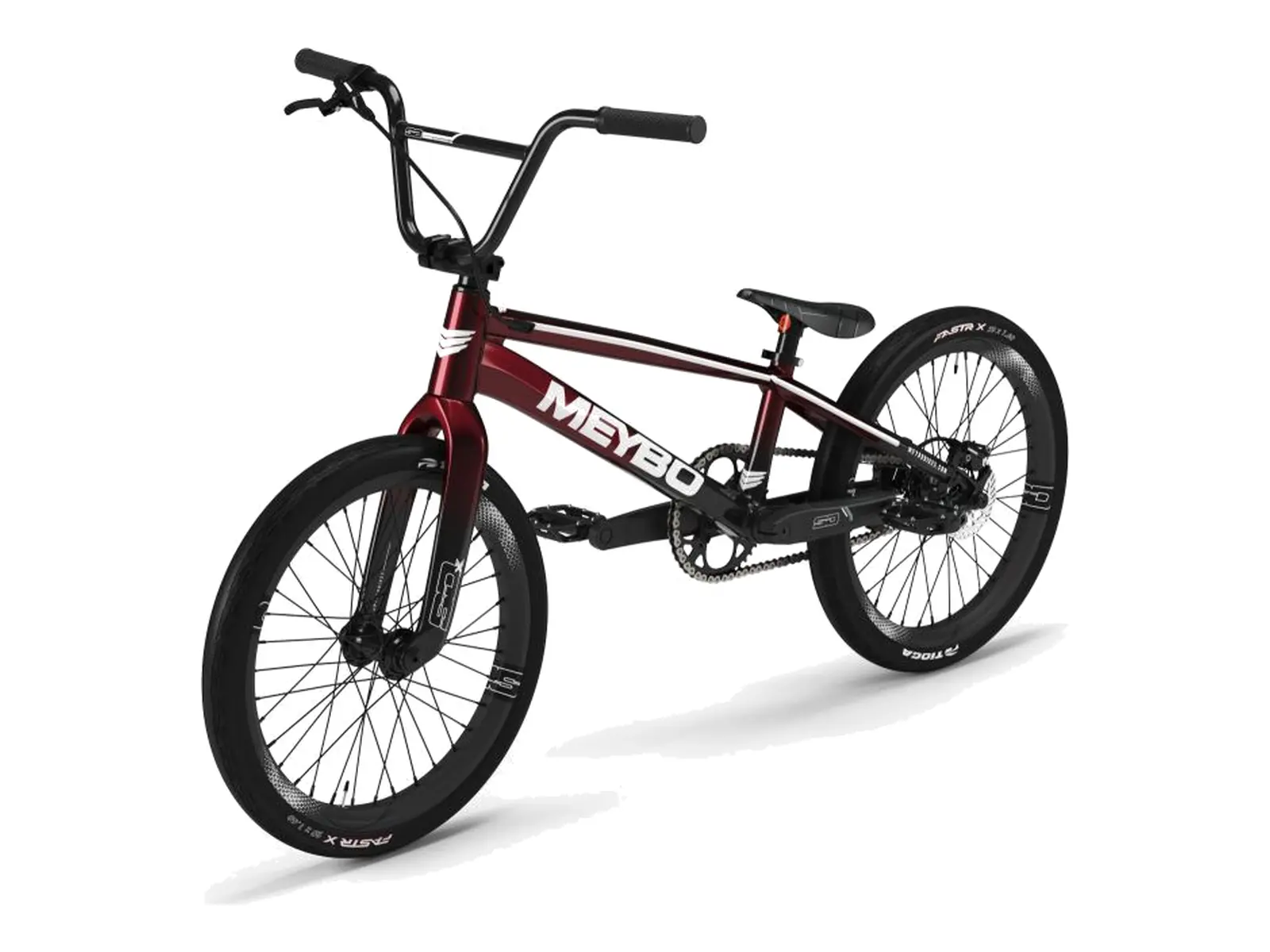

The Meybo "Patron Pro 22.5" 2025 BMX Race Bike - Red/Black/White is a high-quality BMX race bike designed for immediate use in World Cup competitions. It features a Meybo "Holeshot" Pro aluminum frame with hydroforming technology and is equipped with top-of-the-line components. The Meybo "Patron Pro 22.5" 2025 BMX Race Bike - Red/Black/White stands out with an SD "V2" carbon fork, SD "M58 V2" carbon rims, and a Shimano "MT501" hydraulic braking system. With a top tube length of 22.25", it's suitable for riders approximately 1.85m and taller.
Facts: Meybo "Patron Pro 22.5" 2025 BMX Race Bike - Red/Black/White
- Wheel size: 20"
- BMX frame: Meybo "HSX Alloy Pro", T6-6061 aluminum, disc brake System
Top tube (TT): 22.5"
Chain stay (CS): 15.35"
Head tube (HA): 74°
Seat tube (SA): 71° - BMX fork: SD "Carbon V2 Pro", tapered 20mm, 1-1/8" - 1.5"
- BMX handlebar: SD, CrMo, 1-piece, 7.75"
- Grips: SD "Lock-On", 130mm long
- Stem: SD, topload, CNC, 50mm offset
- Headset: FSA, sealed, 1-1/8" A-Head Set
- Rotor: -
- Brake lever: Shimano "MT501" aluminum, hydraulic
- Brake (rear): Shimano "MT501" aluminum, hydraulic
- Saddle: Box "Two Pro" Combo
- Seat post: Combo, aluminum, 27.2mm
- Seat clamp: SD "QR" aluminum, 31.8mm
- Pedals: Wellgo "LU-313", aluminum, sealed bearings
- Chain: KMC "K13", 1/2" x 3/32"
- Chainring: SD "V2", CNC 6061, 4H 44T, aluminum
- Crank: SD "Pro hollow 4-lite", 4H, aluminum, 3-piece, 175mm long, 9/16"
- Bottom bracket: EURO BB (BSA: BB30), square taper, sealed bearing, 24mm
- Hub (front): SD "Ace Pro", 36H, aluminum, fully sealed, 20mm, female screws
- Hub (rear): SD "Ace HSX" cassette, disc brake mount, 36H, 6-pawls, 180 teeth, 15mm female screws
Driver: 18T - Rim (front): SD "M58 V2", carbon, 36H, 20 x 175" 25mm
- Rim (rear): SD "M58 V2", carbon, 36H, 20 x 175" 25mm
- Tires (front): Tioga "Fast-X" BMX race tires
Width: 20" x 1.75" - Tires (rear): Tioga "Fast-X" BMX Race Tires
Width: 20" x 1.75" - Pegs: -
