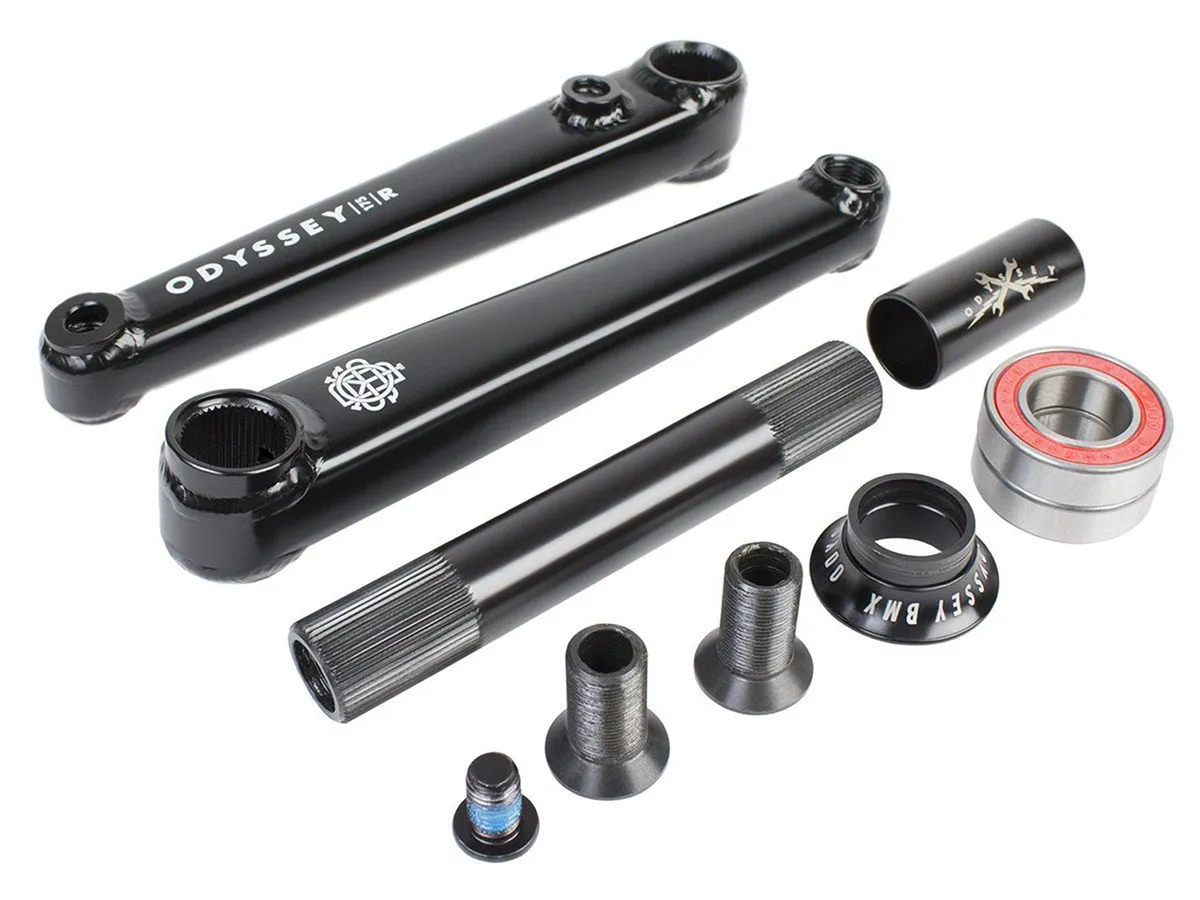

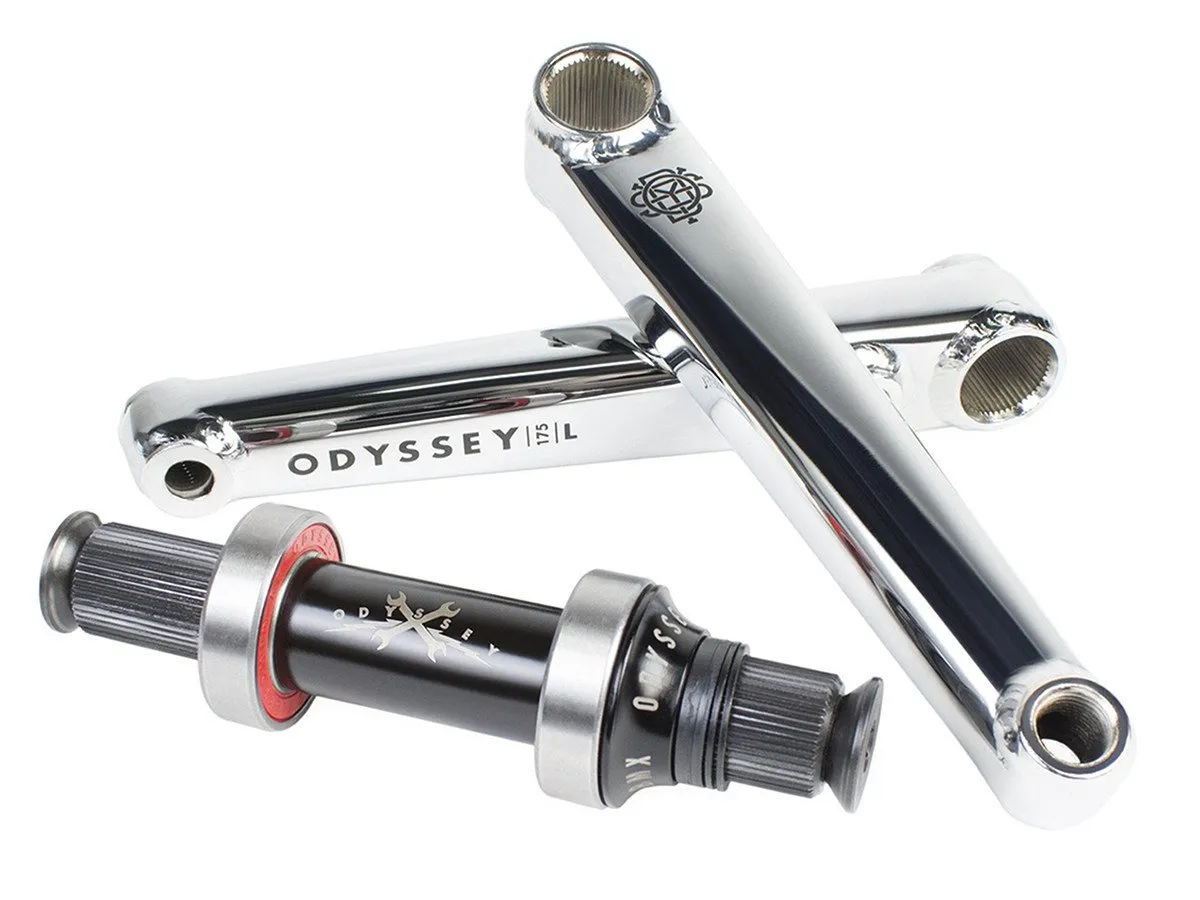

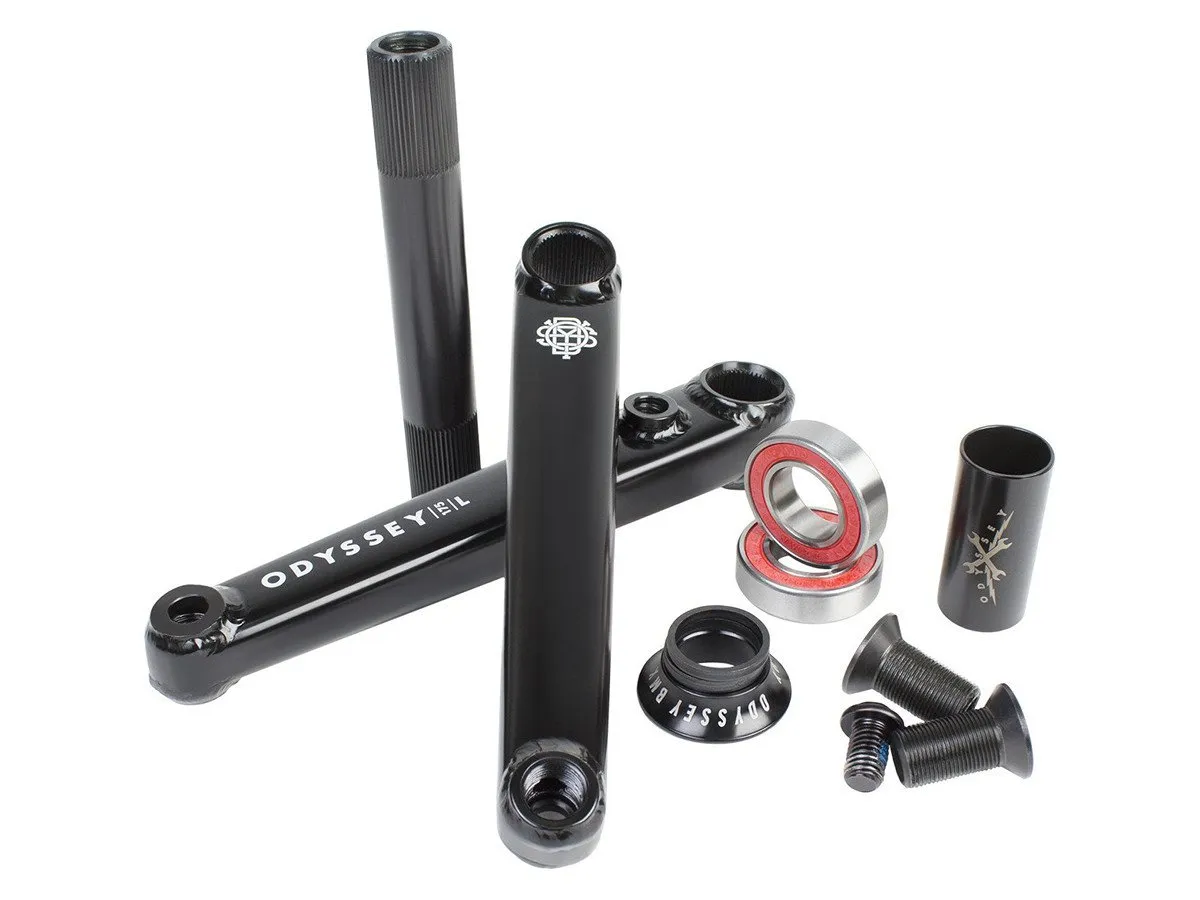

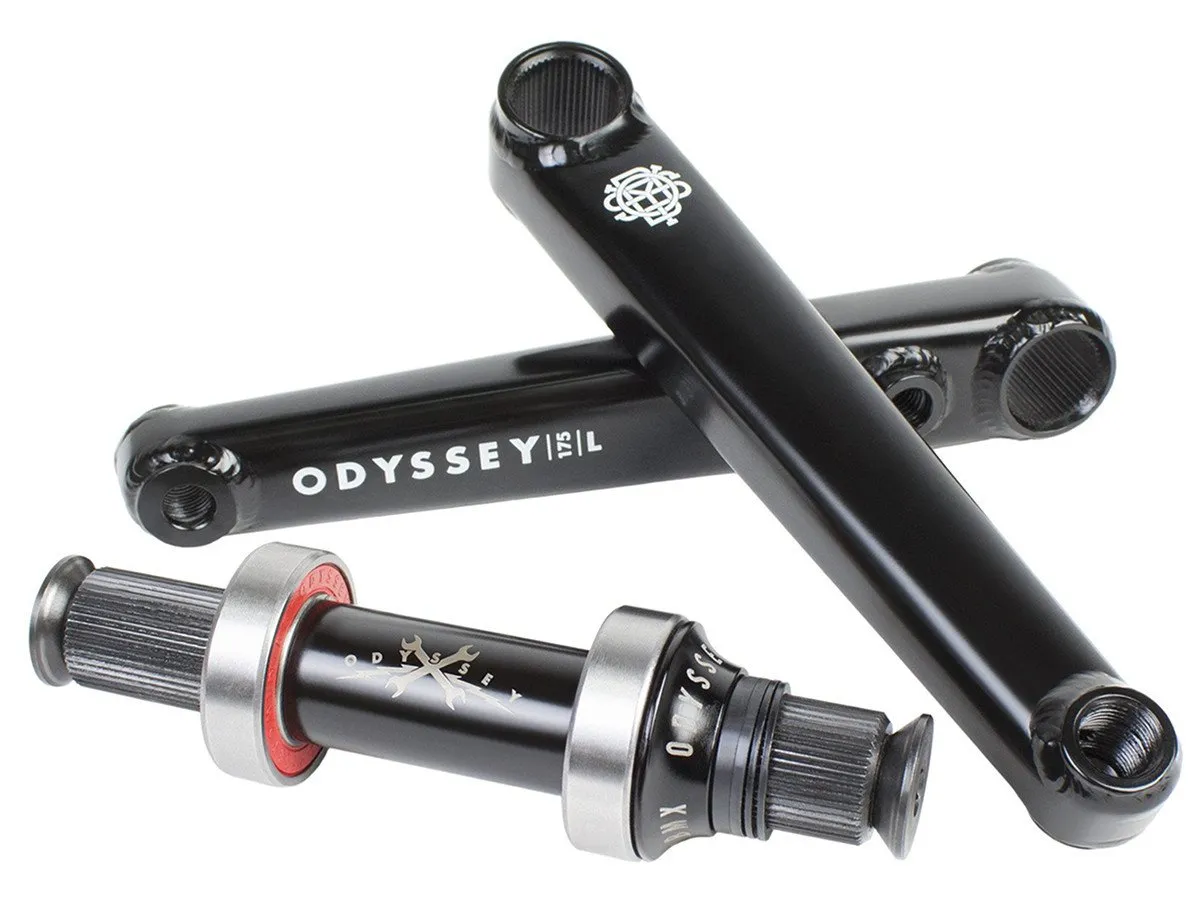

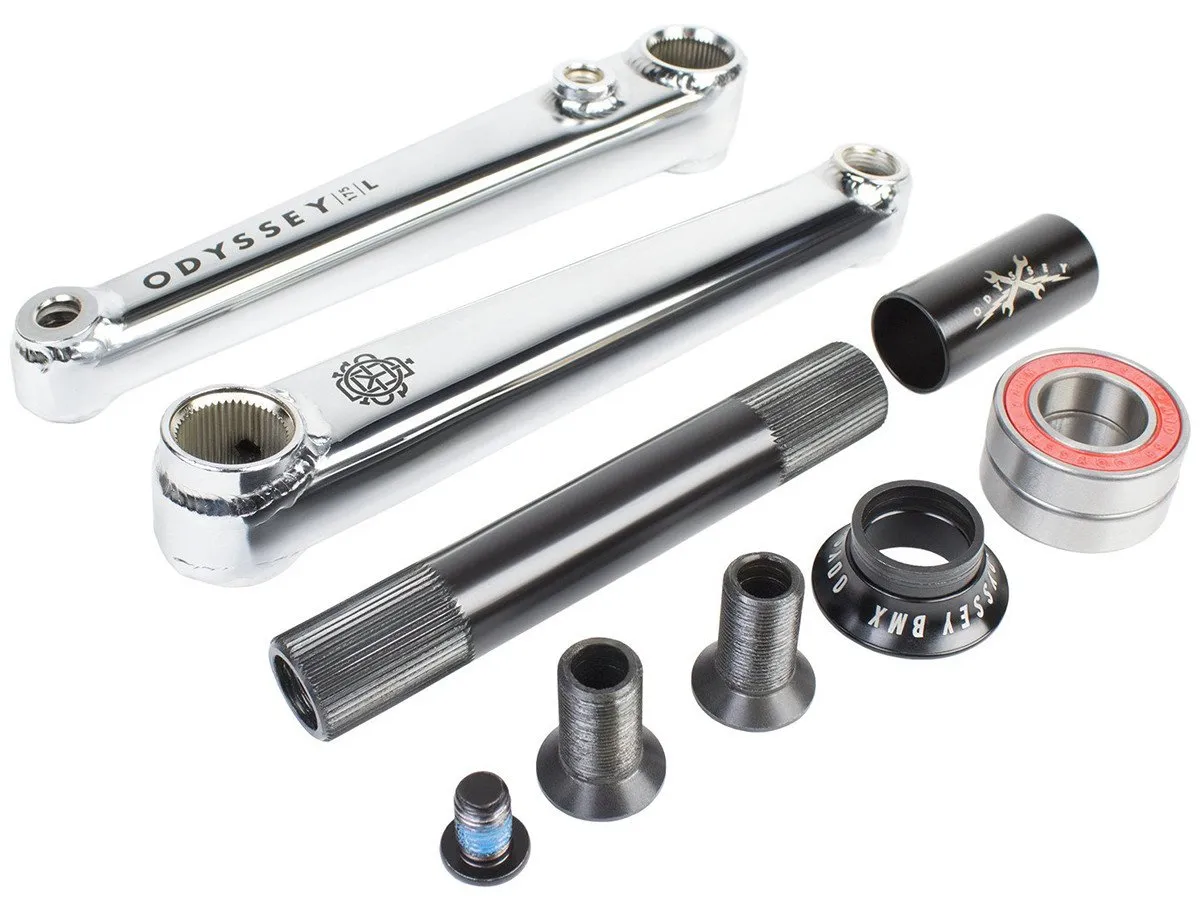

Odyssey BMX "Calibur" BMX Crank

169.95 EUR

[incl. 19% VAT excl. shipping]
Color
lenght
Qty.

The Odyssey BMX "Calibur" BMX Crank is a 3-pc BMX Crank and comes already with a high quality Odyssey BMX "Mid BB" Buttom Bracket. The Odyssey BMX "Calibur" BMX Crank can be used as LHD or RHD and is equipped with a 22mm crank spindle.

Facts: Odyssey BMX "Calibur" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, hollow
  • Crank-Type: 3-piece
  • Crank Arm Length: 165mm, 170mm or 175mm (selectable as an option)
  • Spindle Diameter: 22mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 2x bolts (15x1mm, 22mm Axle) with 6mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
  • Extras: completely surround welded axle and pedal jacks, rectangular flattened arms, including Mid BB Buttom Bracket
  • Recommended for: Street, Park, Trails or Flatland
  • Model Year: 2017


  • Weight (in kg): 0.90
  • Weight (in lbs): 1.98
  •
  • Packaging Unit: 1 Piece
  •
  • Product ID (PID): 11330
