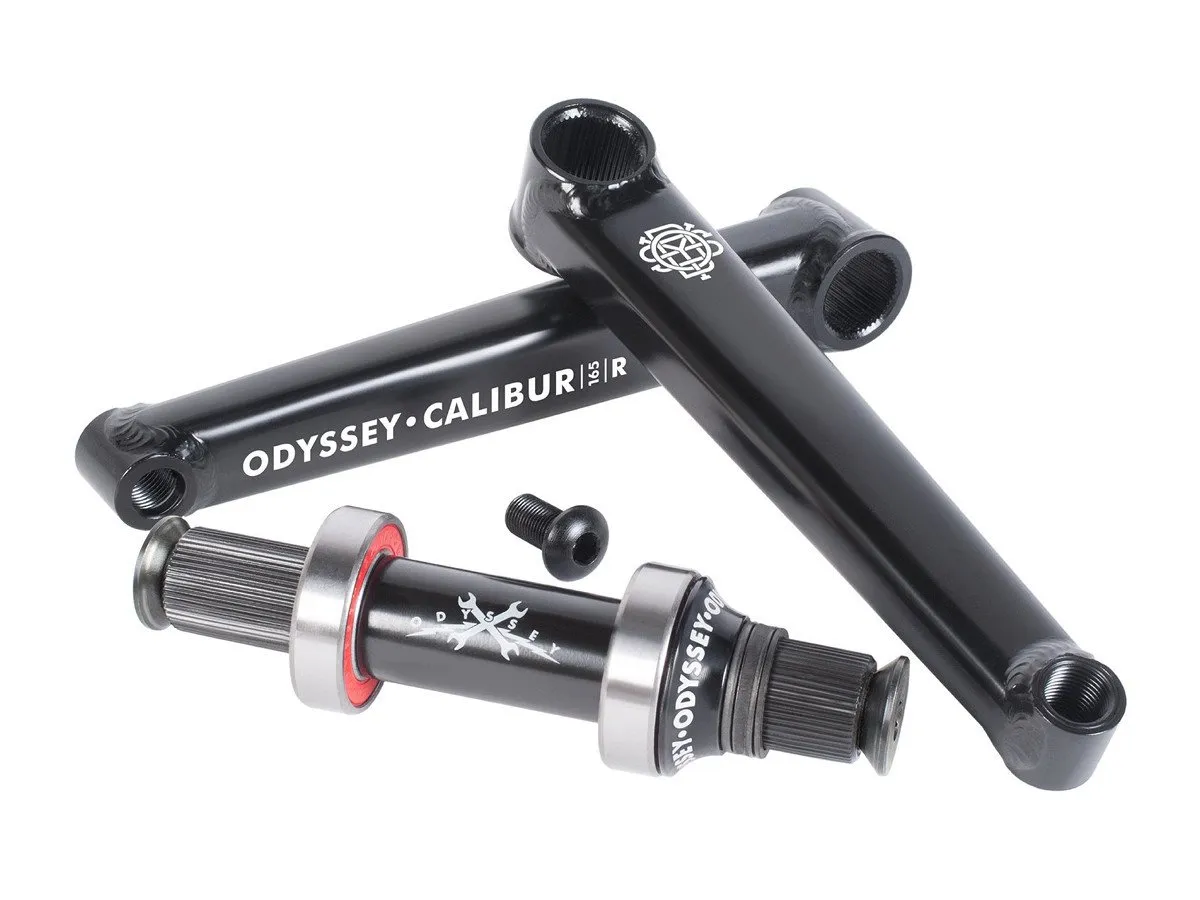

Odyssey BMX "Calibur V2" BMX Crank + Mid BB
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 0.9kg / 1.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 17886
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
Inspired by the V1 introduced in March 2017, this new evolution of Odyssey's splined 3-pc crankset comes with an improvement in strength and overall design.
The
Odyssey BMX "Calibur V2" BMX Crank + Mid BB
is a 3-pc BMX Crank and comes already with a high quality Odyssey BMX "Mid BB" Buttom Bracket.
The
Odyssey BMX "Calibur V2" BMX Crank + Mid BB
can be used as LHD or RHD and is equipped with a 22mm crank spindle.
Facts: Odyssey BMX "Calibur V2" BMX Crank + Mid BB
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 175mm
- Spindle Diameter: 22mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
- Bolt-Drive (25T or larger): right (RHD) and left (LHD)
- Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 2x bolts (15x1mm, 22mm Axle) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: completely surround welded axle and pedal jacks, rectangular flattened arms, including Mid BB Buttom Bracket, improved design
- Recommended for: Street, Park, Trails or Flatland
- Model Year: 2020
