Onyx "Ultra" BMX Race Driver

Name: Onyx "Ultra" BMX Race Driver
Brand: Onyx
SKU: 45987-2
Availability: InStock

124.95 EUR

Taxfree excl. shipping

Color | Style

Please Select
- - silver | Old and New Clutch, with bearings
  - silver | Retrofit, with bearings
  - silver | Retrofit, without bearings

Pick up in our shop?

Weight : 0.05kg / 0.11lbs
Packaging Unit: 1 Piece
Product ID (PID): 45987
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

Online: https://www.kunstform.org/en/onyx-ultra-bmx-race-driver-p-45987
Printed: 10/30/2026

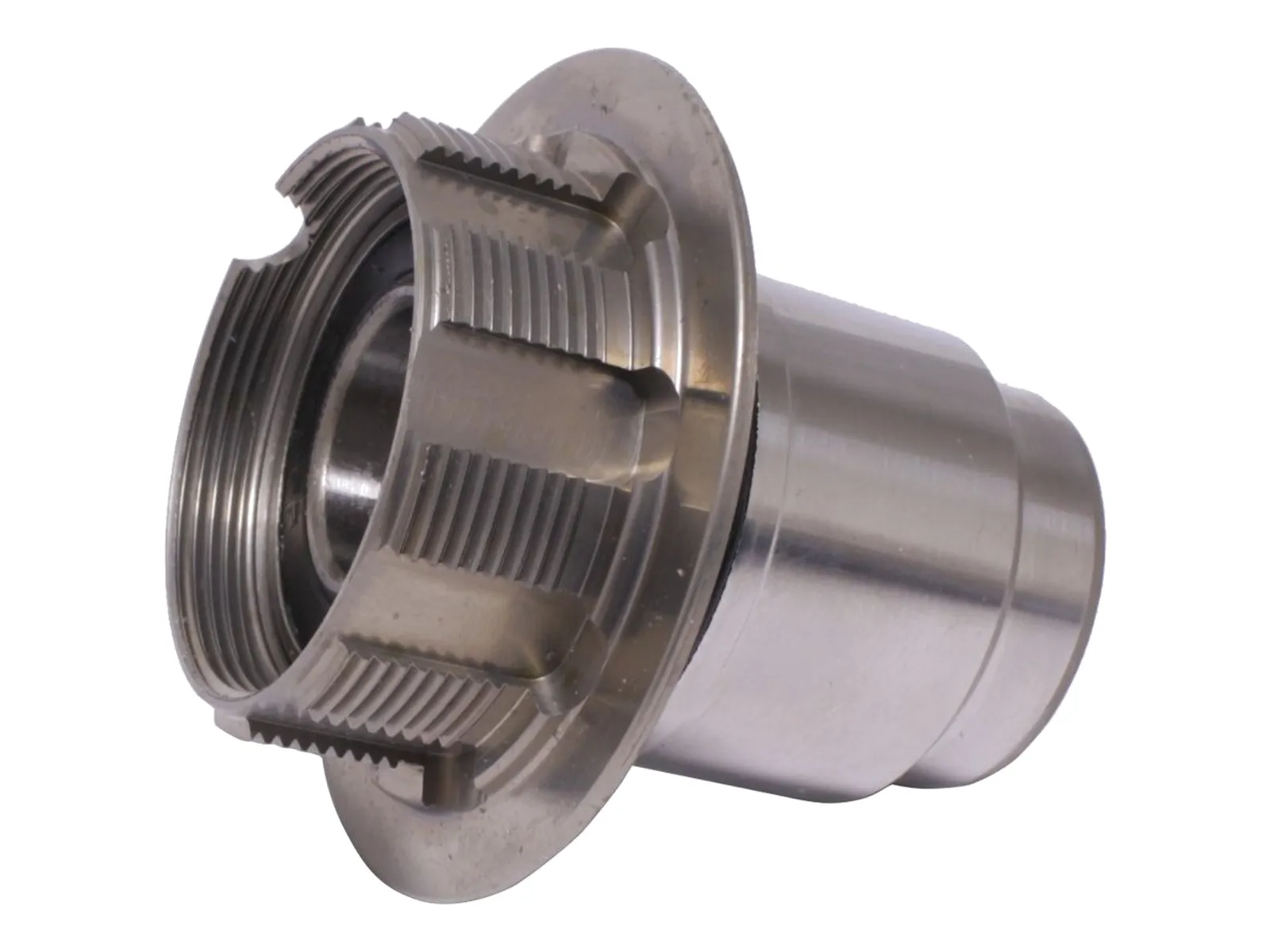

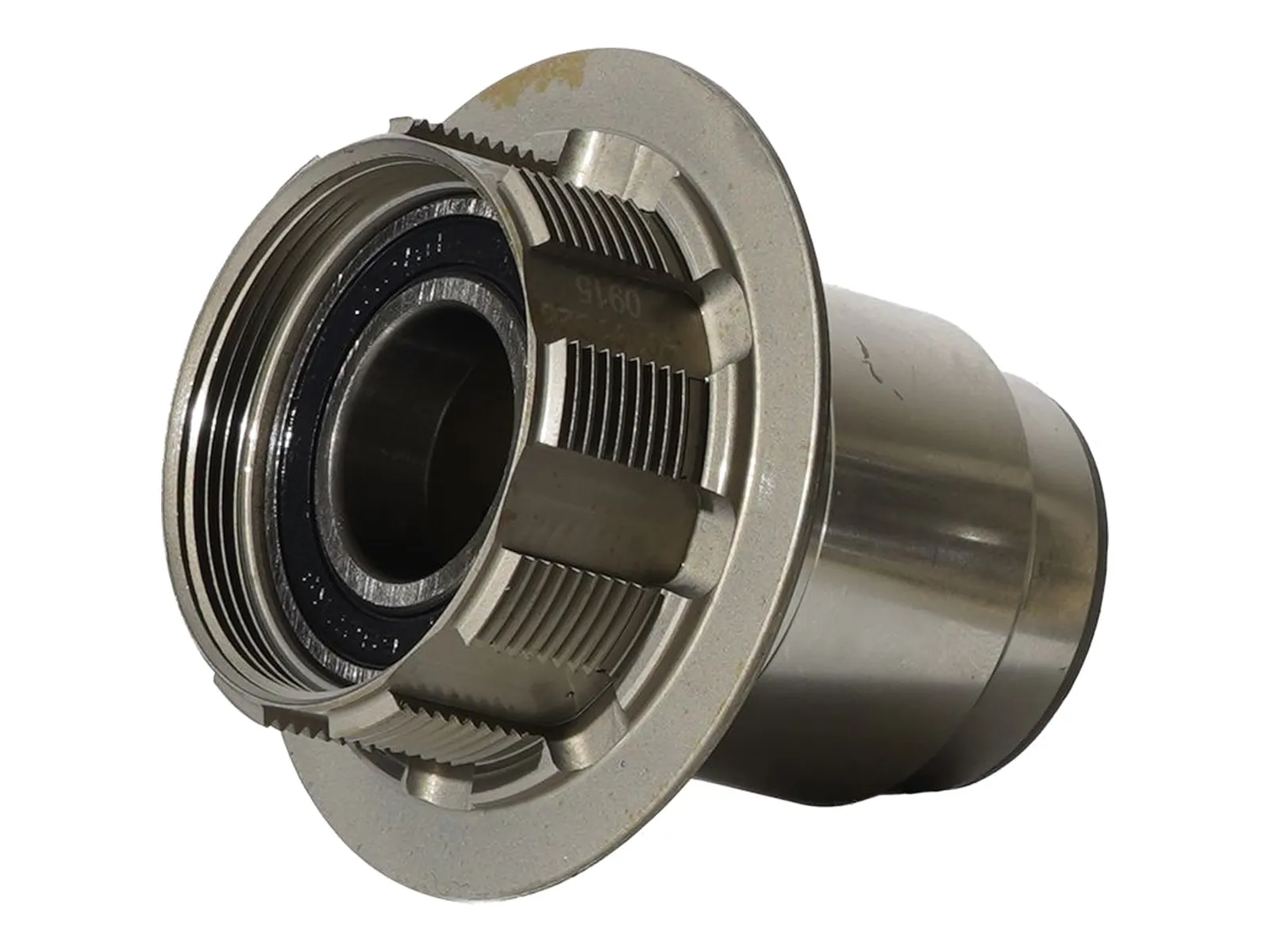

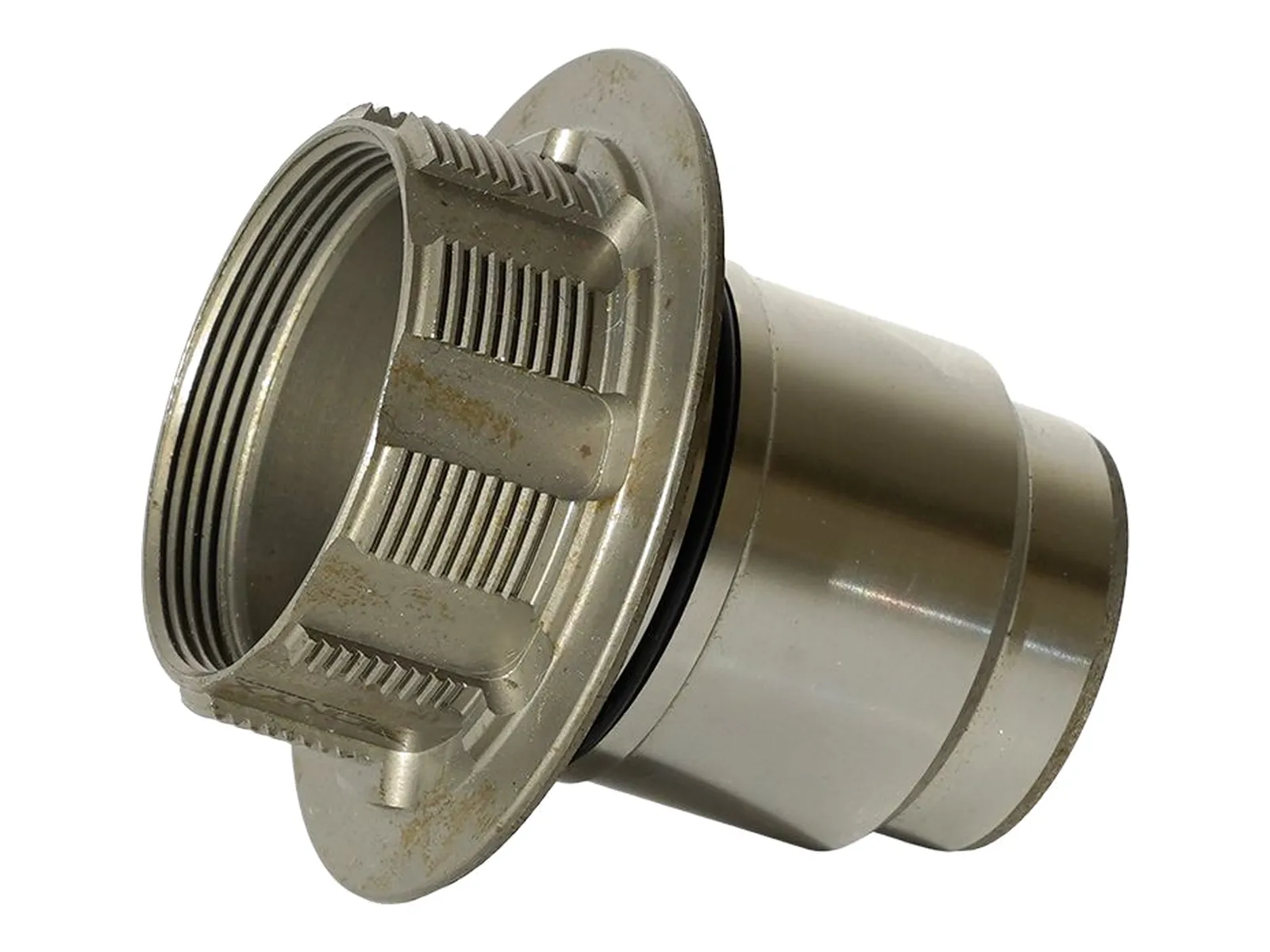

The Onyx "Ultra" BMX Race Driver is the replacement freehub body for Onyx Ultra rear hubs. It is made of aluminum and takes Shimano standard cogs. The clutch bearing is not included, it has its own Onyx part number and is sold separately.

Onyx built the Ultra hub in three generations (old version, Retrofit and New Clutch), and the matching driver depends on the generation and the axle. Choose the version as an option: Retrofit with bearings for the 10mm axle (Onyx part 105623) or for the 15mm thru axle (Onyx part 105624), Retrofit without bearings (Onyx part 105625), with bearings for the old and the New Clutch version with 10mm axle (Onyx part 96213) or with 15mm thru axle (Onyx part 96214) and without bearings for the old and the New Clutch version (Onyx part 40195). The Onyx parts list shows which generation your hub is.

Onyx hubs need regular maintenance to keep working properly. A bike shop can help you with the replacement.

Facts: Onyx "Ultra" BMX Race Driver

Product Type: driver (Shimano standard freehub body)
Material: aluminum
Compatibility:
- Onyx Ultra Retrofit rear hubs with 10mm axle (version Retrofit with bearings, Onyx part 105623)
- Onyx Ultra Retrofit rear hubs with 15mm thru axle (version Retrofit with bearings, 15mm thru axle, Onyx part 105624)
- Onyx Ultra Retrofit rear hubs (version Retrofit without bearings, Onyx part 105625)
- Onyx Ultra rear hubs in the old and the New Clutch version with 10mm axle (version Old and New Clutch with bearings, Onyx part 96213)
- Onyx Ultra rear hubs in the old and the New Clutch version with 15mm thru axle (version Old and New Clutch with bearings, 15mm thru axle, Onyx part 96214)
- Onyx Ultra rear hubs in the old and the New Clutch version (version Old and New Clutch without bearings, Onyx part 40195)
Content: 1 piece
Extras: 6902 bearings on the versions with bearings for the 10mm axle, 17287 bearings on those for the 15mm thru axle, clutch bearing not included
