Premium "1948 Spline Drive" BMX Crank + 28T Sprocket

Name: Premium "1948 Spline Drive" BMX Crank + 28T Sprocket - chrome | 175mm
Brand: Premium
SKU: 8676-1-75,3-248
Price: 138.61 EUR
Availability: InStock

from 129.37 EUR

Taxfree excl. shipping

Color | lenght

Please Select
- - black | 175mm129.37 EUR
  - chrome | 175mm138.61 EUR

Qty.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Stuttgart	Please select a product option! pick up date after order ready to pick up in 2-5 working days in stock (ready for pick up) ready to pick up from DATE
Berlin	Please select a product option! pick up date after order ready to pick up in 2-5 working days in stock (ready for pick up) ready to pick up from DATE

Weight (in kg): 0.9
Weight (in lbs): 1.98
Packaging Unit: 1 Set
Product ID (PID): 8676

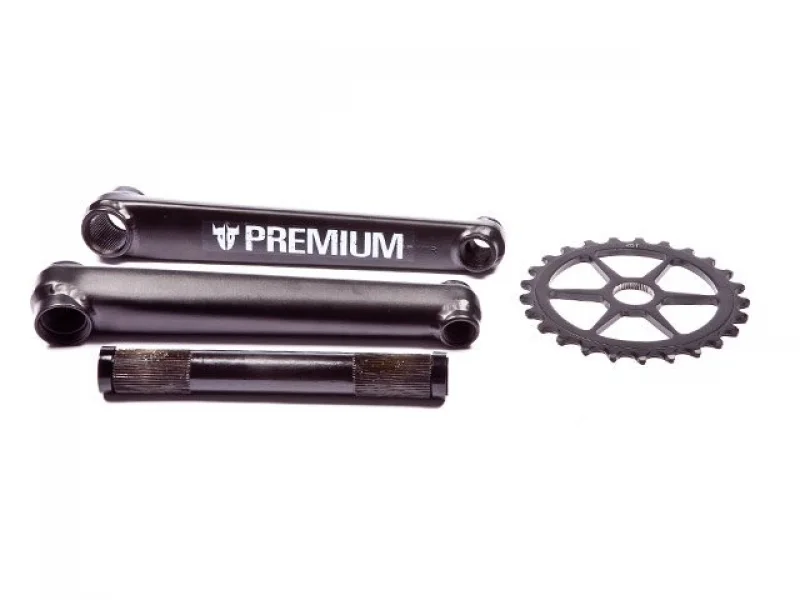

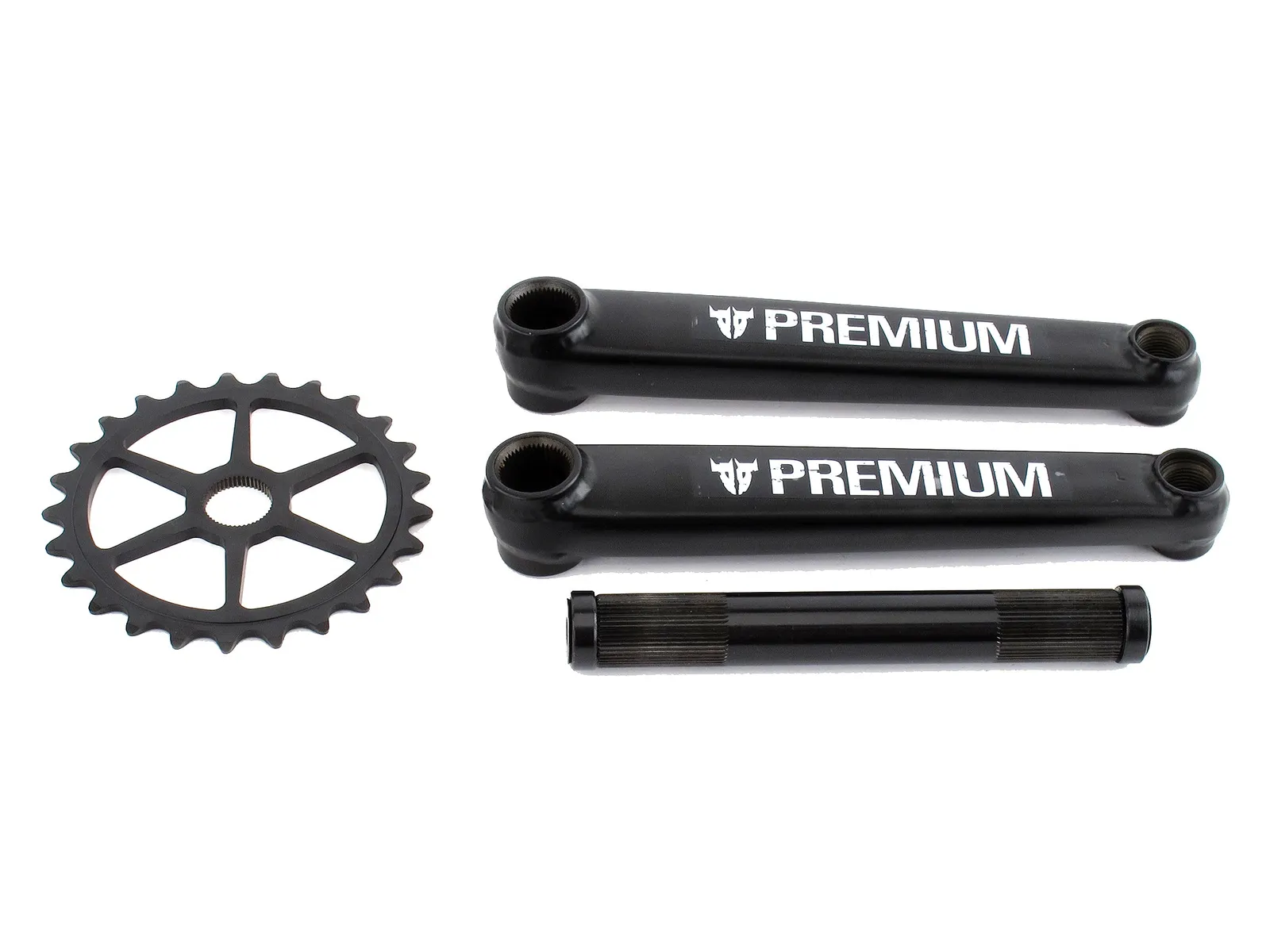

The Premium "1948 Spline Drive" BMX Crank + 28T Sprocket is a stable and classic 3-pc crank made of 100% heat treated 4130 CrMo with a 48 spline hollow spindle with a diameter of 19mm. The crank arms of this Premium "1948 Spline Drive" BMX Crank + 28T Sprocket have a flattened backside and the areas of the axle and the pedal recording are fully welded around to ensure maximum stability. The sprocket is mounted via the Spline Drive System directly on the crank axle with the included 28T sprocket.

Facts: Premium "1948 Spline Drive" BMX Crank + 28T Sprocket

Material Crank Arms: 4130 CrMo, heat treated
Material Crank Spindle: 4130 CrMo, heat treated
Crank-Type: 3-piece
Crank Arm Length: 175mm
Spindle Diameter: 19mm
Spindle-Type: 48-Spline, hollow axle
possible Sprocket Mount by:
Spline-Drive: right (RHD) and left (LHD)
Pedal Threat: for 9/16" pedals
Spindle Bolt: 2x bolts (10x1mm, 19mm Axle) with 8mm
Extras: Surround welded axle and pedal jacks, flattened arms, including 28T CrMo spline drive sprocket
Recommended for: Street, Park or Trails
