Pride Racing "Interlock BB86 Ceramic" Bottom Bracket
- Weight : 0.1kg / 0.22lbs
- Packaging Unit: 1 Set
- Product ID (PID): 28733
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/pride-racing-interlock-bb86-ceramic-bottom-bracket-p-28733
Printed: 10/21/2026
Printed: 10/21/2026

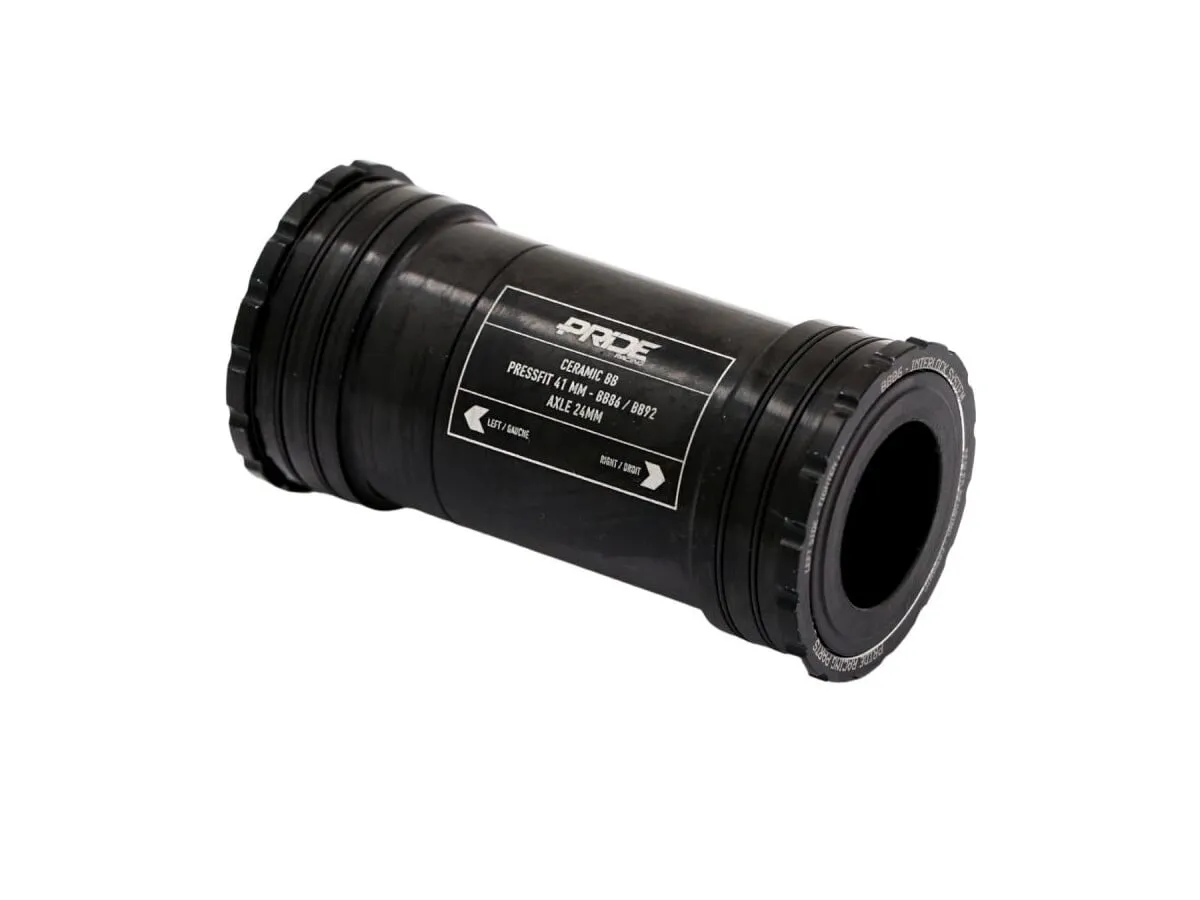

The Pride Racing "Interlock BB86 Ceramic" Bottom Bracket is the ceramic version of the BB86 Interlock bottom bracket for BMX race frames with a BB86 shell (41mm inner diameter, 86mm wide), made for cranks with a 24mm spindle. The two cups of CNC-machined 7075-T6 aluminum thread into each other through the shell and are tightened with a Shimano Hollowtech II tool, no press required. Inside run two sealed ceramic bearings with four additional seals that turn more freely than steel bearings and give noticeably less resistance when you get on the pedals. The Pride Racing "Interlock BB86 Ceramic" Bottom Bracket weighs 108g and is supplied without crank.
Facts: Pride Racing "Interlock BB86 Ceramic" Bottom Bracket
- Style: BB86 (pressfit shell, interlock cups)
- Outside diameter: 41mm (BB86)
- Axle Diameter: 24mm
- Bearings: 2 x sealed bearings (sealed ceramic bearings)
- Extras:
- Model: Pride BB86 Interlock
- Cups: 7075-T6 aluminum, CNC-machined, black anodized
- Interlock: the two cups thread into each other through the shell (Shimano Hollowtech II tool), no press needed
- for frames with BB86 shell only (41mm inner diameter, 86mm width)
- 4 seals
- Weight: 108g
